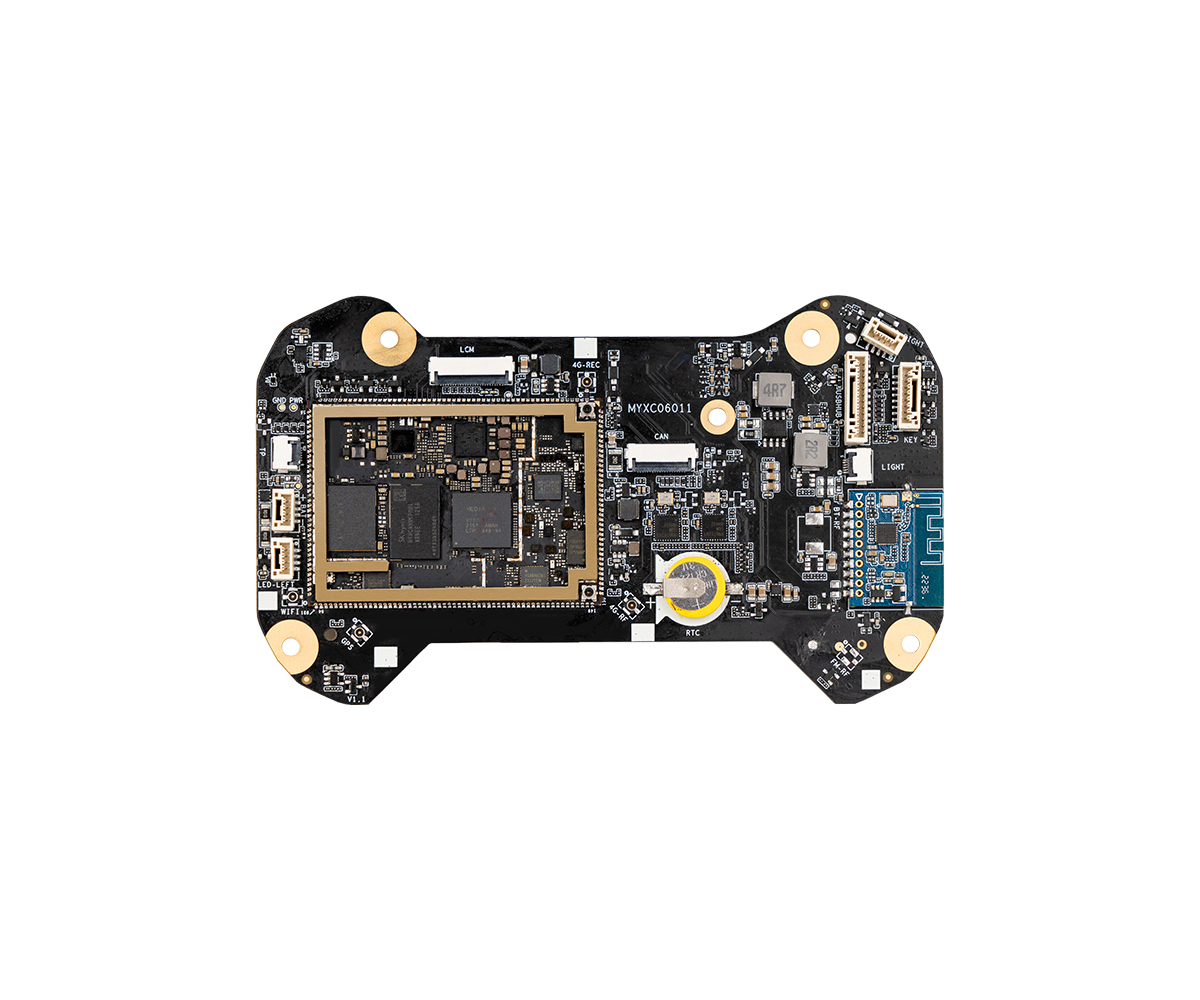

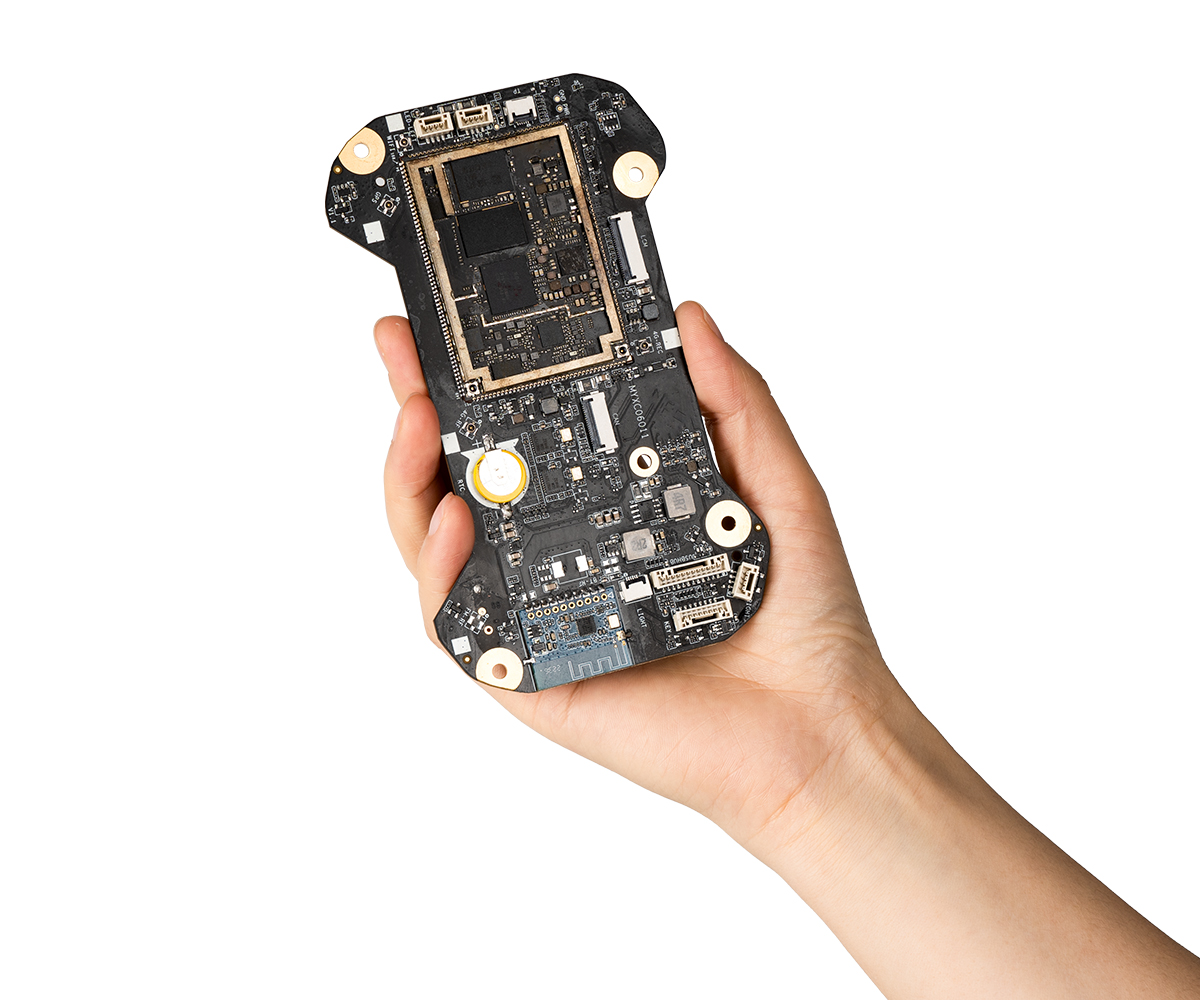

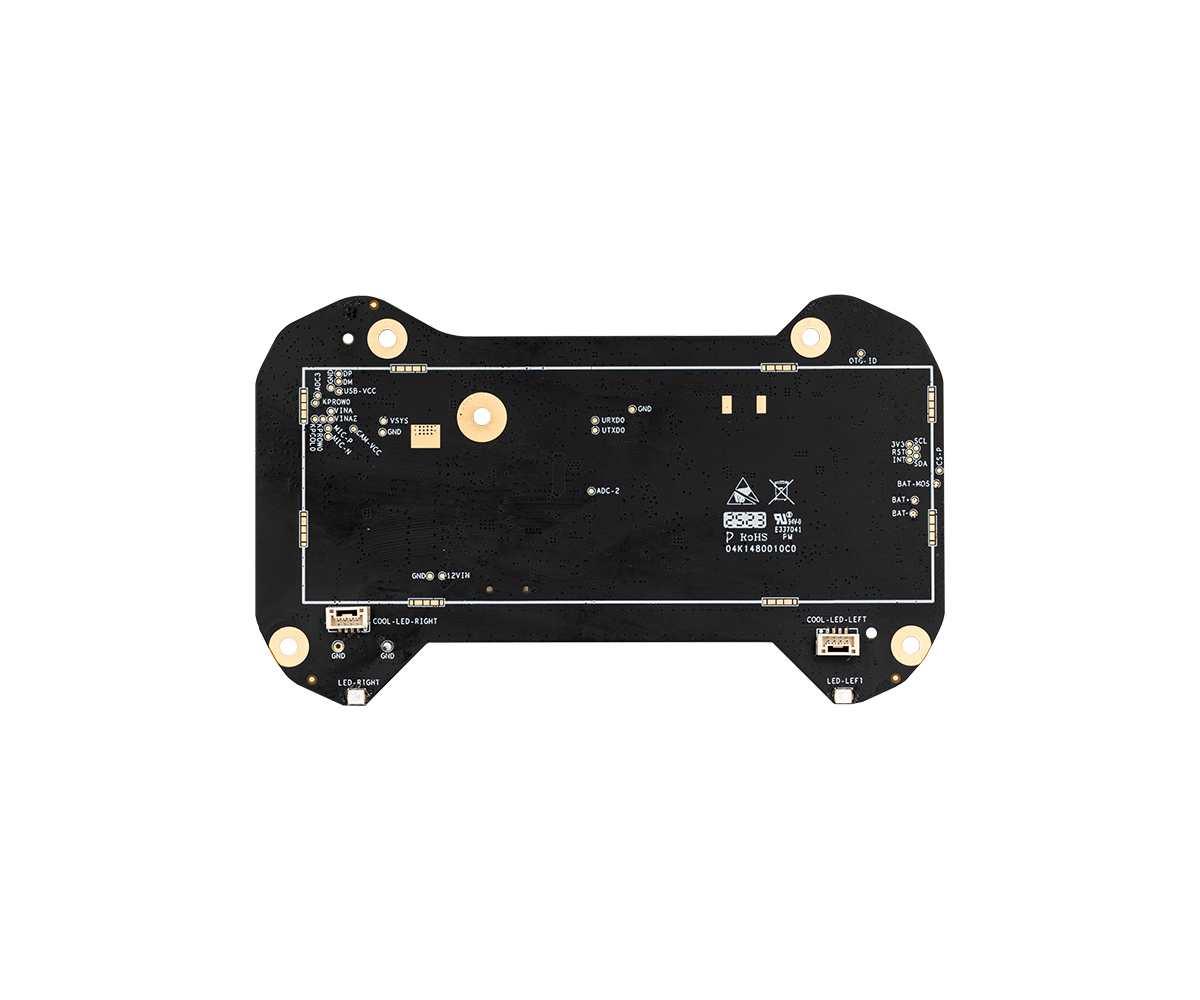

MT8788 SOM and Carrier Board: Driving Automotive Innovation

MT8788, 4 x A73 + 4 x A53, .0GHz,12nm
GPU ARM@Mali-G72 MP3 800MHz, 3D Graphics
OpenGL ES3.2/OpenCL 2.x/Vulkan1.0

Inquiry Ask for A Demo

W68

MT8788, 4 x A73 + 4 x A53, .0GHz,12nm
GPU ARM@Mali-G72 MP3 800MHz, 3D Graphics
OpenGL ES3.2/OpenCL 2.x/Vulkan1.0

PRODUCT DETAIL

W68

SOC

EMMC5.1 64G/128G
Connectivity

Wifi,802.11a/b/g/n/ac
Bluetooth 5.0
GPS+Glonass+Beidou+Galileo
FM Receiver
Interface

Other Interfaces
Can-bus

Specification

OS

Android
SOC

MT8788, 4 x A73 + 4 x A53, .0GHz,12nm
GPU ARM@Mali-G72 MP3 800MHz, 3D Graphics
OpenGL ES3.2/OpenCL 2.x/Vulkan1.0
ROM

EMMC5.1 64G/128G
Media

Decode:1080P@30fps/40Mbps, H.264/H.265/MP4
Encoded:1080P@30fps/40Mbps, H.264
Display

4-Lane MIPI-DSI，2400 x 1080@60fps
LTE

TDD/FDD，LTE Cat7
WCDMA

WCDMA
GSM

GSM
Connectivity

Wifi,802.11a/b/g/n/ac
Bluetooth 5.0
GPS+Glonass+Beidou+Galileo
FM Receiver
Micro SD Card

Micro SD card, up to 128GB
Audio

Camera.
4-Lane MIPI CSI x 2,MIPI to AHD
Camera ISP,32MP@30fps,AE/AWB/AF.
PIP(16MP+16MP)@30fps
Interface

Other Interfaces
Can-bus
Input Power

Li-Battery Supply,12V Charger
PCB

Size: 54 x 82 x 1.2mm
Process:8-layers HDI Immersion Gold
Package:MXM3.0（314 PIN，0.5mm pitch)
Environment

Operating temperature -20°C ~ 60°C
