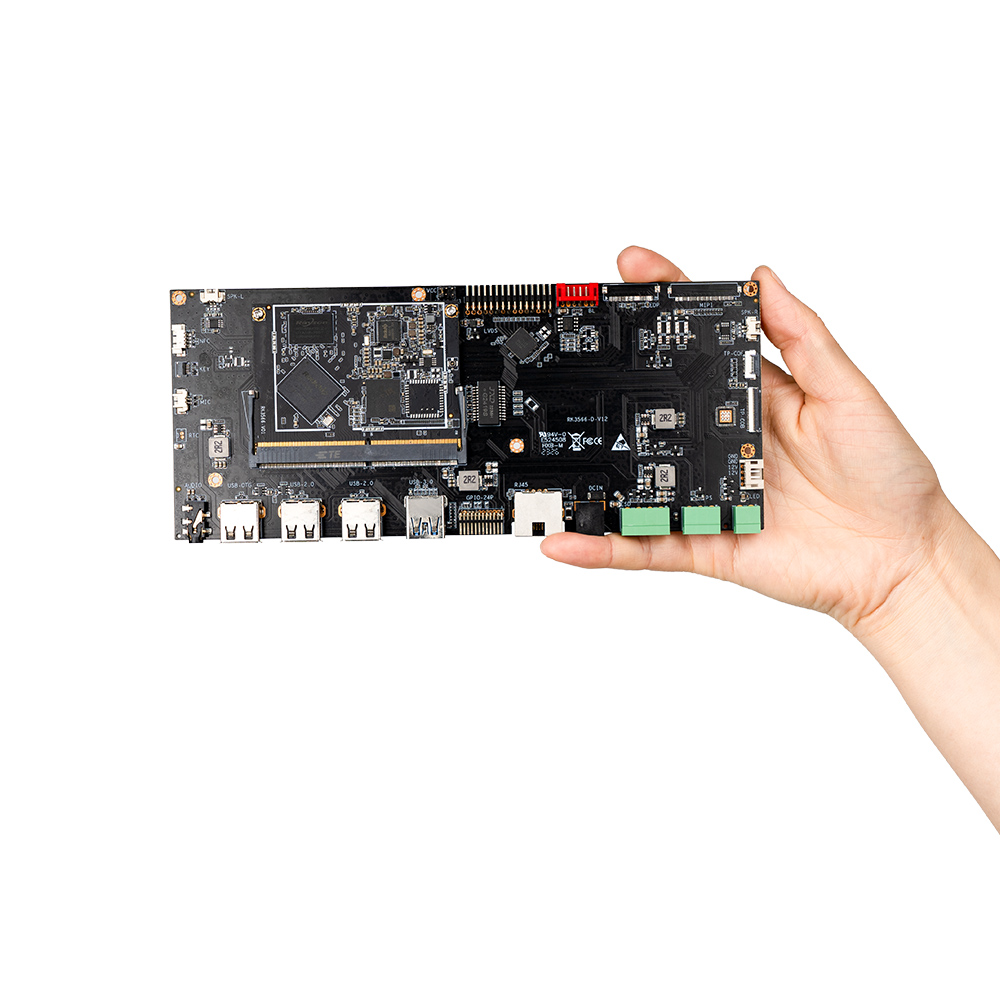

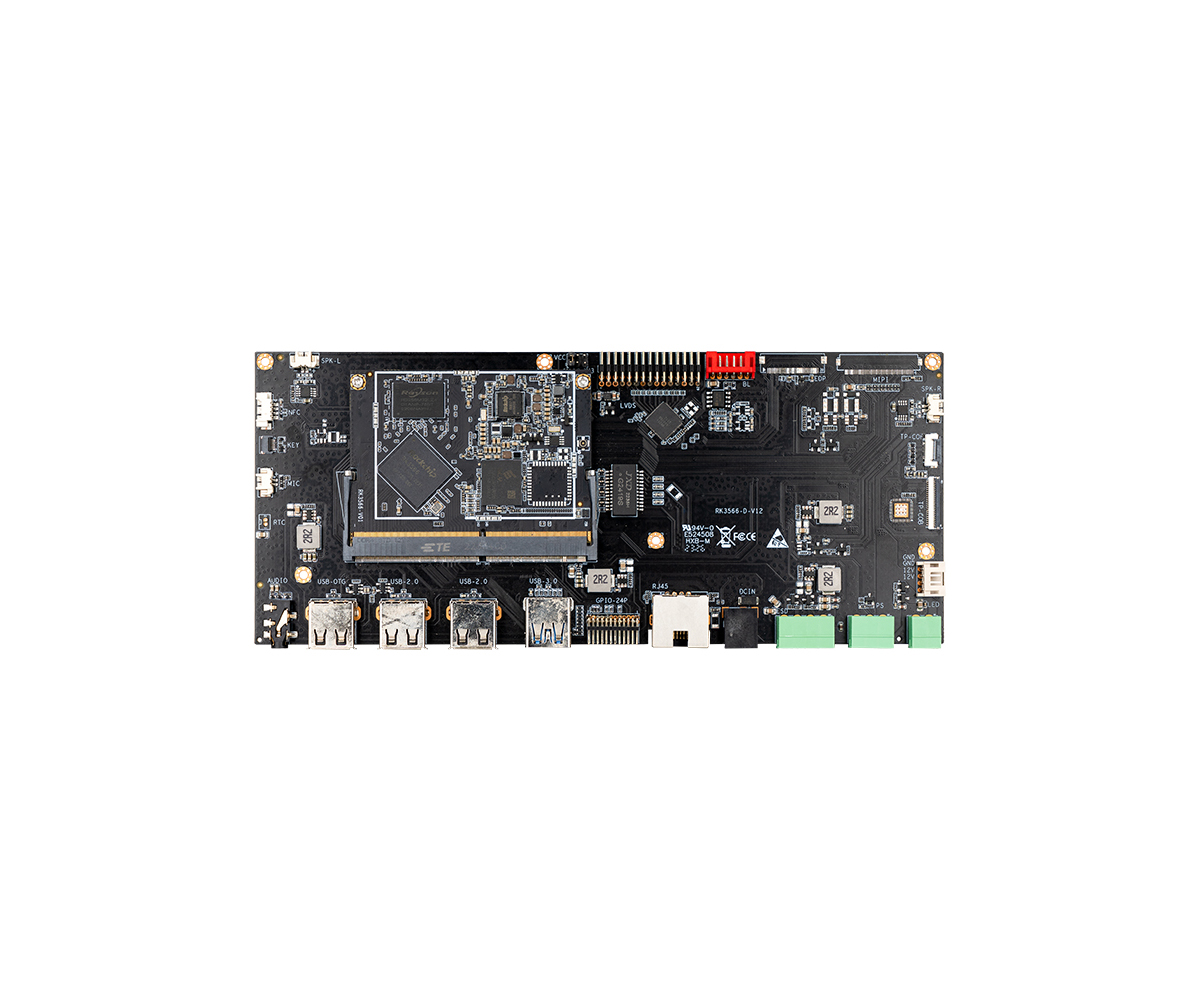

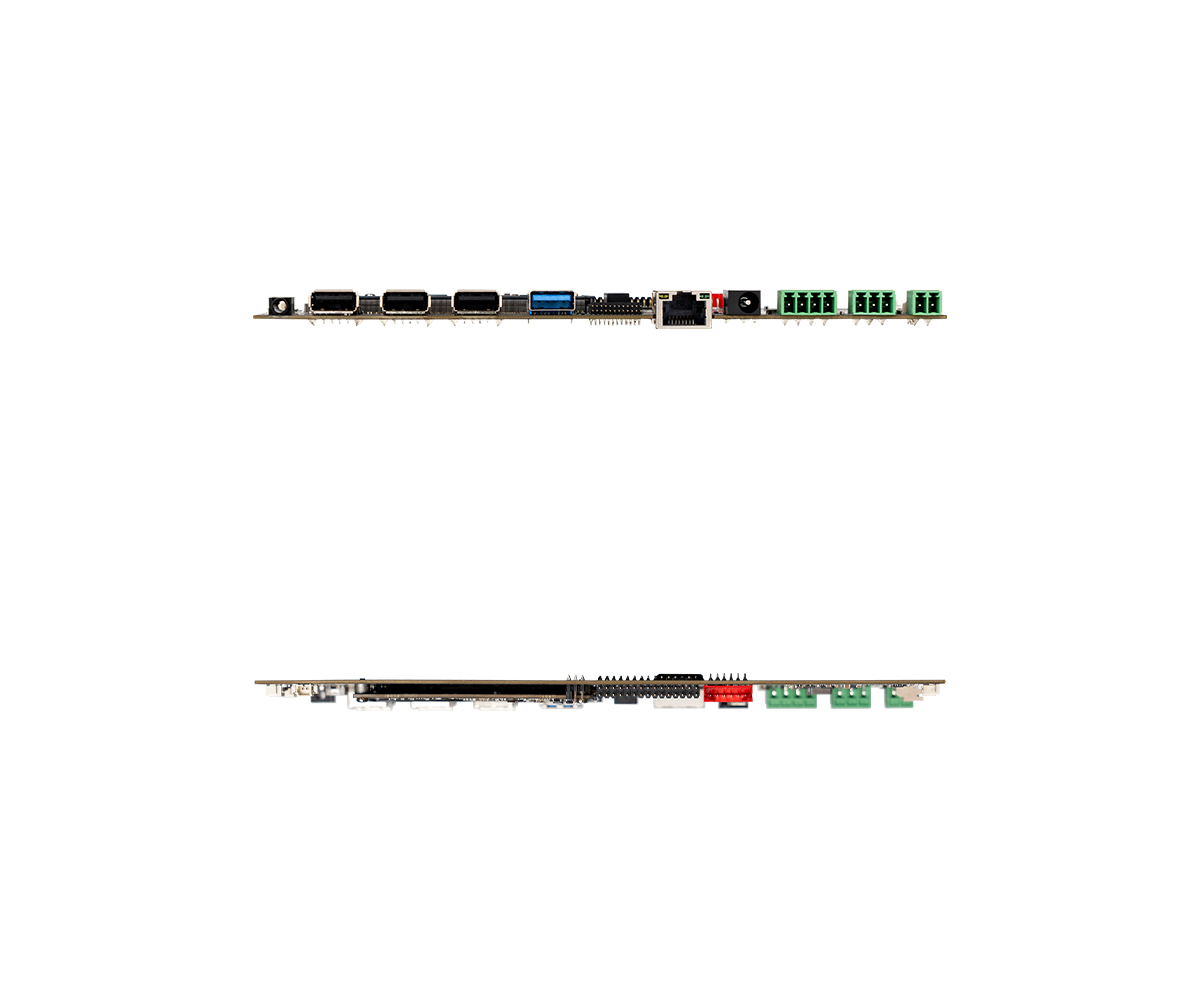

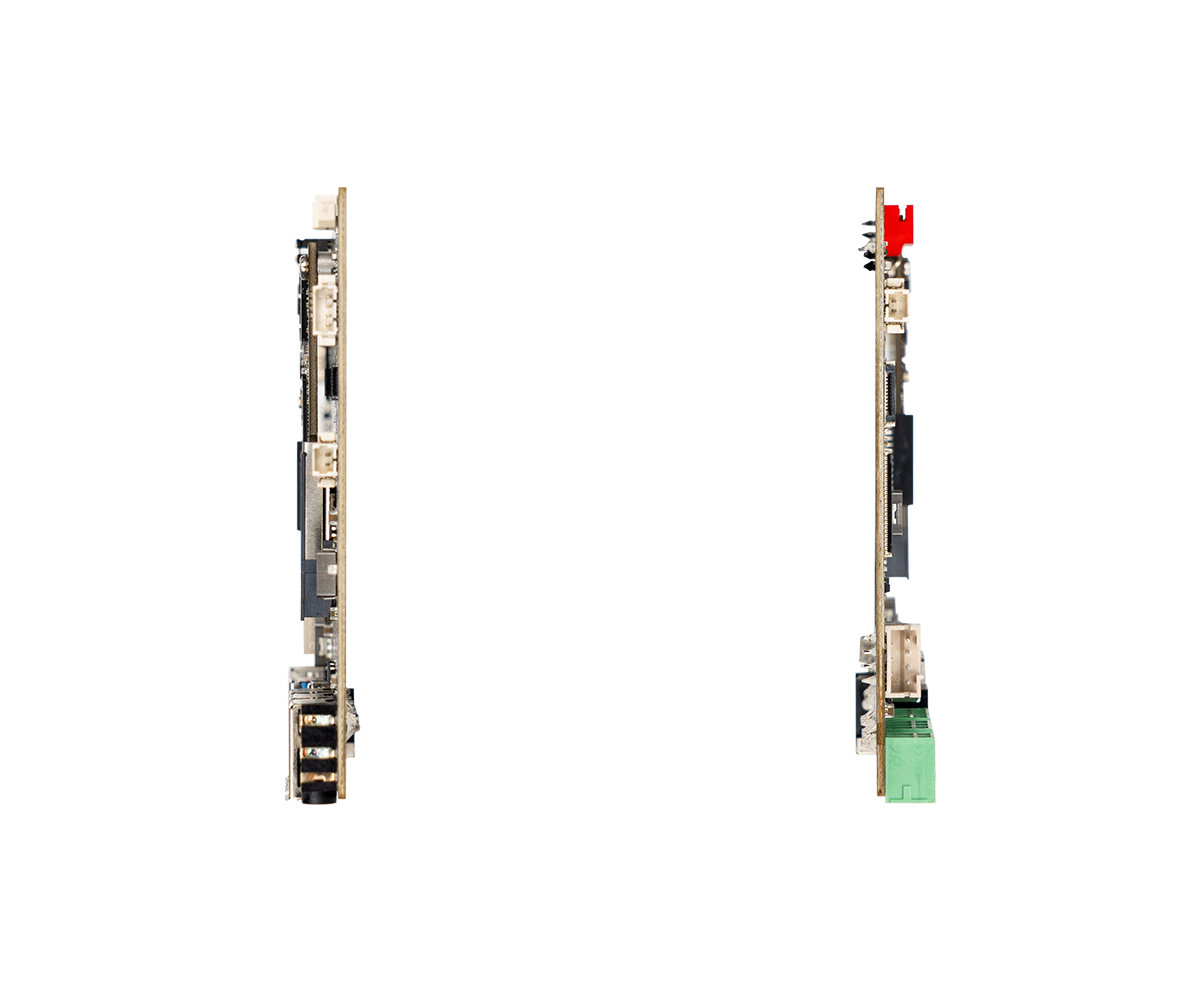

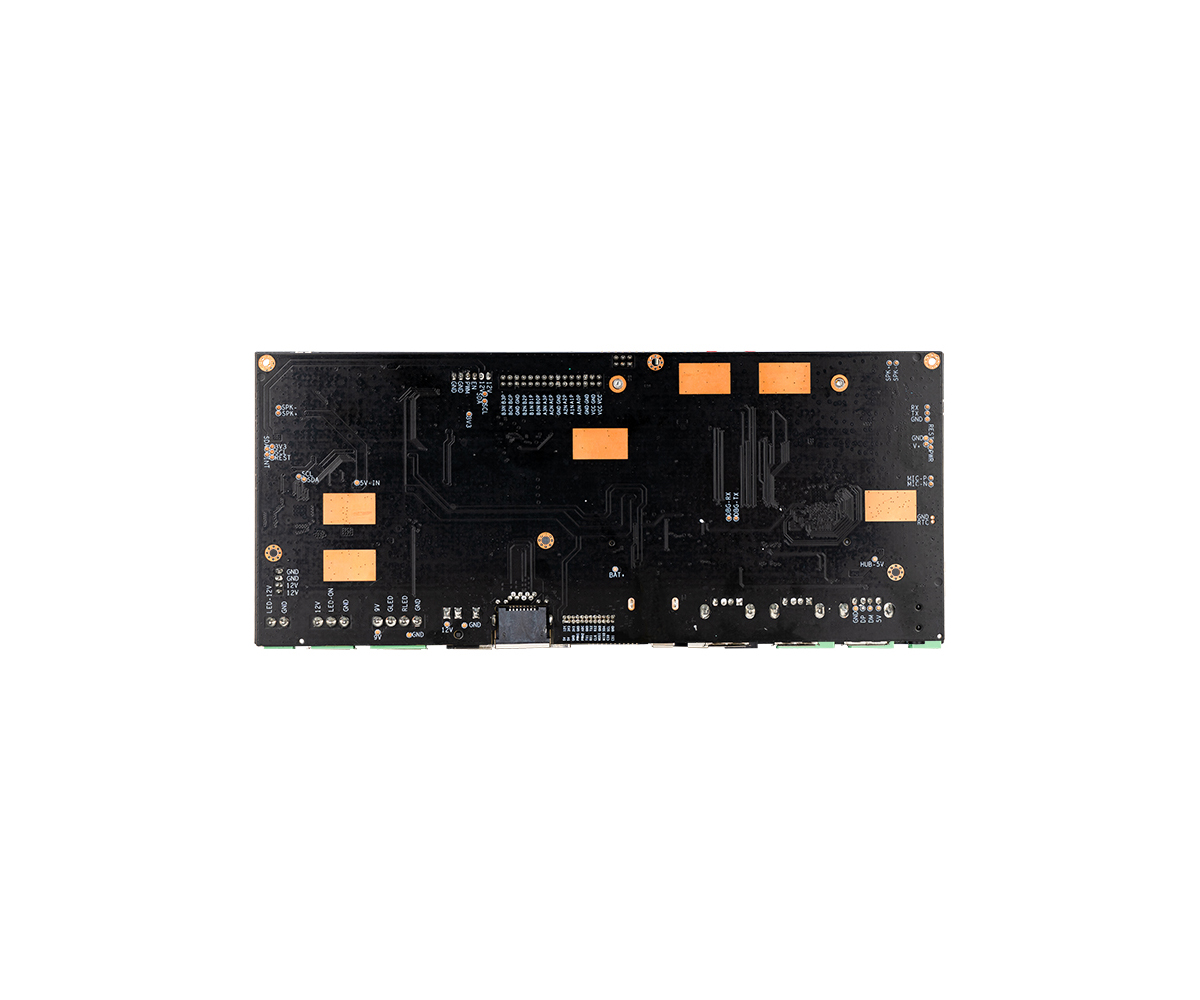

RK3566 SBC Custom Solutions for NFC, Video Monitoring, and MAS System Integration

RK3566, 4 x Cortex-A55, 1.8G, 22nm
GPU ARM G52 2EE, 0.8 TOPS NPU

Inquiry Ask for A Demo

ESOP

RK3566, 4 x Cortex-A55, 1.8G, 22nm
GPU ARM G52 2EE, 0.8 TOPS NPU

PRODUCT DETAIL

ESOP

SOC

LPDDR4 2G/3G/4G/6G/8G
Connectivity

WiFi5,802.11a/b/g/n/ac
Bluetooth 5.0
Interface

Extend interface:
NFC Reader/Static Module/Video Surveillance
Light Alarm / Diffuse Light Type Electric Switch / Tricolour Light + Buzzer

GPIO -24pin:
UART/SPI/PWM/I2C/ADC/PWR/RESET/3.3V etc.

Specification

OS

Android/Linux
Connecting to the MAS server
SOC

RK3566, 4 x Cortex-A55, 1.8G, 22nm
GPU ARM G52 2EE, 0.8 TOPS NPU
RAM

LPDDR4 2G/3G/4G/6G/8G
ROM

EMMC5.1 32G/64G
Media

4K 60fps H.265/H.264/VP9 decode
1080P 100fps H.265/H.264 codec
Display

MIPI，4-Lane MIPI-DSI，1920 x 1200@60fps
EDP，2-lane EDP，1920 x 1080@60fps
Dual-LVDS , 1920 x 1080@60fps
HDMI-out，HDMI2.0，1080p@60fps，upto 4K@60fps
Ethernet

100Mbps Ethernet port
Connectivity

WiFi5,802.11a/b/g/n/ac
Bluetooth 5.0
USB

USB3.0 HOST x 1
USB2.0 HOST x 3 (One port with OTG）
Micro SD Card

Micro SD card, up to 128GB
Audio

speaker x 2
headphone x 1
Microphone x 1
Interface

Extend interface:
NFC Reader/Static Module/Video Surveillance
Light Alarm / Diffuse Light Type Electric Switch / Tricolour Light + Buzzer

GPIO -24pin:
UART/SPI/PWM/I2C/ADC/PWR/RESET/3.3V etc.
Input Power

DC 12V/3A
PCB

NA
Environment

Operating temperature-20°C ~ 60°C

Inquriy
