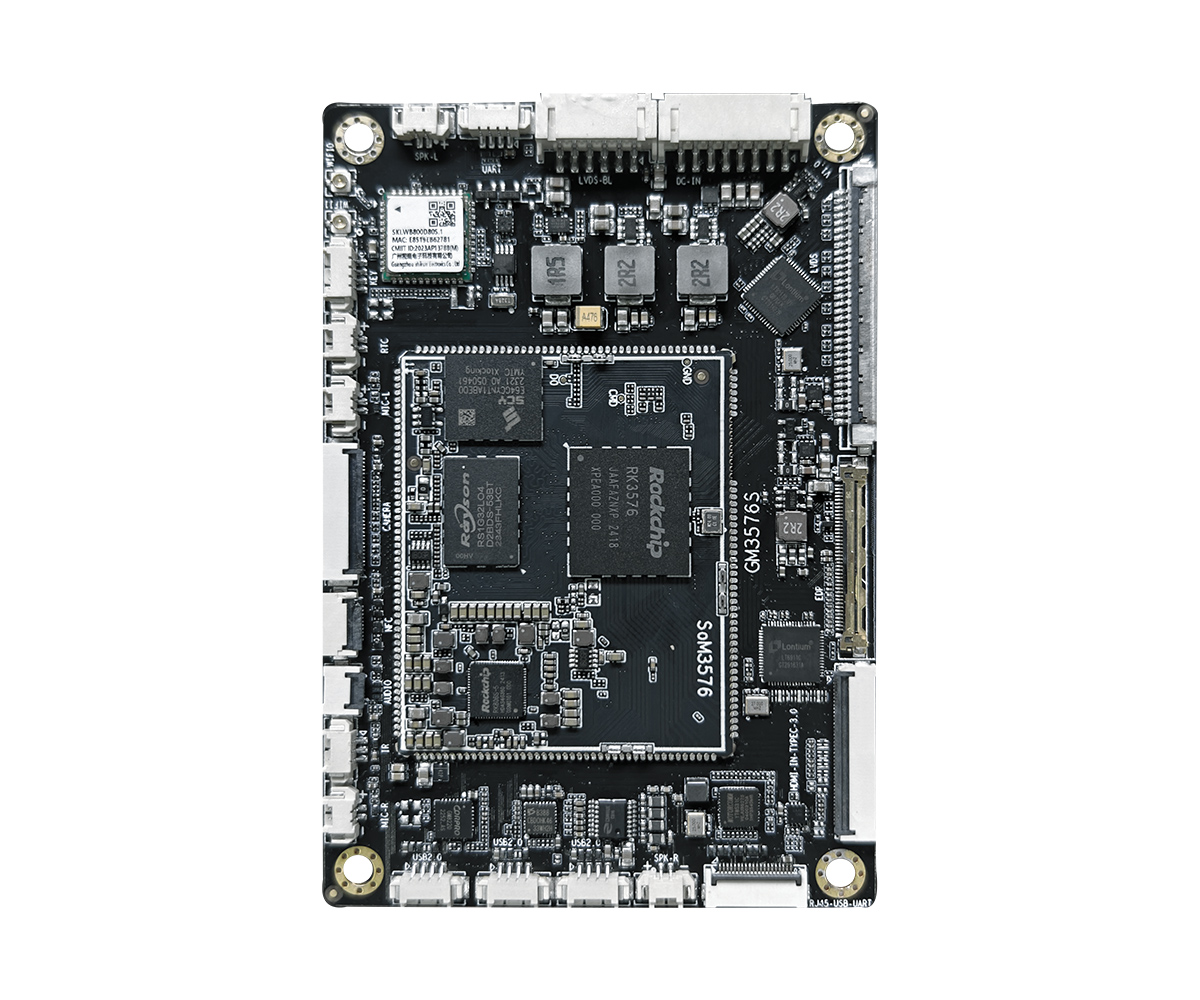

RK3576 SOM Carrier Board – Customizable OEM/ODM for AI, IoT, and Edge Applications
RK3576, 4 x Cortex-A72 + 4 x Cortex-A53 2.3GHz, 8nm
GPU ARM Mali-G52 MC3
OpenGL ES3.2/OpenCL 2.0/Vulkan1.1
6.0TOPS NPU, INT4,INT8,INT16, float16, Bfloat 16 and tf32 operation
Supports deep learning framework：TensorFlow, Caffe, Tflite, Pytorch, Onnx NN，Android NN, etc.
GPU ARM Mali-G52 MC3
OpenGL ES3.2/OpenCL 2.0/Vulkan1.1
6.0TOPS NPU, INT4,INT8,INT16, float16, Bfloat 16 and tf32 operation
Supports deep learning framework：TensorFlow, Caffe, Tflite, Pytorch, Onnx NN，Android NN, etc.
GM3576S
RK3576, 4 x Cortex-A72 + 4 x Cortex-A53 2.3GHz, 8nm
GPU ARM Mali-G52 MC3
OpenGL ES3.2/OpenCL 2.0/Vulkan1.1
6.0TOPS NPU, INT4,INT8,INT16, float16, Bfloat 16 and tf32 operation
Supports deep learning framework：TensorFlow, Caffe, Tflite, Pytorch, Onnx NN，Android NN, etc.
GPU ARM Mali-G52 MC3
OpenGL ES3.2/OpenCL 2.0/Vulkan1.1
6.0TOPS NPU, INT4,INT8,INT16, float16, Bfloat 16 and tf32 operation
Supports deep learning framework：TensorFlow, Caffe, Tflite, Pytorch, Onnx NN，Android NN, etc.
PRODUCT DETAIL
GM3576S
-
SOCRK3576, 4 x Cortex-A72 + 4 x Cortex-A53 2.3GHz, 8nm
GPU ARM Mali-G52 MC3
OpenGL ES3.2/OpenCL 2.0/Vulkan1.1
6.0TOPS NPU, INT4,INT8,INT16, float16, Bfloat 16 and tf32 operation
Supports deep learning framework：TensorFlow, Caffe, Tflite, Pytorch, Onnx NN，Android NN, etc. -
ConnectivityWIFI6 802.11a/b/g/n/ac/ax，
Bluetooth5.2 -
Interface2 x UART, one for debug (4Pin-PH1.25)
2 x Speaker Interface, 10W (2Pin-PH1.25)
2 x Mic connector (2Pin-PH1.25)
1 x Key connector (4Pin-PH1.25)
1 x TP-CoF/NFC connector (10Pin-FPC-0.5mm)
1 x RTC Battery connector (2Pin-PH1.25)
1 x mipi-camera (30Pin-FPC-0.5mm)
Specification
-
OSAndroid14
-
SOCRK3576, 4 x Cortex-A72 + 4 x Cortex-A53 2.3GHz, 8nm
GPU ARM Mali-G52 MC3
OpenGL ES3.2/OpenCL 2.0/Vulkan1.1
6.0TOPS NPU, INT4,INT8,INT16, float16, Bfloat 16 and tf32 operation
Supports deep learning framework：TensorFlow, Caffe, Tflite, Pytorch, Onnx NN，Android NN, etc. -
RAMLPDDR4 4G/8G/16G
-
ROMEMMC5.1 64G/128G/256G
-
MediaDecode:
4K@60fps H.264/AVC
8K@30fps or 4K@120fps H.265/HEVC/VP9/AVS2/AV1
1080@60fps H264/MVC
Encoded:
Dual video encoders which support H.265 and H.264
H.264 and H.265 up to 4K@60fps
Supports multi-stream encoding -
Display1 x eDP1.3 Combo TX, up to 4K@120Hz
1 x dual-LVDS up to 1920x1080@60hz
1 x DisplayPort 1.4@ 4K60/USB3.2 gen1x1 Combo TX
1 x HDMI-IN,1920x1080@60hz -
Ethernet1000M Ethernet x 1
-
ConnectivityWIFI6 802.11a/b/g/n/ac/ax，Bluetooth5.2
-
USB1 x Type-C,USB3.2 gen1，with OTG & DP-out（30Pin-FPC-0.5mm）
3 x USB Host 2.0(3 x 4Pin-PH1.25) -
Micro SD CardNA
-
AudioSpeaker x 2
Microphone x 2 -
Interface2 x UART, one for debug (4Pin-PH1.25)
2 x Speaker Interface, 10W (2Pin-PH1.25)
2 x Mic connector (2Pin-PH1.25)
1 x Key connector (4Pin-PH1.25)
1 x TP-CoF/NFC connector (10Pin-FPC-0.5mm)
1 x RTC Battery connector (2Pin-PH1.25)
1 x mipi-camera (30Pin-FPC-0.5mm) -
Input Power12V@2A
-
PCBSize: 75 x 110 x 1.6mm
Process: SoM + carried Board -
EnvironmentOperating temperature -20°C ~ 60°C
