RK3568 SOM and Carrier Board: Empowering Diverse Display Applications
RK3568, 4 x Cortex-A55, 2.0GHz, 22nm
GPU ARM G52 2EE, 1 TOPS NPU
GPU ARM G52 2EE, 1 TOPS NPU
T68S
RK3568, 4 x Cortex-A55, 2.0GHz, 22nm
GPU ARM G52 2EE, 1 TOPS NPU
GPU ARM G52 2EE, 1 TOPS NPU
PRODUCT DETAIL

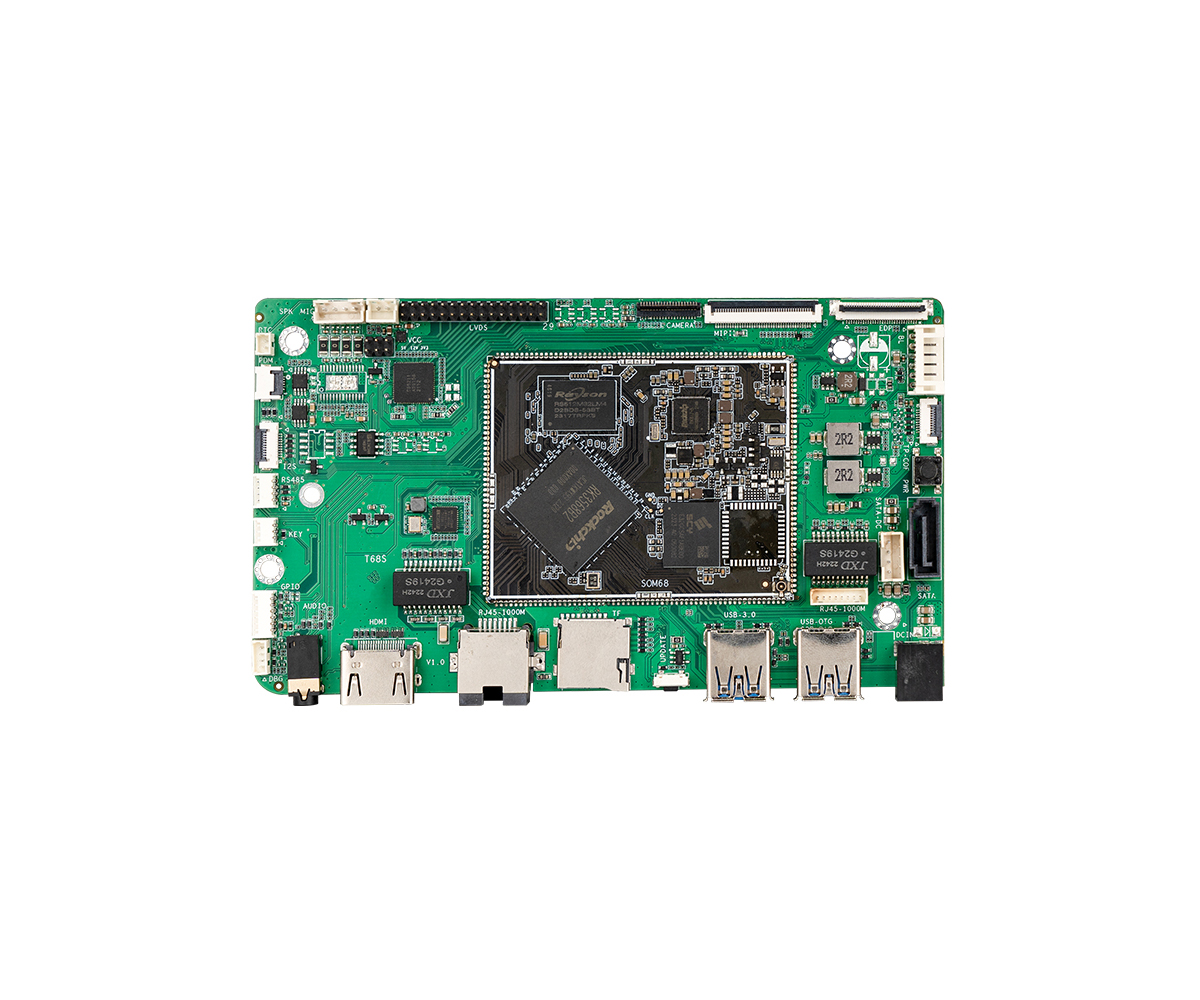

T68S
-
SOCRK3568, 4 x Cortex-A55, 2.0GHz, 22nm
GPU ARM G52 2EE, 1 TOPS NPU -
ConnectivityWiFi5,802.11a/b/g/n/ac，Bluetooth 5.0 -
InterfaceSATA3.0/PCIE3.0/RS485/GPIO etc.
Specification
-
OSAndroid/Linux
-
SOCRK3568, 4 x Cortex-A55, 2.0GHz, 22nm
GPU ARM G52 2EE, 1 TOPS NPU -
RAMLPDDR4 2G/3G/4G/6G/8G
-
ROMEMMC5.1 32G/64G
-
Media4K 60fps H.265/H.264/VP9 decode
1080P 100fps H.265/H.264 codec -
DisplayMIPI，2 x 4-lane MIPI-DSI, 1920x1200@60fps
EDP，4-lane EDP1.3, 3000x2000@60fps
Dual-LVDS, 1080P@60fps
HDMI-out，HDMI2.0，1080p@60fps，upto 4K@60fps
Camera，4-lane/2 x 2-lane, Camera ISP, 8MP@30fps HDR -
Ethernet1000M Ethernet (supports PoE with add-on PoE HAT)
-
ConnectivityWiFi5,802.11a/b/g/n/ac，Bluetooth 5.0
-
USBUSB3.0 HOST x 1
USB2.0 HOST x 3 (One port with OTG） -
Micro SD CardMicro SD card, up to 128GB
-
Audiospeaker 2 x 10W
headphone x 1
Microphone x 1
HDMI audio out -
InterfaceSATA3.0/PCIE3.0/RS485/GPIO etc.
-
Input PowerDC 12V@2A or PoE power supply
-
PCBSize: 80 x 142 x 1.6mm
Package:SoM+Carrier board -
EnvironmentOperating temperature -20°C ~ 60°C
