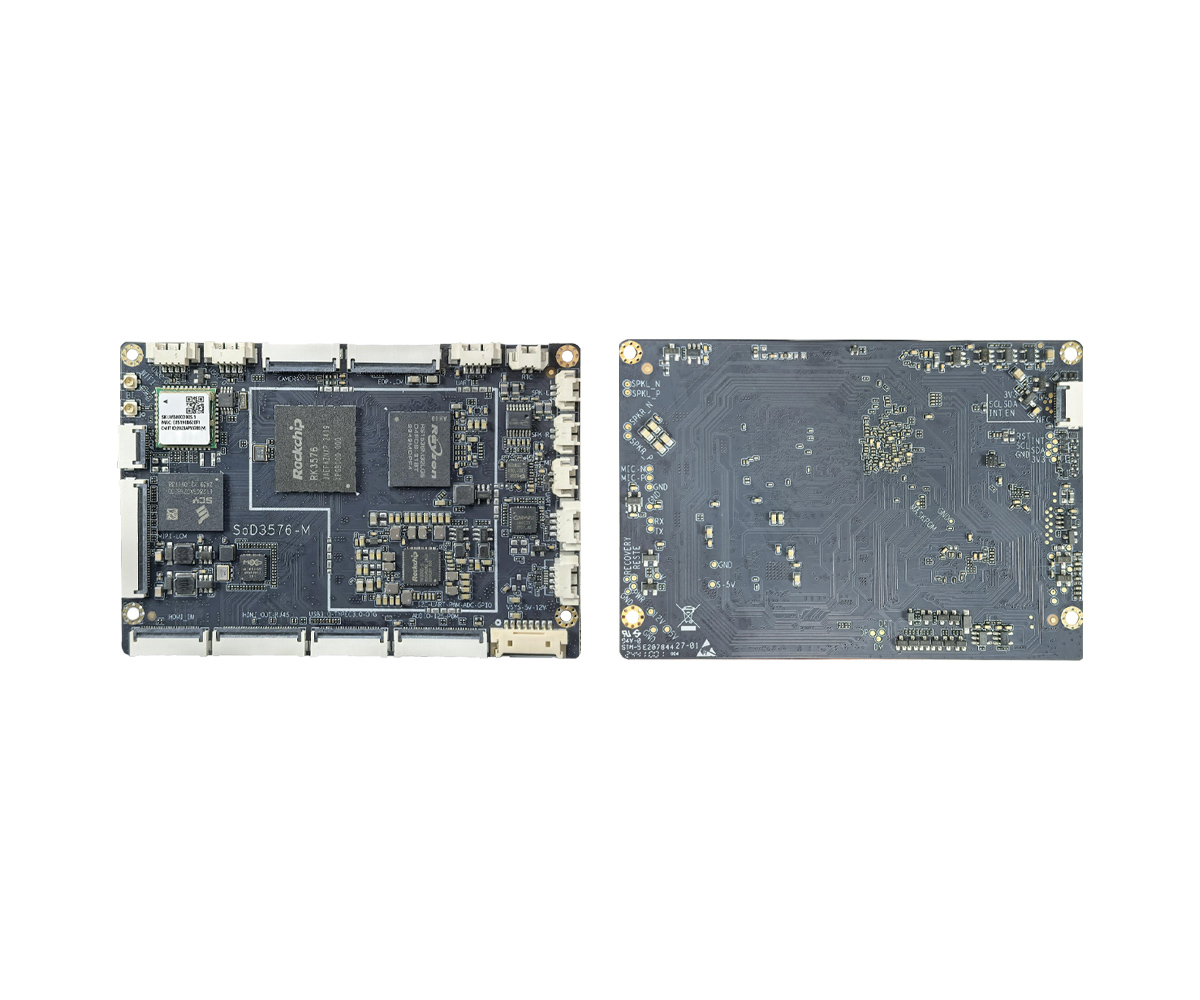

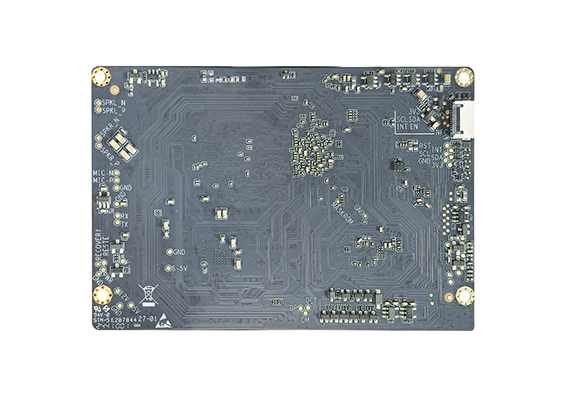

Pretech SBC RK3576: Powerful Single Board Computer

Model: SOD3576-M
The Pretech SBC RK3576, It offers various display interfaces like MIPI-DSI, eDP1.3, HDMI2.1, and DP1.4. It also supports 1000M Ethernet, WIFI6, Bluetooth5.2, Type-C USB3.0, USB3.0/SATA3.0, and 2 x USB Host 2.0. It includes Speaker x 2, Microphone x 1, 2 x UART, 2 x Speaker Interface, 1 x Mic connector, 1 x Key connector, 1 x TP-CoF connector, 1 x NFC connector, and 1 x RTC Battery connector. The power supply is VSYS-4V+5V+12V. The board has dimensions of 63x93x1.2mm, is manufactured using a 6-layer HDI process with immersion gold, and operates within a temperature range of -20°C to 60°C.
Inquiry Ask for A Demo
Pretech SBC RK3576: Powerful Single Board Computer

Pretech SBC RK3576 ODM Industry Applications

The Pretech SBC RK3576 is widely used in various ODM industry applications. In smart home, it serves as the core control board for devices like smart cameras and displays. In industrial automation, it acts as the control core for robots and production lines. In education, it is used to develop educational robots and interactive devices. In medical care, it is used in imaging equipment and telemedicine systems. It is also applicable in transportation, finance, and security fields, providing a reliable solution for intelligent applications.
Pretech SBC RK3576 ODM Industry Applications

PRODUCT DETAIL

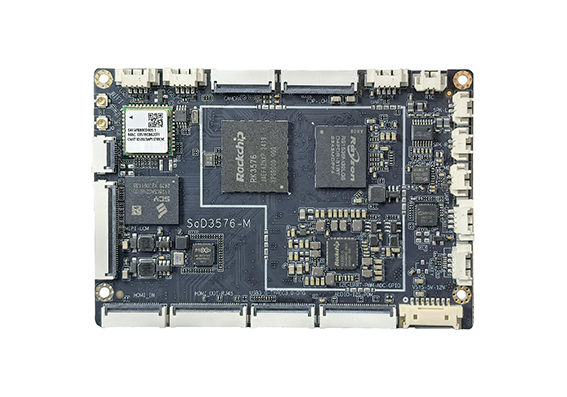

RK3576-SOD3576-M
  • RK3576, 4 x Cortex-A72 + 4 x Cortex-A53 2.3GHz, 8nm<br> GPU ARM Mali-G52 MC3<br> OpenGL ES3.2/OpenCL 2.0/Vulkan1.1<br> 6.0TOPS NPU, INT4,INT8,INT16, float16, Bfloat 16 and tf32 operation<br> Supports deep learning framework：TensorFlow, Caffe, Tflite, Pytorch, Onnx NN，Android NN, etc.
    SOC
    RK3576, 4 x Cortex-A72 + 4 x Cortex-A53 2.3GHz, 8nm
    GPU ARM Mali-G52 MC3
    OpenGL ES3.2/OpenCL 2.0/Vulkan1.1
    6.0TOPS NPU, INT4,INT8,INT16, float16, Bfloat 16 and tf32 operation
    Supports deep learning framework：TensorFlow, Caffe, Tflite, Pytorch, Onnx NN，Android NN, etc.
  • Connectivity
    Connectivity
    WIFI6 802.11a/b/g/n/ac/ax，Bluetooth5.2
  • 2 x UART, one for debug (4Pin-PH1.25)<br> 2 x Speaker Interface, 10W (2Pin-PH1.25)<br> 1 x Mic connector (2Pin-PH1.25)<br> 1 x Key connector (4Pin-PH1.25)<br> 1 x TP-CoFconnector (10Pin-FPC-0.5mm)<br> 1 x NFC connector (10Pin-FPC-0.5mm)<br> 1 x RTC Battery connector (2Pin-PH1.25)
    Interface
    2 x UART, one for debug (4Pin-PH1.25)
    2 x Speaker Interface, 10W (2Pin-PH1.25)
    1 x Mic connector (2Pin-PH1.25)
    1 x Key connector (4Pin-PH1.25)
    1 x TP-CoFconnector (10Pin-FPC-0.5mm)
    1 x NFC connector (10Pin-FPC-0.5mm)
    1 x RTC Battery connector (2Pin-PH1.25)

What We Do

We offer ODM solutions for certain customers who have specific needs which can’t be satisfied by existing devices on the market.
  • Tooling
    ID Design
    MD Design
  • Software
    Drive Debugging
    System Customization
    Debug Pre-installed applications
  • Hardware
    Schematic Diagrams Design
    PCB Layout
    Specific components design
    Bill of Materials output
    Gerber Files
    RF Design and Verification
    Assembly Drawings
    Test Specifications output
  • Accessories
    Smart Cover
    Docking Charging Station
    Charging Bracket/Dock
    Magnetic BackClip
    Wall Mount
    Stylus Pen
    And more

How We Do

We offer ODM solutions for certain customers who have specific needs which can’t be satisfied by existing devices on the market.
  • 01 Planning
    Market Survey
    Requirements Collection
    Competitiveness Analysis
    Technology Study
    Risk Analysis
    Component Life Cycle Survey
    Cost Evaluation
  • 02 Desgin
    ID Design
    MD Design
    Hardware
    OS
  • 03 Validation
    Trial Samples
    Software Customization
    Performance Tests
    Reliability Tests
    EVT
    DVT
    Certifications
  • 04 Integration
    Assembly Study and SOP
    Pilot Run Production
    Testing Process Study and SOP
    Field Test/Feedbacks
    Improvements
  • 05 Production
    Pilot Run Production
    Mass Production
  • 06 After Service
    Global Warranty
    Extended Warranty Service
    Online Service

Specification

  • OS
    Android
  • SOC
    RK3576, 4 x Cortex-A72 + 4 x Cortex-A53 2.3GHz, 8nm
    GPU ARM Mali-G52 MC3
    OpenGL ES3.2/OpenCL 2.0/Vulkan1.1
    6.0TOPS NPU, INT4,INT8,INT16, float16, Bfloat 16 and tf32 operation
    Supports deep learning framework：TensorFlow, Caffe, Tflite, Pytorch, Onnx NN，Android NN, etc.
  • RAM
    LPDDR5 4G/8G/16G
  • ROM
    EMMC5.1 64G/128G
  • Media
    Decode:
    4K@60fps H.264/AVC
    8K@30fps or 4K@120fps H.265/HEVC/VP9/AVS2/AV1
    1080@60fps H264/MVC

    Encoded:
    Dual video encoders which support H.265 and H.264
    H.264 and H.265 up to 4K@60fps
    Supports multi-stream encoding
  • Display
    1 x MIPI-DSI (1920x1200@60fps)
    1 x eDP1.3 (4K@60fps)
    1 x HDMI2.1 (8K@60fps or 4K@120fps, either HDMI output or eDP display)
    1 x DP1.4 (4K@60fps, multiplexed with Type-C USB 3.0)
  • Ethernet
    1000M Ethernet x 1
  • Connectivity
    WIFI6 802.11a/b/g/n/ac/ax，Bluetooth5.2
  • USB
    1 x Type-C,USB3.0，with OTG & DP-out（30Pin-FPC-0.5mm）
    1 x USB3.0 /SATA3.0 （30Pin-FPC-0.5mm）
    2 x USB Host 2.0(2 x 4Pin-PH1.25)
  • Audio
    Speaker x 2
    Microphone x 1
  • Interface
    2 x UART, one for debug (4Pin-PH1.25)
    2 x Speaker Interface, 10W (2Pin-PH1.25)
    1 x Mic connector (2Pin-PH1.25)
    1 x Key connector (4Pin-PH1.25)
    1 x TP-CoFconnector (10Pin-FPC-0.5mm)
    1 x NFC connector (10Pin-FPC-0.5mm)
    1 x RTC Battery connector (2Pin-PH1.25)
  • Input Power
    VSYS-4V+5V+12V Power Supply (Interface board can be flexibly designed according to the demand for power supply solutions, DC supply voltage wide voltage, whether the battery, single and double battery, fast charging, etc.)
  • PCB
    Size: 63x 93 x 1.2mm
    Process: 6-layer HDI Immersion Gold
  • Environment
    Operating temperature -20°C ~ 60°C
