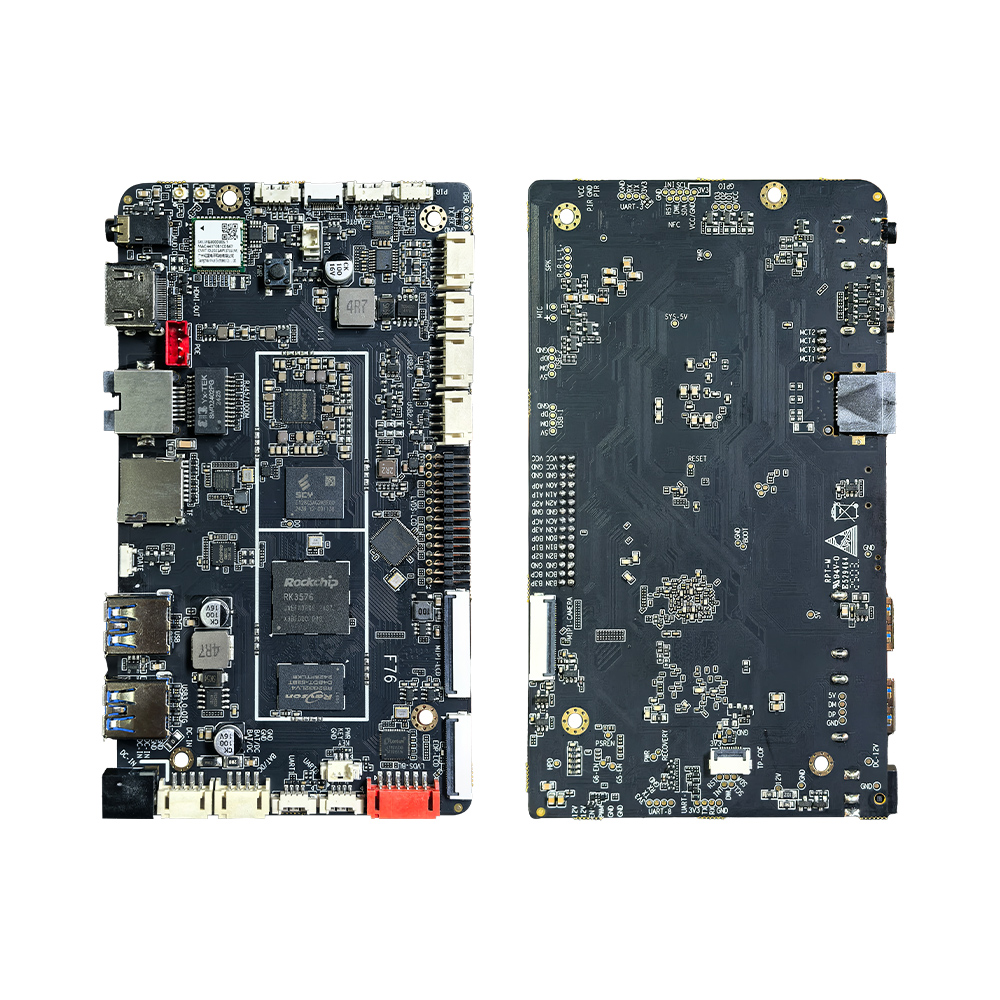

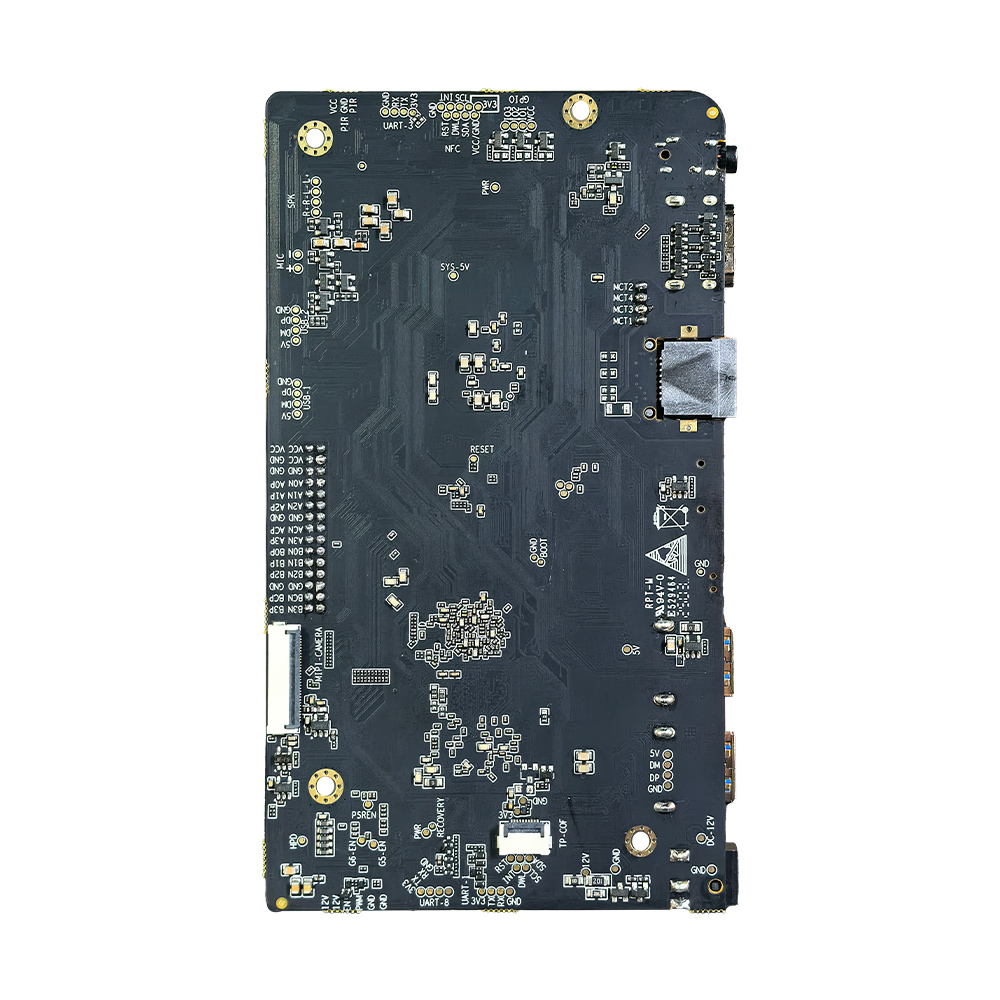

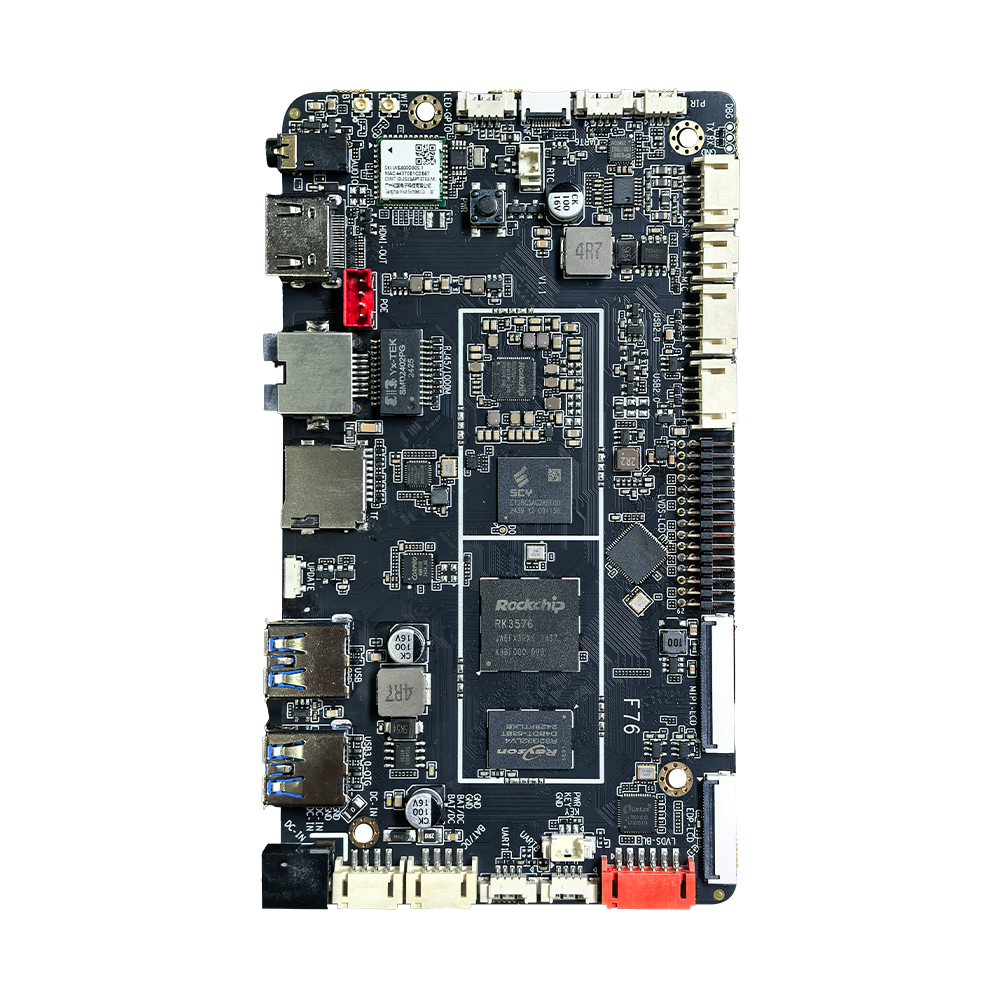

Pretech SBC RK3576: High-Performance Single Board Computer for Intelligent Applications

Model: F76
The Pretech SBC RK3576 is a powerful single board computer. It features an RK3576 processor with 4 x Cortex-A72 + 4 x Cortex-A53 2.3GHz, based on 8nm process technology. The GPU is ARM Mali-G52 MC3. It also has a 6.0TOPS NPU. It supports various deep learning frameworks and Android 14. It has various display interfaces and rich connectivity options, such as 1000M Ethernet, WIFI6, Bluetooth5.2, USB3.0, USB2.0, Mic SD Card Slot, Key button interfaces, Speaker interfaces, mic interface, UART, Mipi-Camera interface, TP-COF interface, NFC module interface, RTC battery interface, GPIO interface expansion, PIR interface. The power input is AC100-240V.50-60HZ, and output is DC12V/5.5mm DC head 2A-5A. The dimensions are 801421.6mm, with a 6-layer through-hole - goldated-pl board and screw hole specifications of Φ3.5MMx4. The operating temperature range is -20°C to 70°C.
Inquiry Ask for A Demo
Pretech SBC RK3576: High-Performance Single Board Computer for Intelligent Applications

Pretech SBC RK3576 ODM Industry Applications

The Pretech SBC RK3576 is widely used in various ODM industry applications. In the smart home field, it can serve as the core control board for smart displays and control panels. Its powerful processing and rich interfaces meet various smart home needs. In industrial automation, it can be the control core of equipment such as robots and production lines. Its high-performance processor and NPU enable real-time data processing and intelligent decision-making. In education, it can be used to develop educational robots and interactive teaching devices. Its support for deep learning frameworks and connectivity options aid educational innovation. In medical care, it can be used in medical imaging equipment and telemedicine systems. Its high-performance video capabilities support medical diagnosis. It is also applicable in transportation, finance and security fields, providing support for intelligent applications.
Pretech SBC RK3576 ODM Industry Applications

PRODUCT DETAIL

RK3576-F76
  • RK3576, 4 x Cortex-A72 + 4 x Cortex-A53 2.3GHz, 8nm<br> GPU ARM Mali-G52 MC3<br> OpenGL ES3.2/OpenCL 2.0/Vulkan1.1<br> 6.0TOPS NPU, INT4,INT8,INT16, float16, Bfloat 16 and tf32 operation<br> Supports deep learning framework：TensorFlow, Caffe, Tflite, Pytorch, Onnx NN，Android NN, etc.
    SOC
    RK3576, 4 x Cortex-A72 + 4 x Cortex-A53 2.3GHz, 8nm
    GPU ARM Mali-G52 MC3
    OpenGL ES3.2/OpenCL 2.0/Vulkan1.1
    6.0TOPS NPU, INT4,INT8,INT16, float16, Bfloat 16 and tf32 operation
    Supports deep learning framework：TensorFlow, Caffe, Tflite, Pytorch, Onnx NN，Android NN, etc.
  • Connectivity
    Connectivity
    WIFI6 802.11a/b/g/n/ac/ax，Bluetooth5.2
  • 1 x Key button interface (PWR/VOL+/VOL-) <br> 2 x Speaker interface, 1 x mic interface <br> 3 x UART <br> 1 x Mipi-Camera interface <br> 1 x TP-COF interface <br> 1 x NFC module interface <br> 1 x RTC Battery interface, support timer on/off <br> 1 x GPI0 expansion interface <br> 1 x PIR interface
    Interface
    1 x Key button interface (PWR/VOL+/VOL-)
    2 x Speaker interface, 1 x mic interface
    3 x UART
    1 x Mipi-Camera interface
    1 x TP-COF interface
    1 x NFC module interface
    1 x RTC Battery interface, support timer on/off
    1 x GPI0 expansion interface
    1 x PIR interface

What We Do

  • Tooling
    ID Design
    MD Design
  • Software
    Drive Debugging
    System Customization
    Debug Pre-installed applications
  • Hardware
    Schematic Diagrams Design
    PCB Layout
    Specific components design
    Bill of Materials output
    Gerber Files
    RF Design and Verification
    Assembly Drawings
    Test Specifications output
  • Accessories
    Smart Cover
    Docking Charging Station
    Charging Bracket/Dock
    Magnetic BackClip
    Wall Mount
    Stylus Pen
    And more

How We Do

We offer ODM solutions for certain customers who have specific needs which can’t be satisfied by existing devices on the market.
  • 01 Planning
    Market Survey
    Requirements Collection
    Competitiveness Analysis
    Technology Study
    Risk Analysis
    Component Life Cycle Survey
    Cost Evaluation
  • 02 Desgin
    ID Design
    MD Design
    Hardware
    OS
  • 03 Validation
    Trial Samples
    Software Customization
    Performance Tests
    Reliability Tests
    EVT
    DVT
    Certifications
  • 04 Integration
    Assembly Study and SOP
    Pilot Run Production
    Testing Process Study and SOP
    Field Test/Feedbacks
    Improvements
  • 05 Production
    Pilot Run Production
    Mass Production
  • 06 After Service
    Global Warranty
    Extended Warranty Service
    Online Service

Specification

  • OS
    Android
  • SOC
    RK3576, 4 x Cortex-A72 + 4 x Cortex-A53 2.3GHz, 8nm
    GPU ARM Mali-G52 MC3
    OpenGL ES3.2/OpenCL 2.0/Vulkan1.1
    6.0TOPS NPU, INT4,INT8,INT16, float16, Bfloat 16 and tf32 operation
    Supports deep learning framework：TensorFlow, Caffe, Tflite, Pytorch, Onnx NN，Android NN, etc.
  • RAM
    LPDDR4 4G/6G/8G
  • ROM
    EMMC5.164G/128G（Optional）
  • Media
    Decode:
    4K@60fps H.264/AVC
    8K@30fps or 4K@120fps H.265/HEVC/VP9/AVS2/AV1
    1080@60fps H264/MVC

    Encoded:
    Dual video encoders which support H.265 and H.264
    H.264 and H.265 up to 4K@60fps
    Supports multi-stream encoding
  • Display
    1 x MIPI screen interface（2560x1600@60fps)
    1 x EDP screen interface（1920*1080@60fps)
    1 x LVDS screen interface（1920x1080@60fps)
    1 x HDMI-0UT（8K@60fps, either 4K@120fps)
  • Ethernet
    1000M Ethernet(supports PoE with add-on PoE HAT)
  • Connectivity
    WIFI6 802.11a/b/g/n/ac/ax，Bluetooth5.2
  • USB
    TYPE-A USB3.0 x 2
    USB2.0 docks x 2
  • Micro SD Card
    Mic SD Card Slot x1
  • Audio
    Dclass oversized built-in speaker amplifier, supports 10W x 24R
    3.5mm headphone holder
    MIC input, 2Pin-PH2.0
  • Interface
    1 x Key button interface (PWR/VOL+/VOL-)
    2 x Speaker interface, 1 x mic interface
    3 x UART
    1 x Mipi-Camera interface
    1 x TP-COF interface
    1 x NFC module interface
    1 x RTC Battery interface, support timer on/off
    1 x GPI0 expansion interface
    1 x PIR interface
  • Input Power
    Input: AC100-240V.50-60HZ,
    Output: DC12V/5.5mm DC head 2A-5A (surge voltage less than 18V, ripple voltage less than 100mV)
  • PCB
    Size: 80x142x1.6mm
    Process: 6-layer through-hole immersion gold
    Hole: ∮3.5mm x 4
  • Environment
    Operating temperature -20°C ~ 70°C
