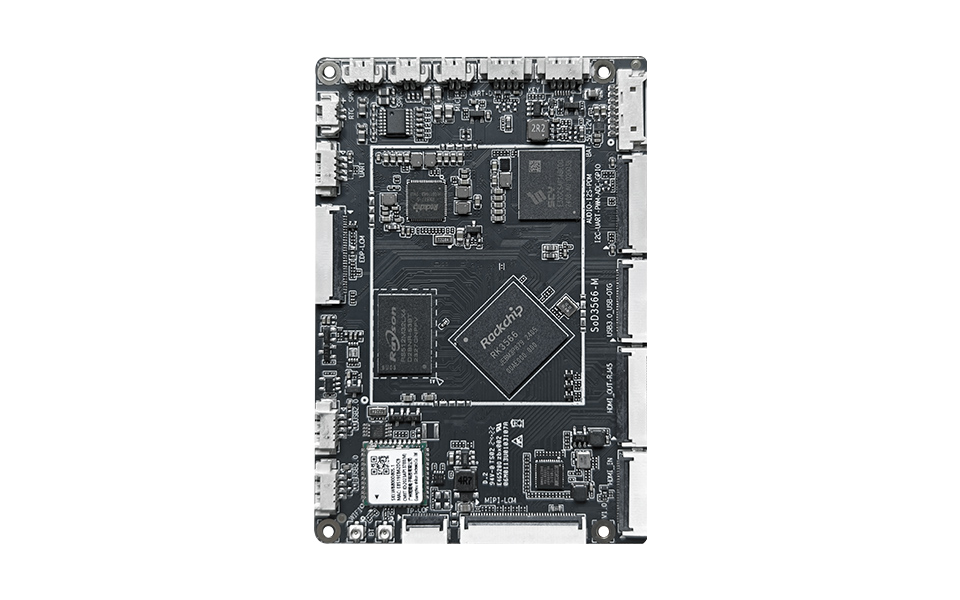

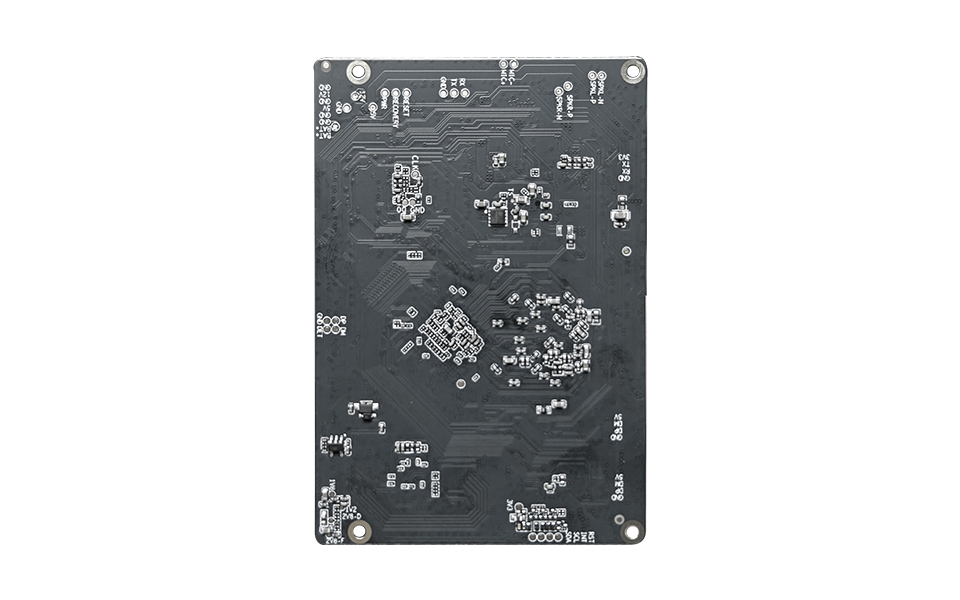

SOD3566-M
project-left
project-left
  • RK3566, 4 x Cortex-A55, 1.8G, 22nm<br>GPU ARM G52 2EE, 0.8 TOPS NPU
    SOC
    RK3566, 4 x Cortex-A55, 1.8G, 22nm
    GPU ARM G52 2EE, 0.8 TOPS NPU
  • WIFI6 802.11a/b/g/n/ac/ax,Bluetooth5.0
    Connectivity
    WIFI6 802.11a/b/g/n/ac/ax,Bluetooth5.0
  • 2 x UART, one for debug (4Pin-PH1.25)<br>2 x Speaker Interface, 10W (2Pin-PH1.25)<br>1 x Mic connector (2Pin-PH1.25)<br>1 x Key connector (4Pin-PH1.25)<br>1 x TP-CoF/NFC connector (10Pin-FPC-0.5mm)<br>1 x RTC Battery connector (2Pin-PH1.25)
    Interface
    2 x UART, one for debug (4Pin-PH1.25)
    2 x Speaker Interface, 10W (2Pin-PH1.25)
    1 x Mic connector (2Pin-PH1.25)
    1 x Key connector (4Pin-PH1.25)
    1 x TP-CoF/NFC connector (10Pin-FPC-0.5mm)
    1 x RTC Battery connector (2Pin-PH1.25)
  • SPECIFICATION

OS Android
SOC RK3566, 4 x Cortex-A55, 1.8G, 22nm
GPU ARM G52 2EE, 0.8 TOPS NPU
RAM LPDDR4 2G/3G/4G/6G/8G
ROM EMMC5.1 8GB/16G/32G/64G/128G
Media 4K 60fps H.265/H.264/VP9 decode
1080P 100fps H.265/H.264 codec
Display 1 x MIPI-DSI (1920x1200@60fps)
1 x eDP1.3 (4K@60fps)
1 x HDMI2.0 ( 4K@60fps)
Connectivity WIFI6 802.11a/b/g/n/ac/ax,Bluetooth5.0
USB 1 x Type-C,USB3.2 gen1,with OTG & DP-out(30Pin-FPC-0.5mm)
1 x USB3.0 /SATA3.0 (30Pin-FPC-0.5mm)
2 x USB Host 2.0(2 x 4Pin-PH1.25)
Audio Speaker x 2
Microphone x 1
Interface 2 x UART, one for debug (4Pin-PH1.25)
2 x Speaker Interface, 10W (2Pin-PH1.25)
1 x Mic connector (2Pin-PH1.25)
1 x Key connector (4Pin-PH1.25)
1 x TP-CoF/NFC connector (10Pin-FPC-0.5mm)
1 x RTC Battery connector (2Pin-PH1.25)
Input Power VSYS-4V+5V+12V Power Supply (Interface board can be flexibly designed according to the demand for power supply solutions,
DC supply voltage wide voltage, whether the battery, single and double battery, fast charging, etc.)
PCB Size: 63 x 93 x 1.2mm
Process: 6-layers Immersion Gold
Environment Operating temperature-20°C ~ 60°C
