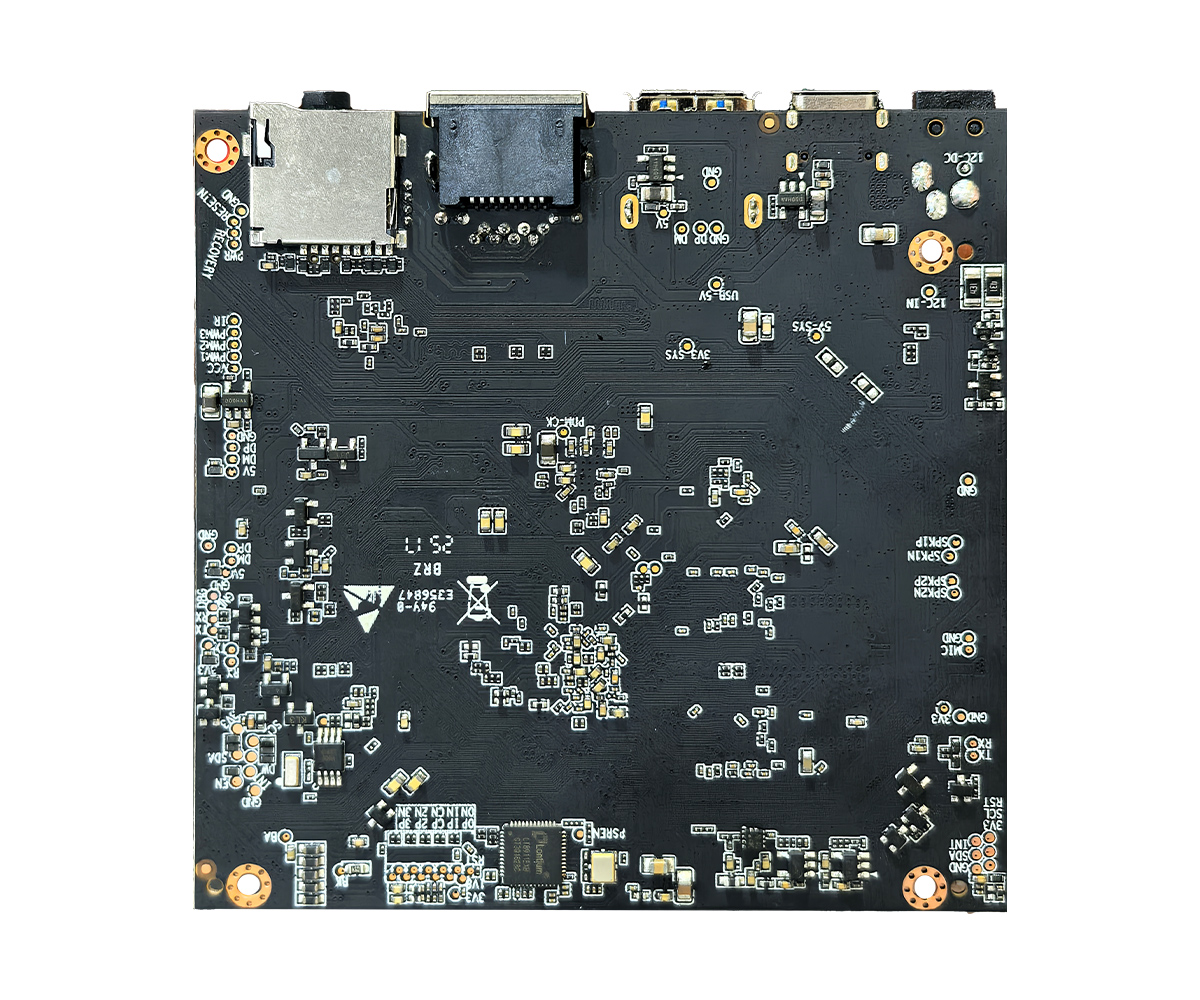

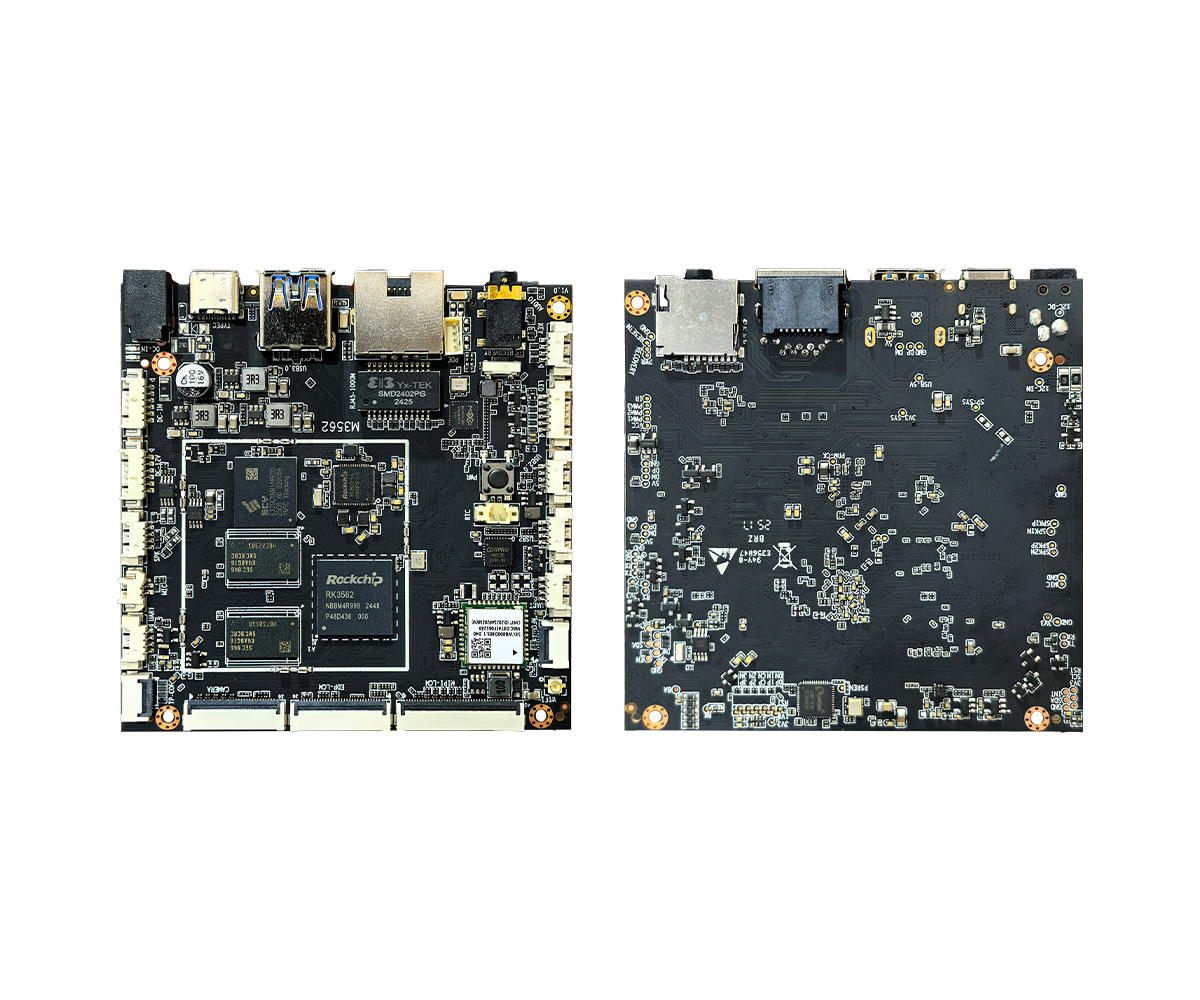

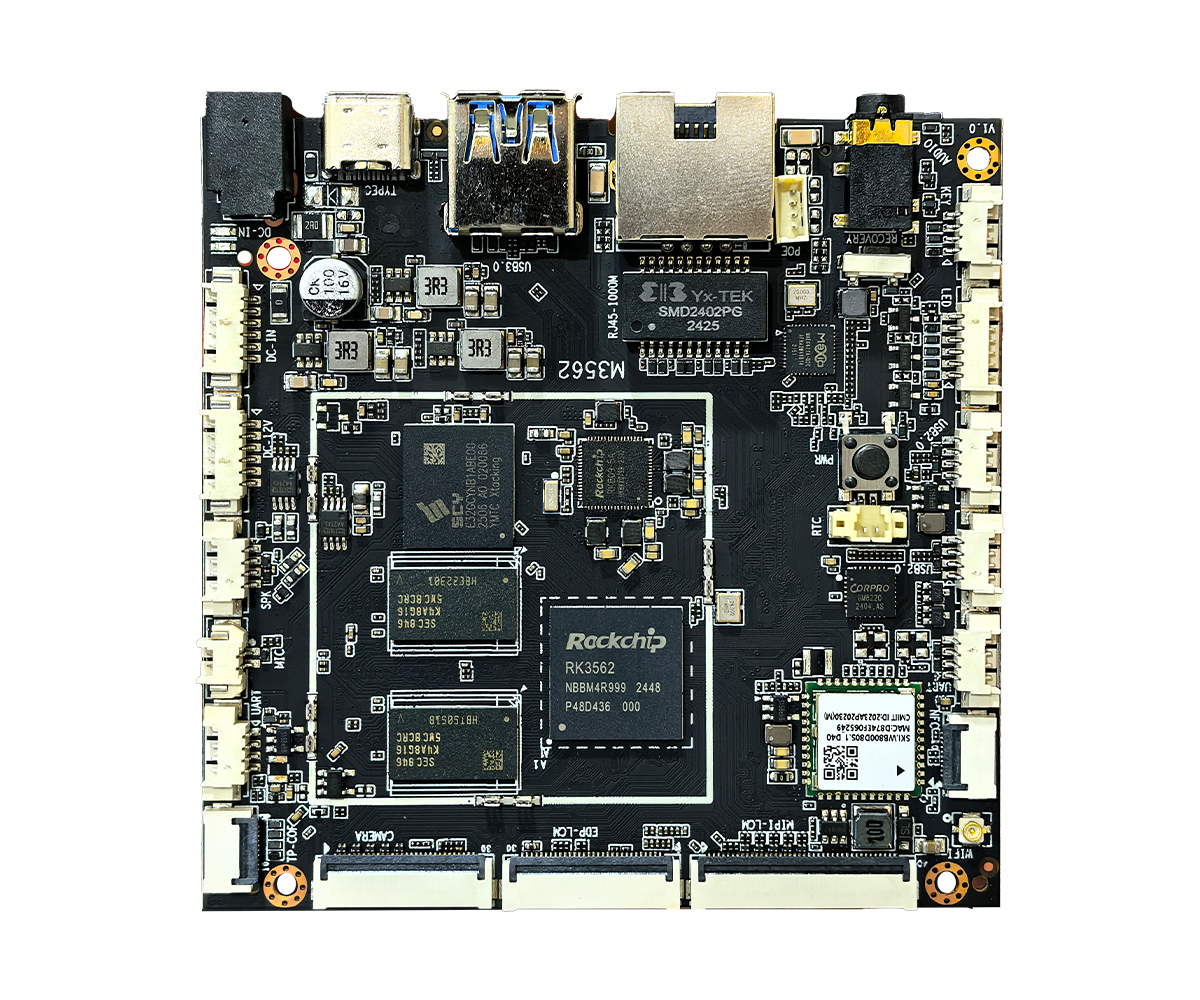

Pretech SBC RK3562: Versatile Single Board Computer

Model: M3562
he Pretech SBC RK3562 is a versatile single board computer. It features a RK3562 processor with 4 x Cortex-A53 2.0GHz, based on 22nm process technology. The GPU is ARM G52 2EE, and it has a 1 TOPS NPU. It has various display interfaces, including MIPI screen interface (2048x1080@60fps) and EDP screen interface (19201080@60fps). It also has rich connectivity options, such as 1000M Ethernet (supports PoE with add-on PoE HAT), WIFI6 802.11a/b/g/n/ac/ax, Bluetooth5.2, 1 TYPE-C USB (OTG), 1 TYPE-A USB3.0, 2 USB2.0 docks, Mic SD Card Slot x1, 3W2 4R, 3.5mm headphone jack, MIC input (2Pin-PH1.25), 2 x UART (PH1.25-4Pin), NFC interface (FPC-0.5mm-10pin), RTC battery (supports timed on/off), LED or GPIO expansion interface (PH1.25-6Pin), BAT-IN-12V interface (PH1.25-6Pin), DC-IN-12V interface (PH1.25-6Pin).
Inquiry Ask for A Demo
Pretech SBC RK3562: Versatile Single Board Computer

Pretech SBC RK3562 ODM Industry Applications

The Pretech SBC RK3562 is widely used in various ODM industry applications. In the smart home field, it can serve as the core control board for devices like smart cameras, smart displays and control panels. Its powerful processing and rich interfaces meet various smart home needs. In industrial automation, it can be the control core of equipment such as robots and production lines. Its high-performance processor and NPU enable real-time data processing and intelligent decision-making. In education, it can be used to develop educational robots and interactive teaching devices. Its support for deep learning frameworks and connectivity options aid educational innovation. In medical care, it can be used in medical imaging equipment and telemedicine systems. Its high-performance video capabilities support medical diagnosis. It is also applicable in transportation, finance and security fields, providing support for intelligent applications.
Pretech SBC RK3562 ODM Industry Applications

PRODUCT DETAIL

RK3562-M3562
  • RK3562, 4 x Cortex-A53, 2.0G, 22nm<br> GPU ARM G52 2EE, 1 TOPS NPU
    SOC
    RK3562, 4 x Cortex-A53, 2.0G, 22nm
    GPU ARM G52 2EE, 1 TOPS NPU
  • Connectivity
    Connectivity
    WIFI6 802.11a/b/g/n/ac/ax，Bluetooth5.2
  • 2 x UART, PH1.25-4Pin <br> 1 x NFC interface, FPC-0.5mm-10pin <br> 1 x RTC battery, support timer on/off <br> 1 x LED or GPI0 expansion interface, PH1.25-6Pin <br> 1 x BAT-IN-12V interface, PH1.25-6Pin <br> 1 x DC-IN-12V interface, PH1.25-6Pin81.5* 130*1.6mm,
    Interface
    2 x UART, PH1.25-4Pin
    1 x NFC interface, FPC-0.5mm-10pin
    1 x RTC battery, support timer on/off
    1 x LED or GPI0 expansion interface, PH1.25-6Pin
    1 x BAT-IN-12V interface, PH1.25-6Pin
    1 x DC-IN-12V interface, PH1.25-6Pin81.5* 130*1.6mm,

What We Do

We offer ODM solutions for certain customers who have specific needs which can’t be satisfied by existing devices on the market.
  • Tooling
    ID Design
    MD Design
  • Software
    Drive Debugging
    System Customization
    Debug Pre-installed applications
  • Hardware
    Schematic Diagrams Design
    PCB Layout
    Specific components design
    Bill of Materials output
    Gerber Files
    RF Design and Verification
    Assembly Drawings
    Test Specifications output
  • Accessories
    Smart Cover
    Docking Charging Station
    Charging Bracket/Dock
    Magnetic BackClip
    Wall Mount
    Stylus Pen
    And more

How We Do

We offer ODM solutions for certain customers who have specific needs which can’t be satisfied by existing devices on the market.
  • 01 Planning
    Market Survey
    Requirements Collection
    Competitiveness Analysis
    Technology Study
    Risk Analysis
    Component Life Cycle Survey
    Cost Evaluation
  • 02 Desgin
    ID Design
    MD Design
    Hardware
    OS
  • 03 Validation
    Trial Samples
    Software Customization
    Performance Tests
    Reliability Tests
    EVT
    DVT
    Certifications
  • 04 Integration
    Assembly Study and SOP
    Pilot Run Production
    Testing Process Study and SOP
    Field Test/Feedbacks
    Improvements
  • 05 Production
    Pilot Run Production
    Mass Production
  • 06 After Service
    Global Warranty
    Extended Warranty Service
    Online Service

Specification

  • OS
    Android
  • SOC
    RK3562, 4 x Cortex-A53, 2.0G, 22nm
    GPU ARM G52 2EE, 1 TOPS NPU
  • RAM
    LPDDR4 2G
  • ROM
    EMMC5.1 32G/64G
  • Media
    4K@30fps: H.265/HEVC、VP9、AVS2、AV1
    1080P@60fps: H. 264/AVC
    1080P@60fps:H. 265/HEVC、H. 264/AVC
  • Display
    MIPI screen interface (2048x1080@60fps)
    EDP screen interface (1920*1080@60fps)
  • Ethernet
    1000M Ethernet(supports PoE with add-on PoE HAT)
  • Connectivity
    WIFI6 802.11a/b/g/n/ac/ax，Bluetooth5.2
  • USB
    TYPE-C USB (OTG) x 1
    TYPE-A USB3.0 x 1
    USB2.0 docks x 2
  • Micro SD Card
    Mic SD Card Slot x1
  • Audio
    speaker amplifier, supports 3W x 24R
    3.5mm headphone holder
    MIC input, 2Pin-PH1.25
  • Interface
    2 x UART, PH1.25-4Pin
    1 x NFC interface, FPC-0.5mm-10pin
    1 x RTC battery, support timer on/off
    1 x LED or GPI0 expansion interface, PH1.25-6Pin
    1 x BAT-IN-12V interface, PH1.25-6Pin
    1 x DC-IN-12V interface, PH1.25-6Pin81.5* 130*1.6mm,
  • Input Power
    Input: AC100-240V.50-60HZ,
    Output: DC12V/5.5mm DC head 2A-5A (surge voltage less than 18V, ripple voltage less than 100mV)
  • PCB
    Size: 83.8x84x1.2mm
    Process:4 layers through-hole-SOP one-piece board, screw hole
    Hole: ∮2.5mmx4
  • Environment
    Operating temperature -20°C ~ 70°C
