RK3576 SOM Carrier Board – Customizable Solutions for AI and IoT Applications

RK3588S, 4 x Cortex-A76 + 4 x Cortex-A55 2.4GHz, 8nm
GPU ARM Mali-G610 MP4 Quad-Core
OpenGL ES3.2/OpenCL 2.2/Vulkan1.1,450 GFLOPS
6.0TOPS NPU, Support INT4/INT8/INT16

Inquiry Ask for A Demo

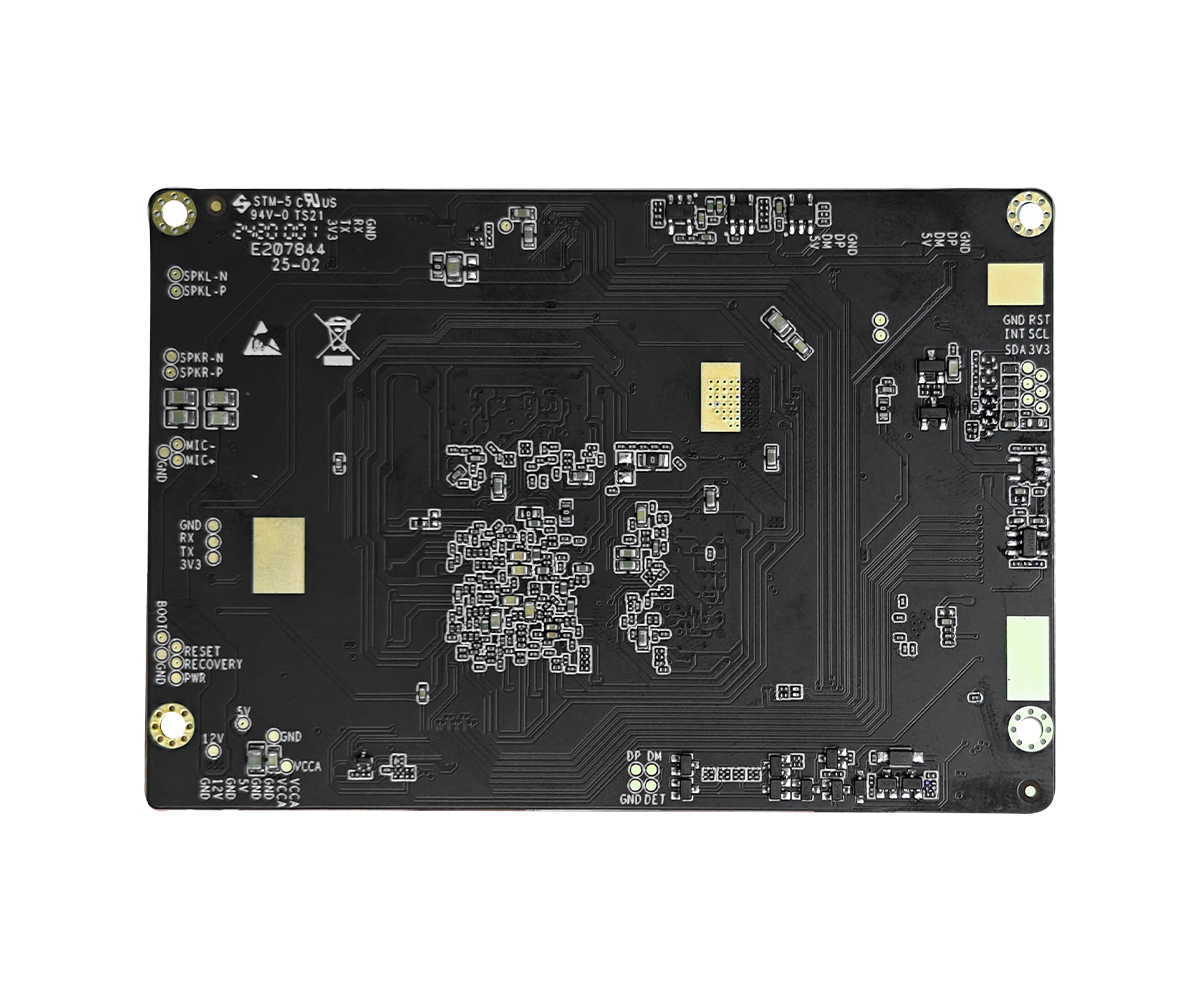

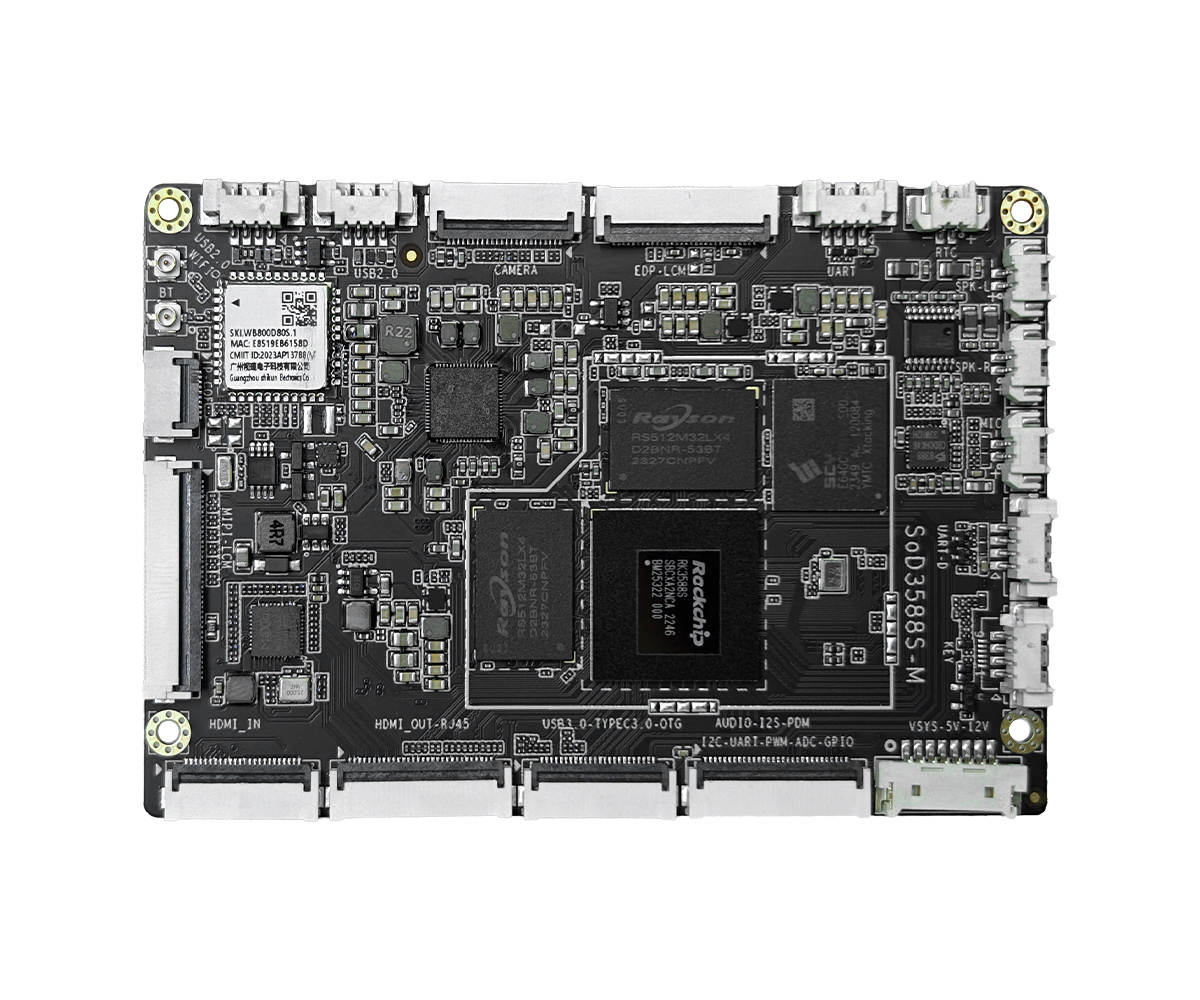

SOD3588S-M

RK3588S, 4 x Cortex-A76 + 4 x Cortex-A55 2.4GHz, 8nm
GPU ARM Mali-G610 MP4 Quad-Core
OpenGL ES3.2/OpenCL 2.2/Vulkan1.1,450 GFLOPS
6.0TOPS NPU, Support INT4/INT8/INT16

PRODUCT DETAIL

SOD3588S-M

SOC

RK3588S, 4 x Cortex-A76 + 4 x Cortex-A55 2.4GHz, 8nm
GPU ARM Mali-G610 MP4 Quad-Core
OpenGL ES3.2/OpenCL 2.2/Vulkan1.1,450 GFLOPS
6.0TOPS NPU, Support INT4/INT8/INT16
Connectivity

WIFI6 802.11a/b/g/n/ac/ax，Bluetooth5.0
Interface

2 x UART, one for debug (4Pin-PH1.25)
2 x Speaker Interface, 10W (2Pin-PH1.25)
1 x Mic connector (2Pin-PH1.25)
1 x Key connector (4Pin-PH1.25)
1 x TP-CoF/NFC connector (10Pin-FPC-0.5mm)
1 x RTC Battery connector (2Pin-PH1.25)

Specification

OS

Android/Linux
SOC

RK3588S, 4 x Cortex-A76 + 4 x Cortex-A55 2.4GHz, 8nm
GPU ARM Mali-G610 MP4 Quad-Core
OpenGL ES3.2/OpenCL 2.2/Vulkan1.1,450 GFLOPS
6.0TOPS NPU, Support INT4/INT8/INT16
RAM

LPDDR4 4G/8G/16G
ROM

EMMC5.1 64G/128G/256G
Media

4K 60fps H.265/H.264/VP9 decode
1080P 100fps H.265/H.264 codec
Display

Decode:
8K 60fps H.265NP9/AVS2
8K 30fps H.264AVC/MVC
4K 60fps AV1
1080P 60fps MPEG-2/-1/C-1P8

Encoded:
8K 30fps encoding,
Support H.265/H.264 Up to 32-channel
1080P 30fps decoding and 16-channel
1080P 30fps encoding
Connectivity

WIFI6 802.11a/b/g/n/ac/ax，Bluetooth5.0
USB

1 x Type-C,USB3.2 gen1，with OTG & DP-out（30Pin-FPC-0.5mm）
1 x USB3.0 /SATA3.0 （30Pin-FPC-0.5mm）
2 x USB Host 2.0(2 x 4Pin-PH1.25)
Audio

Speaker x 2
Microphone x 1
Interface

2 x UART, one for debug (4Pin-PH1.25)
2 x Speaker Interface, 10W (2Pin-PH1.25)
1 x Mic connector (2Pin-PH1.25)
1 x Key connector (4Pin-PH1.25)
1 x TP-CoF/NFC connector (10Pin-FPC-0.5mm)
1 x RTC Battery connector (2Pin-PH1.25)
Input Power

VSYS-4V+5V+12V Power Supply (Interface board can be flexibly designed according to the demand for power supply solutions,
DC supply voltage wide voltage, whether the battery, single and double battery, fast charging, etc.)
Environment

Operating temperature-20°C ~ 60°C

Inquriy
