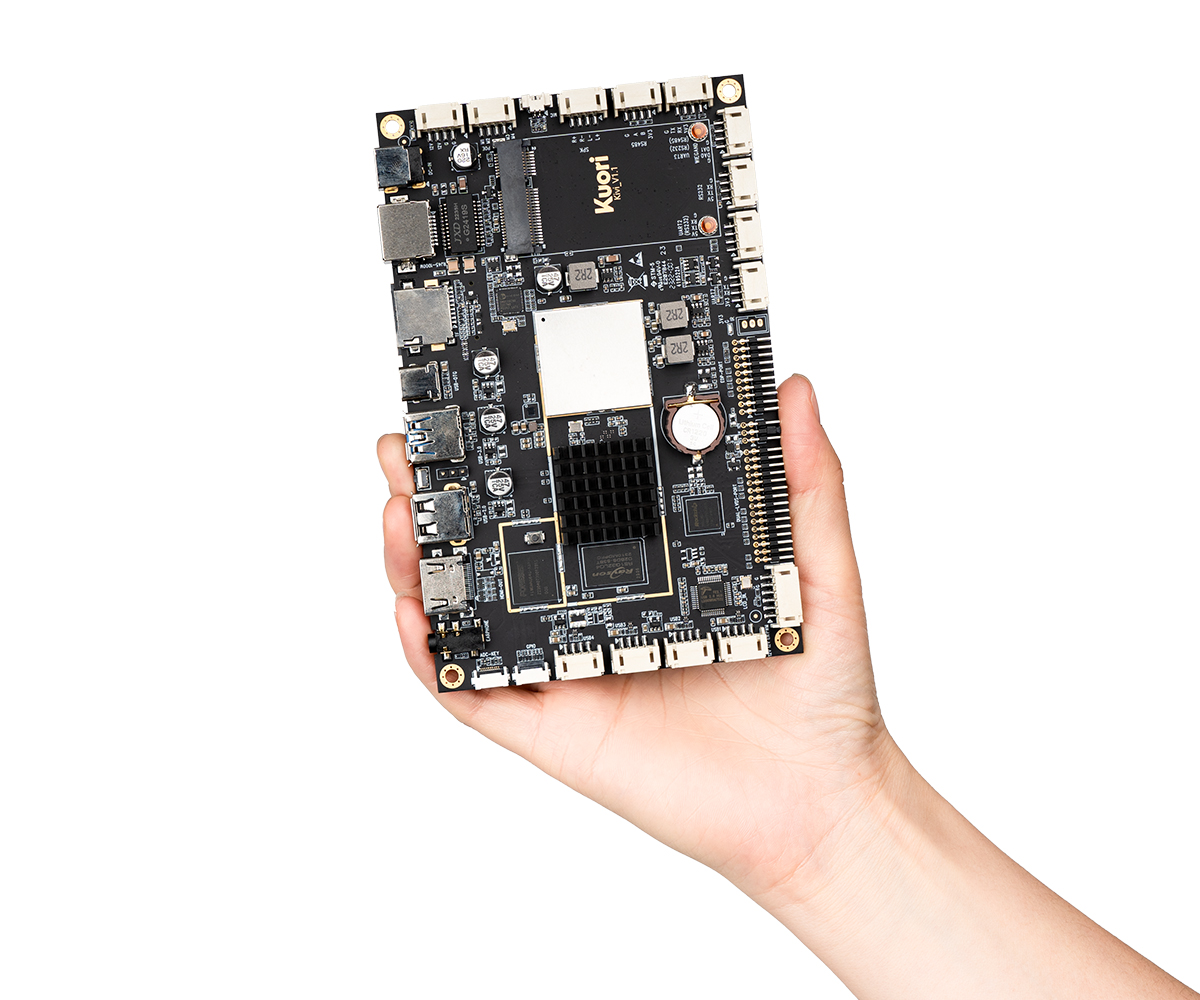

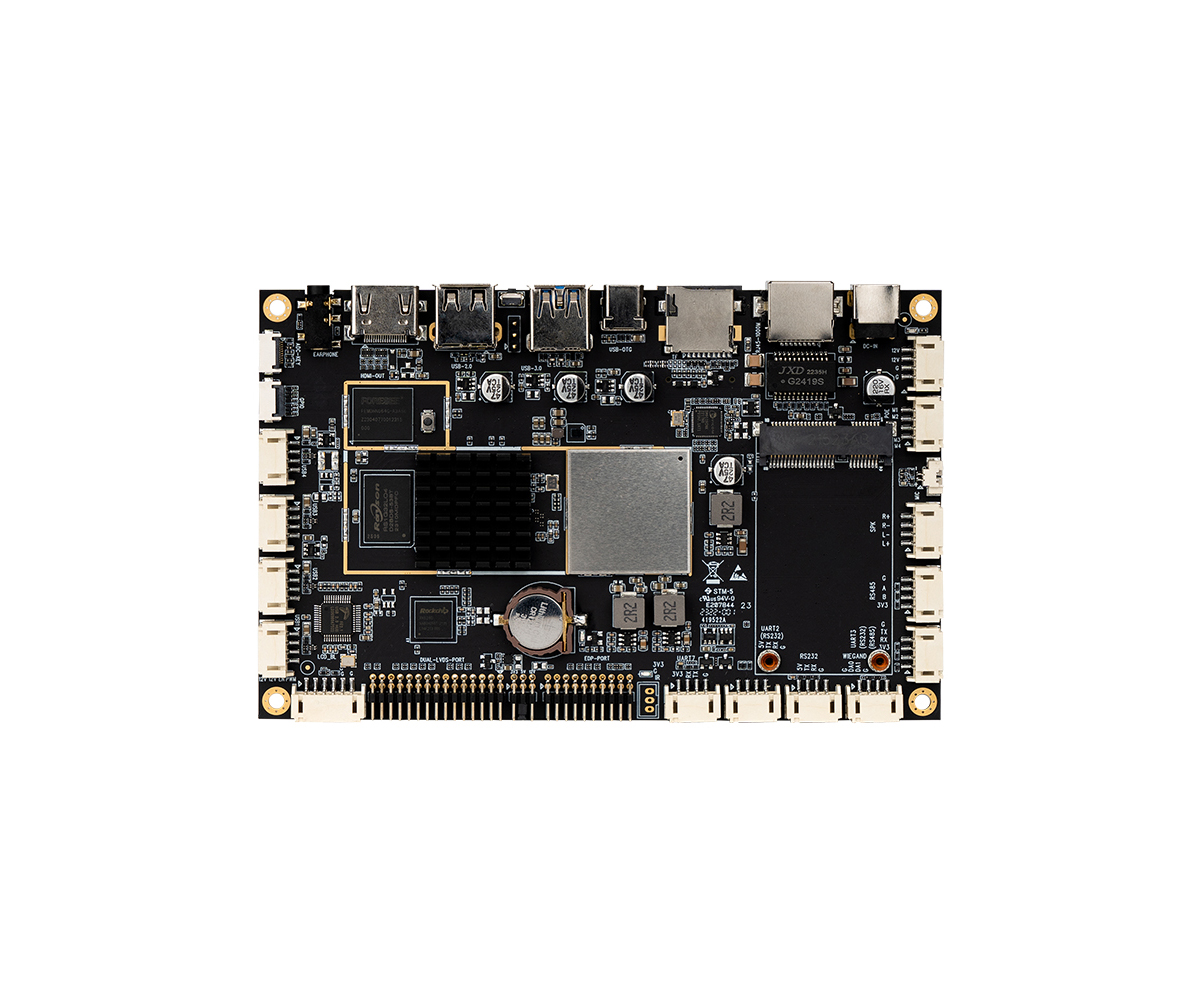

D-AIOT-RCL
project-left
project-left
  • LPDDR4 2G/3G/4G/6G/8G
    SOC
    LPDDR4 2G/3G/4G/6G/8G
  • WIFI5 802.11a/b/g/n/ac <br>Bluetooth 5.2,1T1R<br>Support Mini-PCIE 4G data communication module
    Connectivity
    WIFI5 802.11a/b/g/n/ac
    Bluetooth 5.2,1T1R
    Support Mini-PCIE 4G data communication module
  • 2 X UART (one debug); <br>1 X Wiegand, <br>2 X RS232; <br>2 X RS485.<br>1 X ADC<br>1 X PWM<br>1 X I2C<br>4 X GPIO <br>Infrared Remote Control Interface
    Interface
    2 X UART (one debug);
    1 X Wiegand,
    2 X RS232;
    2 X RS485.
    1 X ADC
    1 X PWM
    1 X I2C
    4 X GPIO
    Infrared Remote Control Interface
  • SPECIFICATION

OS Android
SOC RK3566, 4 x Cortex-A55, 1.8G, 22nm
GPU ARM G52 2EE, 0.8 TOPS NPU
RAM LPDDR4 2G/3G/4G/6G/8G
ROM EMMC5.1 32G/64GB
Media 4K 60fps H.265/H.264/VP9 video decoding
1080P 100fps H.265/H.264 video encoding
Display MIPI,4-Lane MIPI-DSI,1920 x 1200@60fps
EDP,4-lane EDP,3000 x 2000@60fps
Dual-LVDS , 1920 x 1080@60fps
HDMI-out,HDMI2.0,1080p@60fps,upto 4K@60fps
Ethernet 1000M Ethernet(supports PoE with add-on PoE HAT)
Connectivity WIFI5 802.11a/b/g/n/ac
Bluetooth 5.2,1T1R
Support Mini-PCIE 4G data communication module
USB 1 TYPE-C USB (OTG),
1 TYPE-A USB3.0,
1 TYPE-A USB2.0,
4 USB2.0 docks
Micro SD Card Mic SD Card Slot x1
Audio D class extra large built-in speaker amplifier, support 10W x 2 4R
3.5mm headphone jack output
MIC input
Interface 2 X UART (one debug);
1 X Wiegand,
2 X RS232;
2 X RS485.
1 X ADC
1 X PWM
1 X I2C
4 X GPIO
Infrared Remote Control Interface
Input Power Input: AC100-240V.50-60HZ,
Output: DC12V/5.5mm DC head 2A-5A (surge voltage less than 18V, ripple voltage less than 100mV)
PCB NA
Environment Operating temperature -20°C ~ 60°C
