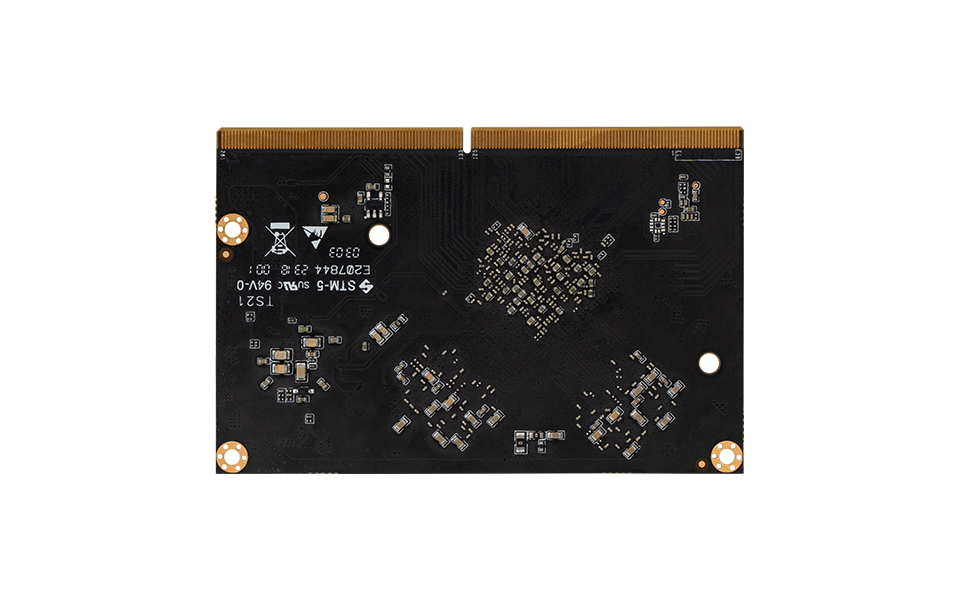

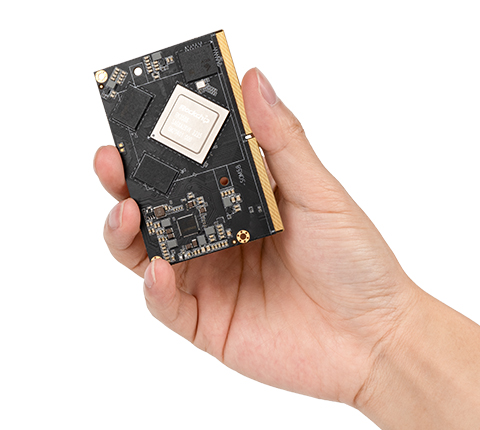

SOM58
project-left
project-left
  • LPDDR4 4GB/8GB/16GB/32GB
    SOC
    LPDDR4 4GB/8GB/16GB/32GB
  • WIFI6 802.11a/b/g/n/ac/ax,Bluetooth5.0,2T2R(The carrier board)
    Connectivity
    WIFI6 802.11a/b/g/n/ac/ax,Bluetooth5.0,2T2R(The carrier board)
  • PCIe3.0(2 x 2lanes,1 x 4lanes,4 x 1lanes) <br>PCIE2.1(1 1anes) x 3<br>SATA3.0 x 3<br>4lane Mipi-CSI<br>UART/I2C/SPI/PCM/PWM/ADC/SDMMC/GPIO
    Interface
    PCIe3.0(2 x 2lanes,1 x 4lanes,4 x 1lanes)
    PCIE2.1(1 1anes) x 3
    SATA3.0 x 3
    4lane Mipi-CSI
    UART/I2C/SPI/PCM/PWM/ADC/SDMMC/GPIO
  • SPECIFICATION

OS Android

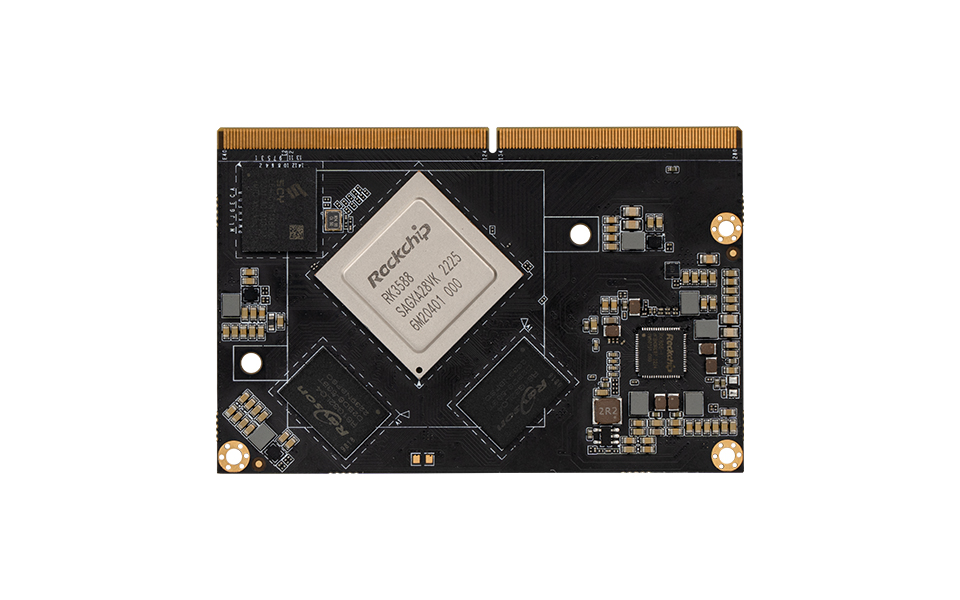

SOC RK3588, 4 x Cortex-A76 + 4 x Cortex-A55 2.4GHz, 8nm
GPU ARM Mali-G610 MP4 Quad-Core
OpenGL ES3.2/OpenCL 2.2/Vulkan1.1,450 GFLOPS
6.0TOPS NPU, Support INT4/INT8/INT16
RAM LPDDR4 4GB/8GB/16GB/32GB
ROM EMMC5.1 64G/128G/256G
Media Decode:
[email protected]/VP9/AVS2
[email protected] AVC/MVC
4K@60fpsAV1
1080P@60fps MPEG-2/-1/VC-1/VP8

Encoded:
8K@30fps encoding, support H.265/H.264
Up to 32 channels 1080P@30fps decoding and 16-channel 1080P@30fps encoding
Display HDMI out, HDMI2.1,up to 8K@60Hz
HDMI in, HDMI 2.0 RX PHY,4-lanes,up to 4K@60Hz
eDP1.4, 4Lane, 4K@60Hz
DP1.4 output, 4-Lane x 2
2 x 4-Lane or 1 x 8-Lane MIPI-DSI,LCD interface
Ethernet 1000M Ethernet x 2(The carrier board)
Connectivity WIFI6 802.11a/b/g/n/ac/ax,Bluetooth5.0,2T2R(The carrier board)
USB USB3.1 OTG x 2
USB 3.0 x 2
USB2.0 x 2
Micro SD Card Micro SD card,up to 128GB(The carrier board)
Audio Can be customized
Interface PCIe3.0(2 x 2lanes,1 x 4lanes,4 x 1lanes)
PCIE2.1(1 1anes) x 3
SATA3.0 x 3
4lane Mipi-CSI
UART/I2C/SPI/PCM/PWM/ADC/SDMMC/GPIO
Input Power The carrier board can be customized

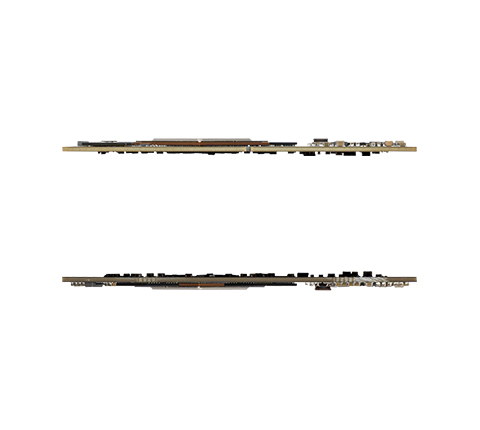

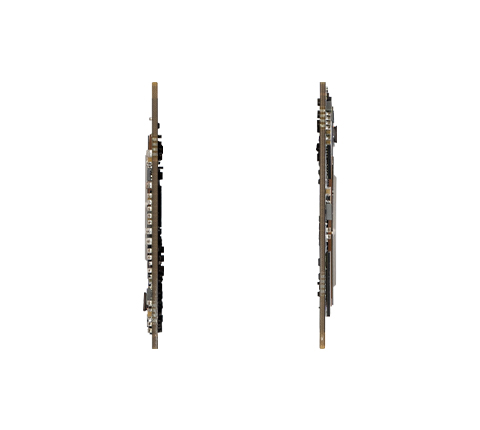

PCB Size: 54 x 82 x 1.2mm
Process: 8-layer HDI Immersion Gold
Package:MXM3.0(314PIN-0.5mm)
Environment Operating temperature -20°C ~ 60°C
