Android Tablet PCs: Open Frame Solutions for Smart Cooking

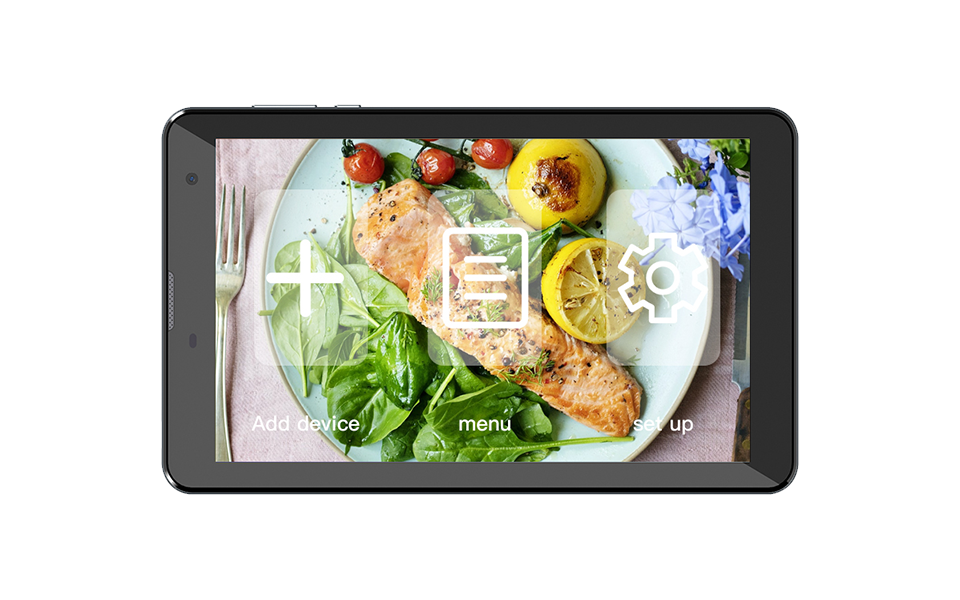

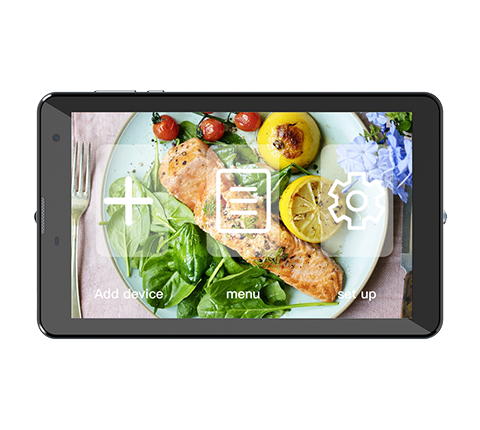

Based on a 6.95'' Android tablet with full laminated display and touch panel, working as smart control of the cook.
The dimension of samrt tablet can be customized according to clients' requirements.
Android Tablet PCs: Open Frame Solutions for Smart Cooking

Smart Control Panel for Cooker

The hardware and functions of samrt tablet can be customized according to clients' requirements.
Smart Control Panel for Cooker

PRODUCT DETAIL

Smart Control Panel for Cooker
  • 6.95inch 1024 x 600 IPS, G+G Full Lamination
    6.95 inch Display
    6.95inch 1024 x 600 IPS, G+G Full Lamination
  • Support
    Support
    WIFI 802.11 ac/b/g/n/a (AC wifi) BT5.0 Speaker Micro USB
  • Micro USB x 1
    I/O
    Micro USB x 1

Specification

  • CPU
    MTK8168
  • OS
    Android
  • Screen
    6.95inch 1024 x 600 IPS, G+G Full Lamination
  • RAM
    2GB
  • Storage
    16GB
  • Wifi/BT
    802.11 ac/b/g/n (AC Wi-Fi) + BT5.0
  • Camera
    NA
  • Battery
    NA

FAQs

  • ODM/Kitchen Environment & Durability
  • Display Technology & User Experience
  • Integration & Core Specification
ODM/Kitchen Environment & Durability
  • What specific physical customizations are made to the Smart Cooker Panel to withstand a typical kitchen environment?
    The panel is designed to be oil and water-proof, crucial for a kitchen environment where spills and grease are common. This is achieved through the open frame structure's sealing and the use of a robust G+G (Glass + Glass) touch panel. Our ODM service ensures the structural integrity and sealing methods (ID Design, MD Design) meet the client's specific appliance requirements.
  • Why is the "no camera" and "no battery" design important for a smart cooker panel?
    The no camera design addresses user privacy concerns in a home or commercial kitchen. The no battery design, like in other continuous-use HMI solutions, maximizes product life, eliminates charging/thermal issues, and simplifies power management, ensuring uncompromising reliability for a permanently installed appliance like a cooker.
Display Technology & User Experience
  • What is the benefit of using a "Full Lamination" display for this cooker control panel?
    The Full Lamination display technology bonds the touch panel directly to the display, eliminating the air gap. This significantly reduces internal reflections, providing superior visual clarity, color quality, and higher brightness/contrast (IPS screen), which is essential for reading recipes and controls clearly under various kitchen lighting conditions.
  • How is the software customized to provide a seamless control experience for a cooker?
    The system uses Android OS with heavy System Customization, including running in Kiosk Mode. This locks the system down to the cooker's specific control application, preventing users from accessing general tablet functions. We also provide MDM (Mobile Device Management) and OTA updates for easy remote maintenance and recipe/firmware upgrades (Software Drive Debugging), ensuring continuous functionality.
Integration & Core Specification
  • Can the size and form factor of the smart control panel be customized for different cooker models?
    Yes, the dimensions and form factor of the smart tablet can be entirely customized according to the client's requirements. Our comprehensive ODM service (Tooling, Schematic Diagrams Design, PCB Layout) means we can adapt the 6.95-inch base design (or utilize other sizes/SOCs like RK3566/RK3576) to fit the precise cut-out and mounting hardware of any new cooker or appliance design (GEO-specific appliance requirements).
  • What is the role of the Micro USB port on a seemingly dedicated, permanent control panel?
    The Micro USB port (Type C x 1 is listed on related coffee machine specs) is typically included to provide a local service and debug port. It allows technicians or developers to perform deep firmware updates, diagnostics, or initial setup when network connectivity is unavailable, ensuring that system recovery and advanced maintenance can be performed easily on site, despite the locked-down nature of the final product.
