RK3568 SBC Custom Solutions Supporting Structured Light Cameras and Face Payment

Model: T10
RK3568, 4 x A55, 2.0GHz, 22nm
ARM G52 2EE
With OpenGL ES 1.1/2.0/3.2 support,
Vulkan 1.1, embedded high performance 2D acceleration hardware
Inquiry Ask for A Demo

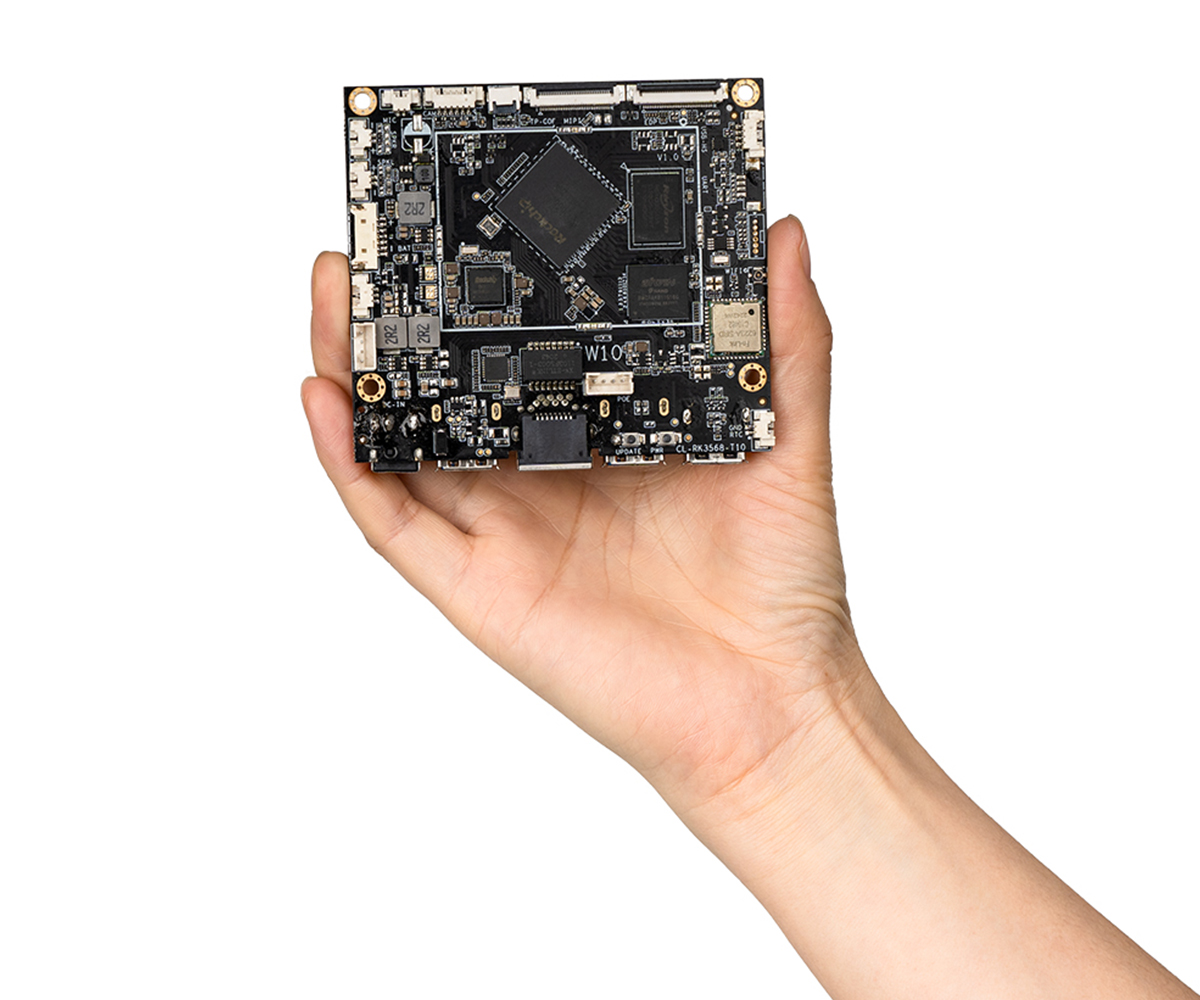

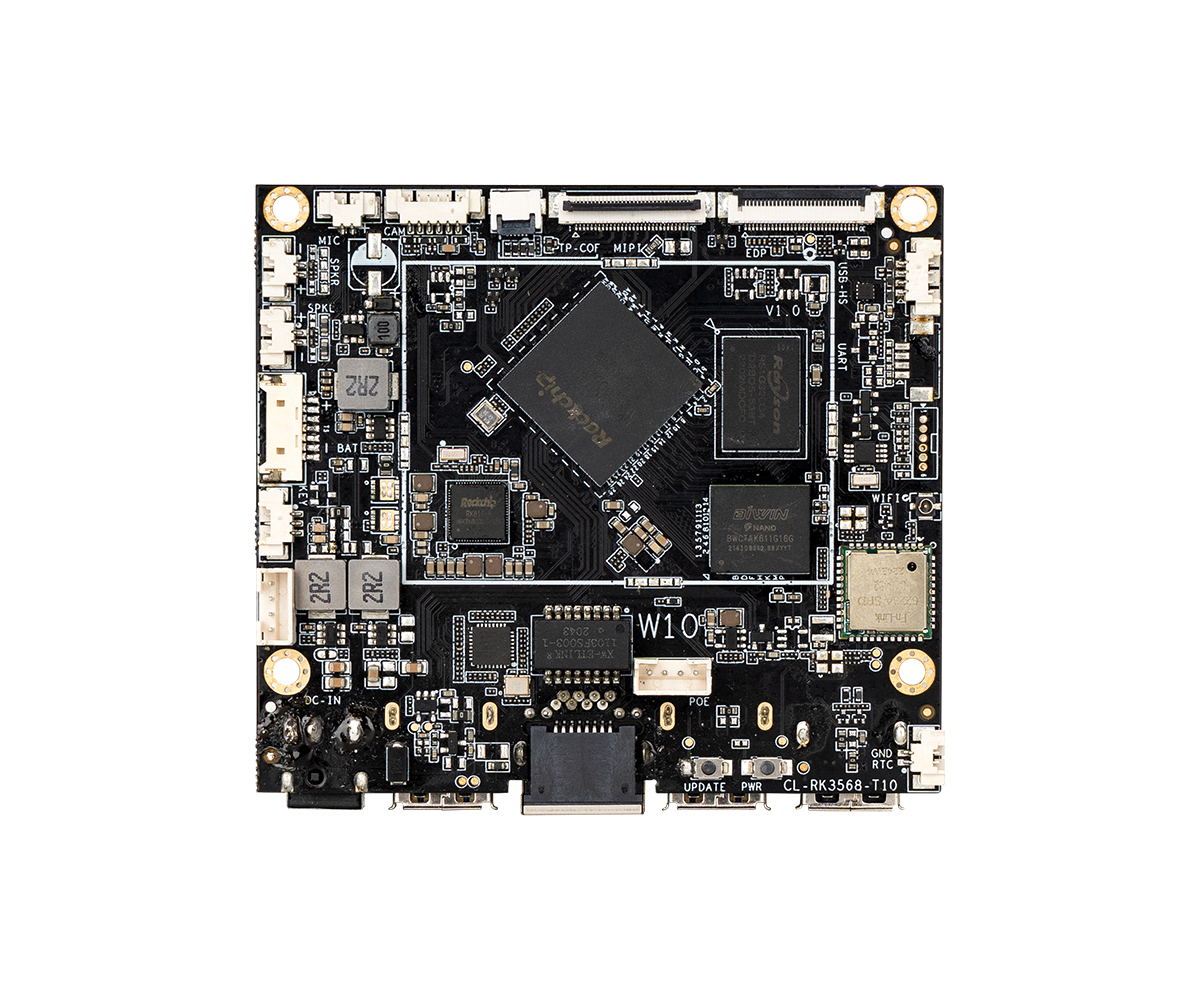

RK3568 SBC Custom Solutions Supporting Structured Light Cameras and Face Payment

T10

RK3568, 4 x A55, 2.0GHz, 22nm
ARM G52 2EE
With OpenGL ES 1.1/2.0/3.2 support,
Vulkan 1.1, embedded high performance 2D acceleration hardware
T10

PRODUCT DETAIL

T10
  • LPDDR4 2G/3G/4G/6G/8G
    SOC
    LPDDR4 2G/3G/4G/6G/8G
  • Connectivity
    Connectivity
    WIFI5 802.11a/b/g/n/ac
    Bluetooth 5.2,1T1R
  • 1 Channel TTL(Debug TYPE-A USB connector) + 1 Channel TTL 4Pin/PH1.25<br> 1 x ADC key button<br> 1 x I2C (TP-COF 6pin-FPC)<br> 4 x GPIO
    Interface
    1 Channel TTL(Debug TYPE-A USB connector) + 1 Channel TTL 4Pin/PH1.25
    1 x ADC key button
    1 x I2C (TP-COF 6pin-FPC)
    4 x GPIO

Specification

  • OS
    Android
  • SOC
    RK3568, 4 x A55, 2.0GHz, 22nm
    ARM G52 2EE
    With OpenGL ES 1.1/2.0/3.2 support,
    Vulkan 1.1, embedded high performance 2D acceleration hardware
  • RAM
    LPDDR4 2G/3G/4G/6G/8G
  • ROM
    EMMC5.1 32G/64G
  • Media
    4K 60fps H.265/H.264/VP9 decoding
    1080P 100fps H.265/H.264 encoding
  • Display
    MIPI，4-lane MIPI-DSI, 1920 x 1200@60fps
    EDP，2-lane edp1.3，1080@60fps
  • Ethernet
    1000M Ethernet (supports PoE with add-on PoE HAT)
  • Connectivity
    WIFI5 802.11a/b/g/n/ac
    Bluetooth 5.2,1T1R

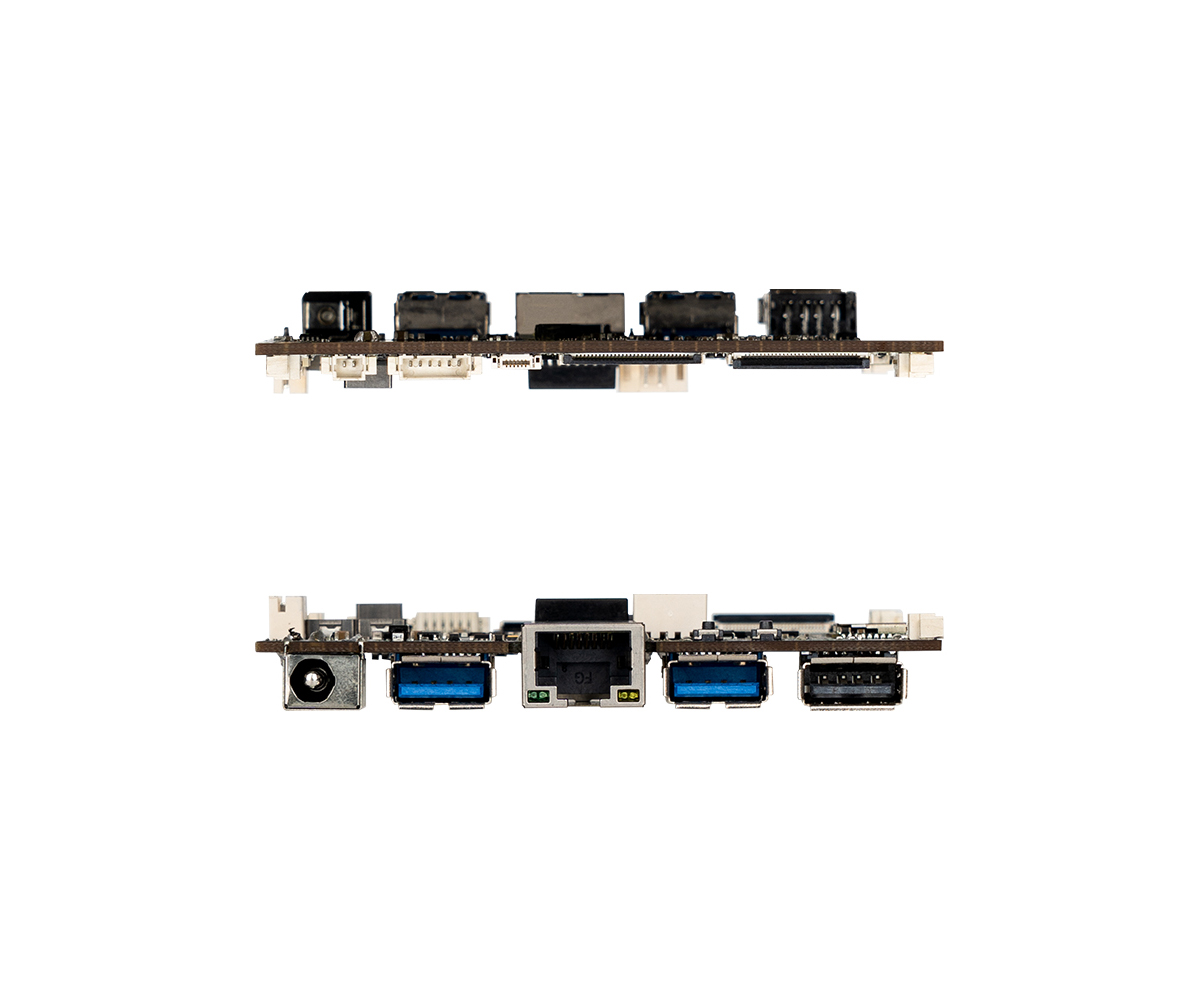

  • USB
    Type A USB 3.0 (OTG),
    Type A USB 3.0,
    2 way USB 2.0 (PH2.0 cradle)
  • Micro SD Card
    NA
  • Audio
    Support 3W x 2 4R,2Pin PH2.0
    MIC Input, 2Pin PH2.0

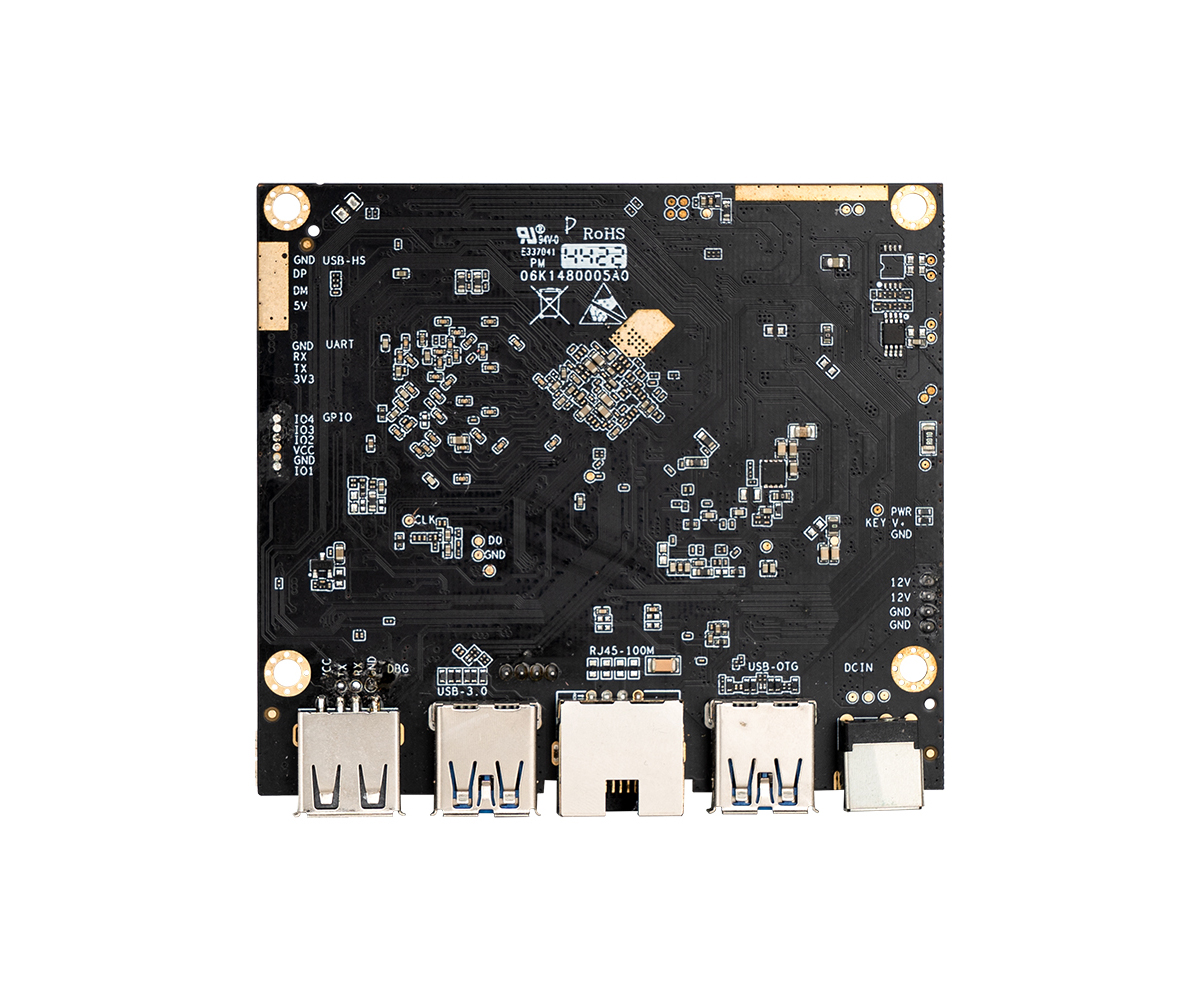

  • Interface
    1 Channel TTL(Debug TYPE-A USB connector) + 1 Channel TTL 4Pin/PH1.25
    1 x ADC key button
    1 x I2C (TP-COF 6pin-FPC)
    4 x GPIO
  • Input Power
    Input: AC100-240V/50-60HZ,
    Output: DC12V/5.5mm DC head 2A-5A (surge voltage less than 18V, ripple voltage less than 100mV).
    Ripple voltage less than 100mV)
  • PCB
    Size: 80 x90 x 1.6mm
    Process:6-layers HDI Immersion Gold
    Screw hole specification: ∮3.5MM x 4
  • Environment
    Operating temperature-20°C ~ 60°C

FAQs

  • Product & Performance
  • Integration & Development
  • Reliability & Deployment
  • Commercial & Support
Product & Performance
  • What is the T10 RK3568 SBC, and what makes it ideal for face payment applications?
    Pretech Rochichip RK3568 SBC (Model: T10) is a compact, high-performance Single Board Computer powered by Rockchip RK3568 (4× Cortex-A55 @ 2.0GHz). It features dedicated hardware acceleration for AI inference, supports structured light cameras via MIPI/USB interfaces, and delivers stable 4K video processing—making it purpose-built for secure, low-latency facial recognition and payment terminals.
  • What operating systems does the T10 support?
    The Rochichip RK3568 SBC (Model: T10) ships with Android OS out of the box for rapid deployment. For custom projects, we offer BSP support and technical consultation for Linux-based system integration upon request.
  • How much RAM and storage can I configure?
    Flexible options to match your BOM strategy:
    RAM: LPDDR4 2GB / 3GB / 4GB / 6GB / 8GB
    Storage: eMMC 5.1, 32GB or 64GB
    Custom configurations available for volume orders.
Integration & Development
  • Does the Rochichip RK3568 SBC (Model: T10) support structured light cameras and 3D face recognition modules?
    Yes. Rochichip RK3568 SBC (Model: T10) provides MIPI-DSI, USB 3.0, and GPIO/I2C interfaces compatible with mainstream structured light sensors (e.g., Orbbec, Intel RealSense alternatives). Our engineering team provides interface pinout docs and driver guidance to accelerate your camera integration.
  • What development resources do you provide?
    We empower your R&D team with:
    • Full hardware specification & schematic (under NDA)
    • Android BSP source code & build guide
    • API documentation for camera, GPIO, and payment module control
    • Reference designs for face payment terminal enclosures
    • Dedicated FAE support during prototyping
  • Can I customize the carrier board or I/O layout for my enclosure?
    Absolutely. As an ODM/OEM partner, Pretech offers:
    Carrier board re-spin for form-factor optimization
    Custom connector placement (USB, audio, power)
    PoE HAT integration for single-cable deployment
Reliability & Deployment
  • What is the operating temperature range? Is it suitable for outdoor/industrial use?
    Rochichip RK3568 SBC (Model: T10) is rated for -20°C to +60°C operation. With optional conformal coating and metal-enclosure design support, it's validated for:
    • Retail kiosks & POS terminals
    • Smart access control & elevator panels
    • Transportation ticketing & vending machines
    • Healthcare check-in stations
  • How does PoE support work, and do I need extra hardware?
    The base RK3568 SBC includes Gigabit Ethernet. For Power-over-Ethernet (PoE), simply add our optional PoE HAT module (IEEE 802.3af/at compliant). This enables single-cable power + data—ideal for wall-mounted or ceiling installations where power outlets are limited.
  • What certifications does the T10 comply with?
    Our reference design meets CE, FCC, and RoHS standards. For region-specific certifications (e.g., KC, PSE, UL), we support pre-compliance testing and documentation to streamline your product approval process.
Commercial & Support
  • What if I need help with face payment algorithm integration or security compliance?
    While Pretech provides the hardware platform and low-level SDK, we partner with trusted AI algorithm vendors and payment security consultants. Upon request, we can introduce certified partners for:
    • Liveness detection & anti-spoofing SDKs
    • PCI-PTS / EMVCo compliance consulting
    • End-to-end encryption module integration
