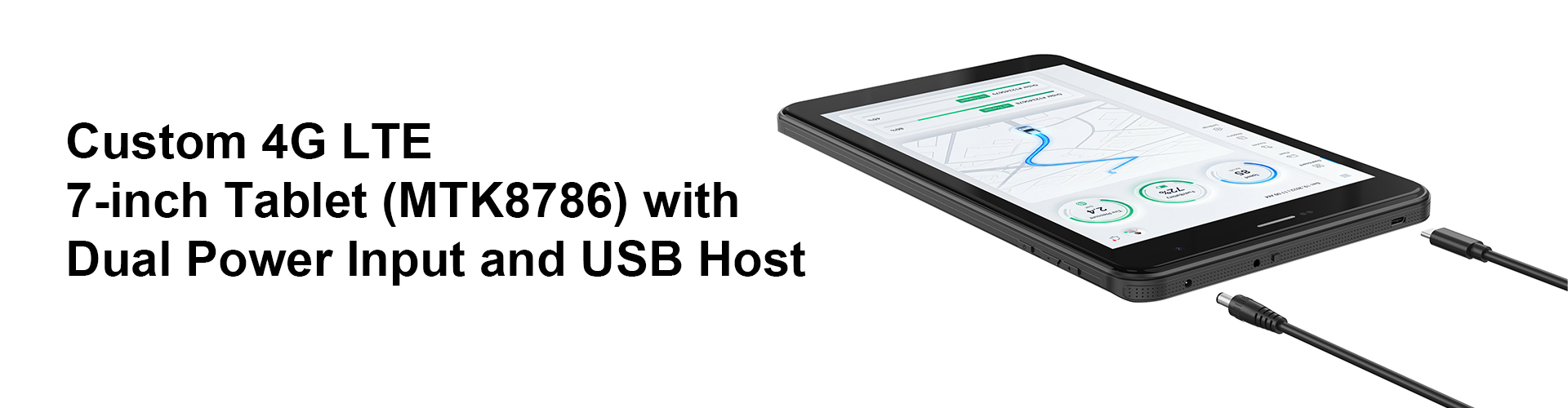

Custom 7-inch 4G LTE Tablet (MTK8786) with Dual Power Input and USB Host
Custom 7-inch 4G LTE Tablet (MTK8786) with Dual Power Input and USB Host
Home >> Solutions >> HMI Solutions

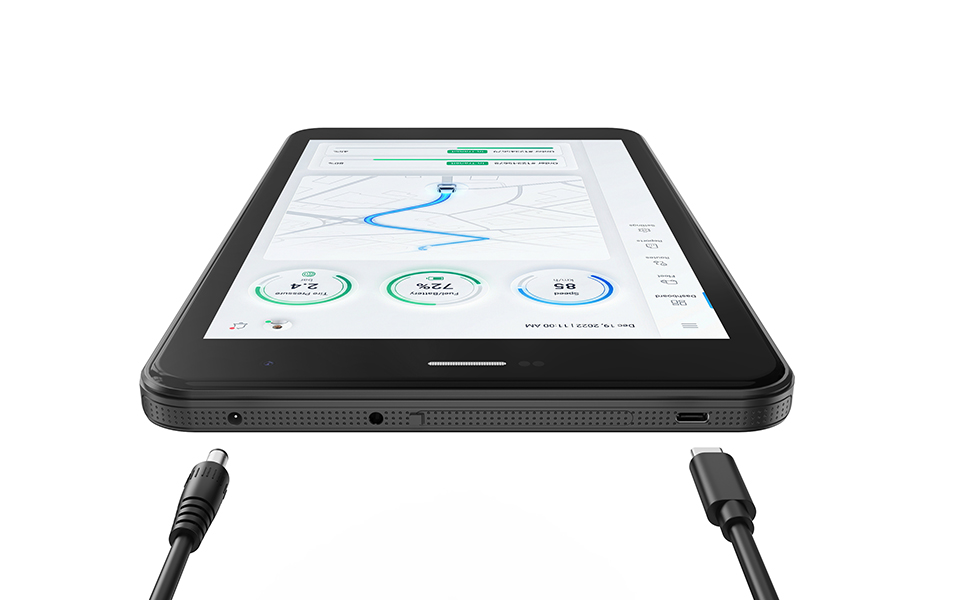

Custom 7-inch 4G LTE Tablet (MTK8786) with Dual Power Input and USB Host

Model: Tablet with USB C and DC in 7-inch
Pretech R&D proficiency is highlighted by this tablet's advanced I/O engineering, utilizing the headphone jack location for a dedicated DC power input while retaining a separate Type-C port for USB Host operations. This critical feature ensures reliable data exchange (host mode). Power and Data Independence: The dedicated DC charging portensures high-current stability, isolating the power input from the data channel. This makes theUSB-C Hosta reliable, dedicated connection for high-demand peripherals. Form Factor Advantage:The 7-inch size is ideal for single-hand data captureand deployment inspace-constrained vehicles, avoiding the bulk of larger tablets. High-Intensity Power Strategy:The DC-in bypasses complex USB-C PD negotiation, enabling direct integration with various custom, large-current charging cradles—crucial for high-intensity,multi-shift work environments.
Inquiry Ask for A Demo
Custom 7-inch 4G LTE Tablet (MTK8786) with Dual Power Input and USB Host

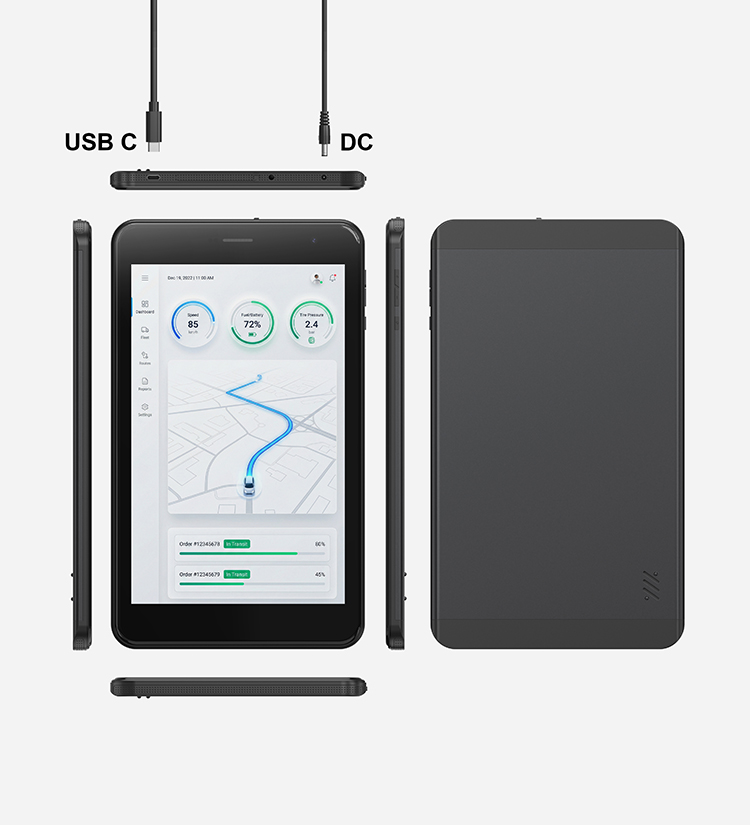

Competitive Advantages

Pretech's specialization in customizing hardware for mobility is the key differentiator for this Mobile Enterprise Tablet.

Proprietary I/O Engineering:Pretech's ODM expertiseled to the custom redesign of the I/O ports, placing the DC inputon the headphone jack location. This unique dual-interface design solves the pervasive "charge or connect" dilemma in mobile fleet management.

Industrial Stability Design:The use of separated DDR/EMMC provides an industrial-grade advantage, enhancing memory stability and longevity compared to integrated consumer-grade memory solutions.

Full Functionality via USB-C: The dedicated USB-C Host allows the tablet to instantly transform into a mobile workstation (e.g., connecting a hub for wired network or diagnostics) without sacrificing its charging ability.
Competitive Advantages

Pretech: 7-inch 4G LTE Tablet with Dual Power Input (DC + USB C Host) Key features

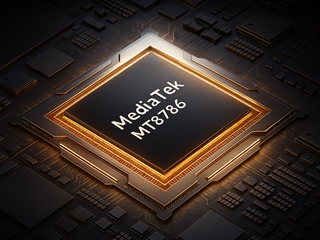

  • MTK8786
    MTK8786
    Pretech's custom 7-inch 4G LTE Tablet (MTK8786 Octa-core) features simultaneous DC power input and USB Host functionality. Ideal for mobile vehicle terminals, field services, and industrial applications requiring continuous power and peripheral connection.

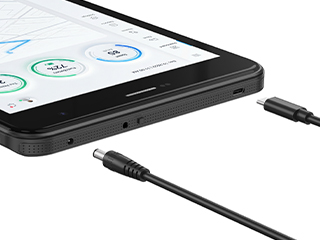

  • Dual Power Input (DC + USB-C Host)
    Dual Power Input (DC + USB-C Host)
    Unique hardware allows concurrent DC power charging and activeUSB Host data transfer, solving the single most common failure point for mobile enterprise devices.
  • Global Cellular Ready
    Global Cellular Ready
    Features broad frequency support, including 2G/3G full bandsand robust 4G LTE, optimized for maximizing global deployment and carrier compatibility.
  • 5G WIFl Support
    5G WIFl Support
    Mobile Suite:Includes Wi-Fi 5 (802.11ac),BT 5.0,GPS, a 5MP Front Camera, and a 3000mAh battery.
Expanded Applications: Leveraging the Dual Interface Advantage
Pretech 7-inch DC + USB-C Tabletis best suited for scenarios requiring high mobility, single-hand data capture, and operation in confined spaces.
Long-Haul Freight / Fleet Management
Long-Haul Freight / Fleet Management
Electronic Logging Device (ELD) and Route Navigation. The DC input provides continuous power from the vehicle, freeing the USB-C Host to connect to ELD logging hardware.

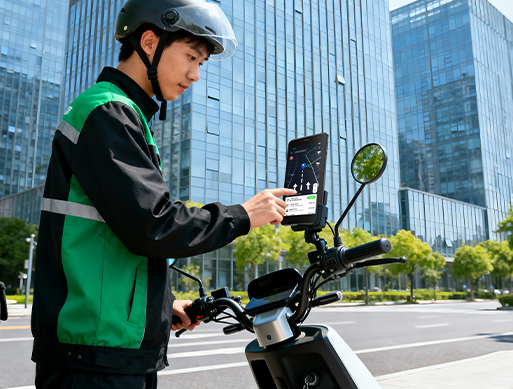

  • Logistics / Last-Mile Delivery
    Logistics / Last-Mile Delivery
    Delivery driver navigation and Proof-of-Delivery (ePOD). The portable 7-inch form factor supports single-hand use, and the USB-C Host connects to a receipt printer or scanner.
  • Urban Emergency Services
    Urban Emergency Services
    Rapid dispatch and navigation for ambulances and fire trucks. The stable DC input ensures the device is always fully charged and instantly ready for mission deployment.
  • Agricultural Machinery / Farming
    Agricultural Machinery / Farming
    Field operation navigation (non-RTK). Mounted in the cab, the stable DC-in resists electrical fluctuations common in heavy machinery.
  • Engineering Survey & Field Work
    Engineering Survey & Field Work
    GIS data collection and position marking (GPS). The USB-C Host connects to high-precision external GPS units or specialized field sensors.
  • Port & Terminal Scheduling
    Port & Terminal Scheduling
    Container truck path guidance and job assignment. The DC power ensures 24/7, high-current operation inside the heavy machinery cabs.

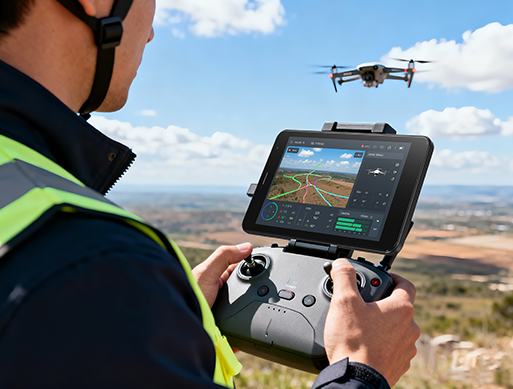

  • UAV Ground Control Station (GCS)
    UAV Ground Control Station (GCS)
    Drone flight path planning and real-time monitoring. The USB-C Host is critical for connecting to the physical drone controller or transmission link interface.
  • Railway Yard Inspection
    Railway Yard Inspection
    Rail facility location navigation and maintenance work orders. 4G LTE and GPS provide real-time data access for technicians across large maintenance yards.

What We Do

We offer ODM solutions for certain customers who have specific needs which can’t be satisfied by existing devices on the market.
  • Tooling
    ID Design
    MD Design
  • Software
    Drive Debugging
    System Customization
    Debug Pre-installed applications
  • Hardware
    Schematic Diagrams Design
    PCB Layout
    Specific components design
    Bill of Materials output
    Gerber Files
    RF Design and Verification
    Assembly Drawings
    Test Specifications output
  • Accessories
    Smart Cover
    Docking Charging Station
    Charging Bracket/Dock
    Magnetic BackClip
    Wall Mount
    Stylus Pen
    And more

How We Do

We offer ODM solutions for certain customers who have specific needs which can’t be satisfied by existing devices on the market.
  • 01 Planning
    Market Survey
    Requirements Collection
    Competitiveness Analysis
    Technology Study
    Risk Analysis
    Component Life Cycle Survey
    Cost Evaluation
  • 02 Desgin
    ID Design
    MD Design
    Hardware
    OS
  • 03 Validation
    Trial Samples
    Software Customization
    Performance Tests
    Reliability Tests
    EVT
    DVT
    Certifications
  • 04 Integration
    Assembly Study and SOP
    Pilot Run Production
    Testing Process Study and SOP
    Field Test/Feedbacks
    Improvements
  • 05 Production
    Pilot Run Production
    Mass Production
  • 06 After Service
    Global Warranty
    Extended Warranty Service
    Online Service

Specification

  • Processor
    MTK8786 (G80) Octa-core
  • Display
    7-inch 600x 1024 IPS Resolution, G+G Touch (30PIN)
  • Memory/Storage
    RAM: 4GB
    EMMC: 64GB
    (Separated DDR/EMMC Architecture)
  • Camera
    Single Front Camera: 5MP
  • Connectivity
    Wi-Fi 5 (802.11ac/a/b/g/n), BT 5.0, GPS, FM, SIM Card Slot
  • Cellular Bands
    2G/3G Full Band, 4G LTE (Optimized for broad coverage)
  • I/O Ports
    Type-C ×1 (USB Host Data), DC Jack ×1 (Dedicated Charging)
  • Key Features
    Simultaneous DC Charging + USB Host, Slim Form Factor, Pretech ODM Hardware Customization
  • Battery
    3000mAh

FAQs

  • Power & Reliability
  • Connectivity & HMI
  • Customization (ODM)
Power & Reliability
  • Why choose the Pretech 7-inch Tablet with USB C and DC in for industrial applications?
    The Dual Power Supply (USB Type-C and DC-In) provides critical power redundancy, ensuring the tablet remains operational even if one power source fails. This is vital for 24/7 Industrial Automation and Fixed Retail Display deployments in any global location.
  • Can this tablet function as a battery-free control panel?
    Yes. We offer firmware customization to operate the tablet as a Permanent Power Device without the internal battery, ideal for wall-mounted Control Terminal applications like Smart Home Gateways and Building Management Systems (BMS).
Connectivity & HMI
  • How does the USB Host feature enhance integration for HMI solutions?
    The dedicated USB Host port allows the tablet to reliably connect to external peripherals, such as Barcode Scanners, Printers, Payment Terminals, or specialized diagnostic tools, turning the 7-inch tablet into a powerful Customized HMI solution.
  • What is the benefit of the compact 7-inch size for HMI applications?
    The 7-inch form factor offers an optimal balance between screen visibility and size, making it perfect for integration into machinery, control consoles, or as a dedicated Small-Footprint Display in limited spaces, such as Medical Devices or Kiosk Interiors.
Customization (ODM)
  • What customization can Pretech offer for the enclosure and mounting?
    Pretech specializes in Full ODM Design. We can customize the enclosure's material (e.g., medical-grade plastic, metal), color, branding, and design specialized mounting brackets (e.g., VESA, flush wall-mounts) to meet specific requirements for European or North American installation standards.
  • Can the Android OS be optimized for specific HMI software?
    Yes. We provide customized Android builds with Device Management features, including: System Lockdowns, Automatic Startup of your application upon power-up, and removal of unnecessary system elements to ensure the tablet functions only as a dedicated Control Panel.
