RK3588S SBC Assembly with Touch Screen and Display Solutions
RK3588S SBC Assembly with Touch Screen and Display Solutions
Home >> Solutions >> HMI Solutions

RK3588S SBC Assembly with Touch Screen and Display Solutions

Model: OF3588S
Pretech's RK3588S SBC with open frame touch screen and display solutions provide a highly flexible and customizable platform for various industrial smart devices. These solutions support multiple display sizes and interfaces, making them ideal for embedded applications in diverse industries.
Inquiry Ask for A Demo
RK3588S SBC Assembly with Touch Screen and Display Solutions

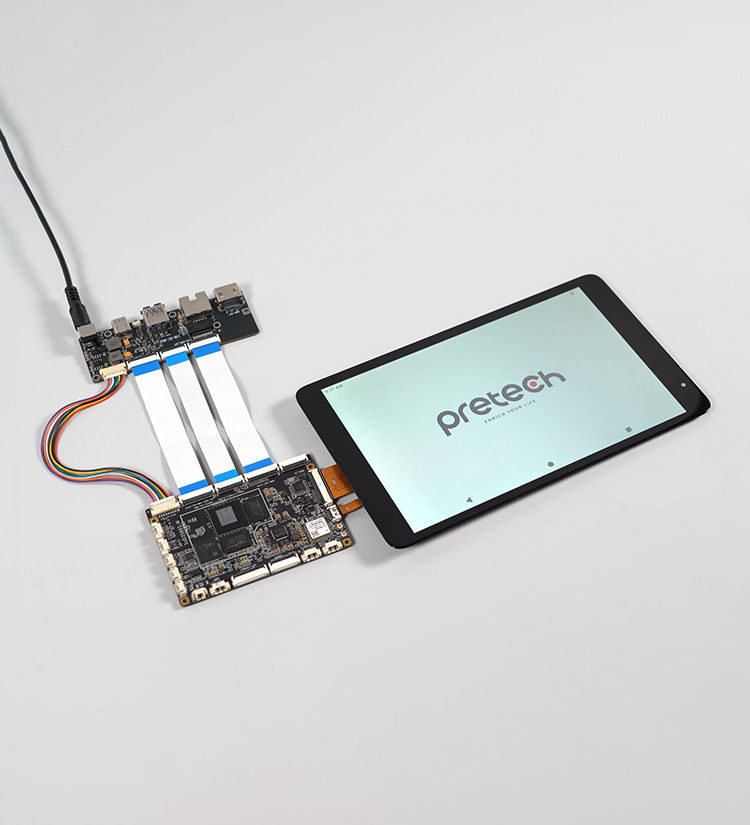

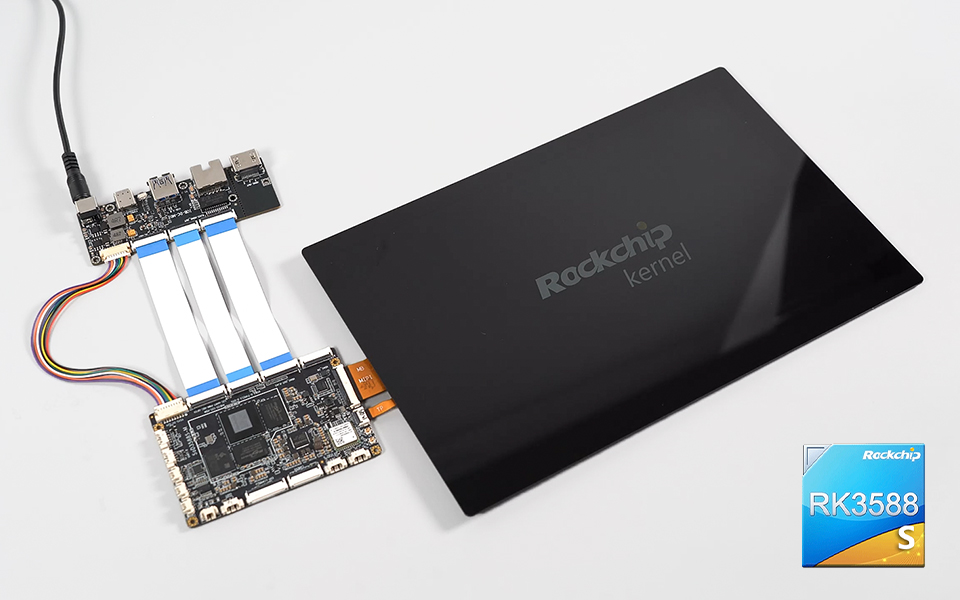

RK3588S SBC Assembly with 11-inch Display for Embedded Industry Applications

Pretech RK3588S SBC assembly solutions are designed to meet the needs of various embedded industry applications, providing a robust platform for smart devices in sectors such as smart security, transportation, industrial automation, healthcare, education, and retail. Pretech RK3588S SBC assembly with 11-inch assemblies are designed to offer high performance and versatility. These solutions feature powerful processing capabilities, rich peripheral interfaces, and support for multiple display options, making them suitable for a wide range of applications. The assembly includes a touchscreen, display screen, and related circuits.
RK3588S SBC Assembly with 11-inch Display for Embedded Industry Applications

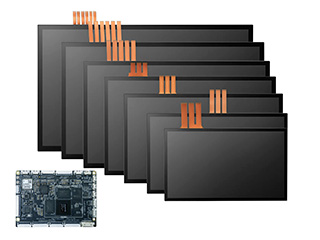

RK3588S SBC Display and Touch Screen Compatibility

Pretech RK3588S Single Board Computer (SBC) with its open frame touch screen and display is a versatile solution designed to meet the needs of various industries. Equipped with a robust CPU and NPU, it offers efficient processing capabilities and interactive displays, enhancing performance and user experience across multiple applications.

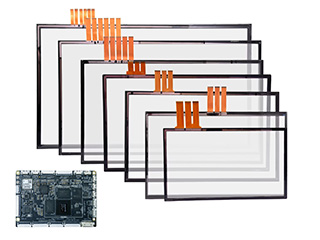

  • Supports Touch Screens of Various Sizes and Interfaces
    Supports Touch Screens of Various Sizes and Interfaces
    The RK3588S SBC assembly also supports touch screens with I2C and USB interfaces.
    It supports I2C interface touch screens in sizes of 7-inch, 8-inch, 10.1-inch, 11-inch, and 11.97-inch, supports USB interface touch screens in sizes of 14-inch, 15.6-inch, 17.3-inch, 21.5-inch, 32-inch, 43-inch, 55-inch, and 65-inch.
  • Expandable Display Sizes
    Expandable Display Sizes
    The RK3588S SBC assembly also supports a variety of display sizes and interfaces. The main board natively supports MIPI and eDP interfaces (LVDS support is available via a MIPI-to-LVDS adapter board).
    MIPI Conventional Sizes: 4-inch, 5-inch, 7-inch, 8-inch 10.1-inch, 11-inch, 11.97-inch
    EDP Conventional Sizes: 14-inch 15.6-inch, 17.3-inch
    LVDS Conventional Sizes: 21.5-inch, 32-inch, 43-inch, 55-inch, 65-inch
RK3588S SBC: The Open Frame Touch Screen and Display for Intelligent Solutions Across Multiple Fields
From industrial automation to smart home, RK3588S SBC with open frame touch empowers the intelligent upgrading of various industries with its powerful CPU and flexible design
Industrial Automation Solutions
Industrial Automation Solutions
Designed for industrial automation applications, the RK3588S SBC with open frame touch screen and display solution utilizes its robust CPU to efficiently control industrial robots and automated production line control devices. The open frame design allows for easy integration into existing systems, enhancing production efficiency and quality control.
  • Smart Healthcare Solutions
    Smart Healthcare Solutions
    The RK3588S SBC with open frame touch screen and display solution is designed for intelligent medical devices. Its high-performance CPU enables quick processing of medical imaging data and assists in smart diagnostics. The open frame design allows for flexible integration into medical equipment, providing doctors with more accurate and timely diagnostic information.
  • POS Payment Terminal Solutions
    POS Payment Terminal Solutions
    The RK3588S SBC with open frame touch screen and display solution is designed for POS payment terminals. Its high-performance CPU enables secure and efficient transaction processing, making it suitable for retail and service industries. The open frame design allows for easy customization and integration into existing payment systems.
  • School & Education Solutions
    School & Education Solutions
    The RK3588S SBC with open frame touch screen and display solution is designed for educational institutions. Its powerful CPU supports interactive teaching applications, such as electronic whiteboards and smart teaching terminals, providing teachers and students with a more intuitive and efficient learning experience. The open frame design allows for easy integration into existing educational systems.
  • Advertising Machine Solutions
    Advertising Machine Solutions
    The RK3588S SBC with open frame touch screen and display solution is designed for advertising machines. Its powerful CPU supports high-resolution video playback and interactive content display, making it ideal for digital signage and interactive kiosks. The open frame design allows for easy customization and integration into various advertising setups.
  • Banking & Finance Solutions
    Banking & Finance Solutions
    The RK3588S SBC with open frame touch screen and display solution is designed for banking and finance applications. Its high-performance CPU enables secure and efficient transaction processing, making it suitable for POS payment terminals and self-service banking kiosks. The open frame design allows for easy integration into existing banking systems.
  • Smart Security Solutions
    Smart Security Solutions
    The RK3588S SBC with open frame touch screen and display solution is optimized for advanced security surveillance. Its powerful CPU enables real-time video analytics, making it ideal for smart cameras and video surveillance systems. The open frame design allows for easy integration into existing security systems.
  • Transportation Solutions
    Transportation Solutions
    The RK3588S SBC with open frame touch screen and display solution is designed for transportation applications. Its high-performance CPU enables efficient management of transportation systems, including real-time data processing and display for traffic monitoring and control. The open frame design allows for easy integration into existing transportation systems.
  • Smart Logistics Solutions
    Smart Logistics Solutions
    Leveraging its powerful CPU, the RK3588S SBC with open frame touch screen and display solution can efficiently handle tasks such as goods identification and inventory management in logistics warehousing. The open frame design allows for easy integration into existing logistics systems, improving the efficiency and accuracy of logistics operations.
  • Smart Home Control Center Solutions
    Smart Home Control Center Solutions
    As the core of a smart home system, the RK3588S SBC with open frame touch screen and display solution can integrate and process data from various smart devices, such as smart home appliances and smart security devices. The open frame design allows for easy integration into existing home automation systems.
  • Industrial Inspection and Quality Control Solutions
    Industrial Inspection and Quality Control Solutions
    In the quality inspection process of industrial production, the RK3588S SBC with open frame touch screen and display solution, with its high-performance CPU, can quickly process image data obtained from industrial cameras and other inspection devices to achieve high-precision detection of product appearance defects and dimensional accuracy. The open frame design allows for easy integration into existing inspection systems.
  • Cultural and Entertainment Solutions
    Cultural and Entertainment Solutions
    In cultural and entertainment venues such as theme parks and museums, the RK3588S SBC with open frame touch screen and display solution can be used to create interactive display and experience projects. The open frame design allows for easy customization and integration into various cultural and entertainment setups.
  • Energy Management Solutions
    Energy Management Solutions
    In energy management systems, the RK3588S SBC with open frame touch screen and display solution, with its powerful data processing capabilities, can be used to monitor and analyze energy consumption data in real-time. The open frame design allows for easy integration into existing energy management systems.

What We Do

We offer ODM solutions for certain customers who have specific needs which can’t be satisfied by existing devices on the market.
  • Tooling
    ID Design
    MD Design
  • Software
    Drive Debugging
    System Customization
    Debug Pre-installed applications
  • Hardware
    Schematic Diagrams Design
    PCB Layout
    Specific components design
    Bill of Materials output
    Gerber Files
    RF Design and Verification
    Assembly Drawings
    Test Specifications output
  • Accessories
    Smart Cover
    Docking Charging Station
    Charging Bracket/Dock
    Magnetic BackClip
    Wall Mount
    Stylus Pen
    And more

How We Do

We offer ODM solutions for certain customers who have specific needs which can’t be satisfied by existing devices on the market.
  • 01 Planning
    Market Survey
    Requirements Collection
    Competitiveness Analysis
    Technology Study
    Risk Analysis
    Component Life Cycle Survey
    Cost Evaluation
  • 02 Desgin
    ID Design
    MD Design
    Hardware
    OS
  • 03 Validation
    Trial Samples
    Software Customization
    Performance Tests
    Reliability Tests
    EVT
    DVT
    Certifications
  • 04 Integration
    Assembly Study and SOP
    Pilot Run Production
    Testing Process Study and SOP
    Field Test/Feedbacks
    Improvements
  • 05 Production
    Pilot Run Production
    Mass Production
  • 06 After Service
    Global Warranty
    Extended Warranty Service
    Online Service

Specification

  • OS
    Android/Linux(Debian)
  • SOC
    RK3588S, 4 x Cortex-A76 + 4 x Cortex-A55 2.4GHz, 8nm
    GPU ARM Mali-G610 MP4 Quad-Core
    OpenGL ES3.2/OpenCL 2.2/Vulkan1.1,450 GFLOPS
    6.0TOPS NPU, Support INT4/INT8/INT16
  • RAM/ROM
    RAM: LPDDR4 4G/8G/16G
    ROM: EMMC5.1 64G/128G/256G
  • Media
    Decode:
    8K 60fps H.265NP9/AVS2
    8K 30fps H.264AVC/MVC
    4K 60fps AV1
    1080P 60fps MPEG-2/-1/C-1P8

    Encoded:
    8K 30fps encoding
    Support H.265/H.264 Up to 32-channel
    1080P 30fps decoding and 16-channel
    1080P 30fps encoding
  • Touch Screen
    Touch screens that support both I2C and USB interfaces are available in various sizes.
    The touch screens with I2C interfaces include 7 inches, 8 inches, 10.1 inches, 11 inches, and 11.97 inches.
    Touch screens with USB interfaces include 14 inches, 15.6 inches, 17.3 inches, 21.5 inches, 32 inches, 43 inches, 55 inches, and 65 inches.
  • Display Port
    1 x MIPI-DSI (1920x1200@60fps)
    1 x eDP1.3 (4K@60fps)
    1 x HDMI2.1 (8K@60fps or 4K@120fps, either HDMI output or eDP display)
    1 x DP1.4 (4K@60fps, multiplexed with Type-C USB 3.0)
  • Display
    The motherboard supports MIPI and eDP interfaces natively (LVDS can be supported via a MIPI-to-LVDS converter board).
    Displays with MIPI include 4 inches, 5 inches, 7 inches, 8 inches, 10.1 inches, 11 inches, and 11.97 inches.
    Displays with eDP include 14 inches, 15.6 inches, and 17.3 inches.
    Displays with LVDS include 21.5 inches, 32 inches, 43 inches, 55 inches, and 65 inches.
  • Ethernet
    1000M Ethernet x 1
  • Connectivity
    WIFI6 802.11a/b/g/n/ac/ax，Bluetooth5.0
  • USB
    1 x Type-C,USB3.2 gen1，with OTG & DP-out（30Pin-FPC-0.5mm）
    1 x USB3.0 /SATA3.0 （30Pin-FPC-0.5mm）
    2 x USB Host 2.0(2 x 4Pin-PH1.25)
  • Audio
    Speaker x 2
    Microphone x 1
  • Interface
    2 x UART, one for debug (4Pin-PH1.25)
    2 x Speaker Interface, 10W (2Pin-PH1.25)
    1 x Mic connector (2Pin-PH1.25)
    1 x Key connector (4Pin-PH1.25)
    1 x TP-CoF/NFC connector (10Pin-FPC-0.5mm)
    1 x RTC Battery connector (2Pin-PH1.25)
  • Input Power
    VSYS-4V+5V+12V Power Supply (Interface board can be flexibly designed according to the demand for power supply solutions, DC supply voltage wide voltage, whether the battery, single and double battery, fast charging, etc.)
  • PCB
    Size: 63 x 93 x 1.2mm
    Process: 8-layers HDI-2 Immersion Gold
  • Environment
    Operating temperature -20°C ~ 60°C

FAQs

  • ODM/SBC Design & Customization
  • High-End Performance & Media
  • Operating System & Versatility
ODM/SBC Design & Customization
  • What is the primary advantage of choosing the SBC (Single Board Computer) assembly model for HMI applications?
    The SBC (RK3588S) assembly offers a highly integrated, compact, and cost-effective platform (PCB Size: 63x93x1.2mm) that simplifies hardware development. We perform PCB Layout and Schematic Diagrams Design customizations, allowing OEMs to quickly integrate the powerful computing core into their industrial devices (e.g., control robots, smart security systems) without complex carrier board development.
  • How is the physical power delivery customized to fit diverse industrial equipment power requirements?
    The power input is highly flexible (VSYS-4V+5V+12V Power Supply). Our ODM service includes designing the Interface Board to support wide-voltage DC supply, as well as integrating solutions for battery support (single/double battery) and fast charging, crucial for mobile or mission-critical industrial applications that need stable, customizable power sources.
High-End Performance & Media
  • What are the maximum RAM and storage customization options available for the OF3588S to support heavy industrial workloads?
    The kit supports extensive memory customization with LPDDR4 RAM options up to 16G and EMMC storage up to 256G. This high capacity is essential for data-intensive applications like real-time video analytics (Smart Security), running large, interactive education software (School Solutions), or storing complex imaging data (Smart Healthcare Solutions).
  • What customization ensures the high-resolution media outputs (8K/4K) are reliable for continuous digital signage applications?
    The RK3588S supports premium outputs like HDMI 2.1 (8K@60fps) and DisplayPort 1.4 (4K@60fps). We optimize the drivers and the system for continuous multimedia playback, customizing the OS (Android/Linux) for stability and implementing features like Kiosk Mode for uninterrupted operation in Digital Signage or Advertising Machines, ensuring the powerful video decoder runs flawlessly.
Operating System & Versatility
  • Which operating systems are supported by the OF3588S, and how does this benefit industrial clients?
    The OF3588S supports both Android and Linux (Debian). This dual OS support is critical for industrial clients: Android offers a user-friendly interface for public-facing HMI (POS, Kiosks), while Linux/Debian provides a stable, highly customizable, and secure environment preferred for core industrial automation, control, and specific high-end security applications.
  • How is the physical connectivity customized to meet the diverse needs of the many targeted industries (e.g., POS, Logistics, Home Control)?
    The SBC includes versatile high-speed I/O like USB 3.2 gen1 Type-C (with DP-out), USB3.0/SATA3.0 (on FPC), and Gigabit Ethernet. We customize the carrier board and peripheral connectivity (e.g., TP-CoF/NFC connector) via our Hardware ODM services to integrate specific components, ensuring the solution meets the unique connectivity demands of each sector, whether it's logistics scanning or smart home networking.
