RK3576 SBC Assembly with the Open Frame Display and Touch Screen for Embedded Industry Applications

Model: OF3576
Pretech's RK3576 SBC assembly with the open frame display and touch screen solutions provide a highly flexible and customizable platform for various industrial smart devices. These solutions support multiple display sizes and interfaces, making them ideal for embedded applications in diverse industries.
RK3576 SBC Assembly with the Open Frame Display and Touch Screen for Embedded Industry Applications

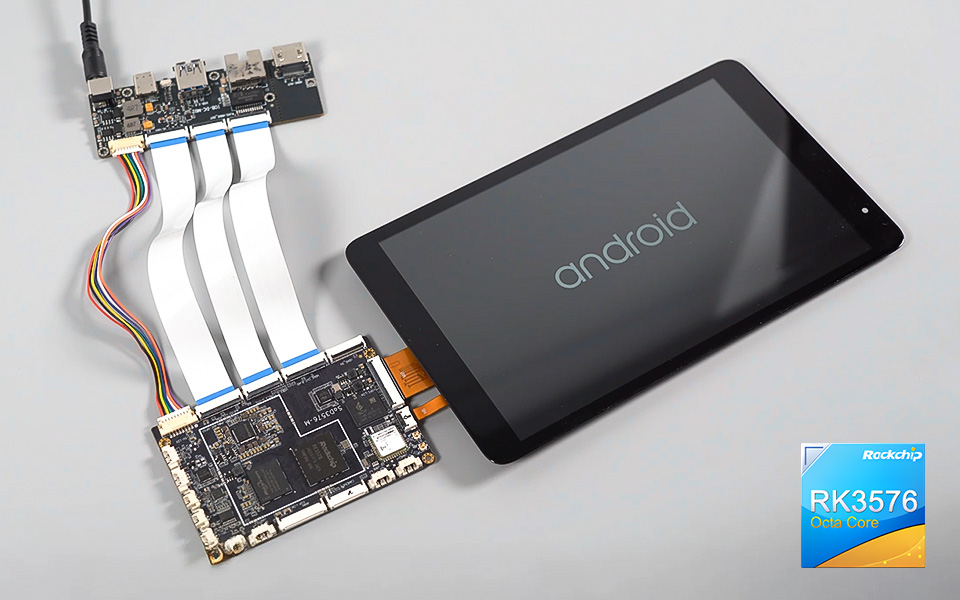

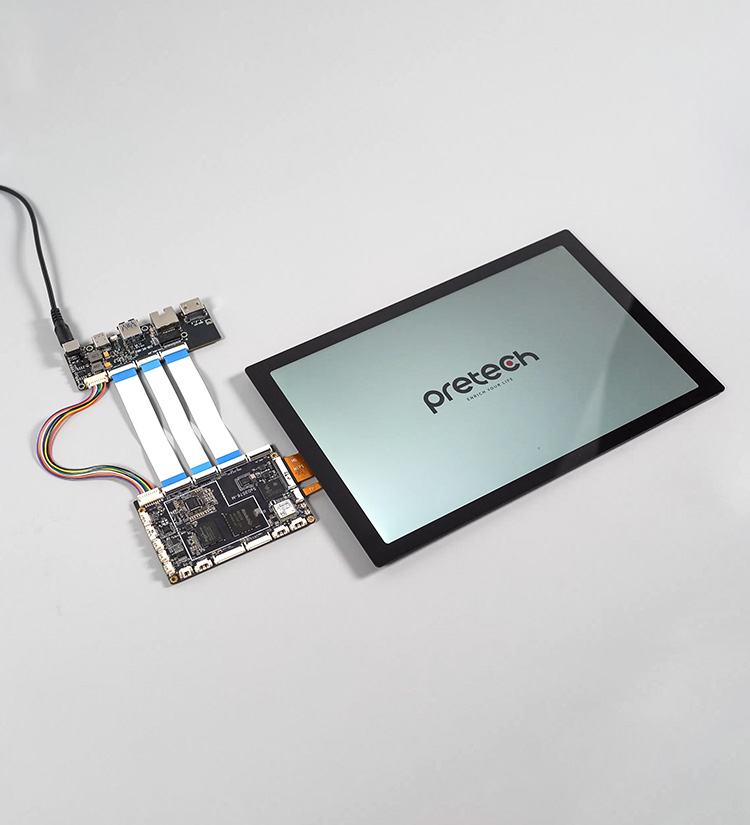

RK3576 SBC Assembly with a 8-inch Display and Touch Screen Solution

Pretech RK3576 SBC assembly with the open frame display and touch screen is designed to offer high performance and versatility. These solutions feature powerful processing capabilities, rich peripheral interfaces, and support for multiple display options, making them suitable for a wide range of applications. The assembly includes a touchscreen, display screen, and related circuits. Pretech RK3576 SBC assembly solutions are designed to meet the needs of various embedded industry applications, providing a robust platform for smart devices in sectors such as smart security, transportation, industrial automation, healthcare, education, and retail. These solutions feature powerful processing capabilities, rich peripheral interfaces, and support for multiple display options, making them suitable for a wide range of applications. The assembly includes a touchscreen, display screen, and related circuits.
RK3576  SBC Assembly with a 8-inch Display and Touch Screen Solution

RK3576 SBC Display and Touch Screen Compatibility

Pretech RK3576 Single Board Computer (SBC) with its open frame touch screen and display is a versatile solution designed to meet the needs of various industries. Equipped with a robust CPU and NPU, it offers efficient processing capabilities and interactive displays, enhancing performance and user experience across multiple applications.
  • Supports Touch Screens of Various Sizes and Interfaces

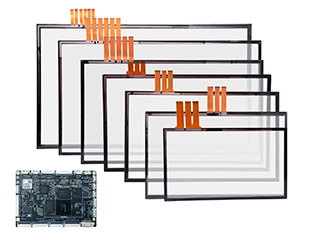

    Supports Touch Screens of Various Sizes and Interfaces
    The RK3575 SBC assembly also supports touch screens with I2C and USB interfaces.
    It supports I2C interface touch screens in sizes of 7-inch, 8-inch, 10.1-inch, 11-inch, and 11.97-inch, supports USB interface touch screens in sizes of 14-inch, 15.6-inch, 17.3-inch, 21.5-inch, 32-inch, 43-inch, 55-inch, and 65-inch.
  • Expandable Display Sizes
    Expandable Display Sizes

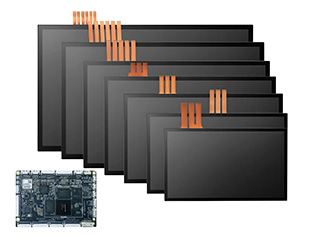

    The RK3588S SBC assembly also supports a variety of display sizes and interfaces.
    The main board natively supports MIPI and eDP interfaces (LVDS support is available via a MIPI-to-LVDS adapter board).
    MIPI Conventional Sizes: 4-inch, 5-inch, 7-inch, 8-inch 10.1-inch, 11-inch, 11.97-inch
    EDP Conventional Sizes: 14-inch 15.6-inch, 17.3-inch
    LVDS Conventional Sizes: 21.5-inch, 32-inch, 43-inch, 55-inch, 65-inch
Customized RK3576 SBC with Open Frame Touch Screen and Display for Various Industry Applications
Empowering Efficiency and Innovation with Pretech SBC and Open Frame Touch Screen and Display
Industrial Automation Solutions
Industrial Automation Solutions
Designed for industrial automation applications, the Pretech RK3576 SBC with the open frame touch screen and display utilizes its robust CPU and NPU to efficiently control industrial robots and automated production line control devices. The SBC provides clear and interactive displays for operators, enhancing production efficiency and quality control.
  • Smart Healthcare Solutions
  • POS Payment Terminal Solutions
  • School & Education Solutions
  • Advertising Machine Solutions
  • Banking & Finance Solutions
  • Smart Security Solutions
  • Transportation Solutions
  • Smart Logistics Solutions
  • Smart Home Control Center Solutions
  • Industrial Inspection and Quality Control Solutions
  • Cultural and Entertainment Solutions
  • Energy Management Solutions

What We Do

We offer ODM solutions for certain customers who have specific needs which can’t be satisfied by existing devices on the market.
  • Tooling
    ID Design
    MD Design
  • Software
    Drive Debugging
    System Customization
    Debug Pre-installed applications
  • Hardware
    Schematic Diagrams Design
    PCB Layout
    Specific components design
    Bill of Materials output
    Gerber Files
    RF Design and Verification
    Assembly Drawings
    Test Specifications output
  • Accessories
    Smart Cover
    Docking Charging Station
    Charging Bracket/Dock
    Magnetic BackClip
    Wall Mount
    Stylus Pen
    And more

How We Do

We offer ODM solutions for certain customers who have specific needs which can’t be satisfied by existing devices on the market.
  • 01 Planning
    Market Survey
    Requirements Collection
    Competitiveness Analysis
    Technology Study
    Risk Analysis
    Component Life Cycle Survey
    Cost Evaluation
  • 02 Desgin
    ID Design
    MD Design
    Hardware
    OS
  • 03 Validation
    Trial Samples
    Software Customization
    Performance Tests
    Reliability Tests
    EVT
    DVT
    Certifications
  • 04 Integration
    Assembly Study and SOP
    Pilot Run Production
    Testing Process Study and SOP
    Field Test/Feedbacks
    Improvements
  • 05 Production
    Pilot Run Production
    Mass Production
  • 06 After Service
    Global Warranty
    Extended Warranty Service
    Online Service

Specification

  • SOC
    RK3576, 4 x Cortex-A72 + 4 x Cortex-A53 2.3GHz, 8nm
    GPU ARM Mali-G52 MC3
    OpenGL ES3.2/OpenCL 2.0/Vulkan1.1
    6.0TOPS NPU, INT4,INT8,INT16, float16, Bfloat 16 and tf32 operation
    Supports deep learning framework:TensorFlow, Caffe, Tflite, Pytorch, Onnx NN,Android NN, etc.
  • OS
    Android/Linux(Debian)
  • RAM/ROM
    RAM: LPDDR5 4G/8G/16G
    ROM: EMMC5.1 64G/128G
  • Media
    Decode:
    4K@60fps H.264/AVC
    8K@30fps or 4K@120fps H.265/HEVC/VP9/AVS2/AV1
    1080@60fps H264/MVC

    Encoded:
    Dual video encoders which support H.265 and H.264
    H.264 and H.265 up to 4K@60fps
    Supports multi-stream encoding
  • Touch Screen
    Touch screens that support both I2C and USB interfaces are available in various sizes.
    The touch screens with I2C interfaces include 7 inches, 8 inches, 10.1 inches, 11 inches, and 11.97 inches.
    Touch screens with USB interfaces include 14 inches, 15.6 inches, 17.3 inches, 21.5 inches, 32 inches, 43 inches, 55 inches, and 65 inches.
  • Display Port
    1 x MIPI-DSI (1920x1200@60fps)
    1 x eDP1.3 (4K@60fps)
    1 x HDMI2.1 (8K@60fps or 4K@120fps, either HDMI output or eDP display)
    1 x DP1.4 (4K@60fps, multiplexed with Type-C USB 3.0)
  • Display
    The motherboard supports MIPI and eDP interfaces natively (LVDS can be supported via a MIPI-to-LVDS converter board). Displays with MIPI include 4 inches, 5 inches, 7 inches, 8 inches, 10.1 inches, 11 inches, and 11.97 inches.
    Displays with eDP include 14 inches, 15.6 inches, and 17.3 inches.
    Displays with LVDS include 21.5 inches, 32 inches, 43 inches, 55 inches, and 65 inches.
  • Ethernet
    1000M Ethernet x 1
  • Connectivity
    WIFI6 802.11a/b/g/n/ac/ax,Bluetooth5.2
  • USB
    1 x Type-C,USB3.0,with OTG & DP-out(30Pin-FPC-0.5mm)
    1 x USB3.0 /SATA3.0 (30Pin-FPC-0.5mm)
    2 x USB Host 2.0(2 x 4Pin-PH1.25)
  • Audio
    Speaker x 2
    Microphone x 1
  • Interface
    2 x UART, one for debug (4Pin-PH1.25)
    2 x Speaker Interface, 10W (2Pin-PH1.25)
    1 x Mic connector (2Pin-PH1.25)
    1 x Key connector (4Pin-PH1.25)
    1 x TP-CoFconnector (10Pin-FPC-0.5mm)
    1 x NFC connector (10Pin-FPC-0.5mm)
    1 x RTC Battery connector (2Pin-PH1.25)
  • Input Power
    VSYS-4V+5V+12V Power Supply (Interface board can be flexibly designed according to the demand for power supply solutions, DC supply voltage wide voltage, whether the battery, single and double battery, fast charging, etc.)
  • PCB
    Size: 63x 93 x 1.2mm
    Process: 6-layer HDI Immersion Gold
  • Environment
    Operating temperature -20°C ~ 60°C

FAQs

  • ODM/Performance & Memory Advantage
  • Versatility & Industrial I/O
  • Operating Environment & Durability
ODM/Performance & Memory Advantage
  • How does the RK3576 OF3576 kit balance high performance with cost-effectiveness for embedded industrial applications?
    The RK3576 SOC (4x Cortex-A72 + 4x Cortex-A53, 2.3GHz) offers robust processing power suitable for the majority of industrial HMI and AI tasks (e.g., POS, Smart Home Control, basic automation) at a lower cost than the RK3588S. Crucially, it includes a powerful 6.0 TOPS NPU and supports a customized LPDDR5 RAM upgrade path (up to 16G), providing high-speed memory for efficient data processing (GEO-specific performance tailoring).
  • What is the significance of using LPDDR5 RAM in this SBC for HMI applications?
    The support for LPDDR5 RAM (customizable up to 16G) provides higher bandwidth and lower power consumption compared to older standards. This is critical for industrial applications running complex, dynamic interfaces, multiple video streams (8K@30fps decoding), or real-time AI analytics (e.g., Industrial Inspection and Quality Control), ensuring quick response times and energy efficiency.
Versatility & Industrial I/O
  • How is the OF3576 customized to handle both small-scale (tablet-size) and large-scale (signage) display requirements?
    The SBC natively supports MIPI and eDP, and with a MIPI-to-LVDS adapter, it covers a huge range of displays from 4-inch MIPI to 65-inch LVDS. We customize the display port configuration (e.g., HDMI 2.1 8K output or eDP 4K output) and drivers to precisely fit the client's display choice, whether it's a small POS terminal or a large format public information display (Digital Signage Systems).
  • What dedicated industrial and peripheral connectors are available for customization on the OF3576 SBC?
    The board provides multiple essential industrial interfaces, including 2 x UART for machine communication, 2 x USB Host 2.0, and dedicated connectors for TP-CoF (Touch Panel) and NFC. Our ODM process customizes the connection interface to match the client's chosen peripherals (e.g., scanners, payment modules), ensuring tight, reliable integration without bulky adapters (PCB Process: 6-layer HDI Immersion Gold).
Operating Environment & Durability
  • What power customization options are available to ensure the SBC integrates smoothly with various equipment power systems?
    The SBC is designed for maximum power flexibility (VSYS-4V+5V+12V). We can design the interface board to support wide DC supply voltage and accommodate power solutions with or without batteries (single/double battery support), offering stability and quick charging capabilities as required by the final application (e.g., backup power for Smart Healthcare Solutions or continuous DC for Industrial Automation).
