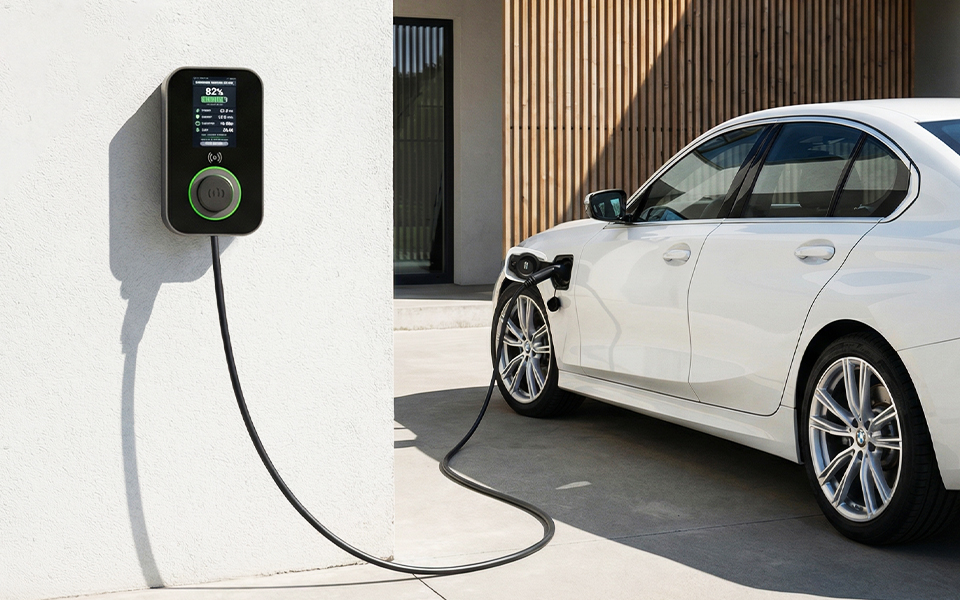

Custom Embedded Display Panels for EV Charging Infrastructure
Custom Embedded Display Panels for EV Charging Infrastructure
Home >> Solutions >> Car Infotainment Solutions

Custom Embedded Display Panels for EV Charging Infrastructure

MODEL: evse-embedded-panel-odm
Pretech specializes in deep-customization embedded display panels engineered for seamless integration into EV charging stations. Our solutions combine reliable touch interaction, flexible connectivity, and ODM-level hardware/software adaptation to meet the precise mechanical and electronic requirements of charging equipment manufacturers.

Supporting Android/Linux OS, Pretech embedded panels serve as the intuitive Human-Machine Interface (HMI) for real-time charging status, payment processing, and remote management. The key advantage lies in our Embedded Integration Strategy: we tailor panel dimensions, mounting structures, I/O layouts, and firmware to align perfectly with your charger chassis and control architecture—eliminating integration friction and accelerating time-to-market.
Inquiry Ask for A Demo
Custom Embedded Display Panels for EV Charging Infrastructure

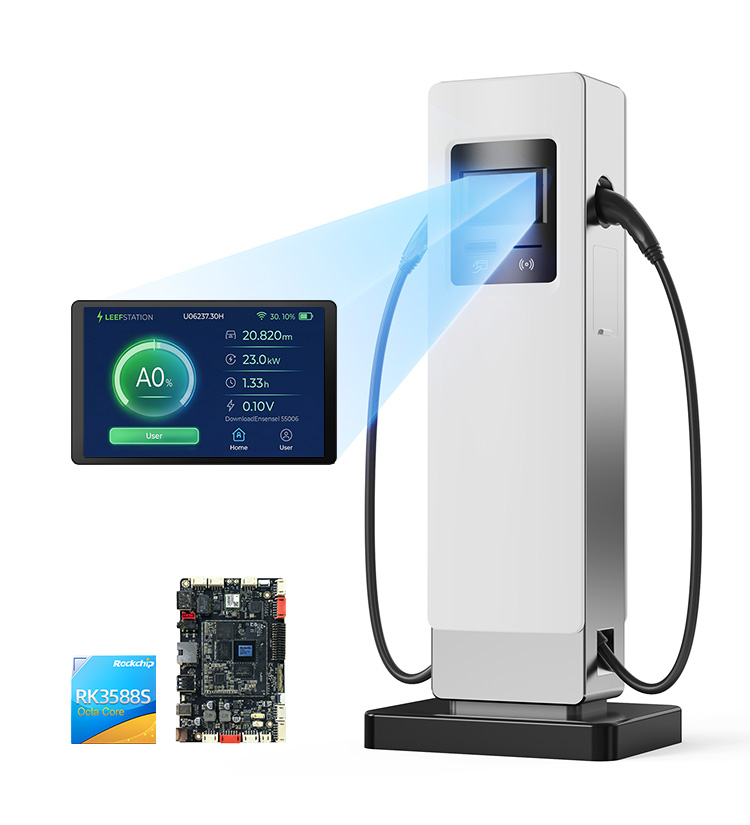

ODM Scalability & Platform Versatility

Pretech's ODM expertise ensures that every embedded panel delivers stable performance in commercial deployment scenarios, from urban AC wallboxes to highway DC fast chargers, while maintaining clean aesthetics and simplified serviceability.

Pretech leverages modular SOM/SBC platforms and Open Frame Kits to rapidly engineer custom embedded panels for EV chargers. Support flexible screen sizes (8"-32inch"), multiple mounting options (embedded/VESA/flush), and scalable I/O integration—accelerating ODM development for AC/DC charging stations while ensuring mechanical fit, protocol compatibility, and long-term supply stability.
ODM Scalability & Platform Versatility

Unrivaled ODM Customization and R&D Power | Custom Embedded Panels for EVSE: Integration-First Design Philosophy

The Pretech Embedded Panel for EV Charging is engineered to maximize display clarity, touch responsiveness, and system compatibility in fixed-installation charging equipment.

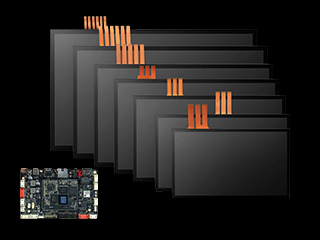

  • Flexible Screen Sizes
    Flexible Screen Sizes
    Options from 8" to 32" TFT LCD (1280×720 / 1920×1080) to match charger form factors—from compact AC wallboxes to large DC fast-charge kiosks.

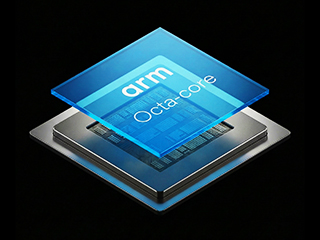

  • Industrial Processor Platform
    Industrial Processor Platform
    Octa-core or equivalent industrial ARM options with 4GB+ RAM / 32GB+ storage for smooth operation of charging apps, payment modules, and media playback.

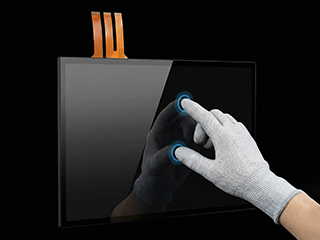

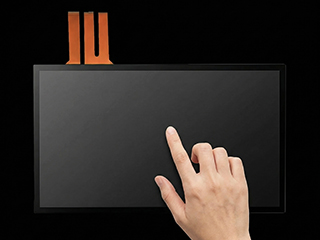

  • Responsive Touch Experience
    Responsive Touch Experience
    G+G capacitive touch panel with full lamination for reliable interaction in varied lighting conditions; supports glove-touch operation for field maintenance.

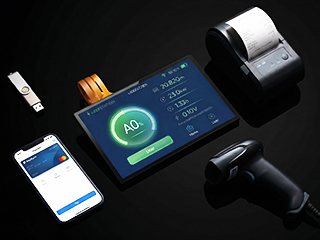

  • Dual-Path Connectivity Design
    Dual-Path Connectivity Design
    Dedicated power input port + versatile data/host port strategy ensures stable operation while enabling peripheral expansion (printers, card readers, sensors).

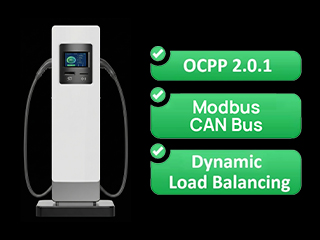

  • Protocol-Ready Firmware
    Protocol-Ready Firmware
    Pre-integrated support for OCPP 1.6J/2.0.1, Modbus, CAN Bus, and MQTT enables seamless communication with charger controllers and CPO backend systems.

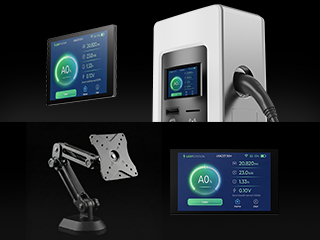

  • Clean Installation Architecture
    Clean Installation Architecture
    Rear-panel I/O layout with customizable cable exit directions supports embedded, flush-mount, or VESA installation with discreet, professional wiring.

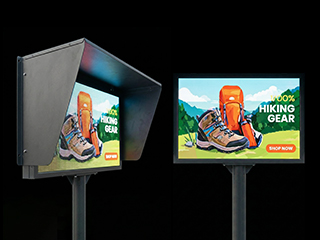

  • Extended Temperature Operation
    Extended Temperature Operation
    Designed to operate reliably across commercial temperature ranges, ensuring consistent performance in indoor and sheltered outdoor deployments.
  • Customized OS Integration
    Customized OS Integration
    Full Android/Linux OS tailoring: custom boot logo, auto-launch charging app, driver integration for peripheral hardware, and OTA update capability.
Expanded Applications: Leveraging Embedded Panel Integration for EV Charging
The Pretech Embedded Panel Solution is designed for fixed-installation EV charging equipment requiring reliable HMI, clean integration, and scalable connectivity.

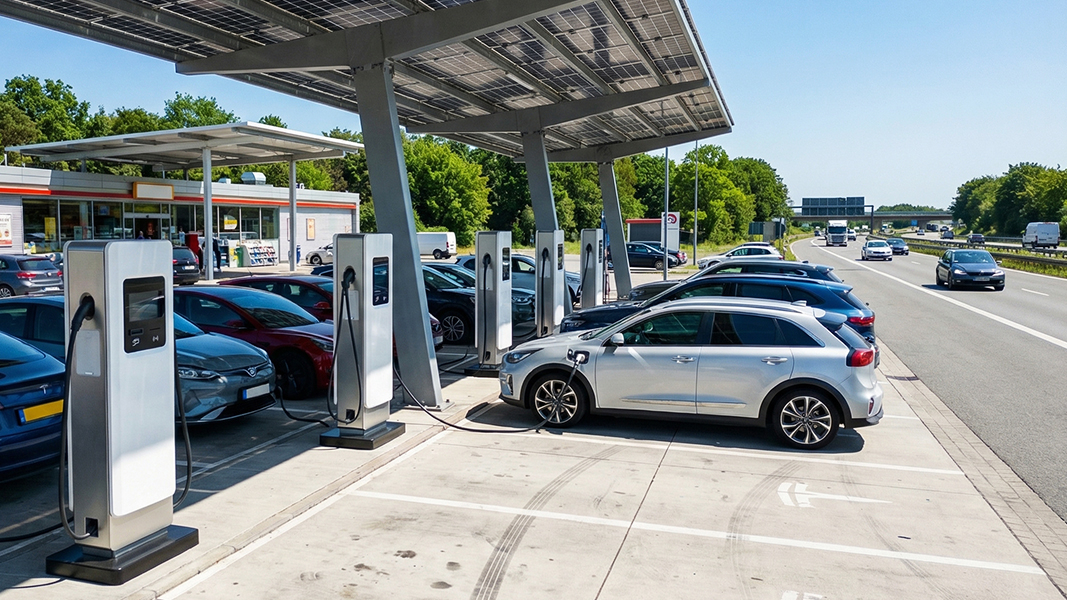

Public DC Fast Charging<br>Highway service areas, commercial parking hubs, fuel station upgrades
Public DC Fast Charging
Highway service areas, commercial parking hubs, fuel station upgrades
Panel embeds flush into charger chassis; rear I/O connects directly to main controller via CAN/RS485. Dedicated power port ensures uninterrupted operation during high-load charging sessions. Host port enables peripheral expansion (receipt printer, payment terminal).

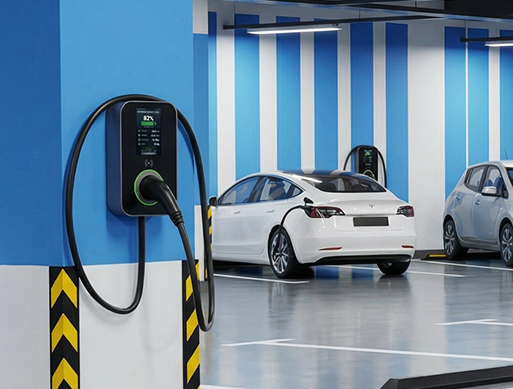

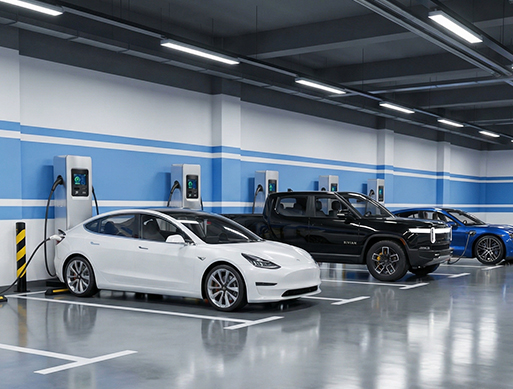

  • Commercial AC Wallboxes<br>Shopping malls, hotels, corporate fleets, apartment complexes
    Commercial AC Wallboxes
    Shopping malls, hotels, corporate fleets, apartment complexes
    Compact 8" to 32" panel integrates seamlessly into wall-mounted units. Rear-panel USB-C/Ethernet supports clean cable management. Pre-loaded charging app launches automatically; NFC/QR payment modules connect via Host port.

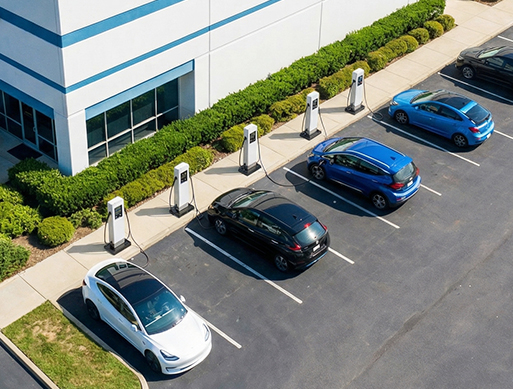

  • Fleet & Depot Charging<br>Logistics centers, taxi/bus depots, rental car facilities
    Fleet & Depot Charging
    Logistics centers, taxi/bus depots, rental car facilities
    Panel supports multi-language UI and fleet management dashboard integration. Ethernet/4G connectivity enables real-time status reporting to fleet backend. Custom I/O allows connection to energy meters or access control systems.

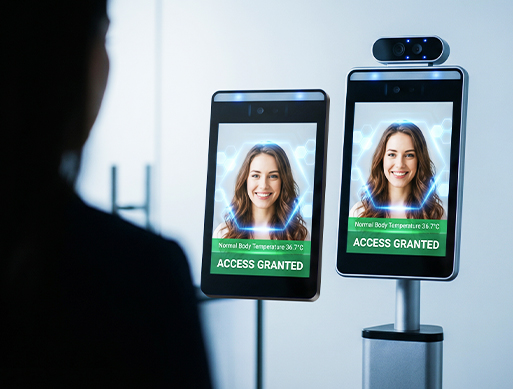

  • Smart Building / Property Management<br>Residential communities, office parks, mixed-use developments
    Smart Building / Property Management
    Residential communities, office parks, mixed-use developments
    Embedded panel serves as unified interface for resident charging access, billing display, and building management system integration. NFC support enables secure user authentication via access cards or mobile credentials.

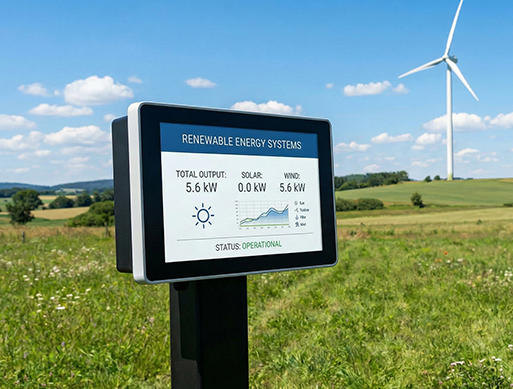

  • Energy Utility Programs<br>Grid-balancing pilots, V2G demonstration projects, public-sector charging networks
    Energy Utility Programs
    Grid-balancing pilots, V2G demonstration projects, public-sector charging networks
    Panel firmware supports custom data reporting protocols and utility-specific UI requirements. Modular hardware design allows future feature upgrades via software without hardware replacement.

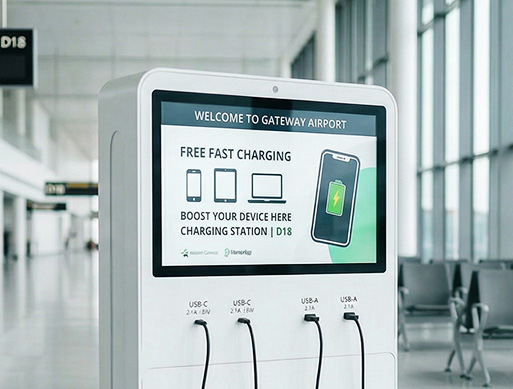

  • Retail & Hospitality Charging<br>Supermarkets, restaurants, airports, tourist destinations
    Retail & Hospitality Charging
    Supermarkets, restaurants, airports, tourist destinations
    Panel displays promotional content during charging sessions. Dual USB-C design allows simultaneous connection to payment terminal and marketing media player. Easy-to-clean glass surface maintains professional appearance in high-traffic areas.

What We Do

We offer ODM solutions for certain customers who have specific needs which can’t be satisfied by existing devices on the market.
  • Deep ODM Experience
    Specialize in complete customization for high-end conference systems, from ID design and hardware integration to deep-level Android system modification.
  • Flexible Customization Capability
    Meet unique requirements for hardware interfaces and software integration, ensuring seamless operation in critical environments.
  • Supply Chain & Cost Efficiency
    Leverage our location in Shenzhen to efficiently integrate the supply chain, delivering high-quality, cost-effective solutions.
  • Guaranteed Quality & Reliability
    Employ stringent quality control to ensure flawless operation during important meetings.

How We Do

We offer ODM solutions for certain customers who have specific needs which can’t be satisfied by existing devices on the market.
  • 01 Planning
    Detailed project planning and requirements analysis.
    Market Survey
    Requirements Collection
    Competitiveness Analysis
    Technology Study
    Risk Analysis
    Component Life Cycle Survey
    Cost Evaluation
  • 02 Desgin
    Custom ID design and hardware integration.
    ID Design
    MD Design
    Hardware
    OS
  • 03 Validation
    Rigorous testing and validation of all components.
    Trial Samples
    Software Customization
    Performance Tests
    Reliability Tests
    EVT
    DVT
    Certifications
  • 04 Integration
    Deep-level Android system modification and application integration.
    Assembly Study and SOP
    Pilot Run Production
    Testing Process Study and SOP
    Field Test/Feedbacks
    Improvements
  • 05 Production
    High-quality production with stringent quality control.
    Pilot Run Production
    Mass Production
  • 06 After Service
    Comprehensive after-sales support and maintenance.
    Global Warranty
    Extended Warranty Service
    Online Service

Specification

  • Processor Options
    Octa-core / Industrial ARM
  • Operating System
    Android (customized) / Linux
  • Memory/Storage
    4GB LPDDR4 / 32GB
    64GB eMMC (industrial grade)
  • Display Options
    8" / 10.95" / 15.6" / 21.5" /32” LCD IPS, 1280×720 or 1920×1080, 250–400 cd/m² typical brightness
  • Touch Panel
    Capacitive 5/10-point multi-touch, G+G full lamination, anti-glare surface treatment optional
  • Connectivity
    Wi-Fi 5 (802.11ac), BT 5.0, 4G LTE (B1/B3/B5/B7/B20), Ethernet (RJ45), GPS/GLONASS/BEIDOU optional
  • NFC Support
    Active/Passive Peer-to-Peer (ISO/IEC 18092), Reader/Writer mode (NFC Forum Type 1–5), Card Emulation (ISO/IEC 14443 A/B)
  • I/O Ports (Customizable)
    USB-C ×2 (1× Power Input, 1× Host/Device), Ethernet ×1, RS485/CAN Bus ×2, HDMI/LVDS (display signal), GPIO ×4, Audio out
  • Power Input
    DC 12V/24V wide input, reverse polarity protection, optional PoE support
  • Mounting Design
    Embedded/flush-mount frame with customizable bezel; VESA 75/100 optional; rear cable exit with strain relief
  • Operating Environment
    Temperature: -10°C to +60°C (commercial grade); Humidity: 10%–90% non-condensing
  • Certifications
    CE, FCC, RoHS compliant; OCPP 1.6J/2.0.1 protocol validation support

FAQs

  • Integration Flexibility
  • Protocol Compatibility
  • Power & Data Management
  • Software Customization
  • Scalability & Support
Integration Flexibility
  • How does the MVNO feature benefit our Fleet Management operations?
    Our mechanical engineering team works directly from your CAD drawings to customize panel dimensions, bezel profile, mounting points, and cable exit orientation. This ensures a flush, professional fit that aligns with your industrial design and simplifies assembly.
  • Is this solution suitable for both indoor and outdoor charging stations?
    The embedded panel is engineered for commercial-grade reliability in sheltered outdoor and indoor environments. With appropriate enclosure design from your side, the panel delivers consistent touch performance and visibility across typical deployment conditions.
Protocol Compatibility
  • Can the panel communicate with our charger controller and backend system using standard EV protocols?
    Yes. Pretech firmware includes pre-integrated drivers for OCPP 1.6J/2.0.1, Modbus TCP/RTU, and CAN Bus. We also support custom protocol adaptation during the ODM phase to ensure seamless data exchange between HMI, controller, and CPO platform.
Power & Data Management
  • How does the dual-port USB-C design benefit EV charging station deployments?
    One USB-C port handles dedicated power input for stable operation, while the second functions as a versatile Host/Device port for peripherals (payment terminals, printers, sensors). This separation prevents power fluctuations from disrupting data communication—a critical advantage for 24/7 charging infrastructure.
Software Customization
  • What level of OS and application customization can Pretech provide?
    We offer full-stack software adaptation: slimmed-down Android/Linux OS, custom boot animation, auto-launch of your charging application, driver integration for peripheral hardware, and OTA update framework. Our team ensures the software layer aligns precisely with your user experience and maintenance requirements.
Scalability & Support
  • How does Pretech support volume production and long-term product lifecycle?
    As an ODM partner, we manage component sourcing, production planning, and quality control to ensure supply continuity. We also offer long-term firmware maintenance and hardware revision management to support multi-year charging infrastructure projects.
