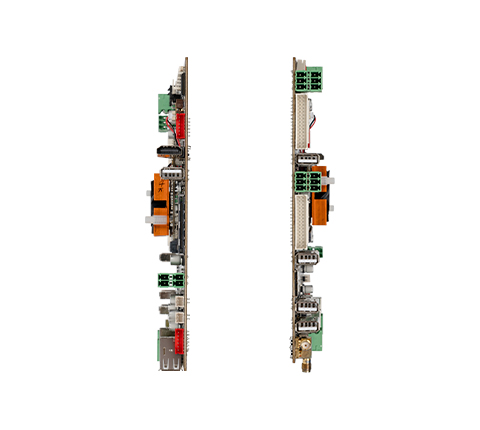

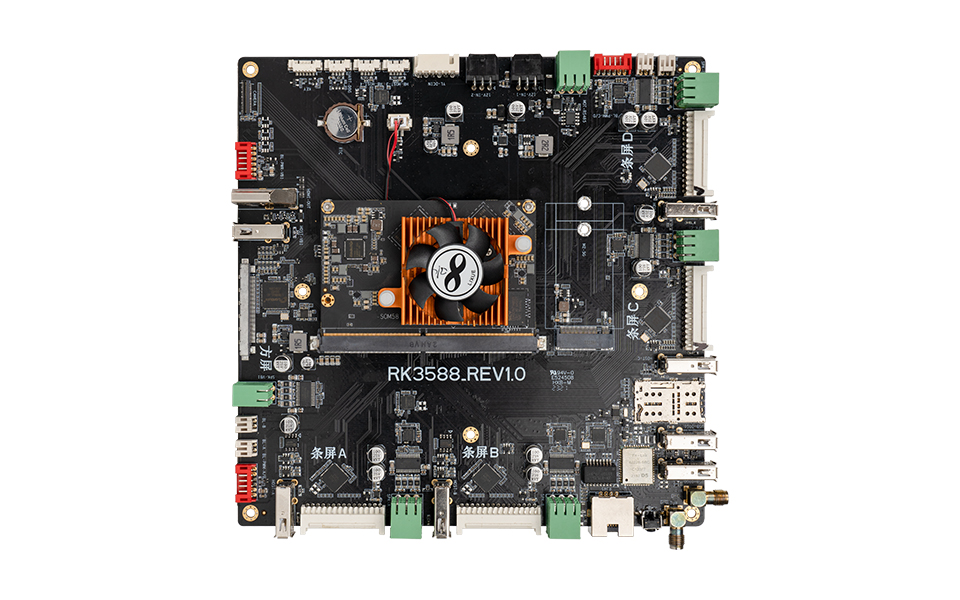

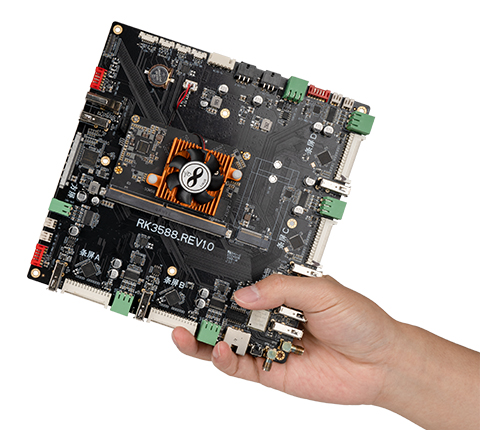

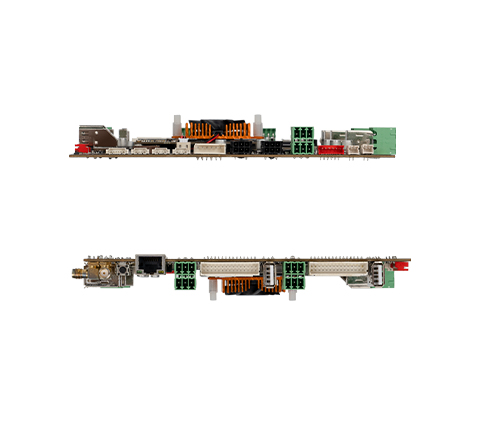

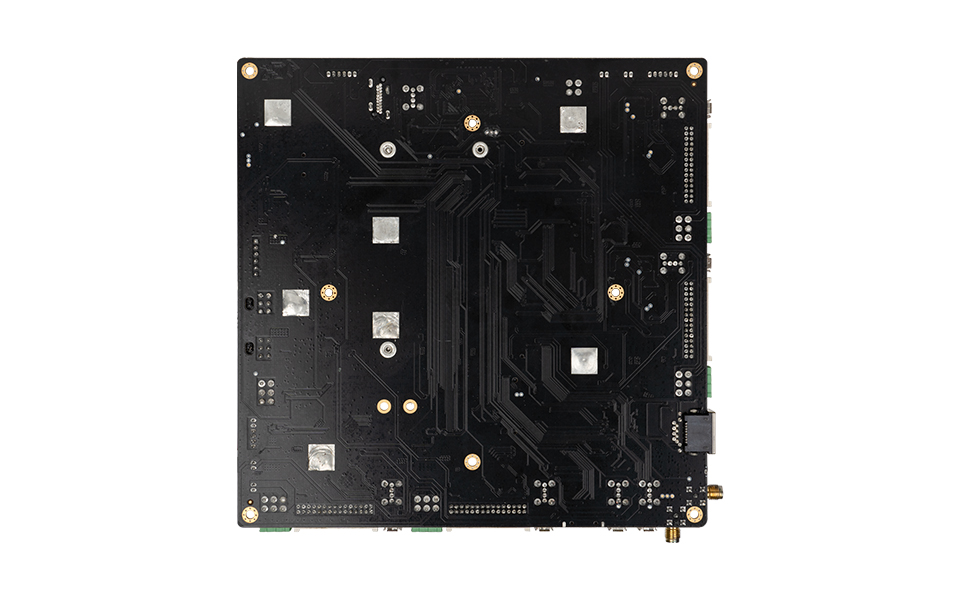

RK3588 SOM & Carrier Board: Enhanced Multi-display Solution
Model: V58
RK3588, 4 x Cortex-A76 + 4 x Cortex-A55 2.4GHz, 8nm
GPU ARM Mali-G610 MP4 Quad-Core
OpenGL ES3.2/OpenCL 2.2/Vulkan1.1,450 GFLOPS
6.0TOPS NPU, Support INT4/INT8/INT16
GPU ARM Mali-G610 MP4 Quad-Core
OpenGL ES3.2/OpenCL 2.2/Vulkan1.1,450 GFLOPS
6.0TOPS NPU, Support INT4/INT8/INT16
V58
RK3588, 4 x Cortex-A76 + 4 x Cortex-A55 2.4GHz, 8nm
GPU ARM Mali-G610 MP4 Quad-Core
OpenGL ES3.2/OpenCL 2.2/Vulkan1.1,450 GFLOPS
6.0TOPS NPU, Support INT4/INT8/INT16
GPU ARM Mali-G610 MP4 Quad-Core
OpenGL ES3.2/OpenCL 2.2/Vulkan1.1,450 GFLOPS
6.0TOPS NPU, Support INT4/INT8/INT16
PRODUCT DETAIL
V58
-
SOCRK3588, 4 x Cortex-A76 + 4 x Cortex-A55 2.4GHz, 8nm
GPU ARM Mali-G610 MP4 Quad-Core
OpenGL ES3.2/OpenCL 2.2/Vulkan1.1,450 GFLOPS
6.0TOPS NPU, Support INT4/INT8/INT16 -
ConnectivityWIFI6 802.11a/b/g/n/ac/ax，Bluetooth5.3，2T2R -
Interface2 x RS485 for motor control
Key interface
Specification
-
OSAndroid
-
SOCRK3588, 4 x Cortex-A76 + 4 x Cortex-A55 2.4GHz, 8nm
GPU ARM Mali-G610 MP4 Quad-Core
OpenGL ES3.2/OpenCL 2.2/Vulkan1.1,450 GFLOPS
6.0TOPS NPU, Support INT4/INT8/INT16 -
RAMLPDDR4 4GB/8GB/16GB/32GB
-
ROMEMMC5.1 64G/128G
-
Media4K 60fps H.265/H.264/VP9 decode
1080P 100fps H.265/H.264 codec -
DisplayDecode:
8K@60fpsH.265/VP9/AVS2
8K@30fpsH.264 AVC/MVC
4K@60fpsAV1
1080P@60fps MPEG-2/-1/VC-1/VP8
Encoded:
8K@30fps encoding, support H.265/H.264
Up to 32 channels 1080P@30fps decoding and 16-channel 1080P@30fps encoding -
Ethernet100Mbps Ethernet
-
ConnectivityWIFI6 802.11a/b/g/n/ac/ax，Bluetooth5.3，2T2R
-
USBUSB2.0 x 5 for USB-TP
USB2.0（with OTG）x 1 for update
USB2.0 x 1 for 4G module
USB2.0 x 3 host -
Micro SD CardNA
-
AudioSpearker: 10 speaker total
10W x 2 Stereo
3W x 2 Stereo
3W x 2 Stereo
3W x 2 Stereo
3W x 2 Stereo -
Interface2 x RS485 for motor control
Key interface -
Input PowerDC-12V via 8pin-PH2.54
-
PCBSize: 180 x 180 x 1.6mm
Process: 4-layer Immersion Gold -
EnvironmentOperating temperature -20°C ~ 60°C
Inquriy
More contact information
Email:
admin@pretech-e.com
Address:
808, 8F, Qiancheng Commercial Center, 5 Haicheng Road, Baoán, Shenzhen
TEl:
+86-755-23051989
(86) 13129558030
(86) 13129558030
Related Solution Project
Maybe you are interested in the following projects
-

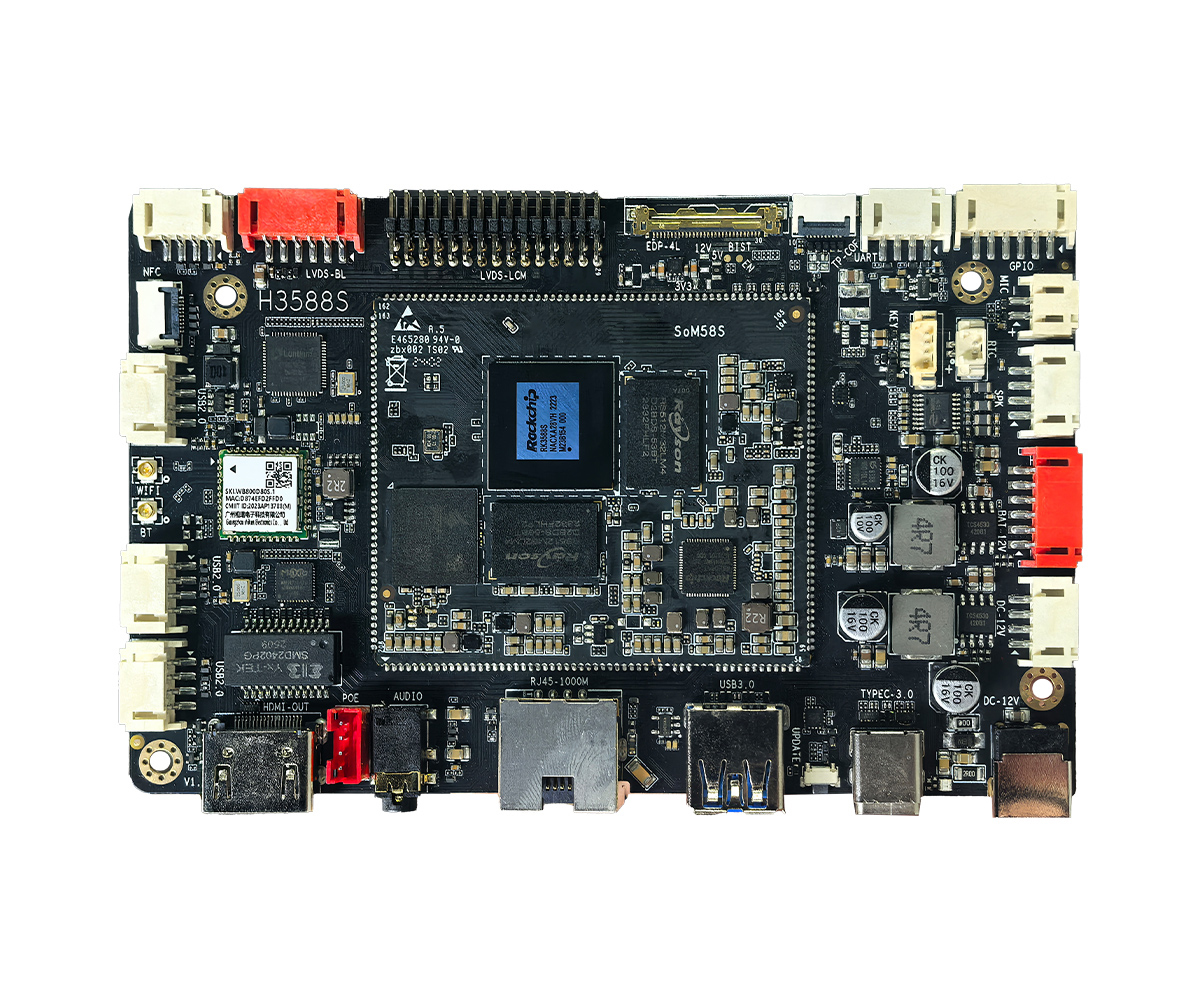

Model: H3588SPretech SOM and Carrier Board RK3588S features an RK3588S SoC. It includes a Mali-G610 MP4 GPU and a 6.0T NPU, supporting Android and Linux (Debian), it supports secondary development with API interface documentation provided. -
Model: GM3576Pretech’s RK3576 SOM Carrier Board delivers powerful performance with 4x Cortex-A72 and 4x Cortex-A53 CPUs, 6.0 TOPS NPU. Supporting TensorFlow, Caffe, and Android NN, this solution is ideal for AI, edge computing, and IoT. Fully customizable via OEM/ODM services. -

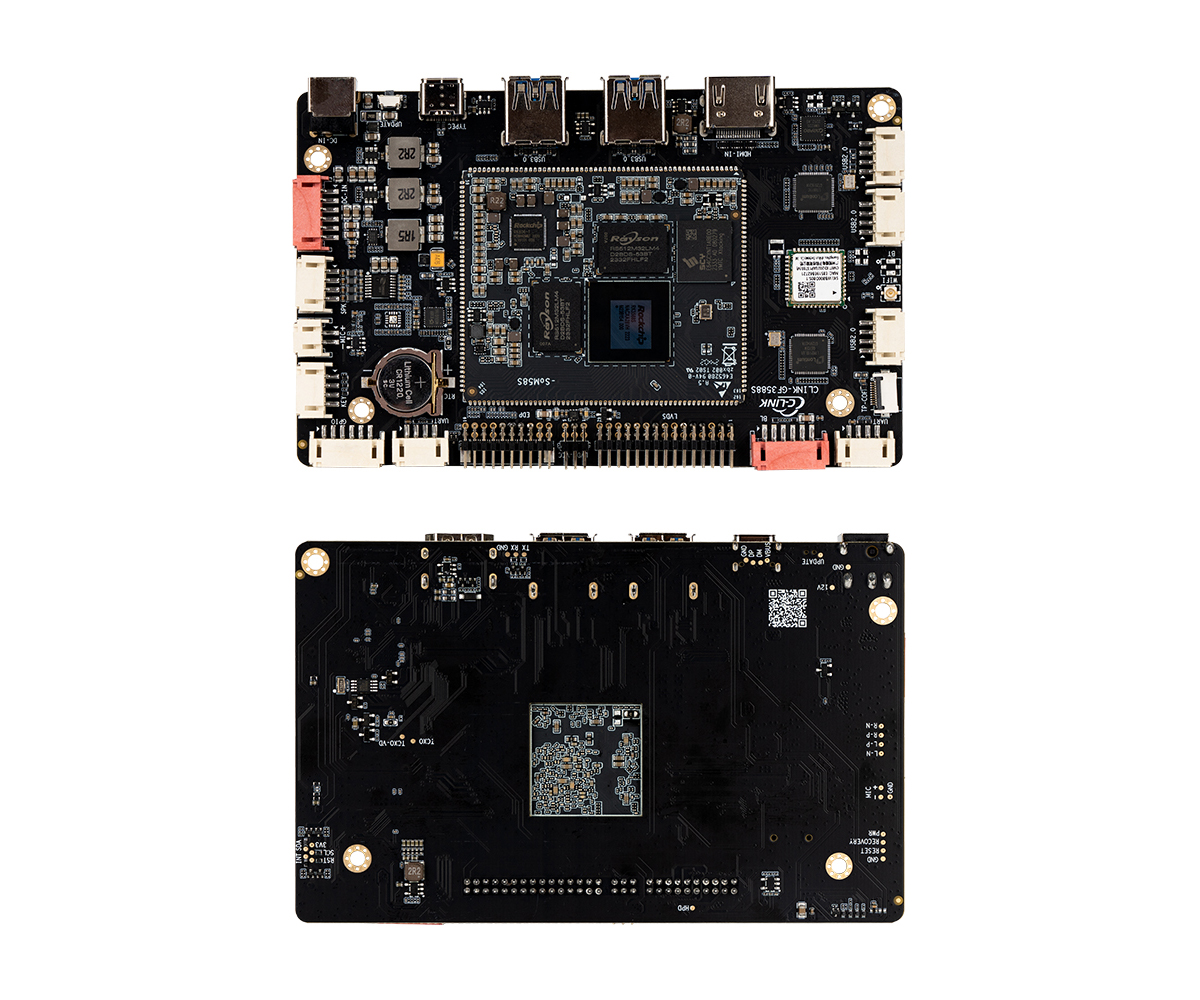

Model: GF3588SPretech's RK3588S SOM and Carrier Board solution supports HDMI-in and LVDS/eDP screens, perfect for advanced display applications. Custom-built for unique needs, including digital signage displays and more, it ensures seamless integration and performance.
