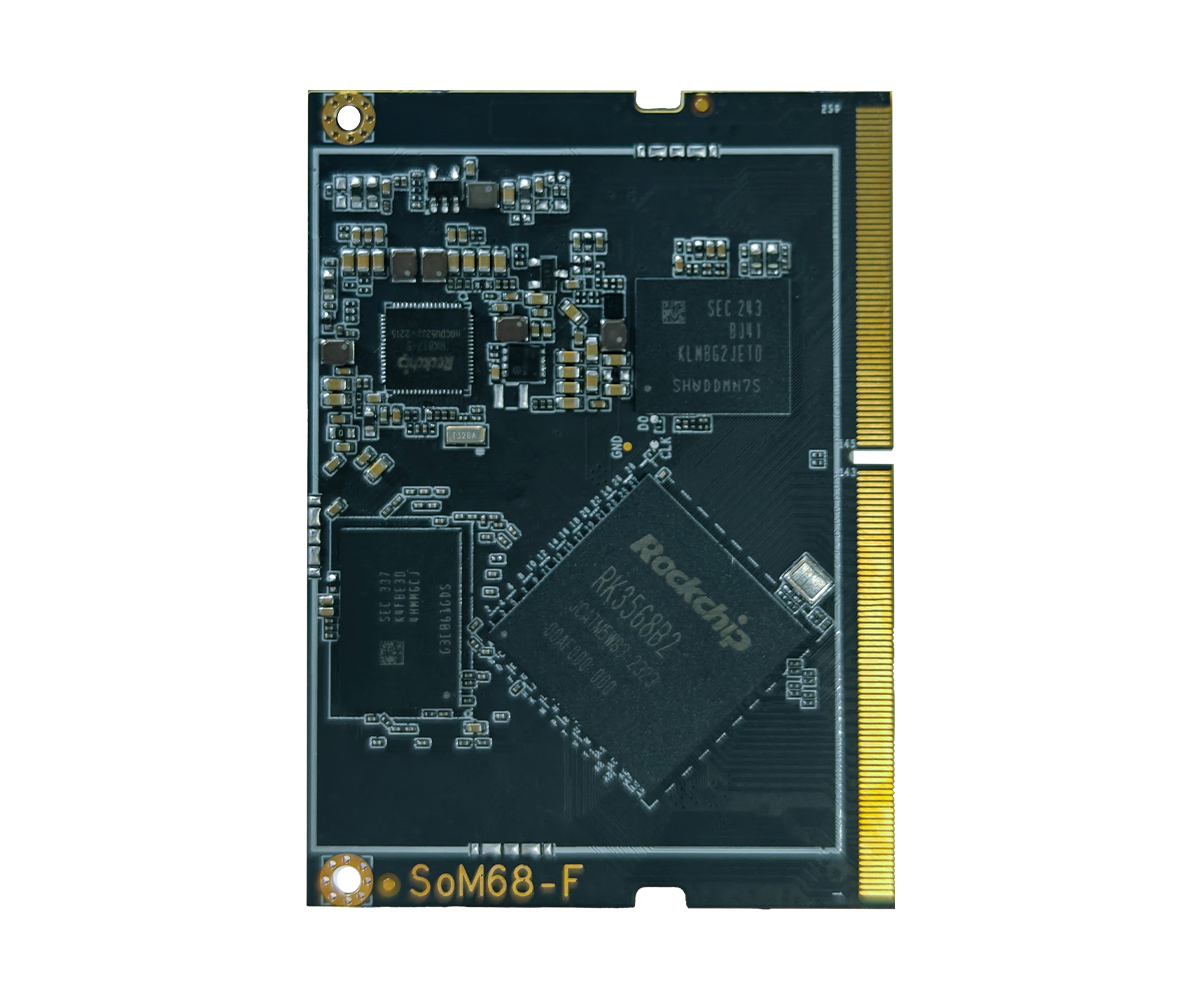

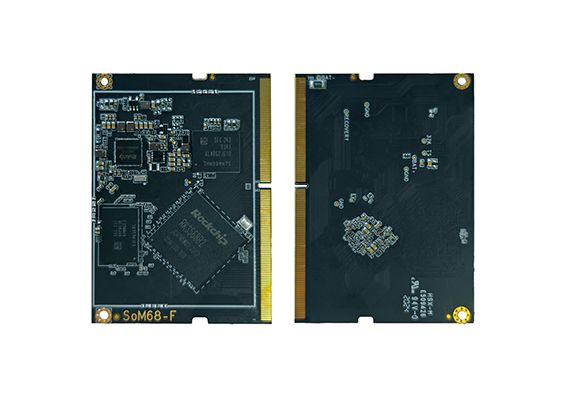

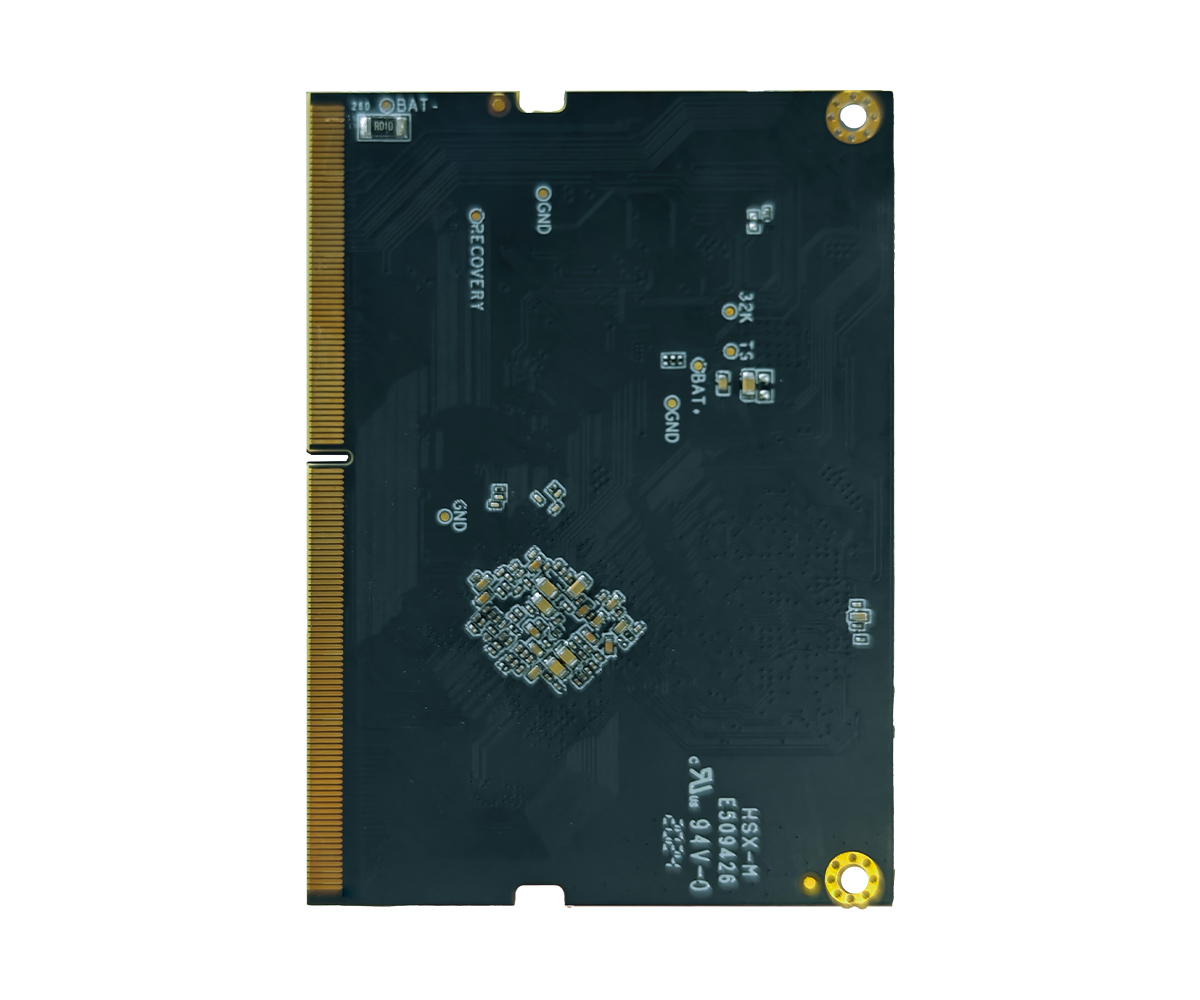

Pretech SOM RK3568: High-Performance System on Module

Model: SOM3568-F
The Pretech SOM RK3568, it can decode 4K@60fps H.265/H.264/VP9 and encode 1080P@100fps H.265/H.264. Display interfaces include MIPI (2560 x 1600@60fps), EDP (3000 x 2000@60fps), Dual-LVDS (1920 x 1080@60fps), and HDMI-out (up to 4K@60fps). It also features a 4-lane/2x2-lane Camera ISP (8MP@30fps HDR). The carrier board includes 1000M Ethernet x 2, WIFI6, Bluetooth5.2, USB3.0 HOST, USB2.0 HOST, and a Micro SD card slot (up to 128GB). It supports SATA3.0, UART, SPI, PWM, I2C, ADC, PWR, RESET, and 3.3V interfaces. It can be powered by a Li-Battery and supports 5V/12V charging. The module has dimensions of 50 x 69.6 x 1.2mm, is manufactured using a 6-layer HDI process with immersion gold.
Inquiry Ask for A Demo
Pretech SOM RK3568: High-Performance System on Module

Pretech SOM RK3568 ODM Industry Applications

The Pretech SOM RK3568 is widely used in various ODM industry applications. In smart home, it serves as the core module for devices like smart cameras and displays, providing powerful processing and connectivity. In industrial automation, it acts as the control core for robots and production lines, enabling real-time data processing. In education, it is used to develop educational robots and interactive devices, supporting deep learning frameworks. In medical care, it is used in imaging equipment and telemedicine systems, supporting high-performance video capabilities. It is also applicable in transportation, finance, and security fields, providing a reliable solution for intelligent applications.
Pretech SOM RK3568 ODM Industry Applications

PRODUCT DETAIL

RK3568- SOM3568-F
  • RK3568, 4 x Cortex-A55, 2.0GHz, 22nm<br> GPU ARM G52 2EE, 1 TOPS NPU
    SOC
    RK3568, 4 x Cortex-A55, 2.0GHz, 22nm
    GPU ARM G52 2EE, 1 TOPS NPU
  • Connectivity
    Connectivity
    WIFI6 802.11a/b/g/n/ac/ax，Bluetooth5.2（The carrier board）
  • SATA3.0/UART/SPI/PWM/I2C/ADC/PWR/RESET/3.3V etc.
    Interface
    SATA3.0/UART/SPI/PWM/I2C/ADC/PWR/RESET/3.3V etc.

What We Do

We offer ODM solutions for certain customers who have specific needs which can’t be satisfied by existing devices on the market.
  • Tooling
    ID Design
    MD Design
  • Software
    Drive Debugging
    System Customization
    Debug Pre-installed applications
  • Hardware
    Schematic Diagrams Design
    PCB Layout
    Specific components design
    Bill of Materials output
    Gerber Files
    RF Design and Verification
    Assembly Drawings
    Test Specifications output
  • Accessories
    Smart Cover
    Docking Charging Station
    Charging Bracket/Dock
    Magnetic BackClip
    Wall Mount
    Stylus Pen
    And more

How We Do

We offer ODM solutions for certain customers who have specific needs which can’t be satisfied by existing devices on the market.
  • 01 Planning
    Market Survey
    Requirements Collection
    Competitiveness Analysis
    Technology Study
    Risk Analysis
    Component Life Cycle Survey
    Cost Evaluation
  • 02 Desgin
    ID Design
    MD Design
    Hardware
    OS
  • 03 Validation
    Trial Samples
    Software Customization
    Performance Tests
    Reliability Tests
    EVT
    DVT
    Certifications
  • 04 Integration
    Assembly Study and SOP
    Pilot Run Production
    Testing Process Study and SOP
    Field Test/Feedbacks
    Improvements
  • 05 Production
    Pilot Run Production
    Mass Production
  • 06 After Service
    Global Warranty
    Extended Warranty Service
    Online Service

Specification

  • OS
    Android/Linux
  • SOC
    RK3568, 4 x Cortex-A55, 2.0GHz, 22nm
    GPU ARM G52 2EE, 1 TOPS NPU
  • RAM
    LPDDR4 2G/3G/4G/6G/8G
  • ROM
    EMMC5.1 32G/64G/128G
  • Media
    4K 60fps H.265/H.264/VP9 decode
    1080P 100fps H.265/H.264 codec
  • Display
    MIPI，2 x 4-Lane MIPI-DSI，2560 x 1600@60fps
    EDP，4-lane EDP1.3，3000 x 2000@60fps
    Dual-LVDS , 1920 x 1080@60fps
    HDMI-out，HDMI2.0，1080p@60fps，upto 4K@60fps
    4-lane/2x2-lane, Camera ISP, 8MP@30fps HDR
  • Ethernet
    1000M Ethernet x 2（The carrier board）
  • Connectivity
    WIFI6 802.11a/b/g/n/ac/ax，Bluetooth5.2（The carrier board）
  • USB
    USB3.0 HOST x 1
    USB2.0 HOST x 3 (One port with OTG）
  • Micro SD Card
    Micro SD card, up to 128GB
  • Audio
    Can be customized
  • Interface
    SATA3.0/UART/SPI/PWM/I2C/ADC/PWR/RESET/3.3V etc.
  • Input Power
    Li-Battery Supply, 5V/12V Charger
  • PCB
    Size: 50 x 69.6 x 1.2mm
    Process: 6-layer HDI Immersion Gold
    Package:PC DDR4 connector
  • Environment
    Operating temperature -20°C ~ 60°C
