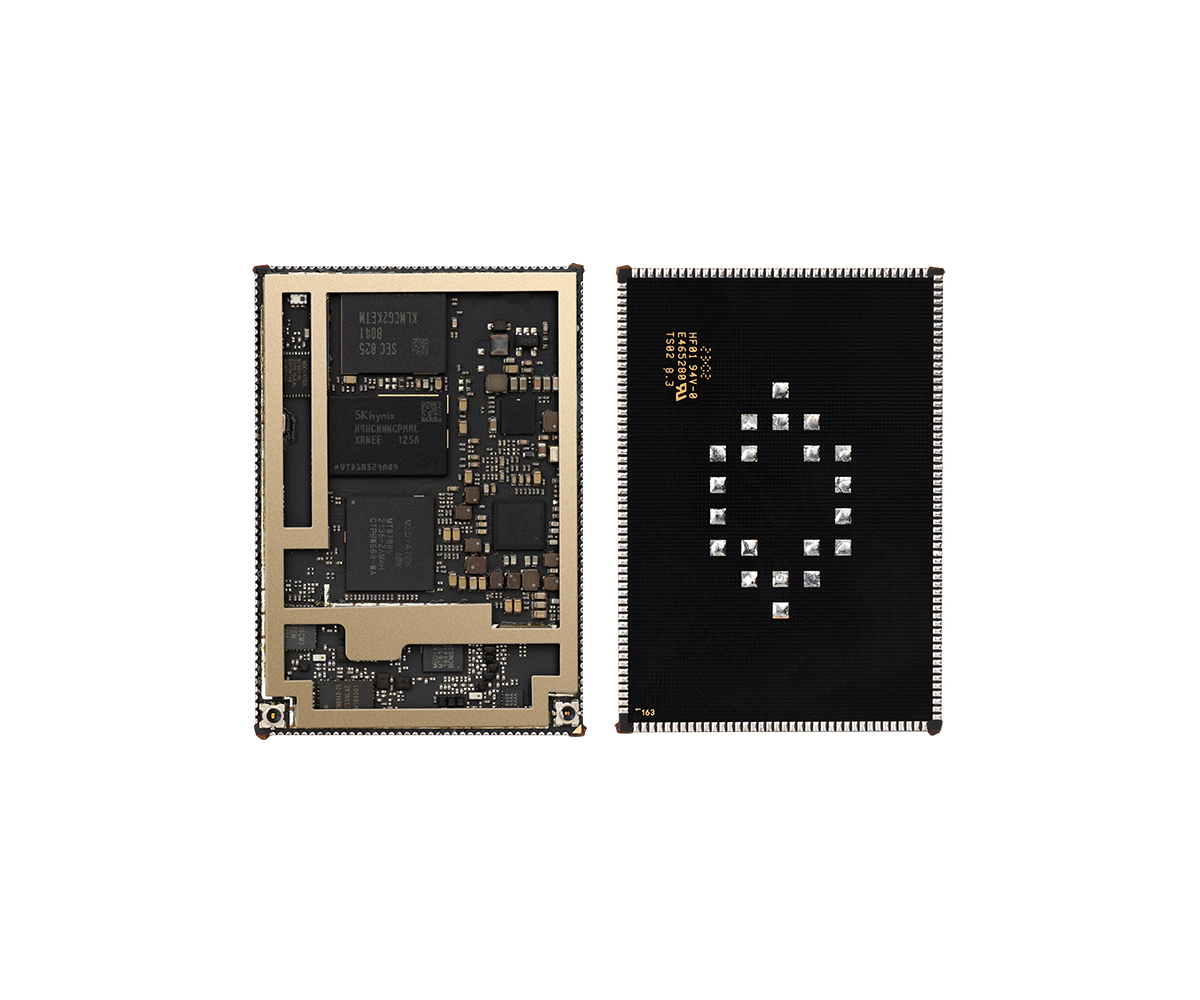

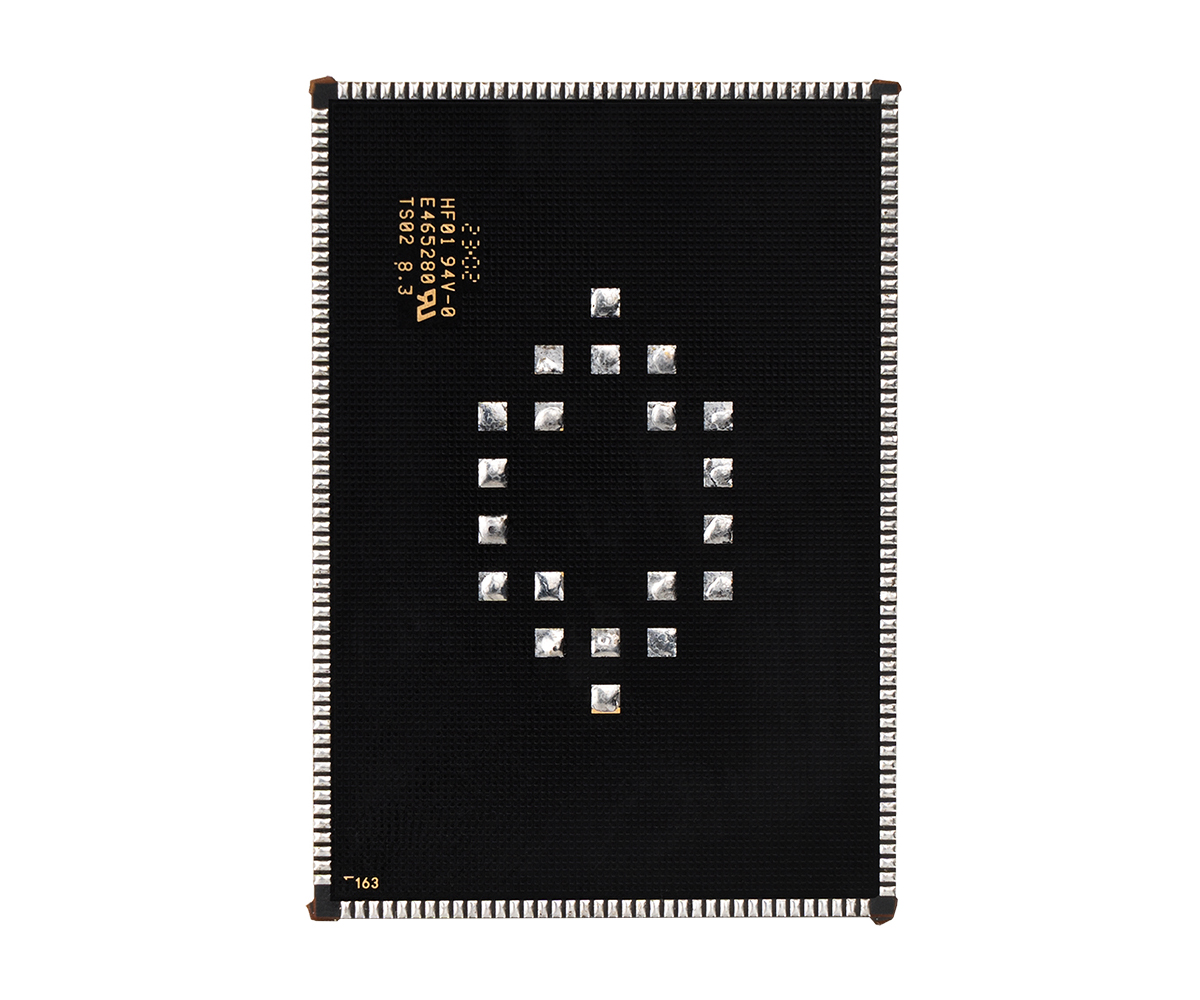

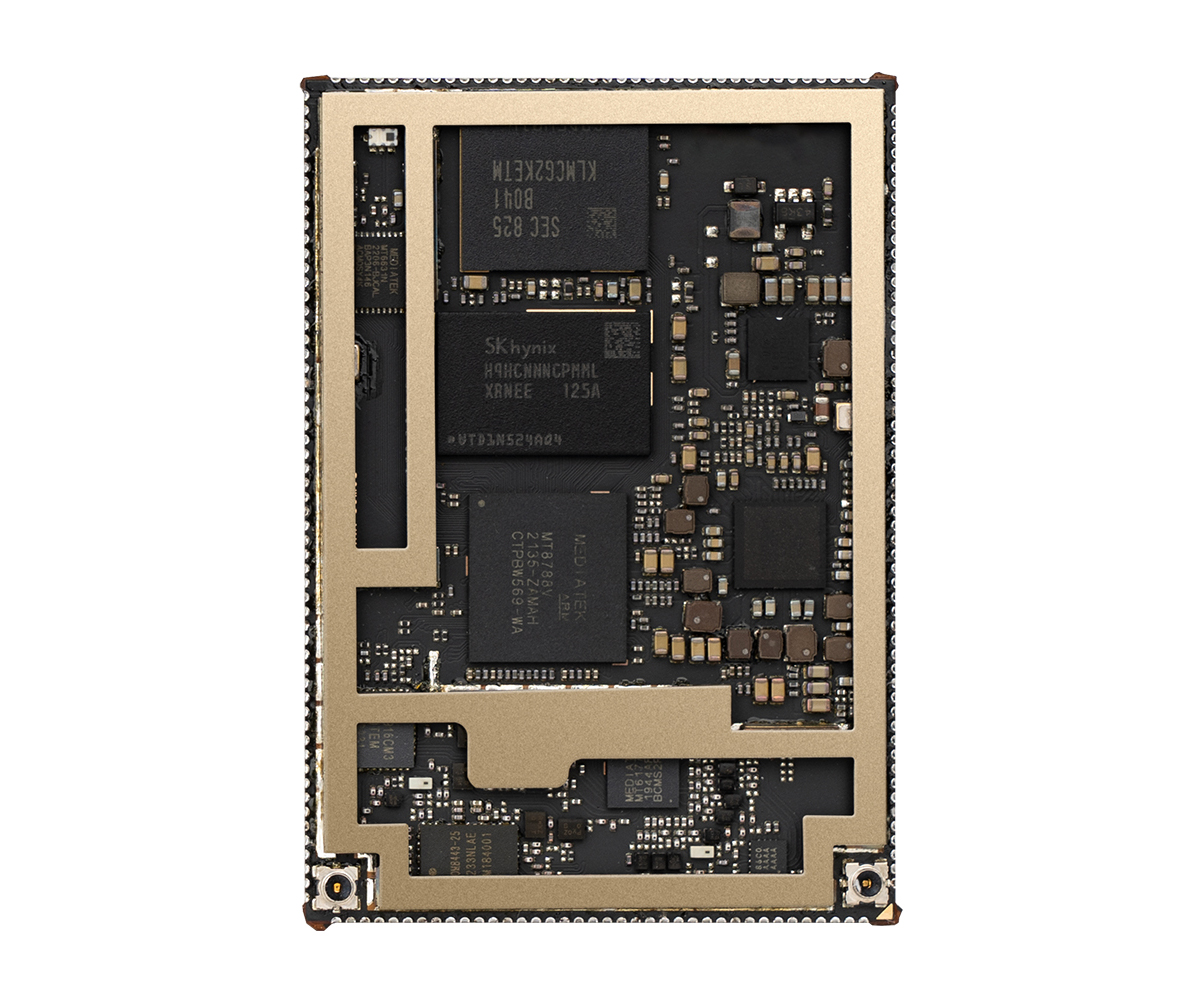

SOM78
project-left
project-left
  • LPDDR4 4G/6G/8G
    SOC
    LPDDR4 4G/6G/8G
  • WIFI 802.11a/b/g/n/ac<br>Bluetooth 5.0<br>GPS+Glonass+Beidou+Galileo<br>FM Receiver
    Connectivity
    WIFI 802.11a/b/g/n/ac
    Bluetooth 5.0
    GPS+Glonass+Beidou+Galileo
    FM Receiver
  • I2C/UART/SPI/ADC/PWM/SDMMC/GPIO
    Interface
    I2C/UART/SPI/ADC/PWM/SDMMC/GPIO
  • SPECIFICATION

OS Android
SOC MT8788, 4 x A73 + 4 x A53, 2.0GHz,12nm
GPU ARM@Mali-G72 MP3 800MHz, 3D Graphics
OpenGL ES3.2/OpenCL 2.x/Vulkan1.0
RAM LPDDR4 4G/6G/8G
ROM EMMC5.1 64G/128G
Media Decode:1080P 30fps/40Mbps, H.264/H.265/MP4
Encoded:1080P 30fps/40Mbps, H.264
Display MIPI,4-Lane MIPI-DSI, 2400 x 1080@60fps
MIPI-DPI, 1080@60fps
LTE TDD/FDD,LTE Cat7,L+L DSDS
WCDMA WCDMA
GSM GSM
Connectivity WIFI 802.11a/b/g/n/ac
Bluetooth 5.0
GPS+Glonass+Beidou+Galileo
FM Receiver
USB USB2.0 OTG
Interface I2C/UART/SPI/ADC/PWM/SDMMC/GPIO
Input Power Li-Battery Supply,5V/12V Charger
PCB Size: 41.5 x 59 x 1.0mm
Process:10-layers HDI-2 Immersion Gold
Package:LCC(188Pin,1.0mm)
Environment Operating temperature -20°C ~ 60°C
