11-inch Android NFC Tablets with Multiple Ports Dock
MODEL: L1108
Key Features of the 11-inch NFC Tablet
High-Definition Display
The 10.95-inch 1920 × 1200 IPS Incell display offers vibrant and clear visuals for an enhanced viewing experience.
High-Performance Processor
Powered by an Octa Core processor with 2 × A76 2.2 GHz + 6 × A55 2.0 GHz, ensuring smooth performance for all your tasks.
Tablets with Advanced Connectivity
Supports AC WiFi, BT 5.0, and 2G/3G/4G Cellular, ensuring seamless connectivity and communication.

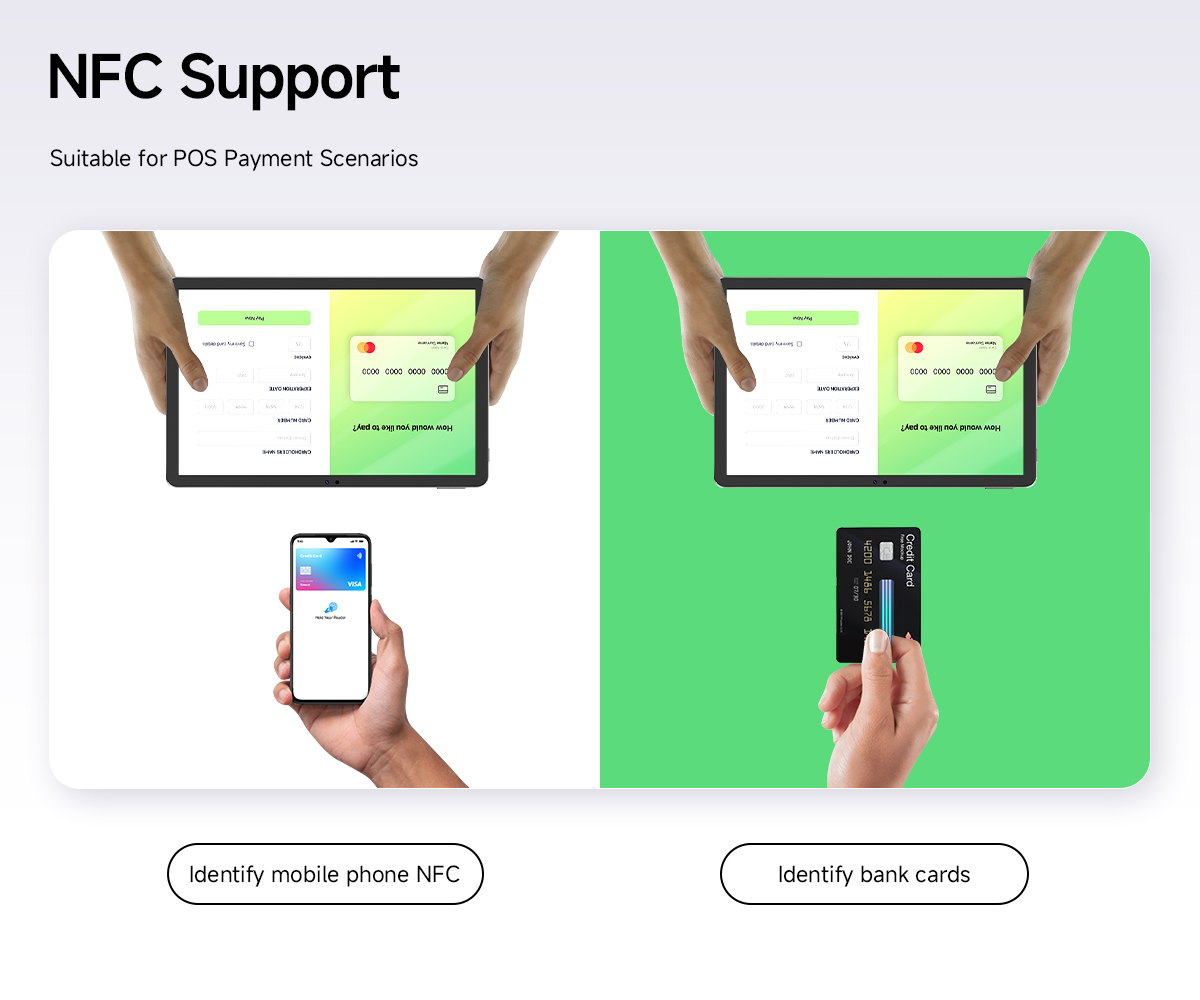

Tablets with NFC
Tablets with NFC for tap-to-pay functionality, providing a convenient and secure user experience.
Multiple Ports Dock Design
The dock includes multiple ports for versatile connectivity, including USB A, USB C, and DC input, making it suitable for various use cases.
Long Battery Life
Equipped with an 8000mAh battery for extended use without the need for frequent charging.
Applications:
ODM Solutions and Industry Applications of 11-Inch NFC Tablets
Discover the ultimate combination of customization and functionality with the 11-inch NFC tablet PC.
-
Healthcare11-inch NFC tablets can be used in hospitals, medical clinics, or patient rooms for patient monitoring, medical equipment control, and medical record access. Their high-resolution display and long battery life make them an ideal choice for healthcare environments. -
EducationSchools and universities can use 11-inch NFC tablets for classroom control, interactive learning, and digital education. Their high-performance processor and ample storage support a variety of educational applications. -
Hotel and catering industryHotels and restaurants can use 11-inch NFC tablets to provide services, entertainment, and ordering functions in guest rooms and dining areas. Their facial recognition and NFC features can be used for room access and payment processing. -
Public transportationBuses, trains, and airports can use 11-inch NFC tablets to provide information, navigation, and entertainment functions. Their long battery life and high-performance processor ensure reliability in mobile environments. -
RetailRetail stores can use 11-inch NFC tablets for inventory management, customer interaction, and point-of-sale processing. Their multi-port dock and high-performance processor make them suitable for retail environments. -
Logistics and warehousing11-inch NFC tablets can be used for logistics and warehousing operations, such as inventory tracking, order processing, and goods management. Their robust design and multi-port dock make them suitable for logistics environments.
Overview
Overview
Specifications Inquiry-
10.95" 1920 x 1200 IPS Incell -
MT6789 2x A76 2.2GHz + 6x A55 2.0GHz(G99) -
Android 15 -
RAM 4GB/6GB/8GB
Storage 64GB/128GB/256GB -
Front 5MP/8MP FF;Rear 5/8/13MP AF -
WiFi 802.11 ac/b/g/n;BT5.0; GPS,FM -

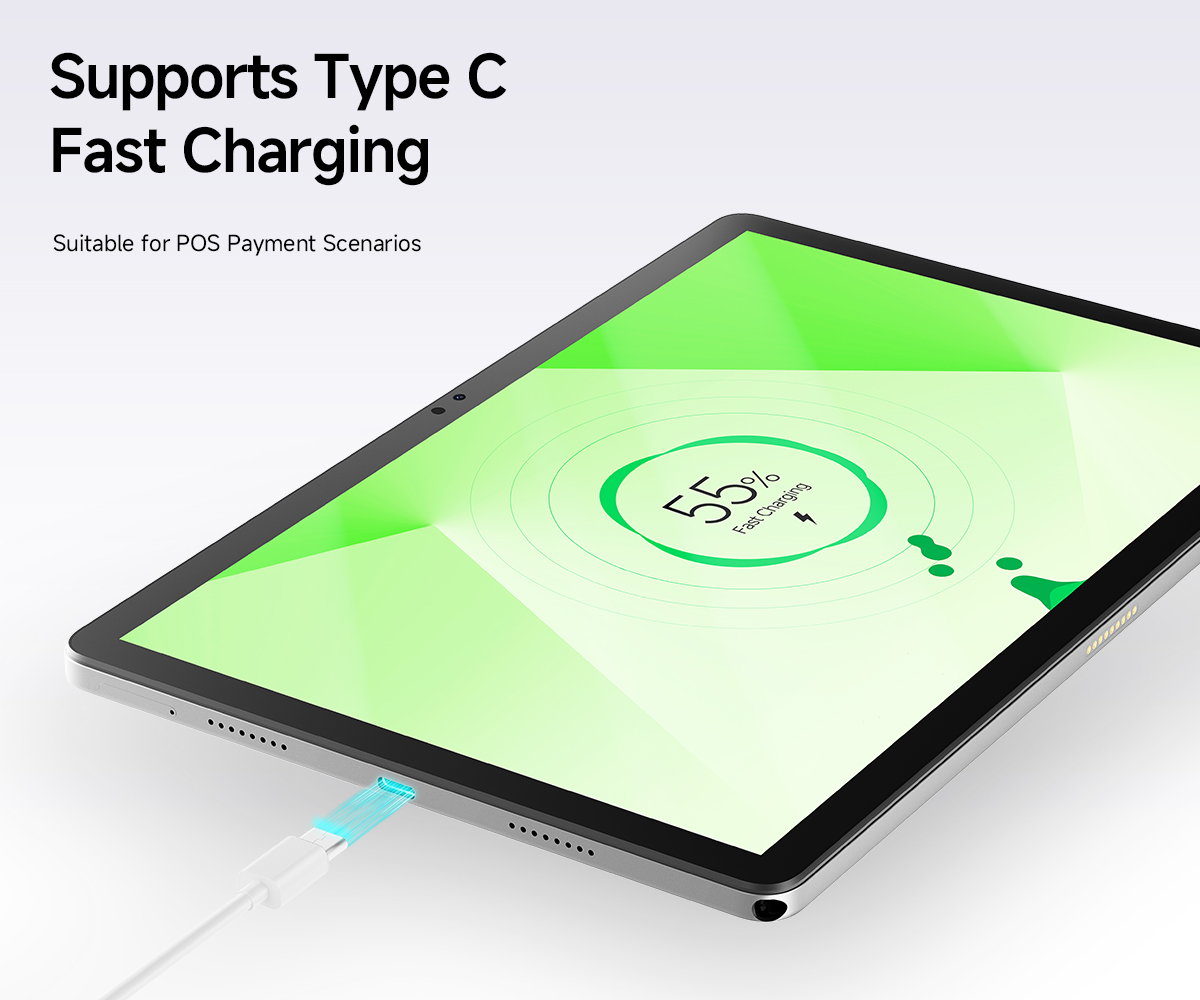

G-sensor;light sensor/proximity sensor;Gyroscope;PD fast charging -
8000mAh/3.8V Maximum
Specification
Overview
Specifications
Inquiry-
CPUMT6789 2x A76 2.2GHz + 6x A55 2.0GHz(G99)
-
OSAndroid 15
-
Screen10.95" 1920 x 1200 IPS Incell
-
RAM4GB/6GB/8GB
-
Storage64GB/128GB/256GB
-
Wi-Fi/BluetoothWiFi 802.11 ac/b/g/n;BT5.0; GPS,FM
-
3G900/2100MHz,850/1900MHz Optional
-
2G850/900/1800/1900MHz
-
CameraFront 5MP/8MP FF;Rear 5/8/13MP AF
-
SupportG-sensor;light sensor/proximity sensor;Gyroscope;PD fast charging
-
Battery8000mAh/3.8V Maximum
-

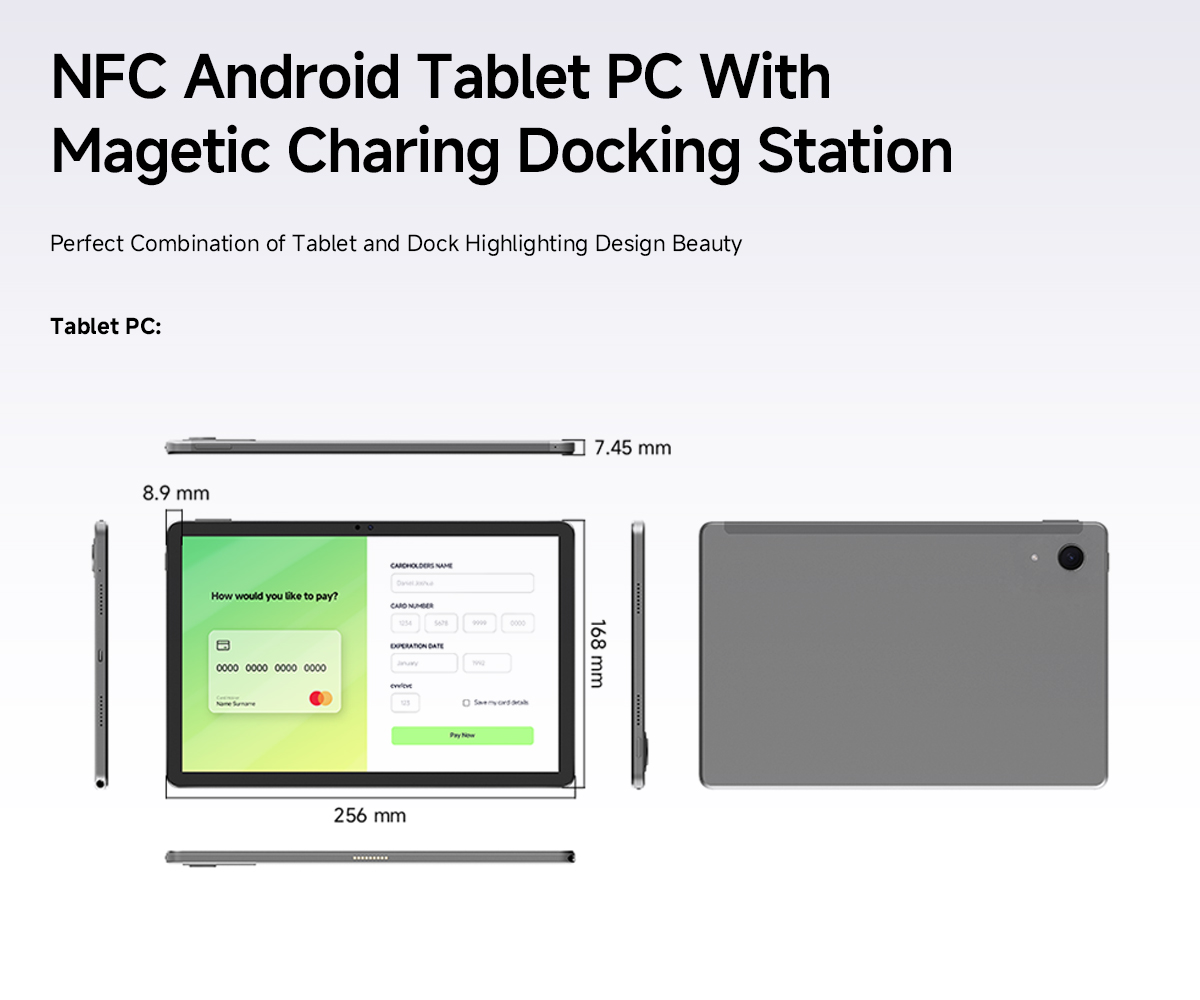

Dimensions256 x 168 x 7.45mm
-
Speaker2 x Box Speakers(4 speakers available)
-
ModelL1108
-
LTEFDD B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28AB/66 Optional
TDD B34/38/39/40/41 Optional
Inquiry
Overview
Specifications
Inquiry
FAQs
- Hardware
- Software
Hardware
-
Can I connect a cash register or printer to the 11-inch NFC tablet Android?Yes, you can connect a cash register or printer using the USB A*2 ports on the dock, which support OTG functions.
-
Can I customize the dock for the 11-inch NFC tablet Android, such as moving the USB ports to the front or deleting one of them?Yes, you can customize the dock for the 11-inch NFC tablet Android, including moving the USB ports to the front or deleting one of them. However, this requires new customization, which incurs NRE and tooling costs.
-
When the 11-inch NFC tablet Android is connected to the docking station, does the Type-C port on the tablet work?When the 11-inch NFC tablet Android is connected to the docking station, the USB interface on the docking station takes priority, and the tablet’s built-in Type-C port is disabled. If the docking station is disconnected, the tablet’s Type-C port will function normally.
-
Is the 11-inch NFC tablet Android compatible with Stripe?Yes, the 11-inch NFC tablet Android is compatible with Stripe.
-

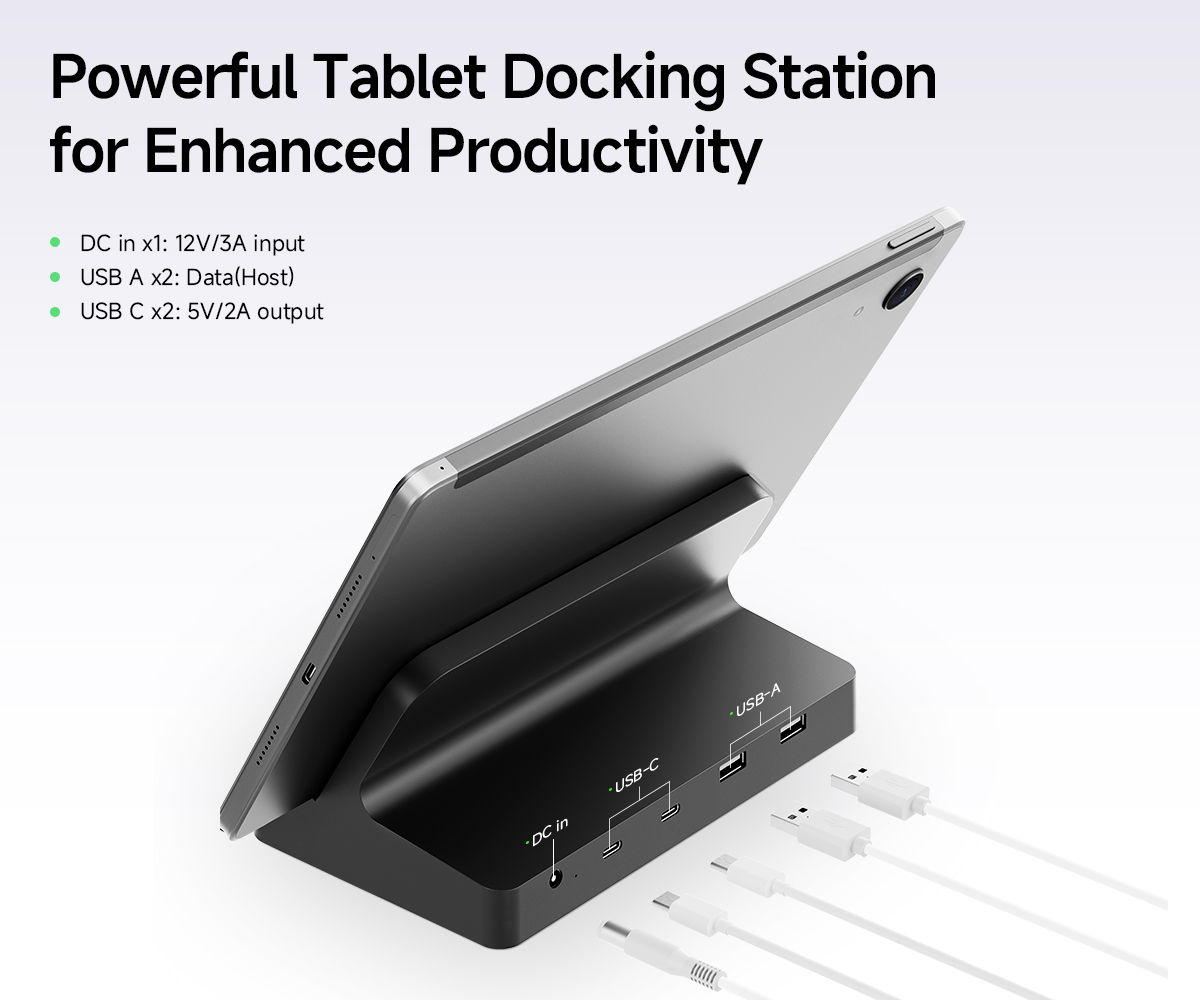

What are the functions of the ports on the docking station for the 11-inch NFC tablet Android?The docking station ports for the 11-inch NFC tablet Android are configured as follows:
1）DC-IN: 12V/3A input
2）USB-C: 9V/5V, 2A output
3）USB-A: Supports data transmission and OTG functions
Software
-
What is the power input for the docking station of the 11-inch NFC tablet Android?The docking station for the 11-inch NFC tablet Android requires a 12V/3A DC input.
-
What are the USB port configurations on the docking station for the 11-inch NFC tablet Android?The docking station for the 11-inch NFC tablet Android has the following USB port configurations:
1）USB-A2: Supports OTG function (5V/600mA, with protection at 1A)
2）USB-C2: Supports high-current output (5V/2.4A) when the docking station is powered, and no function when the docking station is not powered. -

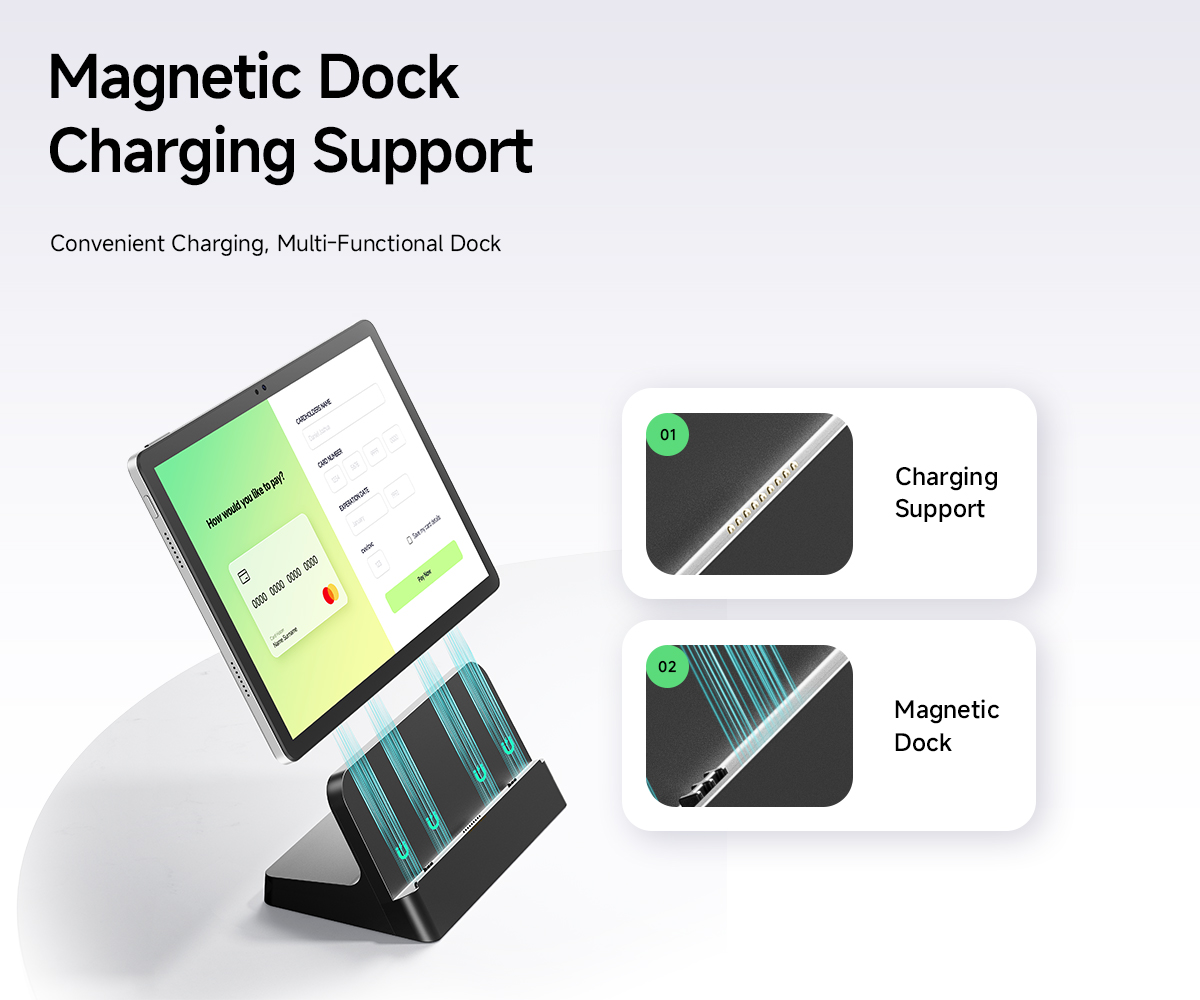

What is the power supply configuration for the 11-inch NFC tablet Android via the docking station (POGO)?The 11-inch NFC tablet Android is supplied with power via the docking station (POGO) at 5.3V/2A.
-
Can I order the 11-inch NFC tablet Android only, without the dock?Yes, you can order the 11-inch NFC tablet Android only without the dock.
