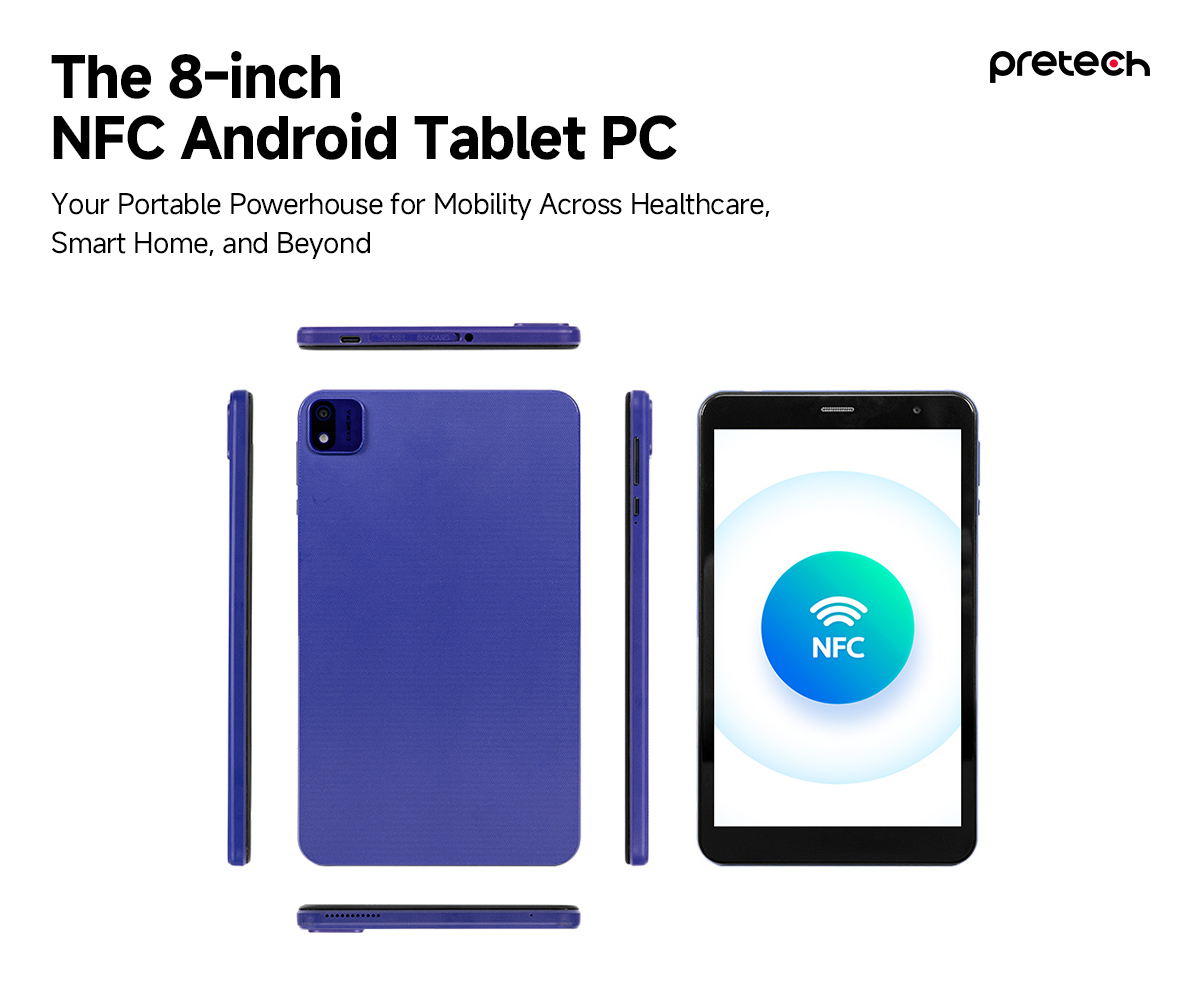

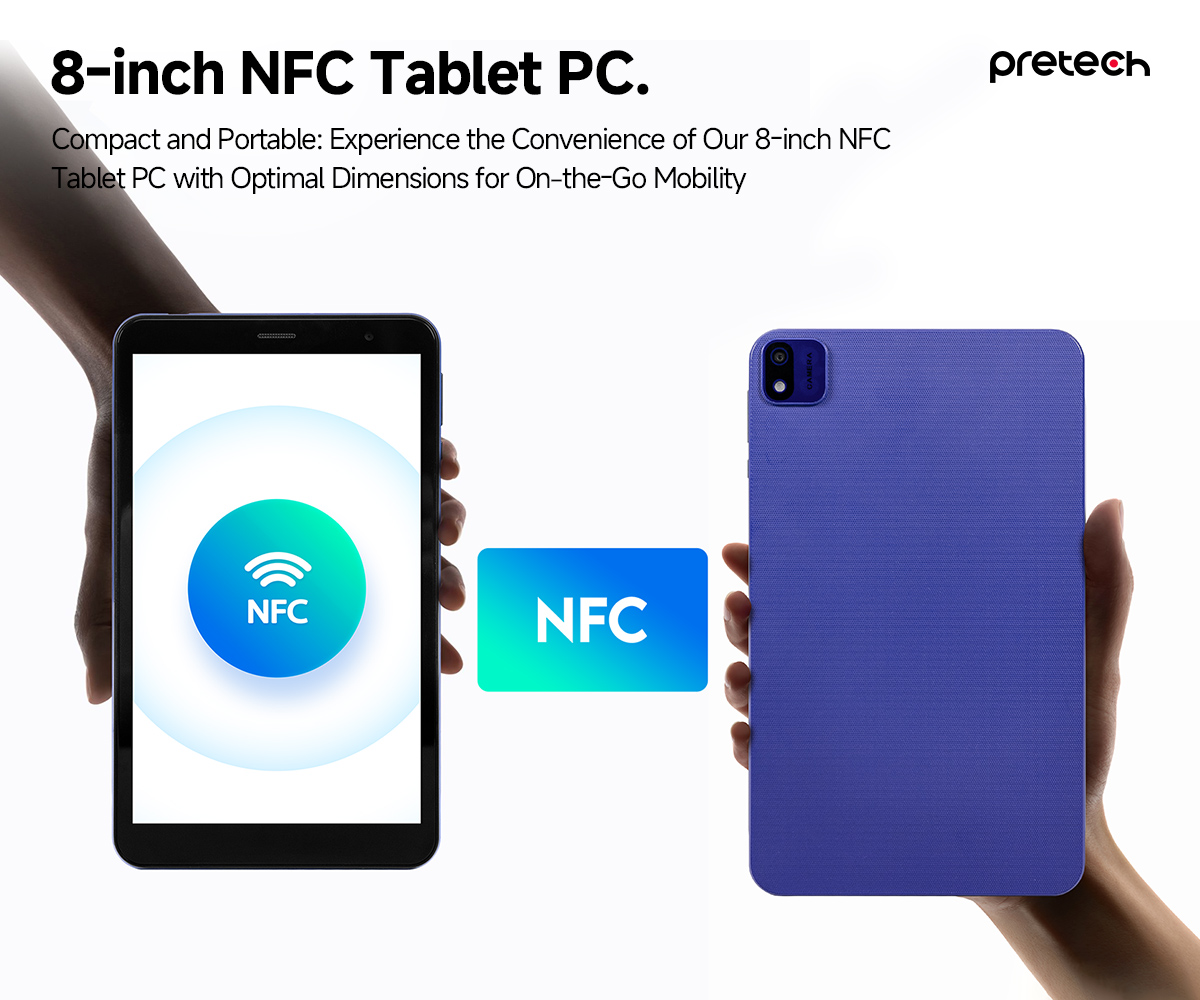

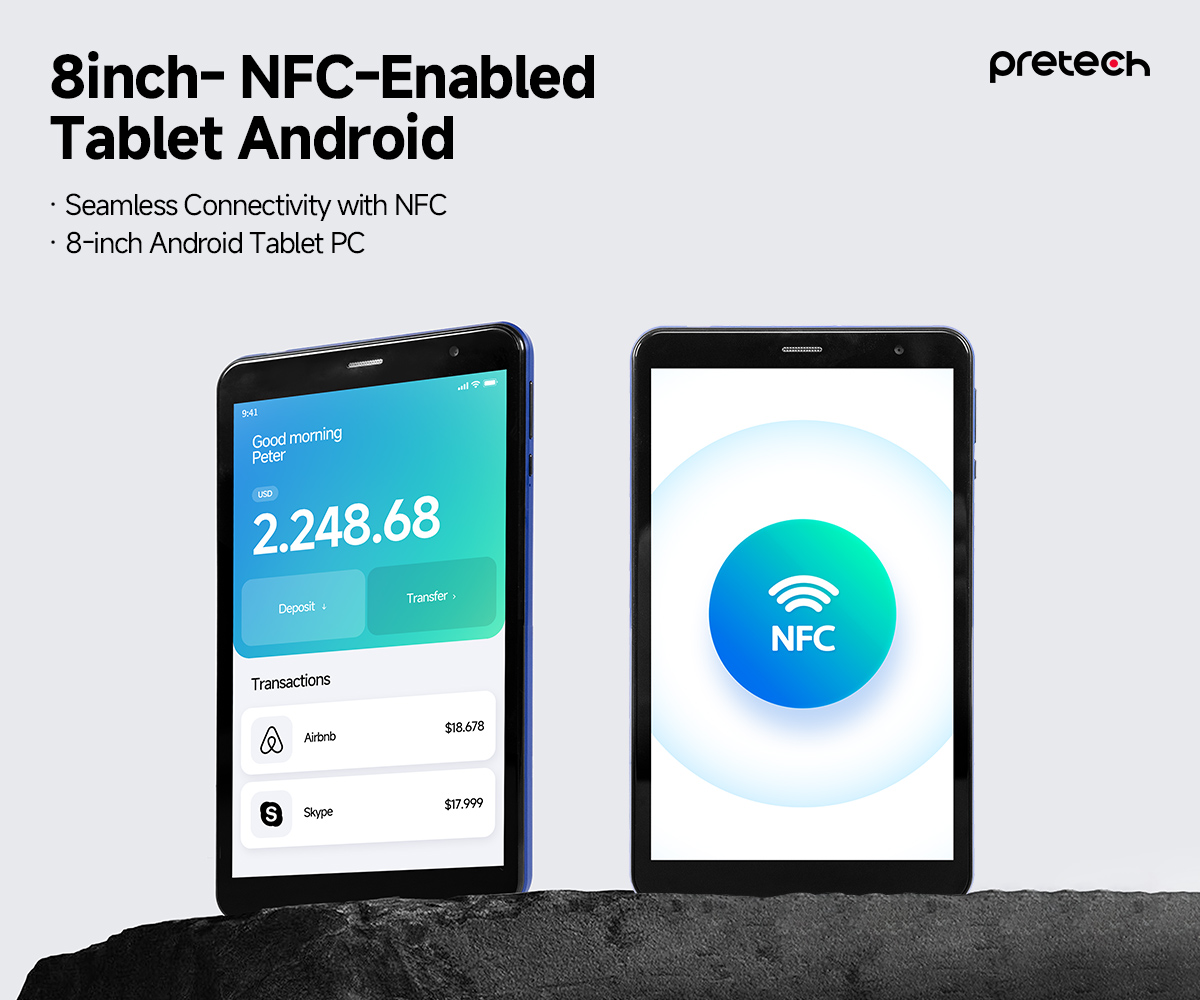

8-inch NFC Tablet Cost-Effective Entry-Level Solution
MODEL: Model: 863B
High-Definition Display
The 8-inch 1280 × 800 IPS, G+G display offers clear visuals for an enhanced viewing experience.
High-Performance Processor
Powered by an Octa Core processor with 4 × A53 2.0 GHz + 4 × A53 1.5 GHz, ensuring smooth performance for everyday tasks.

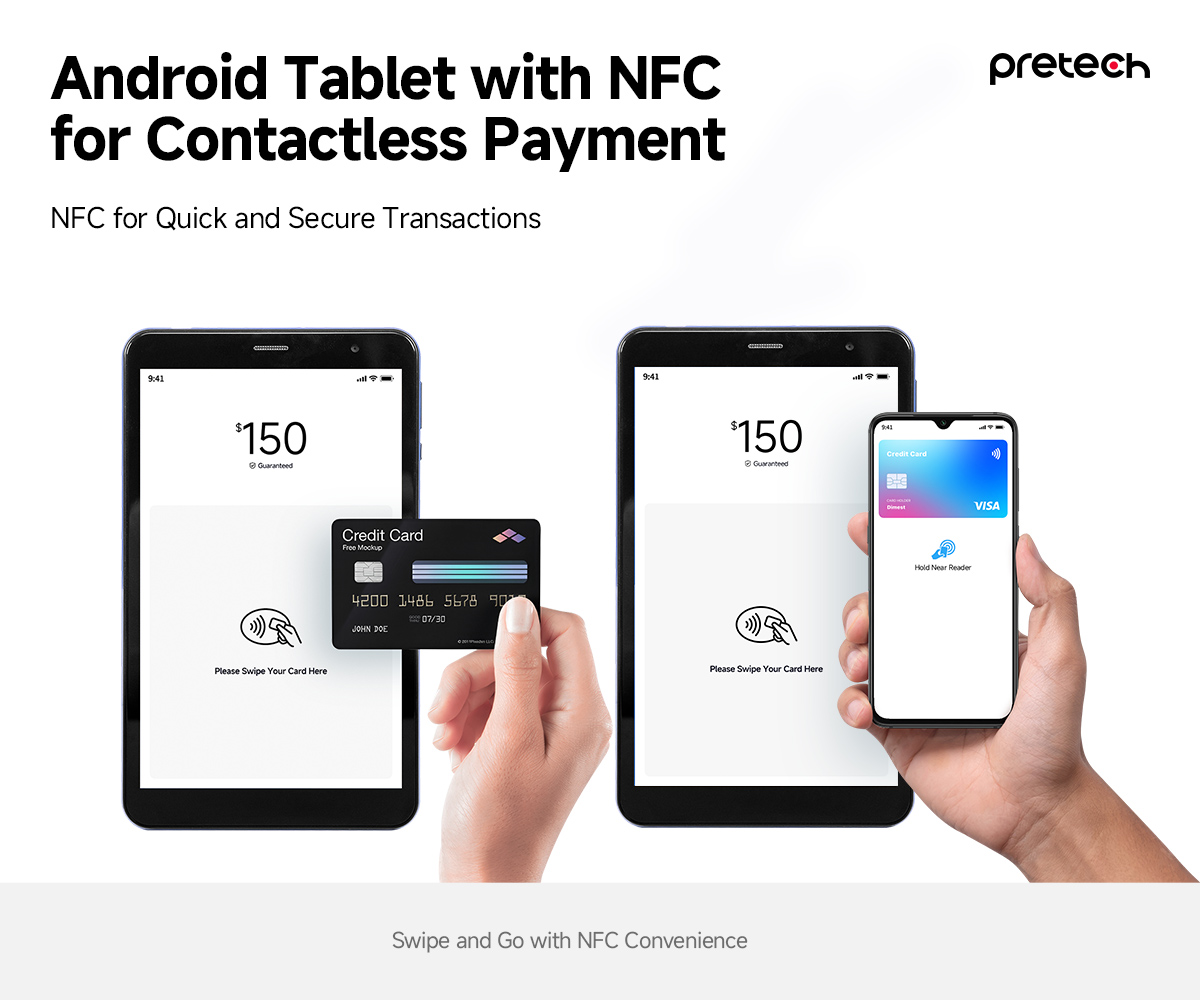

Facial NFC for Tap-to-Pay
Supports facial NFC for secure and convenient tap-to-pay transactions, ideal for retail and hospitality environments.
Advanced Connectivity
Supports AC WiFi, BT 5.0, and 2G/3G/4G Cellular, ensuring seamless connectivity and communication.
Long Battery Life
Equipped with a 4000 mAh battery for extended use without the need for frequent charging.
Applications:

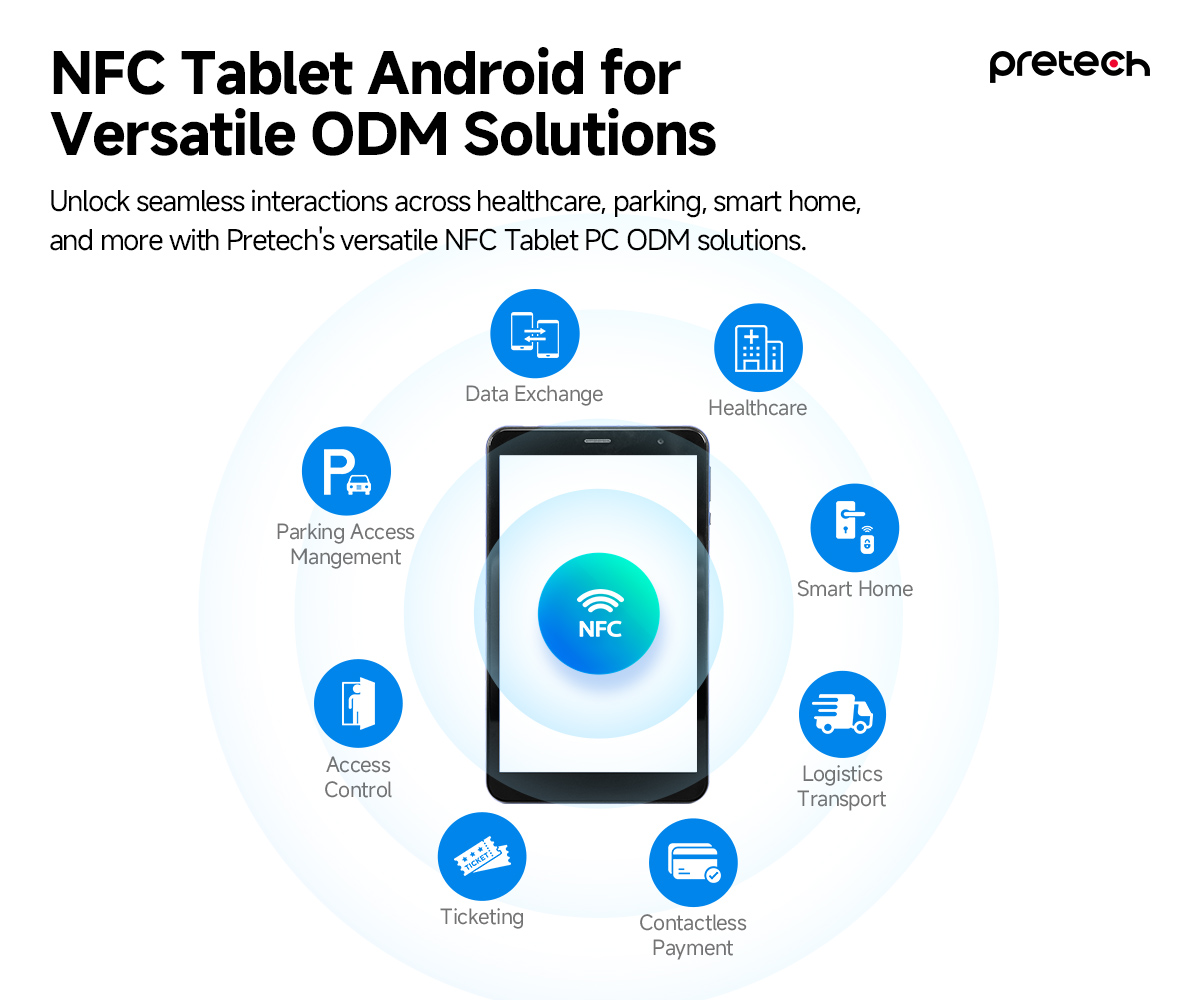

ODM Solutions and Industry Applications of 8-Inch NFC Tablets
Discover the ultimate combination of customization and functionality with the 8-inch NFC tablet PC
-
Retail and Hospitality POS SystemsThe NFC capability of the 8-inch tablet makes it well-suited for POS systems in retail and food service industries, supporting quick checkouts, inventory management, and customer interaction, while enhancing work efficiency. Its smaller size makes it easy to place in environments with limited counter space, such as small retail stores or fast-food restaurants. -
Mobile Payment and Electronic Menu for RestaurantsIn restaurant settings, the 8-inch NFC tablet can serve as a mobile payment terminal and electronic menu. Customers can quickly complete payments through NFC functionality, and the electronic menu feature allows restaurants to adjust menu items flexibly, update menus according to seasonal changes or customer demands, and equip each dish with clear pictures to increase diners' appetite for ordering. -
Interactive Learning Terminals in EducationIn the field of education, the 8-inch NFC tablet can serve as an interactive learning terminal, supporting facial NFC for personalized student experiences and facilitating classroom management and attendance tracking for teachers. Its moderate screen size is suitable for students to hold or share in the classroom. -
Health Monitoring Terminals in HealthcareIn healthcare settings, the 8-inch NFC tablet can act as a health monitoring terminal for patient care, medical equipment control, and medical record access, improving the efficiency and quality of medical services. Its portability and NFC functionality make it suitable for mobile use in hospitals or clinics. -
Public Services Information and Service TerminalsGovernment agencies and public service departments can use the 8-inch NFC tablet for public information dissemination, service delivery, and data collection, improving the efficiency and quality of public services. Its smaller size and NFC capabilities make it suitable for use in public places such as libraries or community centers.
Overview
Overview
Specifications Inquiry-
8" 800 x 1280 IPS G+P/G+G -
Spreadtrum:SC9863A/SC9832E/SC7731E/T616/T606/T310
MTK:MT8183/MT8768/MT8766/MT8765/MT8321/MT8168
RK3566 -
Android 13 -
RAM 2GB/3GB/4GB
Storage 32GB/64GB/128GB -
Front 0.3/2MP, Rear 2/5MP -
WiFi 802.11 (ac)/(a)/b/g/n; BT4.0(5.0) -
FM, G-sensor, USB Type C,
Compass/Light/Proximity/Gyro sensor Optionall -
4000mAh/3.7V
Specification
Overview
Specifications
Inquiry-
CPUT616 2x A75 2.0GHz + 6x A55 1.8GHz
T606 2x A75 1.6GHz + 6x A55 1.6GHz
T310 1x A75 2.0Ghz + 3x A55 1.8GHz
SC9863A 8x A55 1.6GHz
SC9832E 4x A53 1.4GHz
SC7731E 4x A7 1.3GHz
MT8183 4x A73 2.0GHz + 4x A53 2.0GHz
MT8768 8x A53 2.0GHz
MT8766 4x A53 2.0GHz
MT8765 4x A53 1.3-1.5GHz
MT8321 4x A7 1.3GHz
MT8168 4x A53 2.0GHz
RK3566 4x A55 1.8GH -
OSAndroid 13
-
Screen8" 800 x 1280 IPS G+P/G+G
-
RAM2GB/3GB/4GB
-
Storage32GB/64GB/128GB
-
Wi-Fi/BluetoothWiFi 802.11 (ac)/(a)/b/g/n; BT4.0(5.0)
-
LTE-FDDB1/3/5/7/8/20, B2/4/7/17/28 Optional
-
LTE-TDDB38/40 Optional
-
3G900/2100MHz, 850/1900MHz Optional
-
2G850/900/1800/1900MHz
-
CameraFront 0.3/2MP, Rear 2/5MP
-
SupportFM, G-sensor, USB Type C, Compass/Light/Proximity/Gyro sensor Optional
-
Battery4000mAh/3.7V
-
Dimensions208.3 x 124.4 x 9.7 mm
-
Weight340g
-
SpeakerSingle Box Speakers
Inquiry
Overview
Specifications
Inquiry
FAQs
- Hardware
- Software
- Usage Scenarios
Hardware
-
Can I have the NFC positioned in the center of the screen on the Pretech 8-inch NFC tablet PC?Yes, we offer flexible customization options. The NFC module can be positioned either in the center area of the screen or along the side, depending on your project requirements.
-
Can the battery capacity be increased on the Pretech 8-inch NFC tablet PC?The standard configuration includes a 4000mAh battery. If your project requires longer operating time, we can offer customized battery solutions with higher capacity, subject to the available internal space and design constraints.
-
Is the battery on the Pretech 8-inch NFC tablet PC removable?Yes, the battery can be removed to allow the tablet to be embedded into vending machines or coffee machines. The tablet will automatically power on once it is connected to a power source.
-
Can I have two Type-C ports on the Pretech 8-inch NFC tablet PC?Yes, our board supports the integration of two Type-C ports.
-
Does the Pretech 8-inch NFC tablet PC support Android GMS (Google Mobile Service)?Yes, it is GMS certified.
Software
-
Is the Pretech 8-inch NFC tablet PC ready with TEE?Yes, it is ready with TEE and supports NFC payment.
-
What certifications are available for the Pretech 8-inch NFC tablet PC (CE, FCC, RoHS, etc.)?We can provide CE, FCC, RoHS, and other region-specific certifications upon request to meet your compliance needs.
Usage Scenarios
-
What are the typical use cases for the Pretech 8-inch NFC tablet PC?The Pretech 8-inch NFC tablet PC is designed for portability and ease of use in various scenarios, including:
1）Retail and Point of Sale: Use the NFC functionality for contactless payments and inventory management.
2）Field Service: Utilize the tablet for on-site data collection and service requests.
3）Healthcare: Deploy the tablet for patient check-ins and electronic health records.
4）Education: Use the tablet for interactive learning and classroom management.
