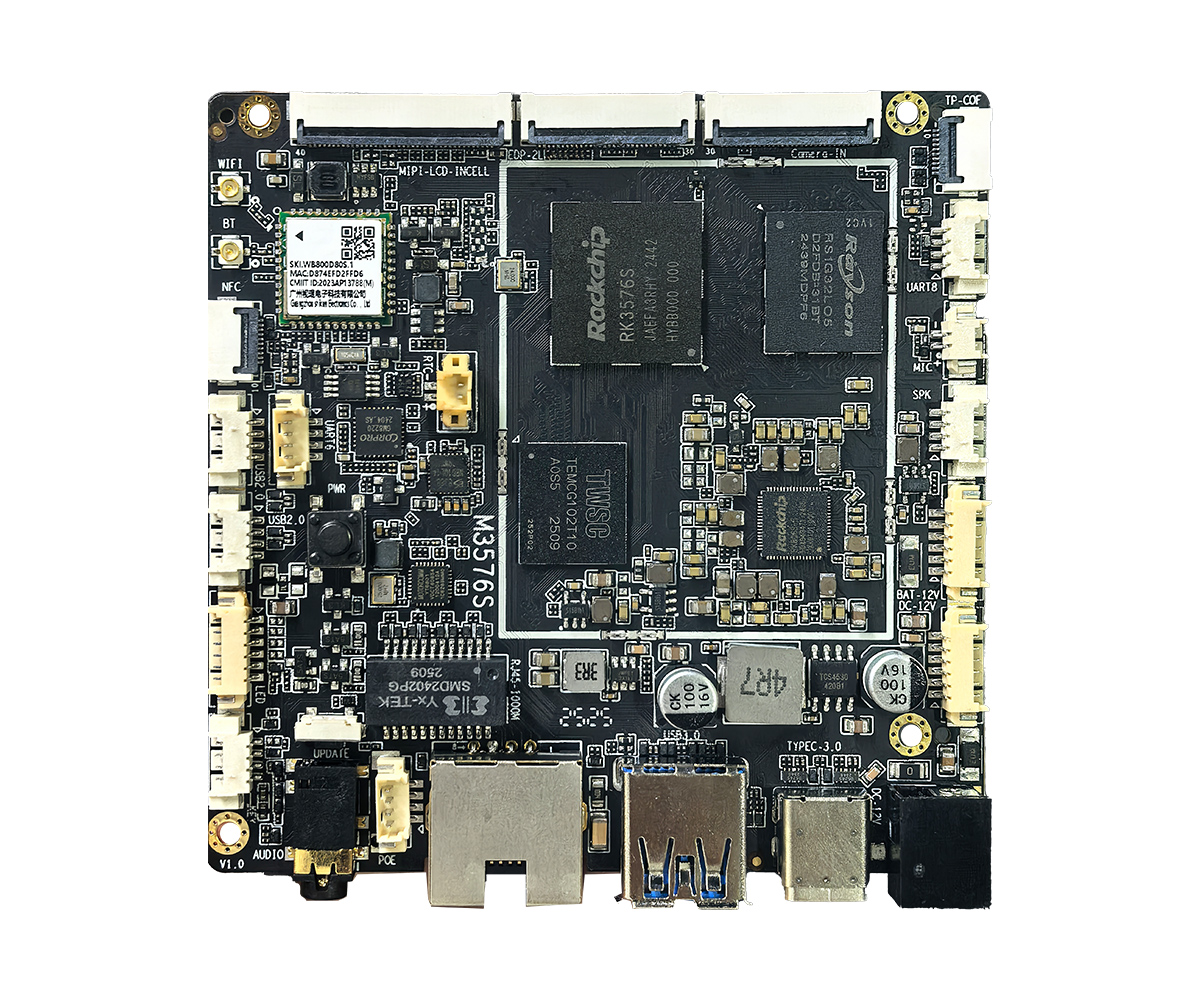

Pretech SBC RK3576S M3576S: High-Performance Single Board Computer

Model: M3576S

The Pretech SBC RK3576S is a powerful single board computer featuring the RK3576S SoC with an octa-core 64-bit architecture (4 x Cortex-A72 at 2.1GHz and 4 x Cortex-A53 at 1.9GHz). It includes a Mali-G52 MC3 GPU (900MHz) and a 3.0T NPU. The board supports Android and Linux (Debian) operating systems. It has 4G/8G RAM and 64G/128G ROM. It supports 4K@60fps video decoding and 1080P@60fps MPEG-2/-1/VC-1/VP8 decoding. Display interfaces include MIPI (2560x1600), EDP (1920x1080), and HDMI (up to 4K@120Hz). Connectivity options include 1000M Ethernet with POE, Dual-Band WIFI6, BT5.4, NFC, and USB interfaces (Type-C/OTG3.0, 1USB3.0, 2USB2.0). It also features 2-channel UART-TTL, 2 I2C interfaces, RGB-LED or 4-channel PWM/GPIO, button interfaces (PWR/Volume +/-/RST), Bluetooth Speaker, MIC Input, Headphone Jack, and Speaker Jack (up to 2 x 8Ω 5W Speakers). Power supply options include DC-12V@2-3A, POE, and BAT-12V. It includes an RTC with scheduled power on/off settings and supports secondary development with API interface documentation provided.

Inquiry Ask for A Demo

Pretech RK3576S SBC M3576S: ODM Industry Applications

The Pretech SBC RK3576S is widely used across various ODM industry applications. In smart homes, it powers devices like cameras and displays, offering robust processing and connectivity. In industrial automation, it serves as the control core for robots and production lines, enabling real-time data processing. In education, it supports the development of educational robots and interactive devices, promoting innovation. In medical care, its high-performance video capabilities aid in imaging and telemedicine. It also finds application in transportation, finance, and security, supporting a range of intelligent solutions. The Pretech SBC RK3576S is designed to meet diverse industry needs, providing a reliable and efficient solution for modern smart applications.

PRODUCT DETAIL

RK3576S-M3576S

SOC

RK3576, 4 x Cortex-A72 + 4 x Cortex-A53 2.3GHz, 8nm
GPU ARM Mali-G52 MC3
OpenGL ES3.2/OpenCL 2.0/Vulkan1.1
3.0TOPS NPU, INT4,INT8,INT16, float16, Bfloat 16 and tf32 operation
Supports deep learning framework：TensorFlow, Caffe, Tflite, Pytorch, Onnx NN，Android NN, etc.
Connectivity

WIFI6 802.11a/b/g/n/ac/ax，Bluetooth5.2

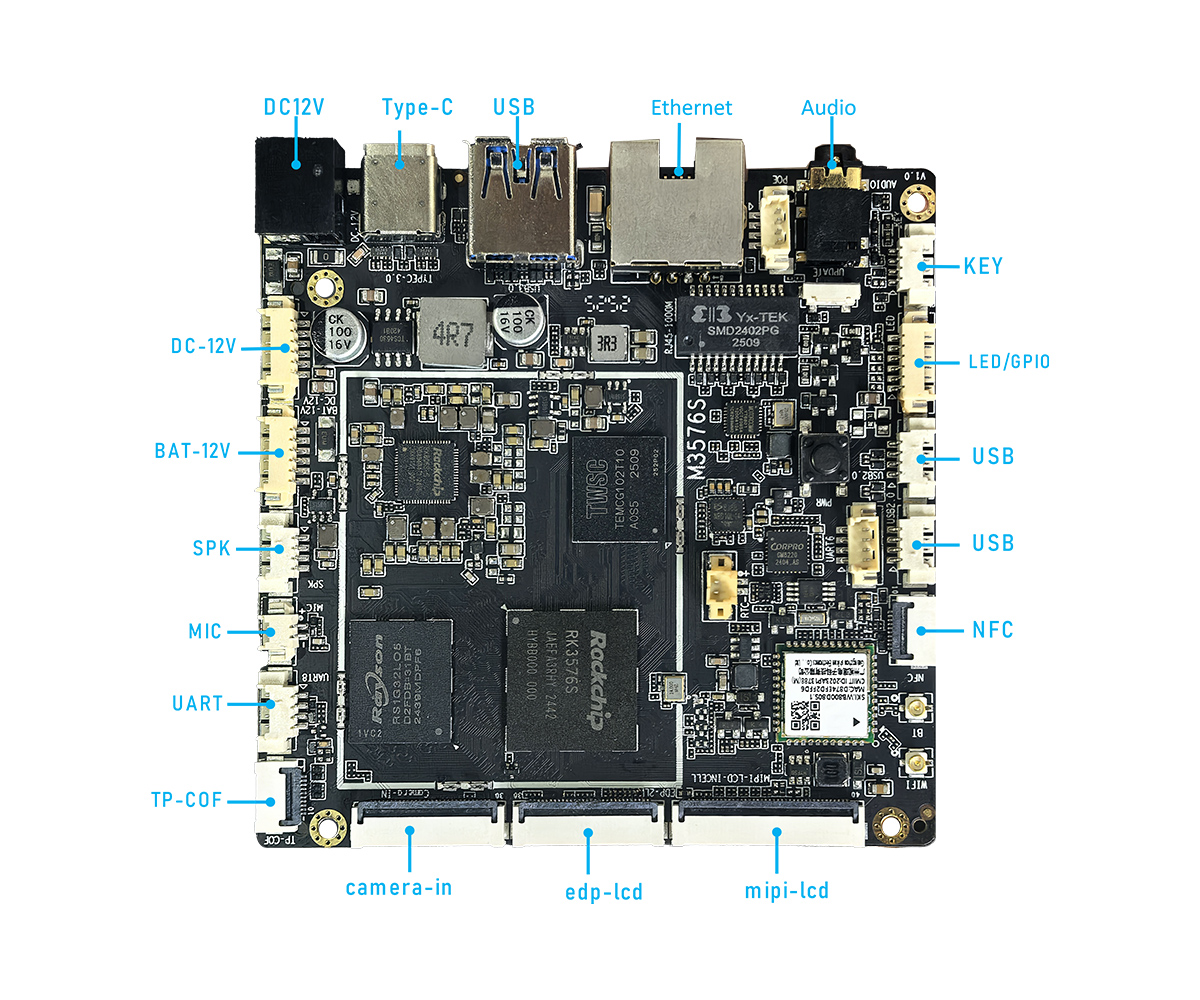

Interface

Key Interface (PWR/VOL+/VOL-/RST), PH1.25-4Pin
2 x UART, PH1.25-4Pin
Mipi-1cd, FPC-0.5mm-40pin
Edp-1cd, FPC-0.5mm-30pin
Mipi-Camera Interface, FPC-0.5mm-30pin
TP-C0F Interface, FPC-0.5mm-10pin
NFC Interface, FPC-0.5mm-10pin
RTC Battery, supports scheduled power on/off
LED or GPI0 Expansion Interface, PH1.25-6Pin
BAT-IN-12V Connector, PH1.25-6Pin
DC-IN-12V Interface, PH1.25-6Pin

What We Do

We offer ODM solutions for certain customers who have specific needs which can’t be satisfied by existing devices on the market.

Tooling

ID Design

MD Design
Software

Drive Debugging

System Customization

Debug Pre-installed applications
Hardware

Schematic Diagrams Design

PCB Layout

Specific components design

Bill of Materials output

Gerber Files

RF Design and Verification

Assembly Drawings

Test Specifications output
Accessories

Smart Cover

Docking Charging Station

Charging Bracket/Dock

Magnetic BackClip

Wall Mount

Stylus Pen

And more

How We Do

We offer ODM solutions for certain customers who have specific needs which can’t be satisfied by existing devices on the market.

01 Planning

Market Survey
Requirements Collection
Competitiveness Analysis
Technology Study
Risk Analysis
Component Life Cycle Survey
Cost Evaluation
02 Desgin

ID Design
MD Design
Hardware
OS
03 Validation

Trial Samples
Software Customization
Performance Tests
Reliability Tests
EVT
DVT
Certifications
04 Integration

Assembly Study and SOP
Pilot Run Production
Testing Process Study and SOP
Field Test/Feedbacks
Improvements
05 Production

Pilot Run Production
Mass Production
06 After Service

Global Warranty
Extended Warranty Service
Online Service

Specification

OS

Android/Linux
SOC

RK3576, 4 x Cortex-A72 + 4 x Cortex-A53 2.3GHz, 8nm
GPU ARM Mali-G52 MC3
OpenGL ES3.2/OpenCL 2.0/Vulkan1.1
3.0TOPS NPU, INT4,INT8,INT16, float16, Bfloat 16 and tf32 operation
Supports deep learning framework：TensorFlow, Caffe, Tflite, Pytorch, Onnx NN，Android NN, etc.
RAM

LPDDR5 4G/8G
ROM

EMMC5.1 32G/64GB
Media

Decode:
4K@60fps:H.265/HEVC、VP9、AVS2、AV1,4K@60fps:H.264/AVC

Encoded:
4K@30fps:H. 265/HEVC、 H. 264/AVC
Display

MIPI Display Interface 1 (2560x1600@60fps)
EDP Display Interface (1920x1080@60fps)
Ethernet

1000M Ethernet(supports PoE with add-on PoE HAT)

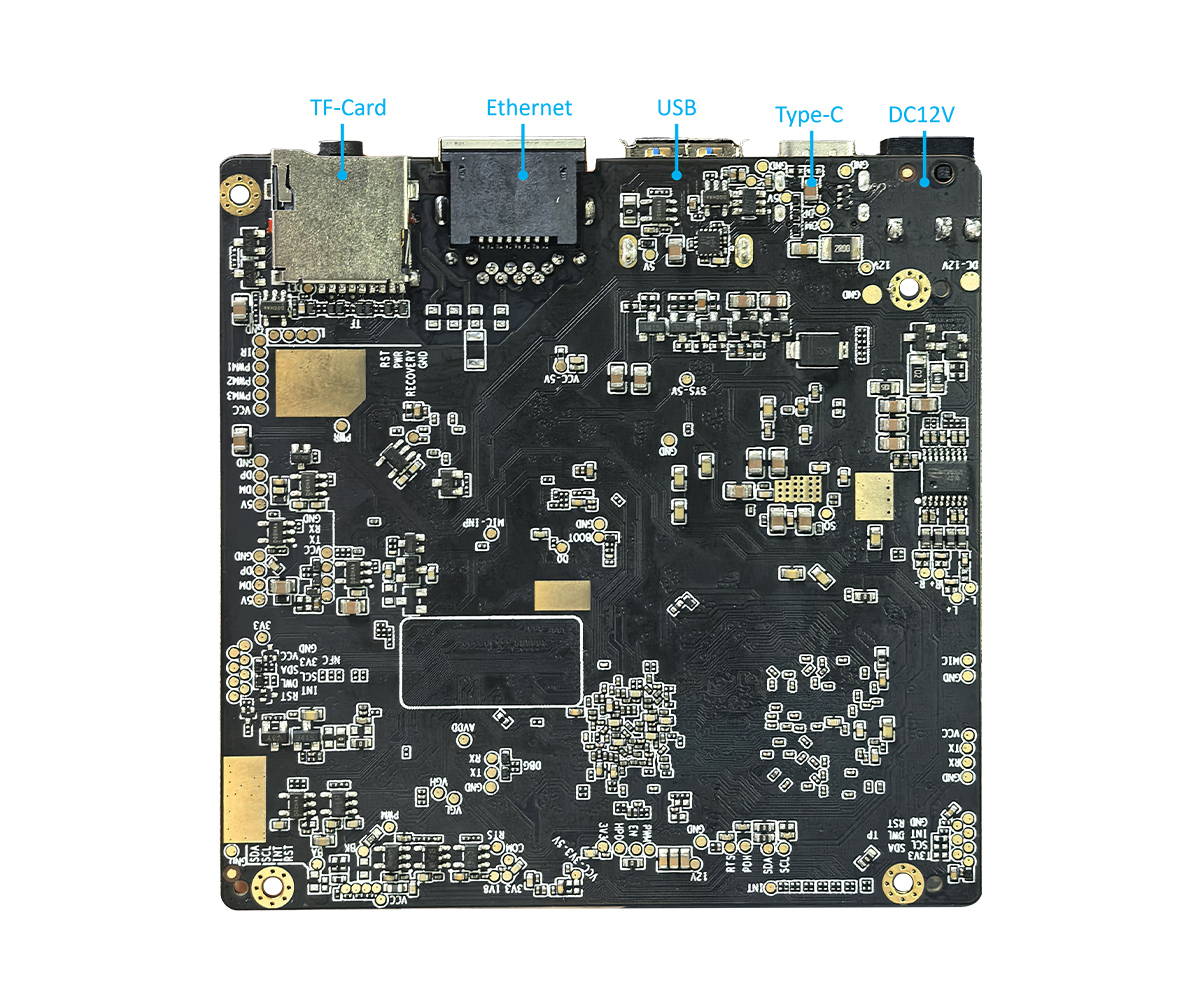

Connectivity

WIFI6 802.11a/b/g/n/ac/ax，Bluetooth5.2
USB

USB3.0, Type-C, OTG
USB3.0, Type-A
2 x USB2.0,PH1.25-4Pin
Micro SD Card

1 x Mic SD Card Slot
Audio

3W x 2 4R
Headphone Jack 3.5mm
MIC Input, 2-Pin PH1.25
Interface

Key Interface (PWR/VOL+/VOL-/RST), PH1.25-4Pin
2 x UART, PH1.25-4Pin
Mipi-1cd, FPC-0.5mm-40pin
Edp-1cd, FPC-0.5mm-30pin
Mipi-Camera Interface, FPC-0.5mm-30pin
TP-C0F Interface, FPC-0.5mm-10pin
NFC Interface, FPC-0.5mm-10pin
RTC Battery, supports scheduled power on/off
LED or GPI0 Expansion Interface, PH1.25-6Pin
BAT-IN-12V Connector, PH1.25-6Pin
DC-IN-12V Interface, PH1.25-6Pin
Input Power

Input: AC100-240V.50-60HZ,
Output: DC12V/5.5mm DC head 2A-5A (surge voltage less than 18V, ripple voltage less than 100mV)
PCB

Size: 83.8 × 84 × 1.2 mm, 6-layer through-hole - gold plating
Hole: ∮2.5mmx4
Environment

Operating temperature -20°C ~ 70°C
