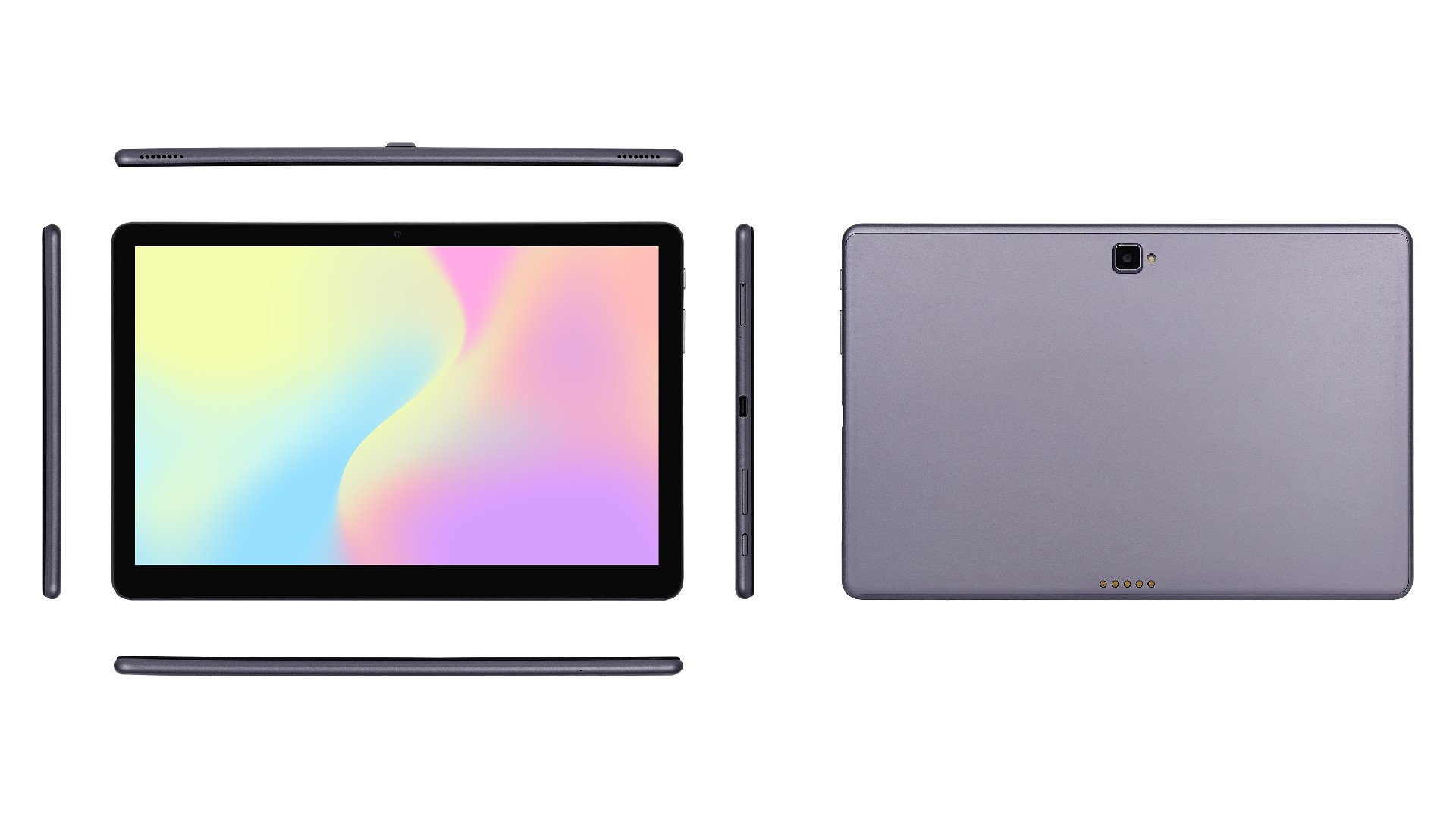

10.1 inch Andorid Tablet PC for Students Learning and Study with Compact & Stable Inner Structure,
all components linked with connectors instead of weld. (Model 1017)

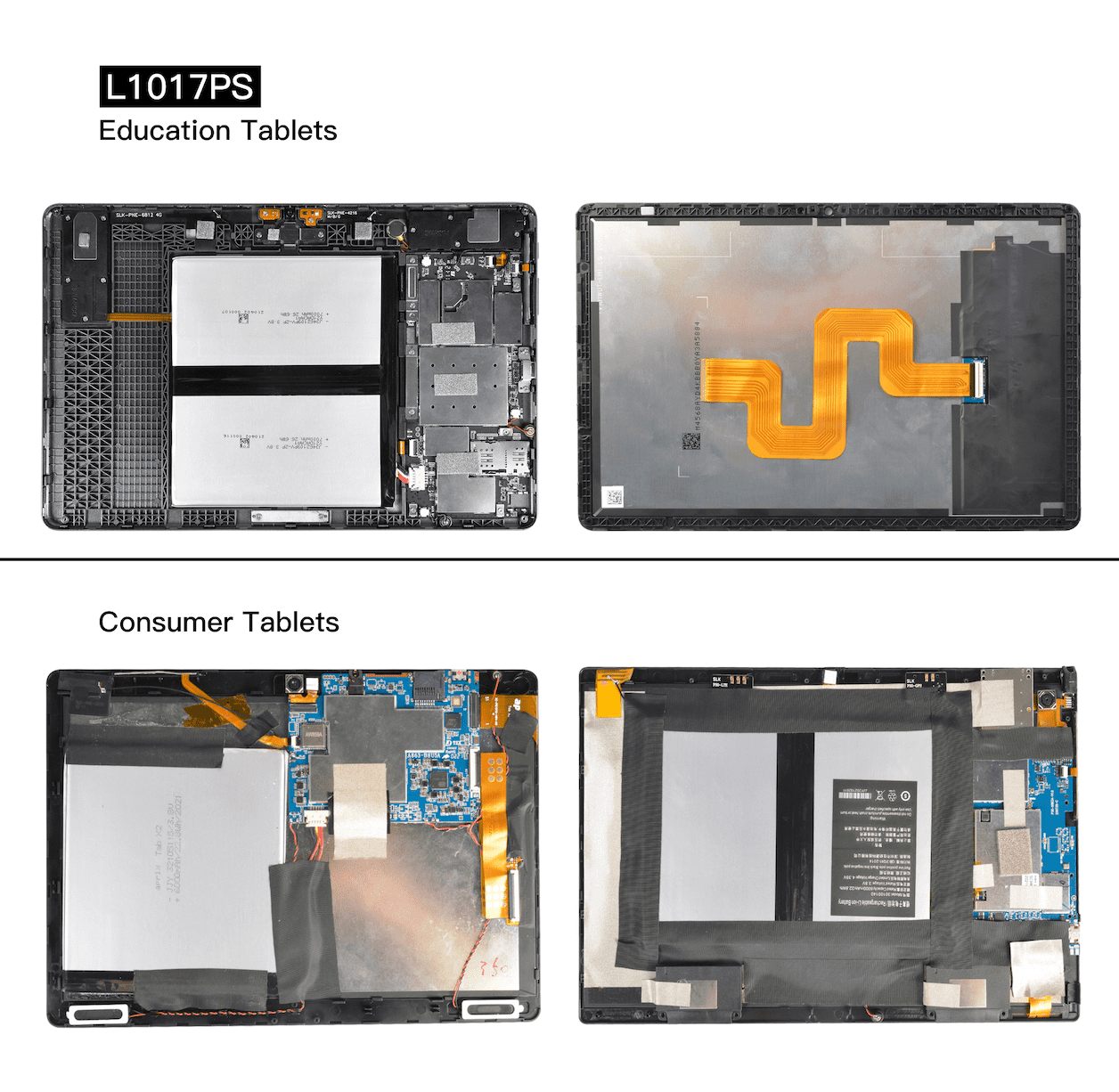

Feauters:
- Stainless steel pressing plates
- Tooth-screws
- FPC connection
- Bottom assembly process layout
- V0 fire-proof plastic
- Connectors adopted
- Internal plastic honeycomb reinforcement
1017 Spec：
| CPU | T618 Cortex- A75 2.0GHz x2 +Cortex- A55 x 6 2.0GHz |
| T610 Cortex- A75 1.8GHz x2 +Cortex- A55 x 6 1.8GHz | |
| OS | Android 12 |
| Screen | 10.1" 1200 x 1920 IPS Incell |
| RAM | 4GB/6GB |
| Storage | 64GB/128GB |
| Wifi/BT | WiFi 802.11 ac/a/b/g/n; BT 5.0 |
| LTE-TDD | 2100MHz-B1/1800MHz-B3/2600MHz-B7/800MHz-B20 (or B2/B4/B7/B17) |
| LTE-TDD | B38, B40 (One Only) |
| 3G | 900/2100MHz (850/1900MHz optional ) |
| 2G | 850/900/1800/1900MHz |
| Camera | Front 5MP, Rear 8MP |
| Speaker | 8Ω, 1W Dual Box Speaker |
| Support | GPS /GLONASS/Beidou, FM, G-sensor, USB Type C 2.0 (Data + Charging + Earphone) |
| Battery | 6000mAh |
| Dimensions | 241 x 159 x 8.0mm |
| Weight | 464g |
