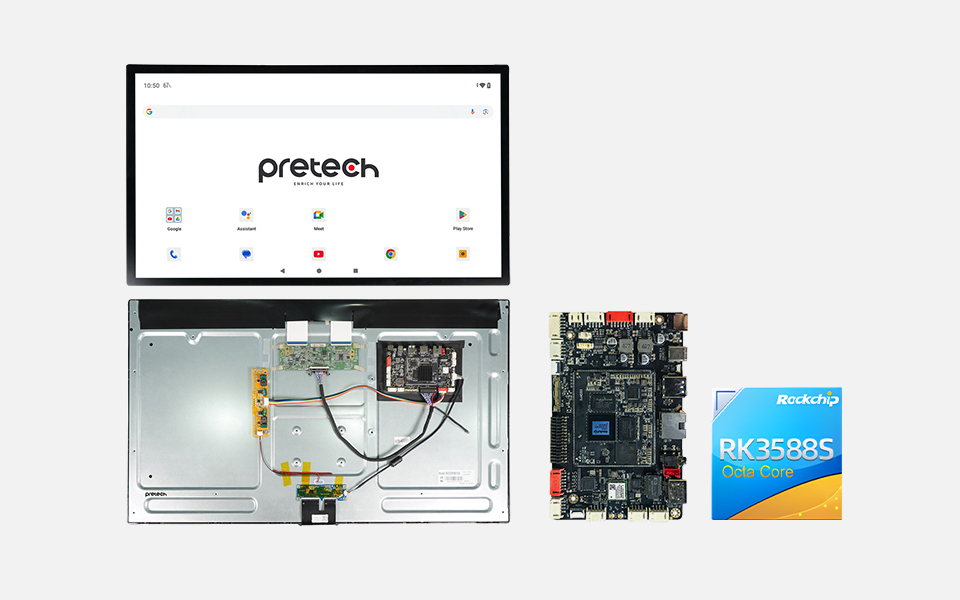

RK3588S SOM and Carrier Board H3588S Assembly with Open Frame Display and Touch Screen for Large-Scale Industry Applications

Model: H3588S-32
Pretech RK3588S SOM and Carrier Board H3588S with open frame display and touch screen provides a powerful and versatile solution for large-scale industry applications, supporting multiple display sizes and interfaces. Suitable for smart security, transportation, industrial automation, healthcare, education, retail, etc.
Inquiry Ask for A Demo
RK3588S SOM and Carrier Board H3588S Assembly with Open Frame Display and Touch Screen for Large-Scale Industry Applications

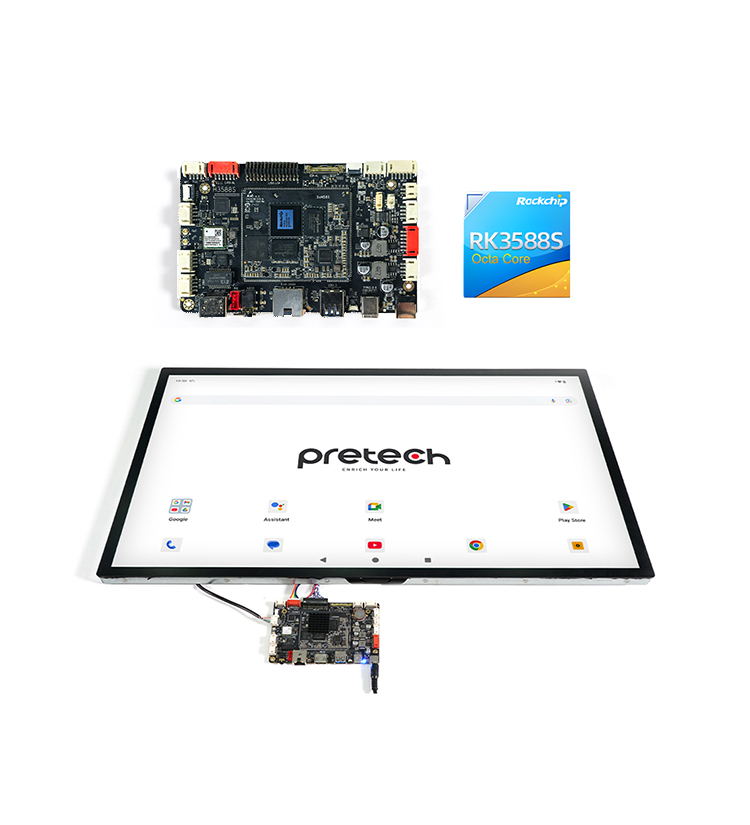

RK3588S SOM and Carrier Board Assembly with Large Display and Touch Screen Solution

Pretech RK3588S SOM and Carrier Board assembly with the open frame display and touch screen is designed to offer high performance and versatility. These solutions feature powerful processing capabilities, rich peripheral interfaces, and support for multiple display options, making them suitable for a wide range of applications. The assembly includes a touchscreen, display screen, and related circuits.
RK3588S SOM and Carrier Board Assembly with Large Display and Touch Screen Solution

RK3588S SOM and Carrier Board H3588S Display and Touch Screen Compatibility

Pretech RK3588S SOM and Carrier Board with its open frame touch screen and display is a versatile solution designed to meet the needs of various industries. Equipped with a robust CPU and NPU, it offers efficient processing capabilities and interactive displays, enhancing performance and user experience across multiple applications.

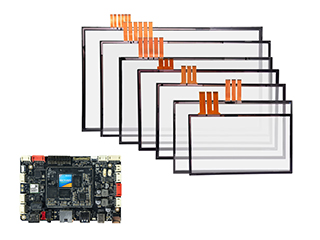

  • RK3588S SOM and Carrier Board H3588S Supports Touch Screens of Various Sizes and Interfaces
    RK3588S SOM and Carrier Board H3588S Supports Touch Screens of Various Sizes and Interfaces
    The RK3588S SOM and Carrier Board assembly supports touch screens with I2C and USB interfaces.
    I2C interface touch screens in sizes of 7-inch, 8-inch, 10.1-inch, 10.95-inch, and 11.97-inch.
    USB interface touch screens in sizes of 14-inch, 15.6-inch, 17.3-inch, 21.5-inch, 32-inch, 43-inch, 55-inch, and 65-inch.

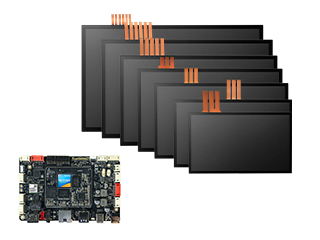

  • RK3588S SOM and Carrier Board H3588S Expandable Display Sizes
    RK3588S SOM and Carrier Board H3588S Expandable Display Sizes
    The RK3588S SOM and Carrier Board assembly also supports a variety of display sizes and interfaces. The main board natively supports MIPI and eDP interfaces (LVDS support is available via a MIPI-to-LVDS adapter board).
    MIPI conventional sizes: 4-inch, 5-inch, 7-inch, 8-inch, 10.1-inch, 10.95-inch, 11.97-inch.
    eDP conventional sizes: 14-inch, 15.6-inch, 17.3-inch.
    LVDS conventional sizes: 21.5-inch, 32-inch, 43-inch, 55-inch, 65-inch.
Customized RK3588S SOM and Carrier Board H3588S with Open Frame Touch Screen and Display for Large-Scale Industry Applications
Empowering Efficiency and Innovation with Pretech SOM and Carrier Board and Open Frame Touch Screen and Display
Smart Sports Event Live Streaming Solutions

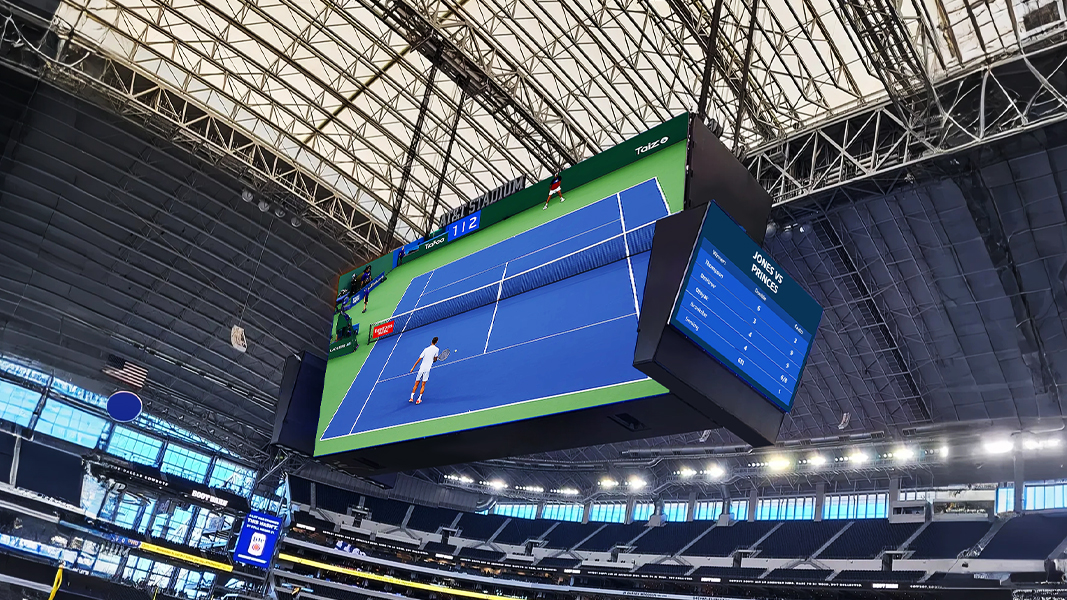

Smart Sports Event Live Streaming Solutions
The Rockchip RK3588S SOM and carrier board with the open frame touch screen and display provide powerful data processing and visualization support for smart sports event live streaming. Its high-performance CPU and NPU support high-definition video live streaming and real-time data analysis, ensuring smooth and interactive live streaming of sports events. The SOM supports multiple display interfaces and can be adapted to displays of different sizes for sports event live streaming. Its rich peripheral interfaces (such as USB 3.0 and HDMI 2.1) make it easy to connect to various live streaming devices, such as cameras and microphones.

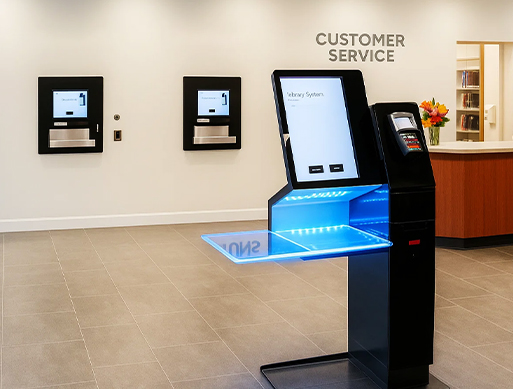

  • Smart Museum Interactive Display Solutions
    Smart Museum Interactive Display Solutions
    The Rockchip RK3588S SOM and carrier board with the open frame touch screen and display provide powerful data processing and visualization support for smart museum interactive displays. Its high-performance CPU and NPU support high-definition video playback and real-time data analysis, ensuring smooth and interactive museum displays. The SOM supports multiple display interfaces and can be adapted to displays of different sizes for museum interactive displays. Its rich peripheral interfaces (such as USB 3.0 and HDMI 2.1) make it easy to connect to various interactive devices, such as touch screens and sensors.

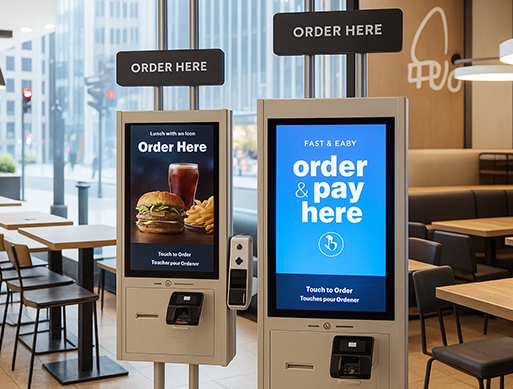

  • POS Payment Terminal Solutions
    POS Payment Terminal Solutions
    The Pretech H3588S RK3588S SOM and Carrier with the open frame touch screen and display is designed for POS payment terminals. Its high-performance CPU and NPU enable secure and efficient transaction processing, making it suitable for retail and service industries. The SBC provides clear and interactive displays for customers, enhancing the user experience and operational efficiency. The board includes multiple USB ports for peripheral connectivity.

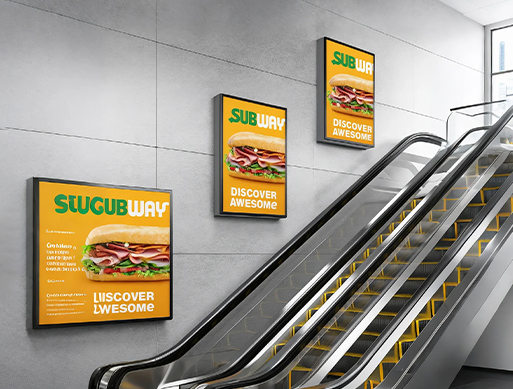

  • Advertising Machine Solutions
    Advertising Machine Solutions
    The Pretech H3588S RK3588S SOM and Carrier Board with the open frame touch screen and display is designed for advertising machines. Its powerful CPU and NPU support high-resolution video playback and interactive content display, making it ideal for digital signage and interactive kiosks in malls, airports, and other public spaces. The SOM and Carrier Board provides an engaging and dynamic advertising experience for viewers. The board supports HDMI-out and DisplayPort for high-resolution video output.

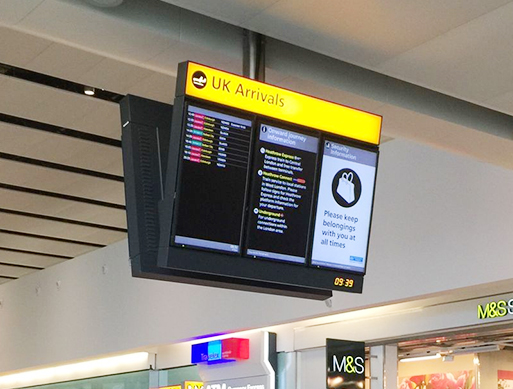

  • Airport Solutions
    Airport Solutions
    The Pretech H3588S RK3588S SOM and Carrier Board with the open frame touch screen and display is designed for airport applications. It efficiently manages boarding passes and provides real-time flight information, enhancing passenger experience and airport operations. The board includes multiple USB ports and Ethernet for robust connectivity.
  • Gaming Solutions

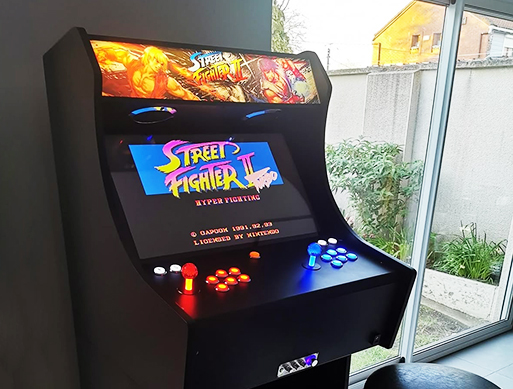

    Gaming Solutions
    The Pretech H3588S RK3588S SOM and Carrier Board with the open frame touch screen and display is designed for gaming machines. Its high-performance CPU and NPU provide an immersive gaming experience with high-resolution video playback and interactive content display. The board supports HDMI-out and DisplayPort for high-resolution video output.

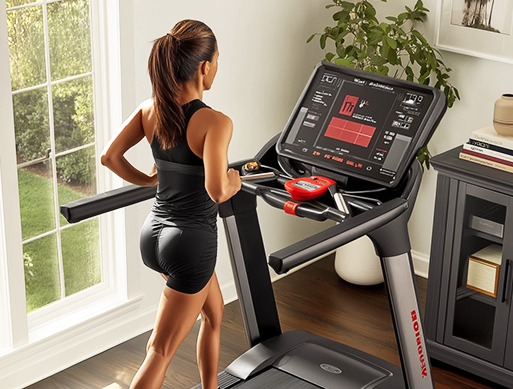

  • Fitness Equipment Solutions
    Fitness Equipment Solutions
    The Pretech H3588S RK3588S SOM and Carrier Board with the open frame touch screen and display is designed for fitness equipment like treadmills. It provides real-time data display and interactive interfaces, enhancing user engagement and workout efficiency. The board includes multiple USB ports for peripheral connectivity.

What We Do

We offer ODM solutions for certain customers who have specific needs which can’t be satisfied by existing devices on the market.
  • Tooling
    ID Design
    MD Design
  • Software
    Drive Debugging
    System Customization
    Debug Pre-installed applications
  • Hardware
    Schematic Diagrams Design
    PCB Layout
    Specific components design
    Bill of Materials output
    Gerber Files
    RF Design and Verification
    Assembly Drawings
    Test Specifications output
  • Accessories
    Smart Cover
    Docking Charging Station
    Charging Bracket/Dock
    Magnetic BackClip
    Wall Mount
    Stylus Pen
    And more

How We Do

We offer ODM solutions for certain customers who have specific needs which can’t be satisfied by existing devices on the market.
  • 01 Planning
    Market Survey
    Requirements Collection
    Competitiveness Analysis
    Technology Study
    Risk Analysis
    Component Life Cycle Survey
    Cost Evaluation
  • 02 Desgin
    ID Design
    MD Design
    Hardware
    OS
  • 03 Validation
    Trial Samples
    Software Customization
    Performance Tests
    Reliability Tests
    EVT
    DVT
    Certifications
  • 04 Integration
    Assembly Study and SOP
    Pilot Run Production
    Testing Process Study and SOP
    Field Test/Feedbacks
    Improvements
  • 05 Production
    Pilot Run Production
    Mass Production
  • 06 After Service
    Global Warranty
    Extended Warranty Service
    Online Service

Specification

  • SOC
    RK3588S, 4 x Cortex-A76 + 4 x Cortex-A55 2.4GHz, 8nm
    GPU ARM Mali-G610 MP4 Quad-Core
    OpenGL ES3.2/OpenCL 2.2/Vulkan1.1,450 GFLOPS
    6.0TOPS NPU, Support INT4/INT8/INT16
  • OS
    Android
  • RAM/ROM
    RAM: LPDDR4 4G/8G
    ROM: EMMC5.1 64G/128G
  • Media
    Decode:
    8K 60fps H.265NP9/AVS2
    8K 30fps H.264AVC/MVC
    4K 60fps AV1
    1080P 60fps MPEG-2/-1/C-1P8

    Encoded:
    8K 30fps encoding,
    Support H.265/H.264 Up to 32-channel
    1080P 30fps decoding and 16-channel
    1080P 30fps encoding
  • Touch Screen
    Touch screens that support both I2C and USB interfaces are available in various sizes.
    The touch screens with I2C interfaces include 7 inches, 8 inches, 10.1 inches, 10.95 inches, and 11.97 inches.
    Touch screens with USB interfaces include 14 inches, 15.6 inches, 17.3 inches, 21.5 inches, 32 inches, 43 inches, 55 inches, and 65 inches.
  • Display Port
    1 x MIPI ，1920x1200@60fps
    1 x eDP，2-Lane,1920*1080@60fps
    1 x eDP，4-Lane，eDP1.3,4K@60fps，or HDMI-0UT（8K@60fps（4K@120fps)
    1 x DisplayPort(4K@120fps) AltMode on Type-C
    1 x Dual-LVDS, 1080@60fps
  • Display
    The motherboard supports MIPI and eDP interfaces natively (LVDS can be supported via a MIPI-to-LVDS converter board).
    Displays with MIPI include 4 inches, 5 inches, 7 inches, 8 inches, 10.1 inches, 10.95 inches, and 11.97 inches.
    Displays with eDP include 14 inches, 15.6 inches, and 17.3 inches.
    Displays with LVDS include 21.5 inches, 32 inches, 43 inches, 55 inches, and 65 inches.
  • Ethernet
    1000M Ethernet x 1
  • Connectivity
    WIFI6 802.11a/b/g/n/ac/ax，Bluetooth5.2
  • USB
    3 x USB Host 2.0,PH2.0-4Pin
    1 x USB3. 0, Type-A
    1 x USB3.0,Type-C with OTG & DP-out
  • Audio
    Speaker x 2
    Microphone x 1
  • Interface
    Key button interface (PWR/VOL+/VOL-/RST), PH1.25-4Pin
    2 x Speaker interface (PH2.0-4Pin), 1 x Mic interface (PH2.0-2Pin)
    2 x UART, PH2.0-4Pin
    3 x USB2.0, PH2.0-4Pin
    TP-COF interface, FPC-0.5mm-10pin
    NFC module interface, FPC-0.5mm-10pin
    RTC battery, PH1.25-2Pin, supports timed on/off
    LED or GPIO expansion interface, PH2.0-6Pin
    LVDS screen backlight interface, PH2.0-6Pin
    BAT-IN-12V interface, PH2.0-6Pin
    DC-IN-12V interface, PH2.0-4Pin
  • Input Power
    DC 12V @ 2-5A / 5.5mm DC (Requires surge voltage less than 18V, ripple voltage less than 100mV)
  • PCB
    Size: 81.5x 130 x 1.6mm
    Process: 6-layer through-hole with immersion gold
    screw hole specifications: 93.5mm x 4
  • Environment
    Operating temperature -20°C ~ 70°C

FAQs
