Pretech SOM RK3566-F: Compact and Versatile System on Module
Pretech SOM RK3566-F: Compact and Versatile System on Module
Home >> Solutions >> SOM

Pretech SOM RK3566-F: Compact and Versatile System on Module

Model: SOM3566-F

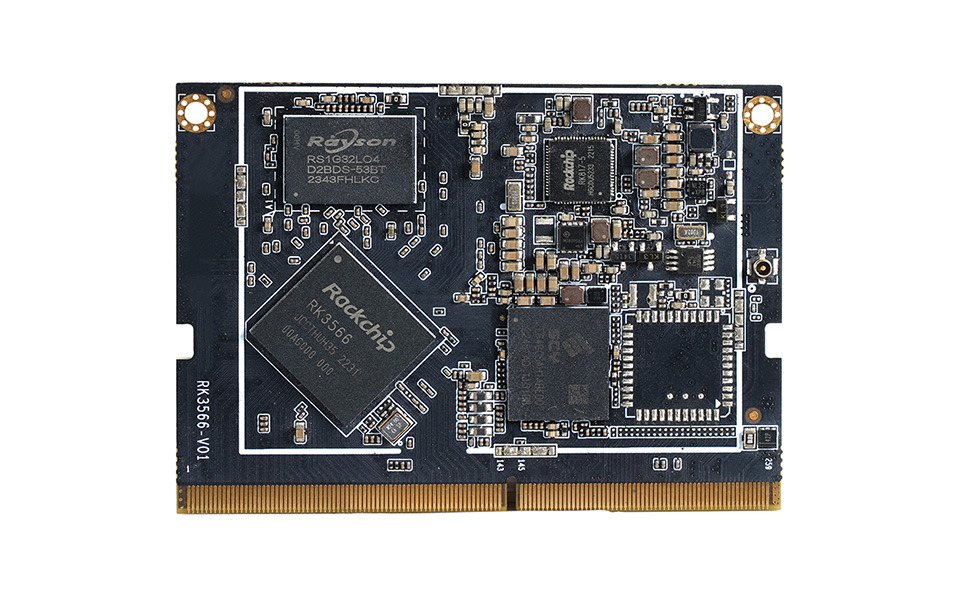

The Pretech SOM RK3566-F is a compact and powerful system on module featuring the RK3566 SoC with a quad-core 64-bit architecture (4 x Cortex-A55 at 1.8GHz). It includes a Mali-G52 2EE GPU (800MHz) and a 0.8T NPU, supporting Android and Linux (Debian). The module has 2G/4G RAM and 64G ROM. It supports 4K@60fps video decoding for H.265/H.264/VP9. Display interfaces include EDP, MIPI, DUAL-LVDS (via mipi-combo), and HDMI, with support for dual-screen heterogeneous display. High-speed interfaces include OTG-2.0, USB3.0, and SATA3.0/PCIe2.1. Connectivity options include 100M/10M Ethernet, Dual-Band WIFI6, BT5.4, and NFC. It also features UART, PWM, ADC, SPI, I2C, I2S, and GPIO. Power supply options include battery and DC power supply (DC voltage 5-12V). It includes an RTC with scheduled power on/off settings and supports secondary development with hardware reference design and SDK documentation provided.
Inquiry Ask for A Demo
Pretech SOM RK3566-F: Compact and Versatile System on Module

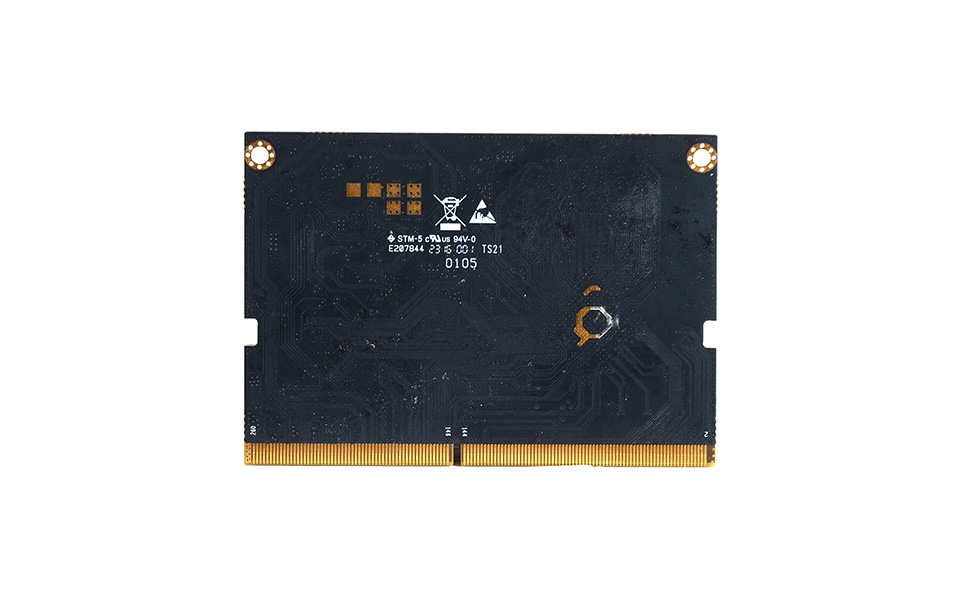

Pretech SOM RK3566-F ODM Industry Applications

The Pretech SOM RK3566-F is widely used in various ODM industry applications. In the smart home sector, it serves as the core module for smart cameras, displays, and control panels, offering powerful processing and connectivity. In industrial automation, it acts as the control core for robots and production lines, enabling real-time data processing and intelligent decision-making. In education, it supports the development of educational robots and interactive devices, promoting innovation. In medical care, it aids in medical imaging and telemedicine with its high-performance video capabilities. It also finds application in transportation, finance, and security, supporting a range of intelligent solutions. The Pretech SOM RK3566-F is designed to meet diverse industry needs, providing a reliable and efficient solution for modern smart applications.
Pretech SOM RK3566-F ODM Industry Applications

PRODUCT DETAIL

RK3568- SOM3568-F

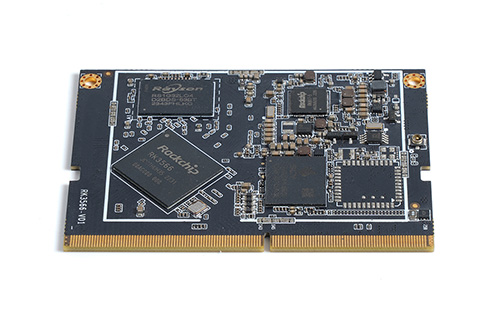

  • RK3566, 4 x Cortex-A55, 1.8GHz, 22nm<br> Mali-G52 2EE(800MHz), 0.8T NPU
    SOC
    RK3566, 4 x Cortex-A55, 1.8GHz, 22nm
    Mali-G52 2EE(800MHz), 0.8T NPU

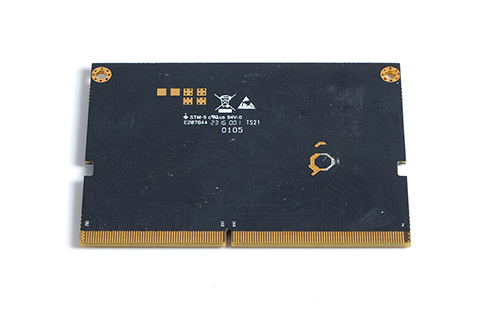

  • Connectivity
    Connectivity
    WIFI6 802.11a/b/g/n/ac/ax，Bluetooth5.4, NFC

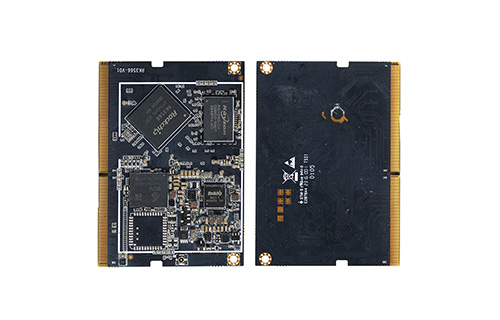

  • 1 x USB2.0 OTG<br> 1 x USB3.0 HOST/SATA3.0<br> 2 x USB2.0 HOST<br> 1 x PCIe2.1/SATA3.0
    Interface
    1 x USB2.0 OTG
    1 x USB3.0 HOST/SATA3.0
    2 x USB2.0 HOST
    1 x PCIe2.1/SATA3.0

What We Do

We offer ODM solutions for certain customers who have specific needs which can’t be satisfied by existing devices on the market.
  • Tooling
    ID Design
    MD Design
  • Software
    Drive Debugging
    System Customization
    Debug Pre-installed applications
  • Hardware
    Schematic Diagrams Design
    PCB Layout
    Specific components design
    Bill of Materials output
    Gerber Files
    RF Design and Verification
    Assembly Drawings
    Test Specifications output
  • Accessories
    Smart Cover
    Docking Charging Station
    Charging Bracket/Dock
    Magnetic BackClip
    Wall Mount
    Stylus Pen
    And more

How We Do

We offer ODM solutions for certain customers who have specific needs which can’t be satisfied by existing devices on the market.
  • 01 Planning
    Market Survey
    Requirements Collection
    Competitiveness Analysis
    Technology Study
    Risk Analysis
    Component Life Cycle Survey
    Cost Evaluation
  • 02 Desgin
    ID Design
    MD Design
    Hardware
    OS
  • 03 Validation
    Trial Samples
    Software Customization
    Performance Tests
    Reliability Tests
    EVT
    DVT
    Certifications
  • 04 Integration
    Assembly Study and SOP
    Pilot Run Production
    Testing Process Study and SOP
    Field Test/Feedbacks
    Improvements
  • 05 Production
    Pilot Run Production
    Mass Production
  • 06 After Service
    Global Warranty
    Extended Warranty Service
    Online Service

Specification

  • OS
    Android/Linux(Debain)
  • SOC
    RK3566, 4 x Cortex-A55, 1.8GHz, 22nm
    Mali-G52 2EE(800MHz), 0.8T NPU
  • RAM
    LPDDR4 2G/4G
  • ROM
    EMMC5.1 64G
  • Media
    4K 60fps H.265/H.264/VP9
  • Display Port
    2 x MIPI
    1 x EDP
    1 x HDMI
  • Internet
    Supports 100M/10M Internet auto-negotiation
  • Connectivity
    WIFI6 ，Bluetooth5.2, NFC
  • High-Speed Interface
    1 x USB2.0 OTG
    1 x USB3.0 HOST/SATA3.0
    2 x USB2.0 HOST
    1 x PCIe2.1/SATA3.0
  • Serial Port/GPIO
    UART/PWM/I2C/I2S/GMAC/SDIO/ADC/SPI/GPIO/Button Interface
  • Others
    POWER:VSYS-4V
    Power Supply:Supports Battery and DC Power Supply / DC Voltage 5-12V
    TF card:support
    RTC:Supports scheduled power on/off settings
  • Dimensions
    50 x 69.6 x 1.2mm
