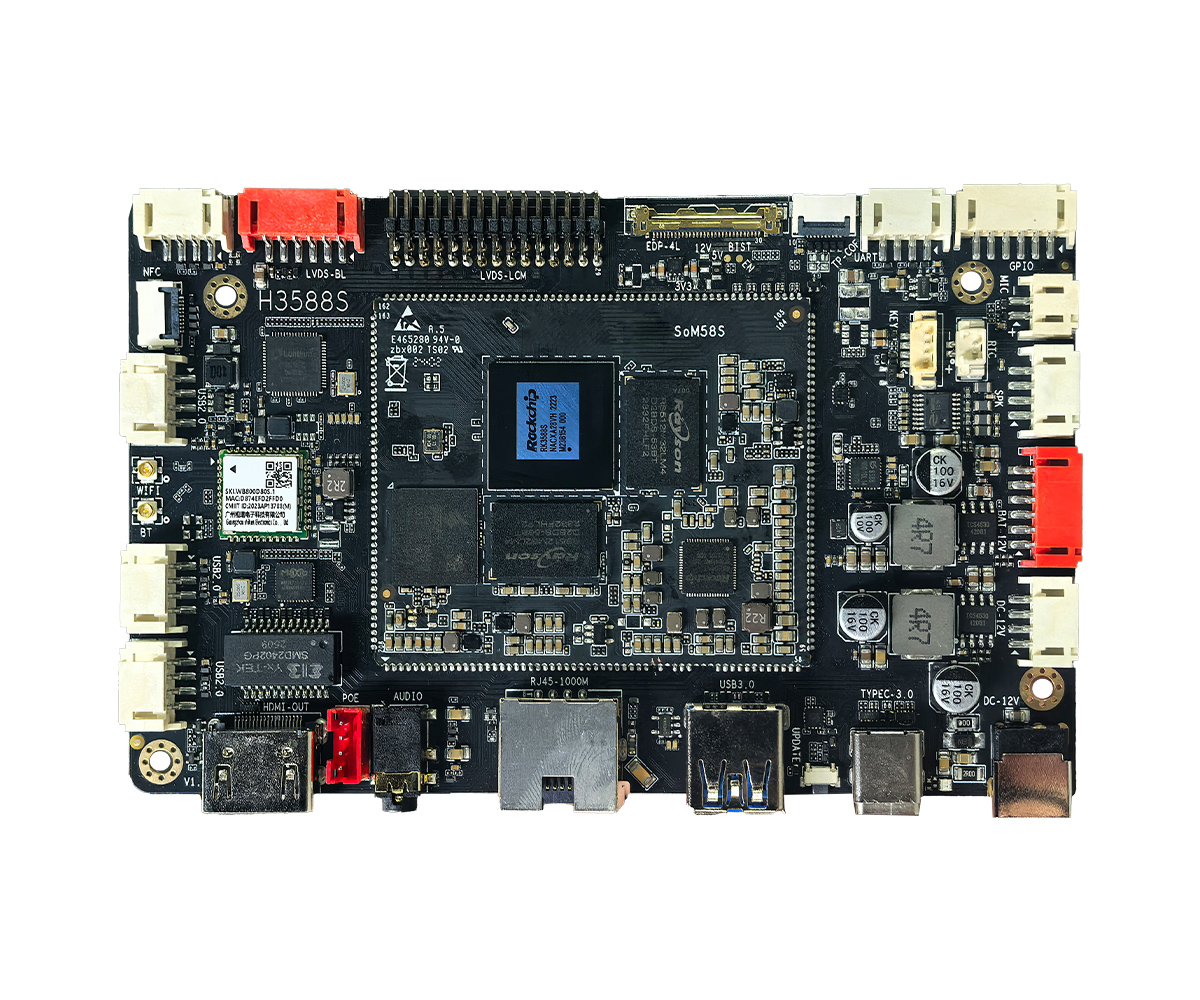

Pretech SOM and Carrier Board RK3588S H3588S: High-Performance Solution

Model: H3588S

The Pretech SOM and Carrier Board RK3588S is a high-performance solution featuring the RK3588S SoC with an octa-core 64-bit architecture, including 4 x Cortex-A76 at 2.4GHz and 4 x Cortex-A55 at 1.8GHz. It includes a Mali-G610 MP4 GPU and a 6.0T NPU, supporting Android and Linux (Debian) operating systems. The board has 4G/8G RAM and 64G/128G ROM. It supports 8K@60fps H.265/VP9/AVS2, 8K@30fps H.264 AVC/MVC, 4K@60fps AV1, and 1080P@60fps MPEG-2/-1/VC-1/VP8 video decoding. Display interfaces include DUAL-LVDS (1920x1080), EDP (1920x1080/3840x2160), MIPI (2560x1600), HDMI (up to 8K@60Hz), and DP1.4 Output via Type-C. Connectivity options include 1000M/100M/10M Ethernet with POE, Dual-Band WIFI6, BT5.4, NFC, and USB interfaces (Type-C/OTG3.0, 1USB3.0, 3USB2.0). It also features 2-channel UART-TTL, 2 I2C interfaces, RGB-LED or 4-channel PWM/GPIO, button interfaces (PWR/Volume +/-/RST), Bluetooth Speaker, MIC Input, Headphone Jack, and Speaker Jack (up to 2 x 4Ω 10W Speakers). Power supply options include DC-12V@2-5A, POE, and BAT-12V. It includes an RTC with scheduled power on/off settings and supports secondary development with API interface documentation provided.

Inquiry Ask for A Demo

Pretech SOM and Carrier Board RK3588S H3588S ODM Industry Applications

The Pretech SOM and Carrier Board RK3588S is widely used in various ODM industry applications. In the smart home sector, it serves as the core control board for devices like smart cameras, smart displays, and control panels, providing powerful processing and rich connectivity options. In industrial automation, it acts as the control core for robots and production lines, enabling real-time data processing and intelligent decision-making. In the education field, it is used to develop educational robots and interactive teaching devices, supporting deep learning frameworks and connectivity options that aid educational innovation. In medical care, it is used in medical imaging equipment and telemedicine systems, with its high-performance video capabilities supporting medical diagnosis. It is also applicable in transportation, finance, and security fields, providing support for a wide range of intelligent applications. The Pretech SOM and Carrier Board RK3588S is designed to meet the needs of diverse industries, offering a reliable and efficient solution for modern smart applications.

PRODUCT DETAIL

RK3588S-H3588S

SOC

RK3588S, 4 x Cortex-A76 + 4 x Cortex-A55 2.4GHz, 8nm
GPU ARM Mali-G610 MP4 Quad-Core
OpenGL ES3.2/OpenCL 2.2/Vulkan1.1,450 GFLOPS
6.0TOPS NPU, Support INT4/INT8/INT16
Connectivity

Wi-Fi 6 802.11a/b/g/n/ac/ax
Bluetooth 5.3
Supports external NFC module
Interface

Key Interface (PWR/VOL+/VOL-/RST), PH1.25-4Pin
2 x UART, PH2.0-4Pin
TP-C0F Interface, FPC-0.5mm-10pin
NFC Module Interface, FPC-0.5mm-10pin
RTC Battery, PH1.25-2Pin, supports scheduled power cycling
LED or GPI0 Expansion Interface, PH2.0-6Pin
LVDS Display Backlight Interface, PH2.0-6Pin
BAT-IN-12V Interface, PH2.0-6Pin
DC-IN-12V Interface, PH2.0-4Pin

What We Do

We offer ODM solutions for certain customers who have specific needs which can’t be satisfied by existing devices on the market.

Tooling

ID Design

MD Design
Software

Drive Debugging

System Customization

Debug Pre-installed applications
Hardware

Schematic Diagrams Design

PCB Layout

Specific components design

Bill of Materials output

Gerber Files

RF Design and Verification

Assembly Drawings

Test Specifications output
Accessories

Smart Cover

Docking Charging Station

Charging Bracket/Dock

Magnetic BackClip

Wall Mount

Stylus Pen

And more

How We Do

We offer ODM solutions for certain customers who have specific needs which can’t be satisfied by existing devices on the market.

01 Planning

Market Survey
Requirements Collection
Competitiveness Analysis
Technology Study
Risk Analysis
Component Life Cycle Survey
Cost Evaluation
02 Desgin

ID Design
MD Design
Hardware
OS
03 Validation

Trial Samples
Software Customization
Performance Tests
Reliability Tests
EVT
DVT
Certifications
04 Integration

Assembly Study and SOP
Pilot Run Production
Testing Process Study and SOP
Field Test/Feedbacks
Improvements
05 Production

Pilot Run Production
Mass Production
06 After Service

Global Warranty
Extended Warranty Service
Online Service

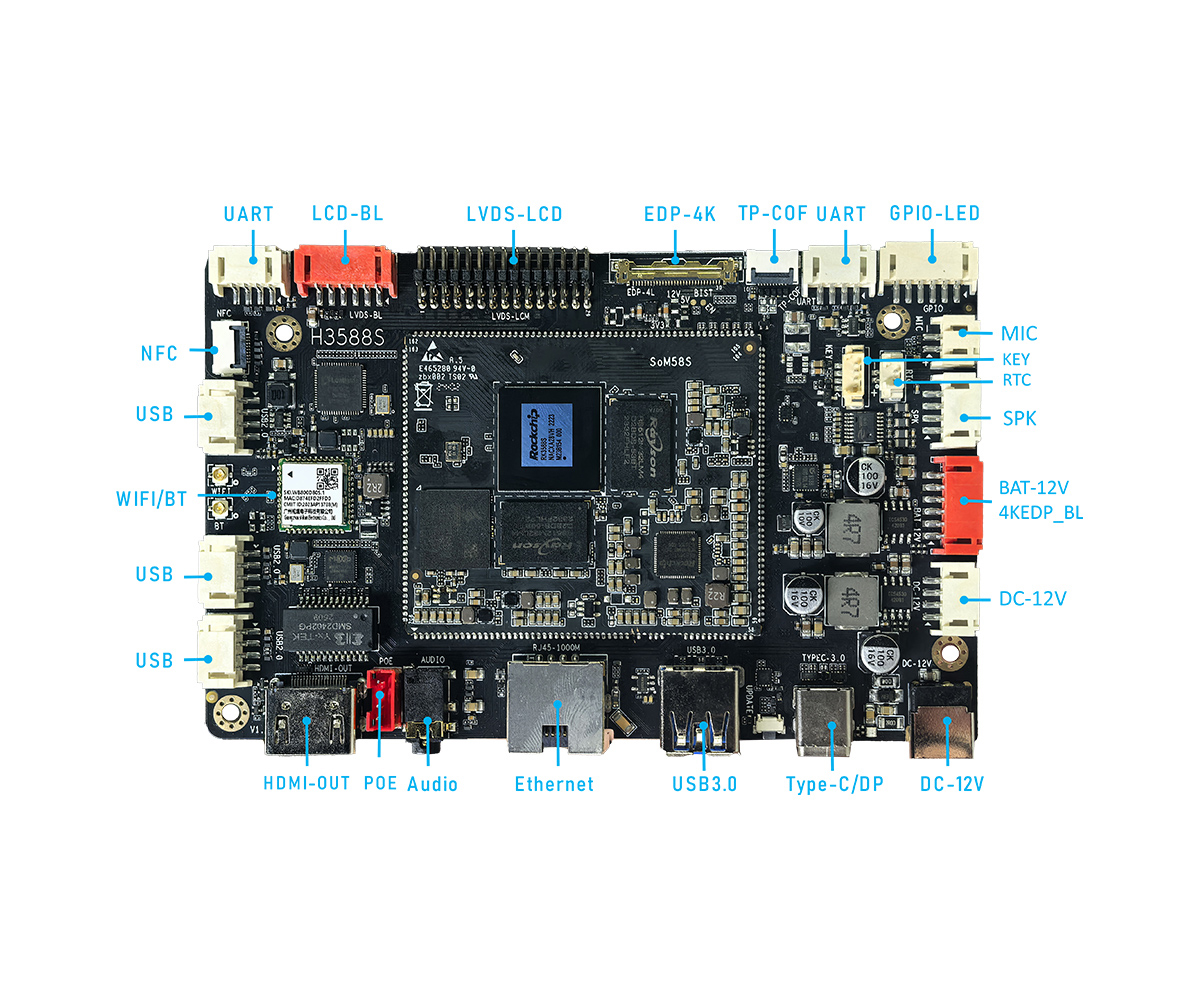

Specification

OS

Android/Linux
SOC

RK3588S, 4 x Cortex-A76 + 4 x Cortex-A55 2.4GHz, 8nm
GPU ARM Mali-G610 MP4 Quad-Core
OpenGL ES3.2/OpenCL 2.2/Vulkan1.1,450 GFLOPS
6.0TOPS NPU, Support INT4/INT8/INT16
RAM

LPDDR4/LPDDR4x 4GB/8GB/16GB 64bit
ROM

EMMC5.1 64G/128G
Media

Decode:
8K 60fps H.265NP9/AVS2
8K 30fps H.264AVC/MVC
4K 60fps AV1
1080P 60fps MPEG-2/-1/C-1P8

Encoded:
8K 30fps encoding,
Support H.265/H.264 Up to 32-channel
1080P 30fps decoding and 16-channel
1080P 30fps encoding
Display

MIPI Display Interface, 1920x1200@60fps
eDP Display Interface, 2-Lane, 1920x1080@60fps
eDP display interface, 4-Lane, eDP1.3, 4K@60fps, or HDMI-0UT (8K@60fps (4K@120fps))
DisplayPort (4K@120fps) AltMode on Type-C
Dual-LVDS, 1080@60fps
Ethernet

1000M Ethernet (The carrier board）
Connectivity

Wi-Fi 6 802.11a/b/g/n/ac/ax
Bluetooth 5.3
Supports external NFC module
USB

1 x Type-C,USB3.2 gen1，with OTG & DP-out
1 x USB3.0 TYPE-A
3 x USB Host 2.0( 4Pin-PH1.25)
Audio

Speaker x 2(PH2.0-4Pin)
Microphone x 1(PH2.0-2Pin)
Interface

Key Interface (PWR/VOL+/VOL-/RST), PH1.25-4Pin
2 x UART, PH2.0-4Pin
TP-C0F Interface, FPC-0.5mm-10pin
NFC Module Interface, FPC-0.5mm-10pin
RTC Battery, PH1.25-2Pin, supports scheduled power cycling
LED or GPI0 Expansion Interface, PH2.0-6Pin
LVDS Display Backlight Interface, PH2.0-6Pin
BAT-IN-12V Interface, PH2.0-6Pin
DC-IN-12V Interface, PH2.0-4Pin
Input Power

Input: AC100-240V.50-60HZ,
Output: DC12V/5.5mm DC head 2A-5A (surge voltage less than 18V, ripple voltage less than 100mV)
PCB

Size: 81.5 × 130 × 1.6 mm
Hole: ∮3.5mmx4
Environment

Operating temperature -20°C ~ 70°C
