F1560PM 15.6" MT8183 Android Tablet with Rotatable Camera and Stand
MODEL: F1560PM
Pretech F1560PM is a versatile 15.6-inch Android tablet powered by the MT8183 Octa-core processor, featuring 8GB RAM and 128GB storage. It runs on Android OS and offers a Full HD IPS G+FF screen. Equipped with a rotatable 5MP + 13MP camera and a built-in stand, it’s ideal for interactive education and video conferencing. Supports Wi-Fi 802.11 ac/a/b/g/n and BT 5.0, with optional sensors for customization. Perfect for ODM/OEM solutions in educational and tele-health care settings.
Applications:
Overview
Overview
Specifications Inquiry-
15.6 inch 1080*1920IPS G+FF -
MT8183 4x A73 2.0GHz + 4x A53 2.0GHz -
Android 12 -
8GB umcp
128GB umcp -
Front 5MP+13MP -
Wi-Fi 802.11 ac/a/b/g/n; BT 5.0 -
FM, G-sensor, USB Type C, compass/light/proximity/Gyro sensor optional -
CR2032/3V/230mAh
Specification
Overview
Specifications
Inquiry-
CPUMT8183 4x A73 2.0GHz + 4x A53 2.0GHz
-
OSAndroid 12
-
Screen15.6 inch 1080*1920IPS G+FF
-
RAM8GB umcp
-
Storage128GB umcp
-
Wi-Fi/BluetoothWi-Fi 802.11 ac/a/b/g/n; BT 5.0
-
CameraFront 5MP+13MP
-
SupportFM, G-sensor, USB Type C, compass/light/proximity/Gyro sensor optional
-
BatteryCR2032/3V/230mAh
-
Dimensions372*269.5*10.85mm
-
Weight2078g
-
Speaker6Ω/10W *1
Inquiry
Overview
Specifications
Inquiry
FAQs
- Core Features and Applications
- Hardware Specifications and Performance
- Customization and Integration
Core Features and Applications
-
What are the primary intended application scenarios for the F1560PM tablet?Despite being categorized as a "Kids Tablet PC," its combination of a large 15.6-inch screen and high-performance MTK processor makes it ideal for high-end interactive education, collaborative learning, family video conferencing, or as a multimedia display terminal. It is designed to deliver an immersive, large-screen learning or interactive experience.
-

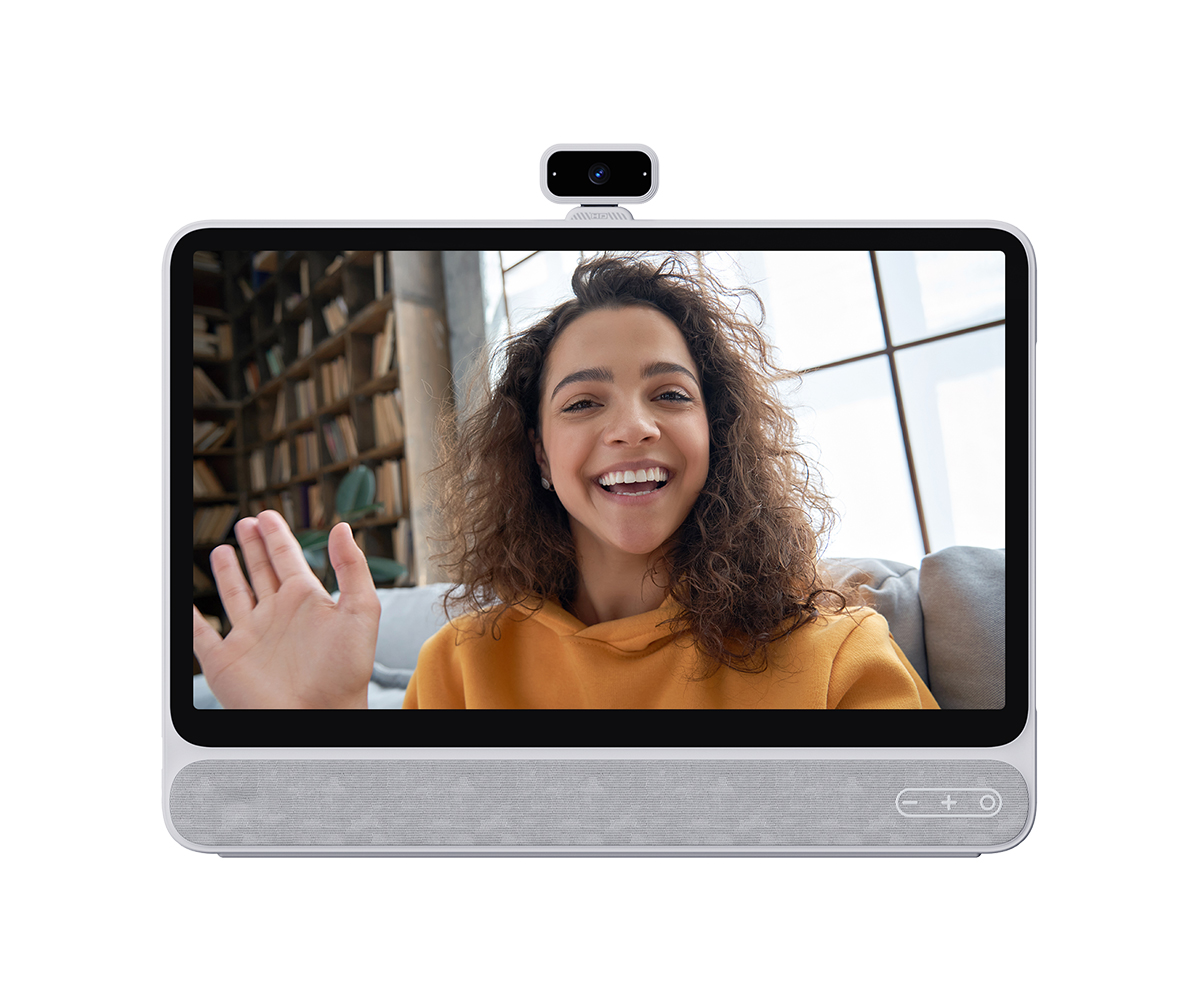

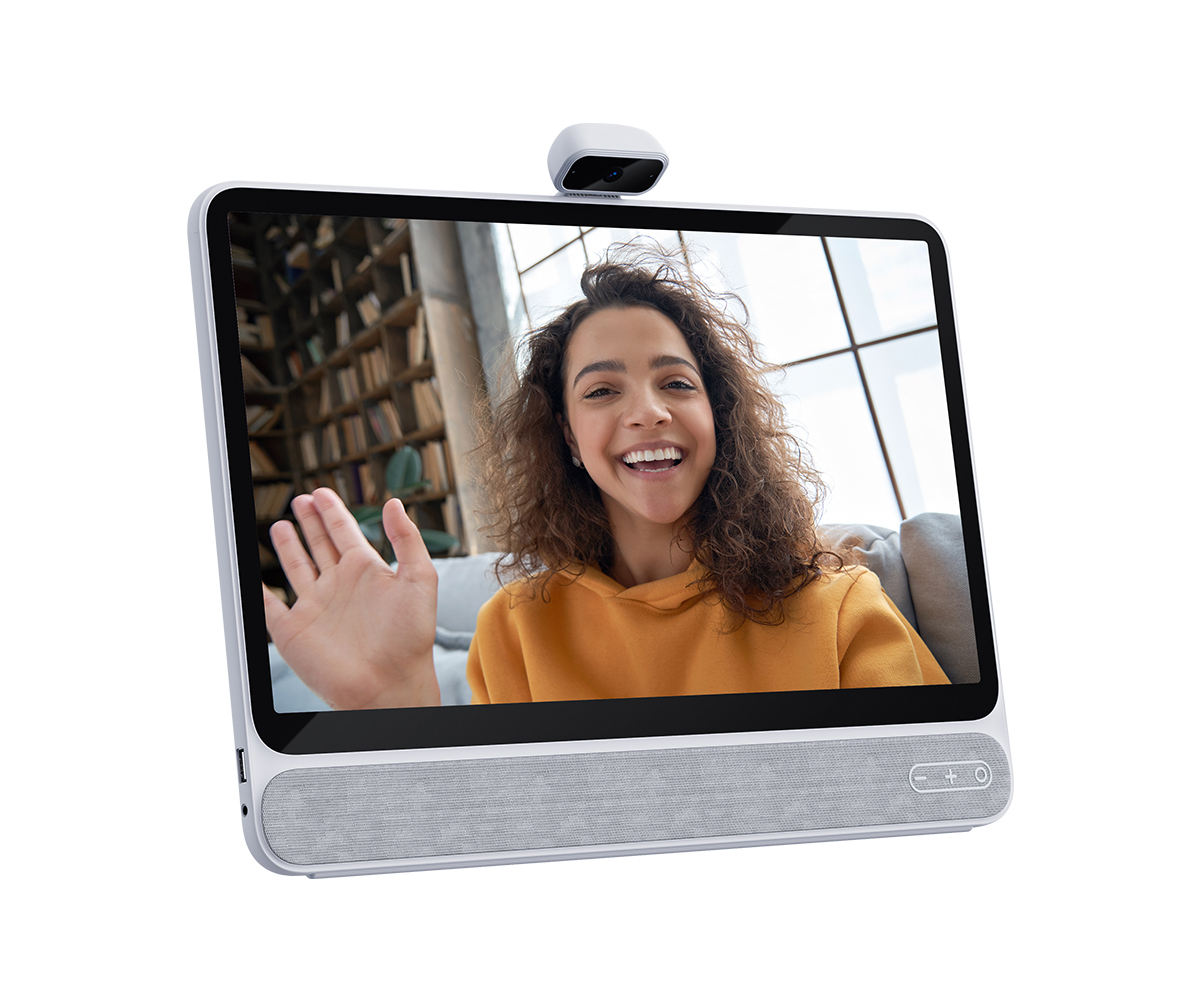

What is the most unique hardware feature of this tablet?Its design highlights are the rotatable, high-spec camera and the integrated stand.
1）Rotatable Camera: Equipped with a 5MP + 13MP camera setup, it can flexibly rotate its angle to facilitate video calls, selfies, or scanning documents/environments, making it highly suitable for remote education and interactive teaching scenarios (Front 5MP+13MP).

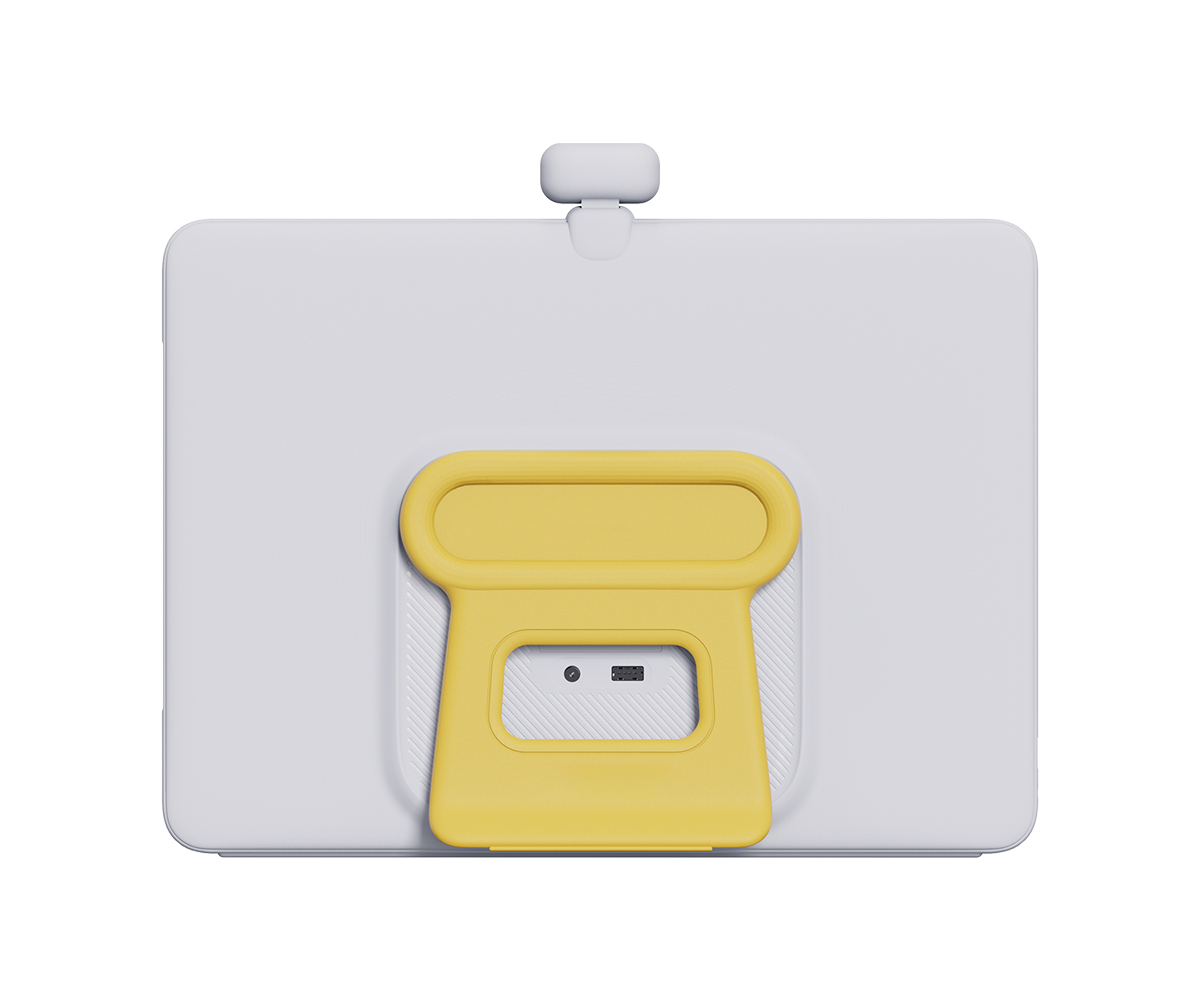

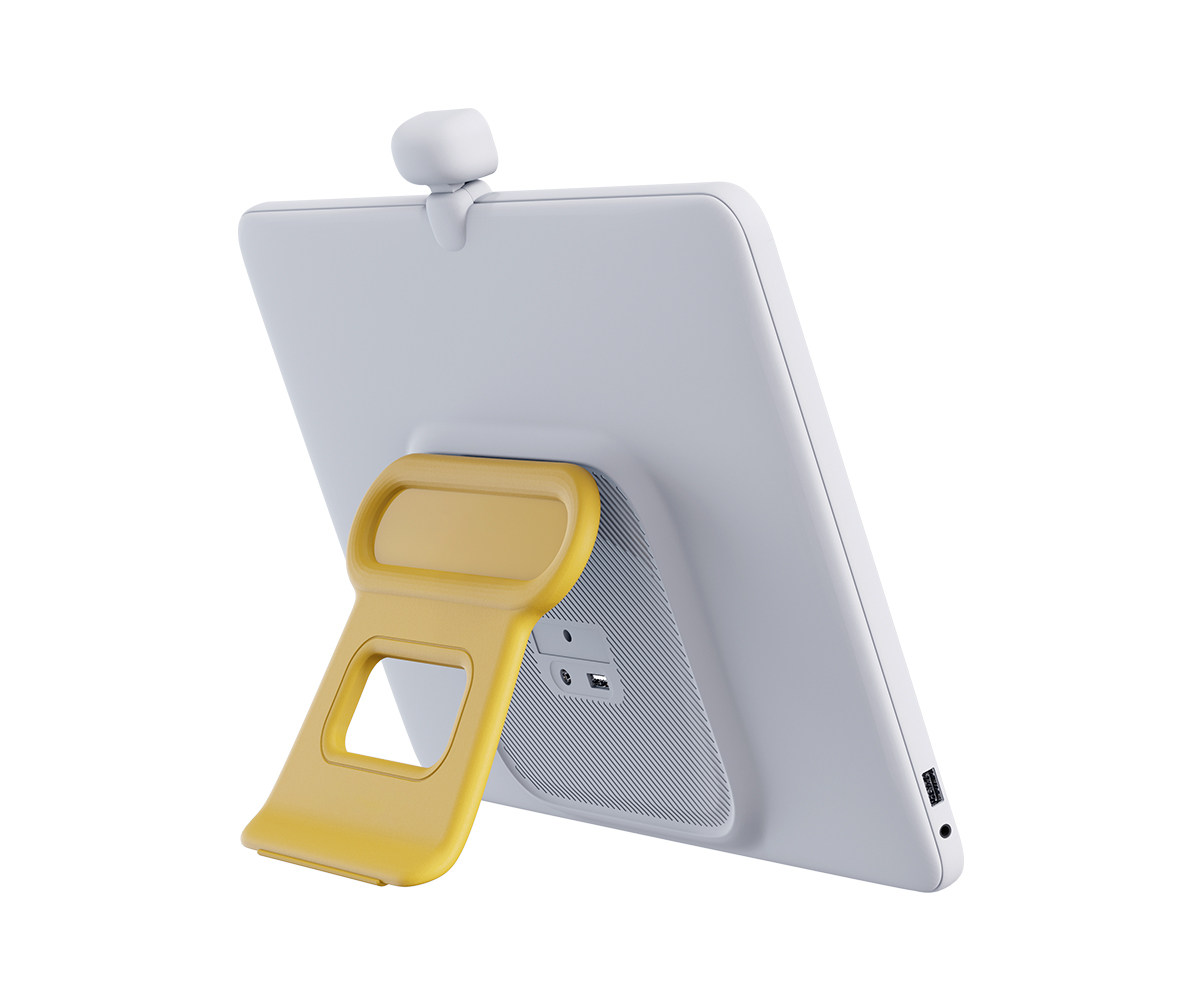

2）Integrated Stand: The robust stand design ensures stable, multi-angle placement on a desktop, enhancing usability during long sessions (Rotatable Camera and Stand).
Hardware Specifications and Performance
-
What processor does the F1560PM use, and what is its performance level?It is powered by the MediaTek MT8183 Octa-core processor, configured with 4x A73 cores + 4x A53 cores, all clocking up to 2.0GHz. This high-performance configuration ensures smooth operation for complex educational applications, multimedia content, and high-quality video playback (MT8183 4x A73 2.0GHz + 4x A53 2.0GHz).
-
Are the RAM and storage sufficient to support demanding educational applications?Yes. This model is a high-end configuration, featuring 8GB of RAM and 128GB of storage (umcp). This is significantly higher than typical children's tablets, ensuring smooth multitasking and ample space for storing educational videos and large applications (8GB umcp, 128GB umcp).
-
What are the screen resolution and touch technology details?The screen is 15.6 inches with a 1080x1920 (Full HD) resolution, utilizing an IPS G+FF touch panel. IPS technology provides wide viewing angles and vibrant colors, while the G+FF touch ensures high sensitivity and durability for frequent interactive use (15.6 inch 1080*1920 IPS G+FF).
Customization and Integration
-
Does the F1560PM support external connections or expansion?Yes. It includes a USB Type C port and supports Wi-Fi 802.11 ac/a/b/g/n and BT 5.0 for fast wireless connectivity. Furthermore, as an ODM solution, various sensors like a compass, gyroscope, ambient light, and proximity sensors are optional and can be customized to support more specialized applications (Support optional sensors).
-
As a Pretech ODM/OEM product, what aspects can customers customize?Nearly every aspect is customizable, including:
1）Software:Pre-loading of customized educational content, proprietary parental control features, and specific system interfaces (OS: Android 12).
2）Aesthetics:Outer casing color, material, or client branding/logo.
3）Hardware:Adjustment of memory/storage configuration, sensor selection, and I/O port layout.
