WP30 PoE Tablet PC: 5.5-Inch MT8768 Wall-Mounted with RS485 & Android OS
Introduction
Discover the innovative WP30, a 5.5-inch PoE tablet designed to revolutionize the way you manage and interact with your environment. This compact yet powerful device combines advanced technology with user-friendly features, making it an ideal solution for a variety of applications, from hospitality and commercial management to home entertainment.
Key Features
● PoE Power Supply：The WP30 supports Power over Ethernet (PoE) with a voltage range of 48V to 53V, delivered through an RJ45 interface. This integrated solution combines both network connectivity and power transmission, simplifying installation and reducing the need for additional power outlets.
● Wall-Mount Design：Equipped with a unique wall-mount design, the WP30 is easy to install and saves space. This feature makes it perfect for environments where minimal desk space is available, such as hotel rooms or commercial offices.
● Proximity Wake-Up Sensor：As guests approach the WP30, a 40cm proximity wake-up sensor automatically activates the screen. This feature enhances user experience by providing instant access to room information and hotel services.
● Energy Monitoring：Monitor the energy usage of commercial spaces in real-time through the wall-mounted tablet. This feature not only helps in managing energy consumption but also promotes environmental sustainability.
● High-Performance Processor and Display：Powered by the MT8768 processor and running on Android 14, the WP30 offers a smooth user experience. The 5.5-inch Full HD display with a resolution of 1920 x 1080 ensures crisp and clear visuals. The device also features a Panda Cover G+F+F fully laminated screen for enhanced durability.
● Versatile Connectivity：The WP30 supports RS485 communication, making it suitable for industrial and commercial applications. With robust network capabilities, it ensures seamless connectivity and data transmission.
Overview
Specifications Inquiry-
5.5" FHD 1920 x 1080 Panda Cover G+F+F -
MT8768 4 x Arm Cortex-A53, 2.0 GHz +4 x Arm Cortex-A53, 1.5 GHz -
Android 15 Google GMS -
RAM:4GB
ROM:64GB -
NA -
WIFI ac a/b/g/n, BT5.0, -
Support 30CM distance sensing wake-up；
With gravity sensing, -
NA
Specifications
Inquiry-
CPUMT8768 4 x Arm Cortex-A53, 2.0 GHz +4 x Arm Cortex-A53, 1.5 GHz
-
OSAndroid 15 Google GMSA
-
Screen5.5" FHD 1920 x 1080 Panda Cover G+F+F
-
RAM4GB
-
Storage64GB
-
Wi-Fi/BluetoothWIFI ac a/b/g/n, BT5.0,
-
LTE-FDDNA
-
LTE-TDDNA
-
SupportSupport 30CM distance sensing wake-up；
With gravity sensing), -

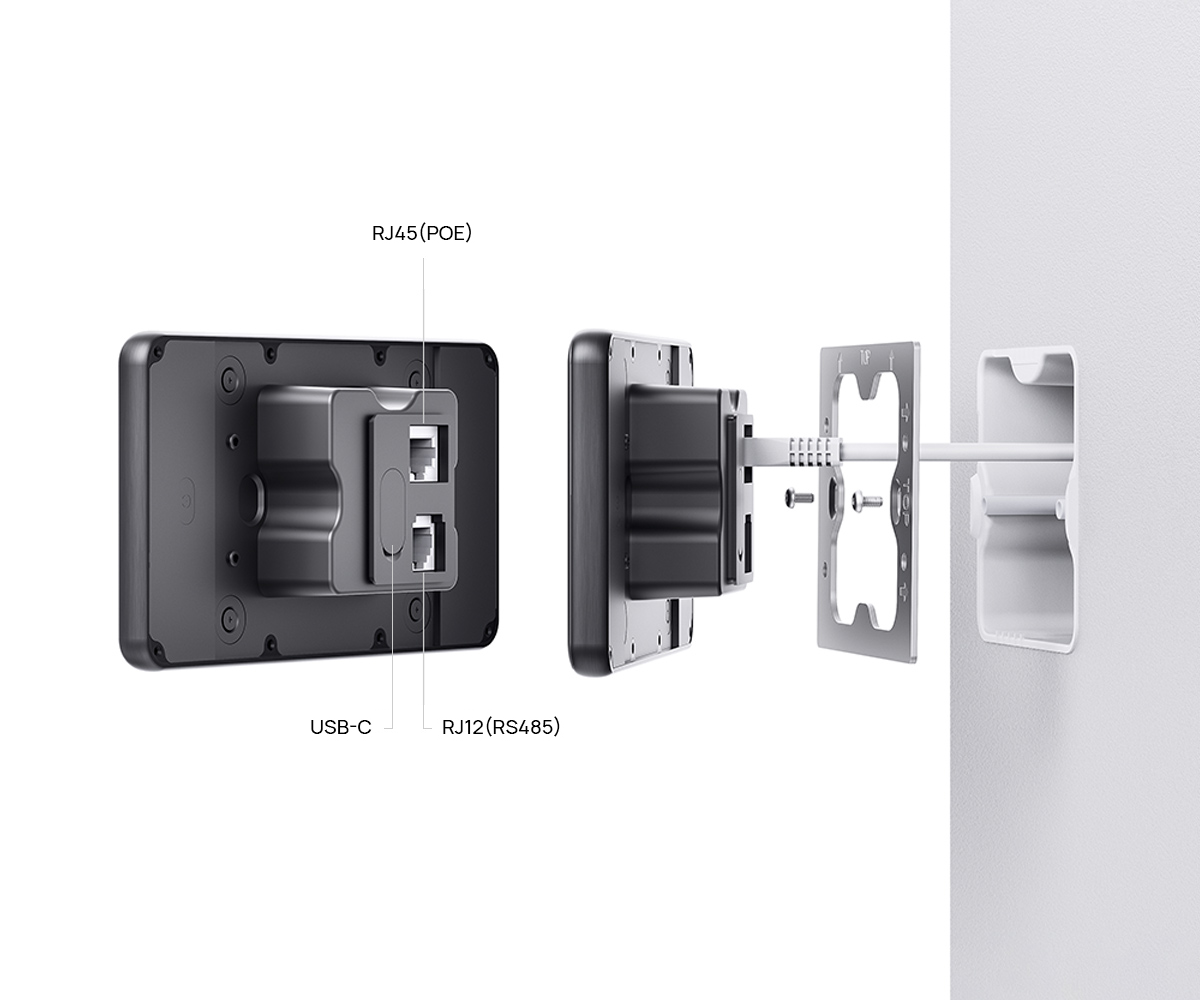

I/ORJ45: PoE Power Supply 48V~53V + Ethernet;
RJ12: RS485 + Power Supply 12V~24V; (With a standard RJ45 network cable, you can also access the Ethernet network)
USB TYPE C: (If there is no PoE, and only RJ45 carries the network, you can use a TYPE C + RJ45 interface to use simultaneously); -
BatteryNA
-
Dimensions143.66 x 80.66 x 9.95mm
-
Weight205g
-
Speakerdual speakers
Inquiry
FAQs
- Compact Design & Targeted Applications
- High-Performance Configuration & OS
- Versatile I/O & Smart Monitoring
-
What is the primary benefit of the WP30's small, 5.5-inch form factor in its intended application environments?The 5.5-inch form factor, with its ultra-slim dimensions (143.66 x 80.66 x 9.95mm), is perfectly suited for installation in space-constrained areas like hotel rooms, commercial offices, or standard wall boxes (e.g., light switch panels). Its compact size allows it to be discreetly embedded into walls, minimizing visual intrusion while maximizing function as a dedicated room control or service terminal (Wall-Mount Design).
-
How does the Proximity Wake-Up Sensor improve the user experience in hospitality or interactive environments?The 40cm proximity wake-up sensor (or 30cm according to specifications) automatically activates the screen as a user approaches. This eliminates the need for manual interaction to initiate the device, providing instant access to hotel services, room controls, or information displays, enhancing user convenience and energy efficiency by keeping the screen off when idle (Proximity Wake-Up Sensor).
-
Which processor powers the WP30, and what does this mean for application performance?The WP30 is powered by the MT8768 Octa-core processor (4x Cortex-A53 @ 2.0 GHz + 4x Cortex-A53 @ 1.5 GHz), paired with 4GB RAM and 64GB ROM. This high-performance configuration, coupled with the latest Android 15 OS (Google GMS certified), ensures a smooth, fast, and reliable user experience, even when running sophisticated control or entertainment applications (High-Performance Processor).
-
What is the significance of the "Panda Cover G+F+F" screen technology for a device in a public or commercial setting?The Panda Cover refers to a highly durable, strengthened glass used for protection, and G+F+F (Glass + Film + Film) full lamination ensures a bright, clear, and durable display. This combination is essential for devices in commercial spaces, offering enhanced durability and resilience against everyday wear and tear, reducing the risk of damage in high-use applications (High-Performance Display).
-
Beyond standard connectivity, what specialized data communication protocols are supported by the WP30?The WP30 is equipped with RS485 communication support via the RJ12 interface, along with the standard PoE/Ethernet via RJ45. This dual industrial connectivity (Ethernet/RS485) makes it highly versatile for connecting to a wide range of industrial sensors, legacy building automation systems, and specialized commercial devices (Versatile Connectivity).
-
Does the tablet offer any advanced features for managing commercial spaces?Yes, the WP30 highlights an Energy Monitoring feature, allowing commercial users to monitor the energy usage of the space in real-time through the wall-mounted interface. This functionality is crucial for managing energy consumption, optimizing building performance, and promoting environmental sustainability in enterprise environments (Energy Monitoring).
