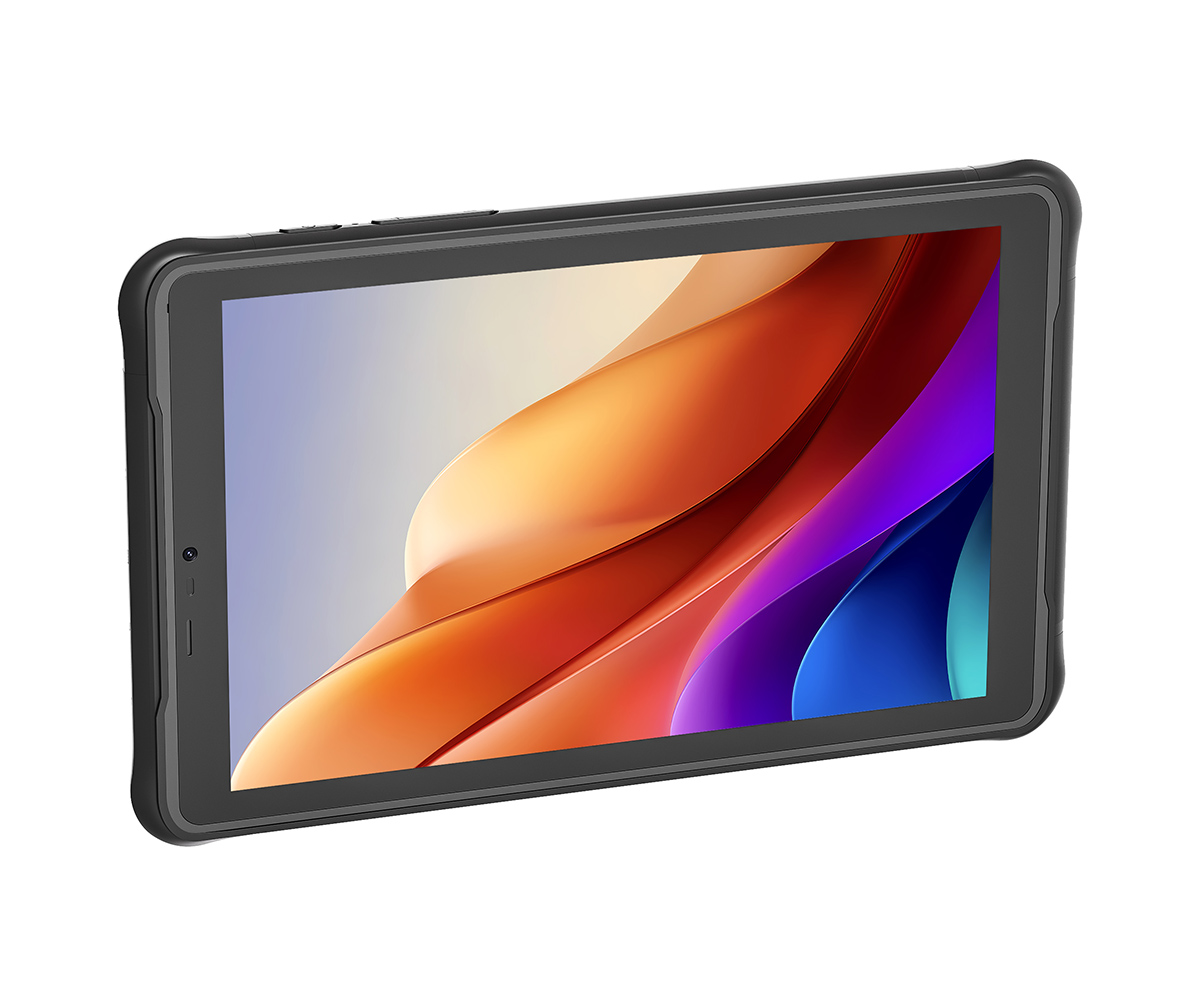

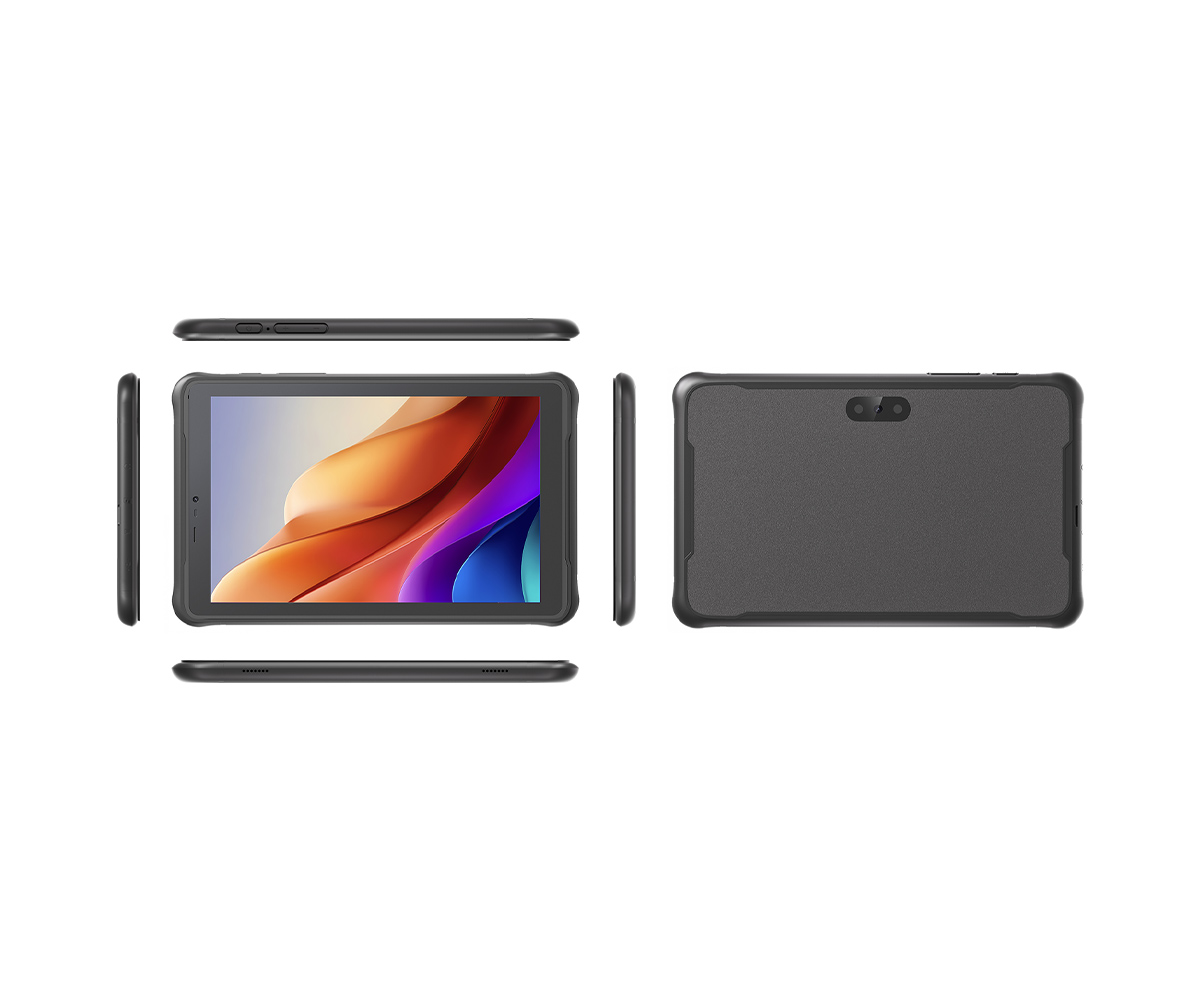

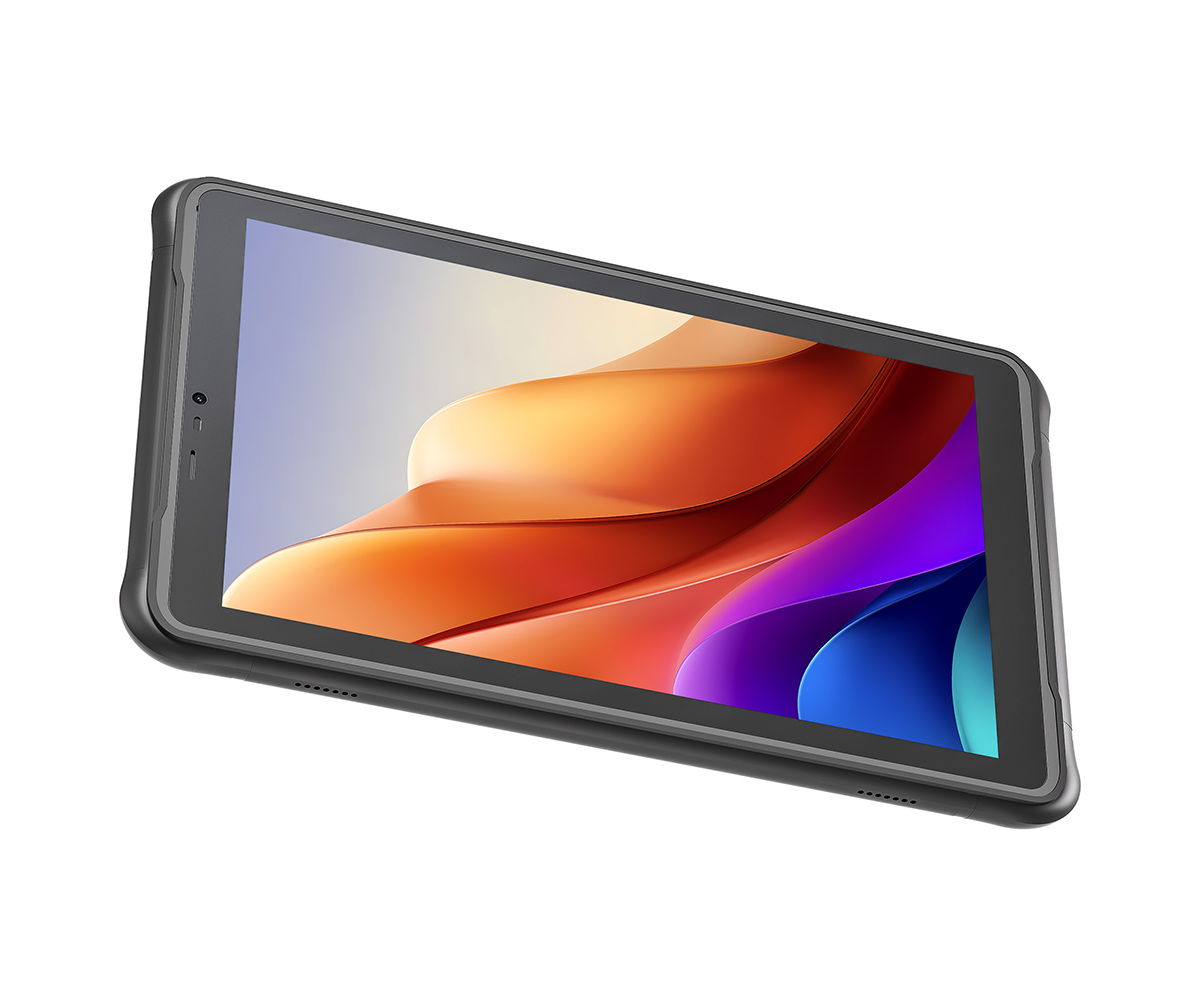

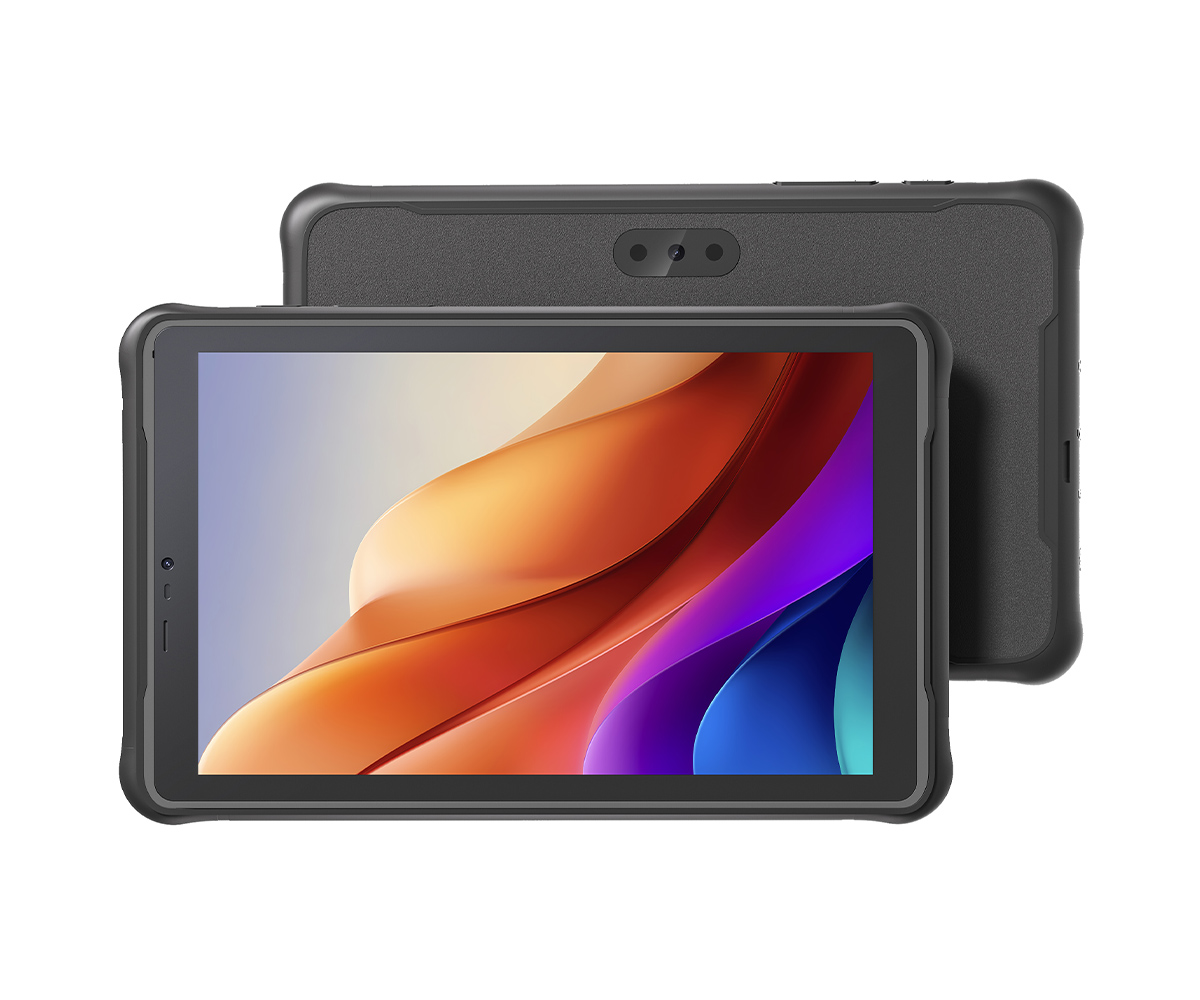

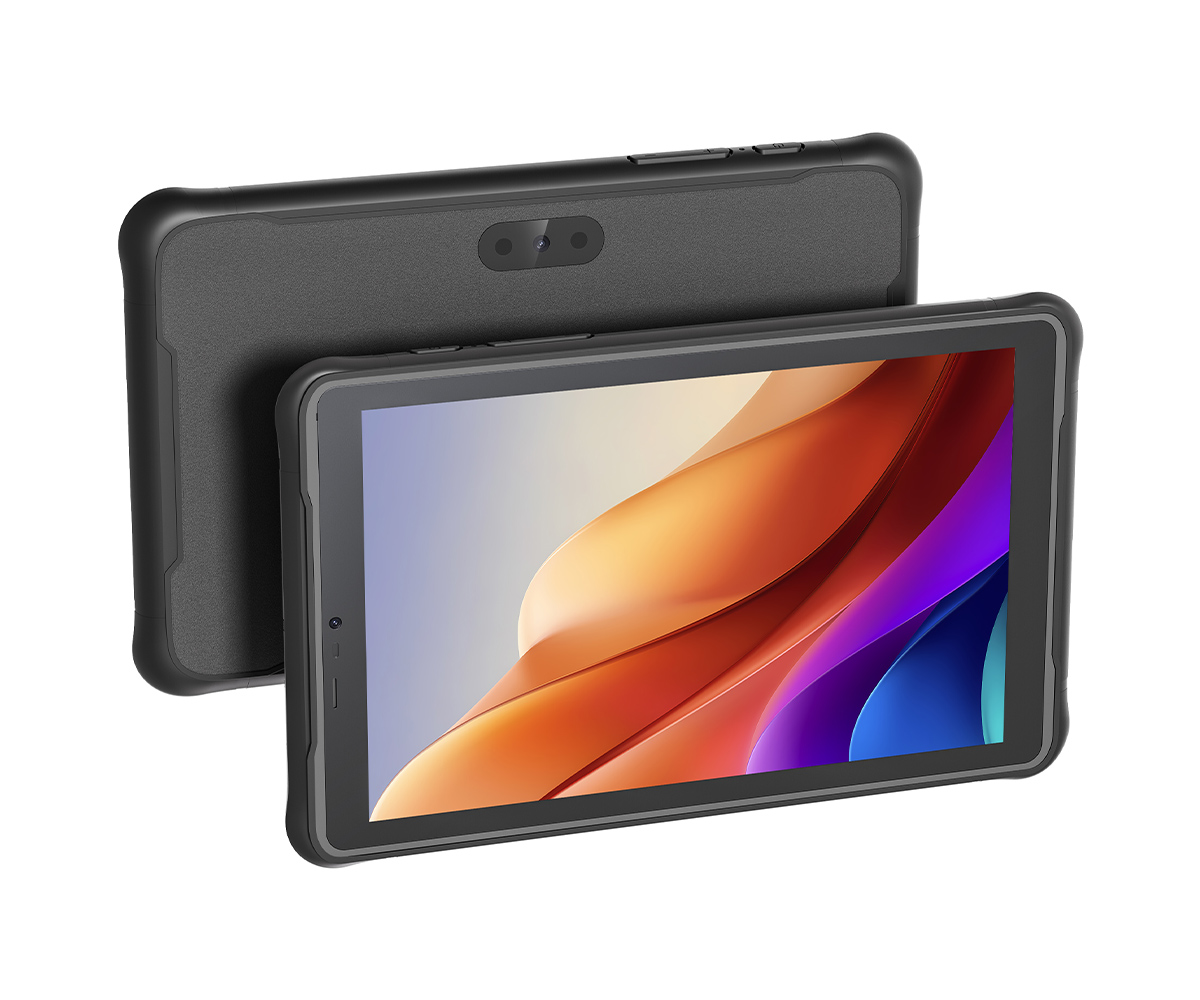

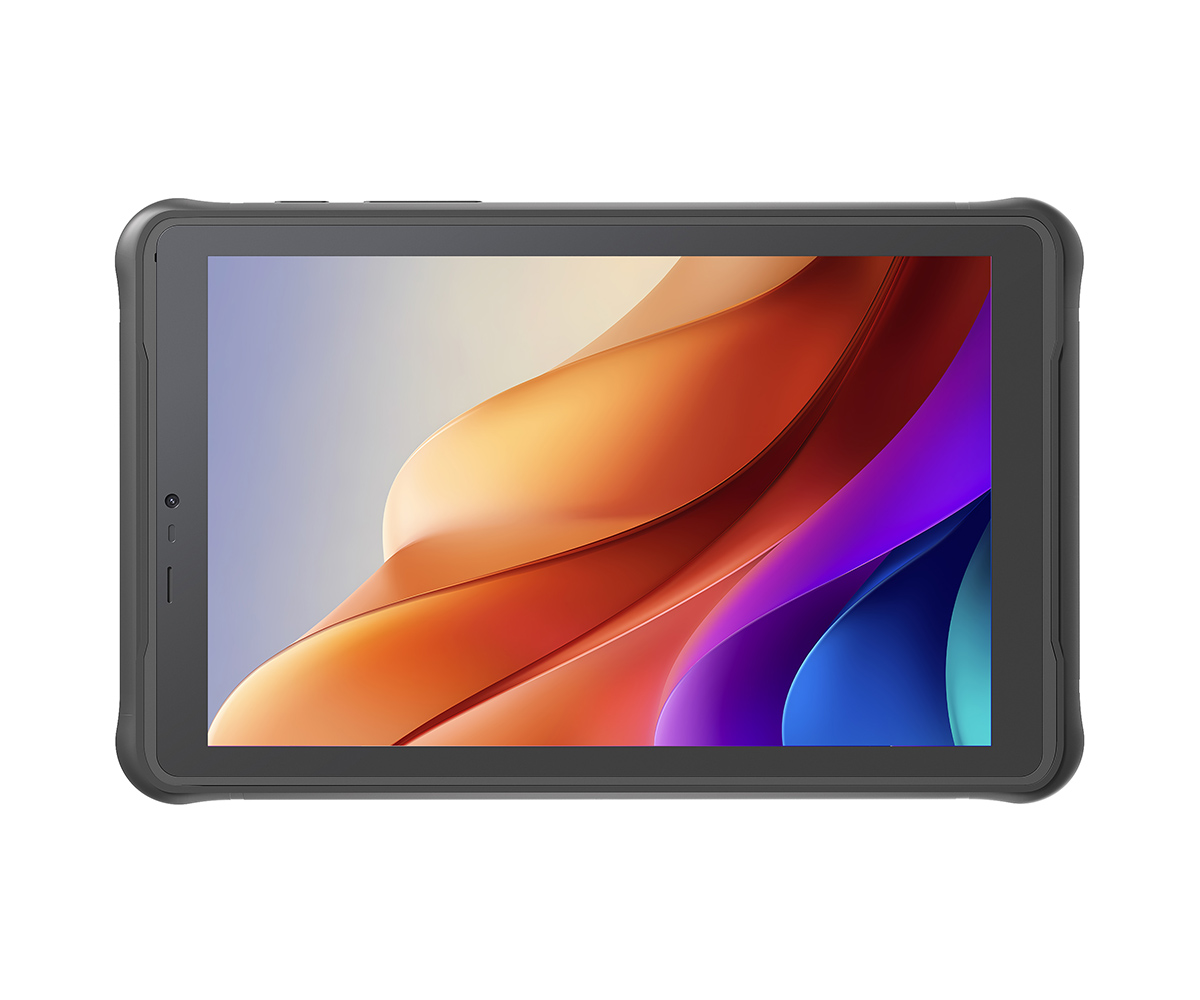

Pretech L863L: 8-Inch NFC Tablet Android IP54-rated ODM Solutions
IP54 Dual Injection Molding：IP54-rated with dual injection molding, ensuring dust and water resistance, making it perfect for outdoor environments and children's use.
Under-Screen NFC Support：Supports under-screen NFC with the optional Longke 8768 CPU, enabling seamless interaction and enhanced security for various applications, including smart payment systems and industrial uses.
High-Performance Processors：CPU options include: Spreadtrum T616, T606, MT8768X, MT8786(G80), MT8781(G99), Allwinner A523.
Operating System：Android 15 for an advanced, user-friendly experience, ensuring ongoing support and updates.
Display：8-inch 800x1280 IPS screen for bright, clear visuals and optimal viewing angles.
Touch Panel (TP)：G+G touch panel for smooth, responsive interaction, ideal for customized applications.
Connectivity：Supports Wi-Fi 802.11 ac/b/g/n, Bluetooth 5.0, GPS, FM, and LTE-FDD connectivity.
Battery：5000mAh/3.8V maximum battery capacity for extended usage.
Sensors：G-sensor, light sensor, proximity sensor, gyroscope, and PD fast charging support.
Dimensions & Weight：Compact and lightweight design for easy portability and adaptability in custom projects.
Accessories：Includes 5V2A power adapter (PD 18W optional), USB cable.
The Pretech 8-Inch NFC Tablet Android offers unparalleled versatility and durability for ODM projects. With its IP54 rating, it is built to withstand harsh conditions, making it perfect for outdoor and industrial environments. The under-screen NFC functionality adds further value for applications requiring secure transactions, asset management, or smart device interactions. Pretech specializes in ODM customization, ensuring the tablet can be tailored to meet the unique needs of your industry.
Overview
Specifications Inquiry-
8" 800 x 1280 IPS G+G -
Spreadtrum T616 2x A75 2.0GHz+6x A55 1.8GHz Spreadtrum T606 2x A75 1.6GHz+6x A55 1.6GHz
MT8768X 4x A53 2.2GHz+4x A53 1.6GHz
MT8786 2x A75 2.0GHz+6x A55 1.8GHz(G80)
MT8781 2x A76 2.2GHz+6x A55 2.0GHz(G99)
Allwinner A523 4x A55 1.8GHz+4x A55 1.42GHz -
Android 15 -
RAM 4GB/6GB/8GB Storage 64GB/128GB/256GB -
Front 5MP/8MP FF;Rear 5/8/13MP AF -
WiFi 802.11 ac/b/g/n;BT5.0; GPS+FM -
FM;G-sensor;light sensor/proximity sensor;Gyroscope;PD fast charging -
5000mAh/3.8V Maximum
Specifications
Inquiry-
CPUSpreadtrum T616 2x A75 2.0GHz+6x A55 1.8GHz Spreadtrum T606 2x A75 1.6GHz+6x A55 1.6GHz
MT8768X 4x A53 2.2GHz+4x A53 1.6GHz
MT8786 2x A75 2.0GHz+6x A55 1.8GHz(G80)
MT8781 2x A76 2.2GHz+6x A55 2.0GHz(G99)
Allwinner A523 4x A55 1.8GHz+4x A55 1.42GHz -
OSAndroid 15
-
Screen8" 800 x 1280 IPS G+G
-
RAM4GB/6GB/8GB
-
Storage64GB/128GB/256GB
-
Wi-Fi/BluetoothWiFi 802.11 ac/b/g/n;BT5.0; GPS+FM
-
LTE-FDDB1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28AB/66 Optional
-
LTE-TDDB34/38/39/40/41 Optional
-
3G900/2100MHz,850/1900MHz Optional
-
2G850/900/1800/1900MHz
-
CameraFront 5MP/8MP FF;Rear 5/8/13MP AF
-
SupportFM;G-sensor;light sensor/proximity sensor;Gyroscope;PD fast charging
-
Battery5000mAh/3.8V Maximum
-
Dimensions214 x 134 x 12mm
-
Speaker2 x Box Speakers
-
LTEFDD B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28AB/66 Optional
TDD B34/38/39/40/41 Optional
Inquiry
FAQs
- Durability & Physical Design
- Hidden NFC Technology & Performance
- Mobility & Field Use
-
What does the IP54 rating signify for the L863L tablet, and which environments is it best suited for?The IP54 rating indicates the tablet is protected against limited dust ingress (Ingress Protection Level 5) and against water spray from any direction (Level 4). This semi-rugged durability, achieved via dual injection molding, makes the L863L perfect for challenging environments such as warehouses, outdoor field work, or educational settings where spills and dust are common (IP54 Dual Injection Molding).
-
How does the dual injection molding process contribute to the L863L's overall ruggedness?Dual injection molding involves injecting two materials into a mold sequentially, creating a highly durable, seamless outer casing. This process enhances shock absorption, improves grip, and forms a tighter seal around the tablet's body, which is essential for meeting the demands of the IP54 rating against dust and water (Dual Injection Molding).
-
What is "Under-Screen NFC Support," and what benefit does it offer over traditional NFC placement?Under-Screen NFC allows the NFC antenna to be integrated directly beneath the display panel. This unique feature provides a cleaner design (no visible antenna cutouts), better protection for the NFC components, and enables seamless interaction, especially in industrial or payment applications where the entire screen area can be used for tapping cards or devices (Under-Screen NFC Support).
-
The L863L lists an extensive array of high-performance CPU options. Why such a wide selection, and what is the range of performance?Pretech lists multiple processor options, ranging from cost-effective chips like the Allwinner A523 to high-performance Octa-cores like the MT8781 (Helio G99). This flexible selection (including Spreadtrum T616/T606, MT8768X, etc.) is the core of the ODM solution, allowing customers to perfectly match the tablet’s processing power (RAM up to 8GB, Storage up to 256GB) to the specific needs of their software, whether it's for basic data entry or complex real-time application processing (High-Performance Processors & ODM Customization).
-
How does the L863L ensure all-day connectivity in remote or outdoor environments?The tablet is designed for use in the field, featuring comprehensive connectivity options, including standard Wi-Fi (802.11 ac/b/g/n) and Bluetooth 5.0, along withoptional full cellular support (4G LTE-FDD/TDD, 3G, 2G). This wide-band cellular support ensures reliable data transmission and communication regardless of Wi-Fi access (Connectivity).
-
What physical features make the 8-inch L863L highly portable for field workers?TThe 8-inch size strikes an optimal balance between screen readability and portability. With compact dimensions (214 x 134 x 12mm), a lightweight design, and a 5000mAh battery capacity, the L863L is comfortable for staff to carry and operate single-handedly throughout a full workday, providing mobility without sacrificing screen size (Dimensions & Battery).
