L1105 Custom 11" Tablet Android with High-Precision USI 2.0 Stylus

MODEL: L1105

11-inch High-Performance Android Tablet with USI 2.0 Stylus

Multiple CPU Options: T606, T616, MT6769 (G85), MT8786 (G80), and MT8781 (G99) for diverse performance needs.

Latest Android OS: Android 14 for advanced features and security.

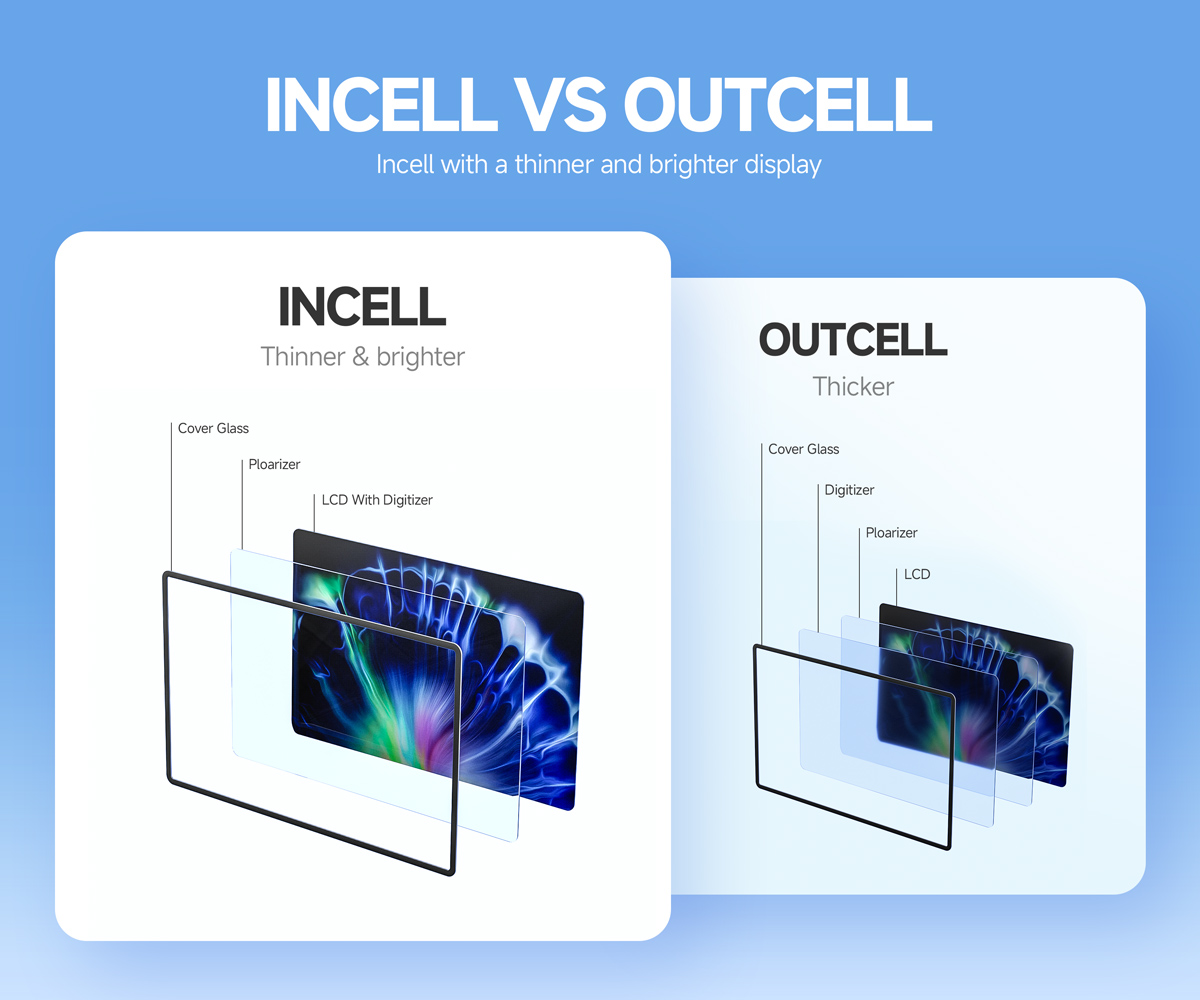

IPS In-Cell Display: 10.95-inch, 1920*1200 resolution for vibrant visuals.

USI 2.0 Stylus Ready: Compatible with USI 2.0 with 4096 pressure levels and tilt functionality for precise input

Configurable RAM/Storage: Options from 4GB/32GB to 8GB/128GB.

Robust Connectivity: WiFi 802.11 ac/b/g/n, BT5.0, GPS, and optional LTE/3G.

Versatile Cameras: Front 2MP-8MP and rear 5MP-13MP for clear imaging.

Stereo Speakers: Dual box design for enhanced audio experience.

Extended Battery Life: 7000mAh/3.8V with fast charging.

Advanced Sensors: FM, G-sensor, light/proximity sensor, gyroscope.

Fast Charging Support: 5V2A adaptor and USB cable, with PD 18W fast charging optional.

Inquiry Ask for A Demo

Applications:

Overview

Specifications Inquiry

10.95" 1920 X 1200 IPS Incell
T606 2x A75 1.6GHz + 6x A55 1.6GHz T616 2x A75 2.0GHz + 6x A55 1.8GHz MT6769 2x A75 2.0GHz + 6x A55 1.8GHz(G85) MT8786 2x A75 2.0GHz + 6x A55 1.8GHz(G80) MT8781 2x A76 2.2GHz + 6x A55 2.0GHz(G99)
Android 14
RAM:4GB/6GB/8GB Storage:32GB/64GB/128GB
Front 2MP/5MP/8MP FF;Rear 5/8/13MP AF
WiFi 802.11 ac/b/g/n; BT5.0; GPS,FM
FM;G-sensor; Light sensor/ Proximity sensor/ Gyroscope/ PD Fast Charging 18W Optional
7000mAh/3.8V

Specification

Overview

Specifications

Inquiry

CPU

T606 2x A75 1.6GHz + 6x A55 1.6GHz T616 2x A75 2.0GHz + 6x A55 1.8GHz MT6769 2x A75 2.0GHz + 6x A55 1.8GHz(G85) MT8786 2x A75 2.0GHz + 6x A55 1.8GHz(G80) MT8781 2x A76 2.2GHz + 6x A55 2.0GHz(G99)
OS

Android 14
Screen

10.95" 1920 X 1200 IPS Incell
RAM

4GB/6GB/8GB
Storage

32GB/64GB/128GB
Wi-Fi/Bluetooth

WiFi 802.11 ac/b/g/n; BT5.0; GPS,FM
LTE-FDD

B1/3/5/7/8/20,B2/4/7/17/28 Optional
LTE-TDD

B38/40 Optional
3G

900/2100MHz, 850/1900MHz Optional
2G

850/900/1800/1900MHz
Camera

Front 2MP/5MP/8MP FF;Rear 5/8/13MP AF
Support

FM;G-sensor; Light sensor/ Proximity sensor/ Gyroscope/ PD Fast Charging 18W Optional
Battery

7000mAh/3.8V
Dimensions

256.8 x 168.3 x 7.5mm
Weight

500g
Speaker

4 x Box Speakers
LTE

FDD B1/3/5/7/8/20,B2/4/7/17/28 Optional TDD B38/40 Optional

Inquiry

Overview Specifications

Hardware Specs

What are the primary hardware advantages of this 11-inch tablet?

The device features a vibrant 10.95-inch IPS Incell Display (1920x1200) housed in an ultra-slim 7.5mm metal body. Powered by an Octa-Core processor (T606/T616/G99) and up to 8GB RAM, it provides the high-speed performance required for professional multitasking and 4K media playback.

Core Functionality

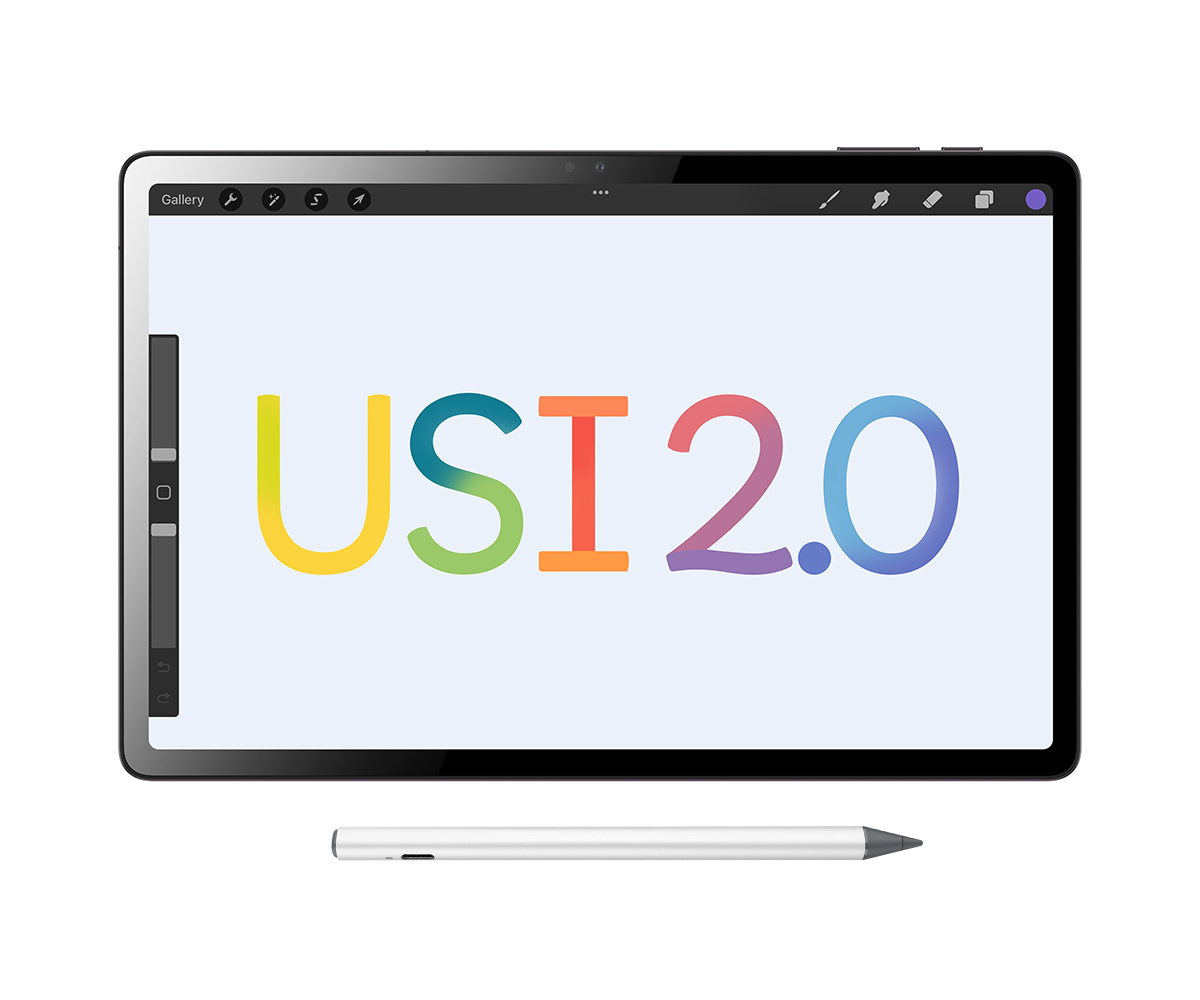

How does the High-Precision USI 2.0 Stylus enhance the user experience?

The USI 2.0 protocol offers 4096 levels of pressure sensitivity, palm rejection, and tilt functionality. Unlike proprietary pens, this High-Precision Stylus requires no pairing and is interoperable across all USI-certified devices. It supports In-cell display technology for lower latency and a more natural "pen-on-paper" feel, ideal for Digital Education and Creative Sketching.

Customization (ODM)

Can Pretech customize this 11-inch tablet for specific industry requirements?

Absolutely. Pretech’s core strength is Full ODM Customization. We can tailor the hardware (CPU/RAM/Storage), customize the Android firmware (boot logos, pre-loaded enterprise apps, or Kiosk mode), and even modify the physical casing with your branding or specialized Pogo Pin connectors for keyboard docking.

Global Deployment

Is the tablet certified for large-scale deployment in the US and Europe?

Yes. We ensure our tablets meet all international standards, including CE, FCC, RoHS, REACH, and UKCA. Our solutions are optimized for global GEO deployment, supporting multi-language firmware and local network bands (4G LTE/Wi-Fi AC), making them a top choice for international Smart Education and Enterprise projects.

Security & Battery

What features ensure reliable performance and data security for business use?

The tablet is Android GMS certified, ensuring access to the latest security patches. It is equipped with a high-capacity 8000mAh battery supporting 18W Fast Charging, providing all-day power. For secure environments, we offer hardware-level security integrations and MDM (Mobile Device Management) compatibility for remote fleet control.
