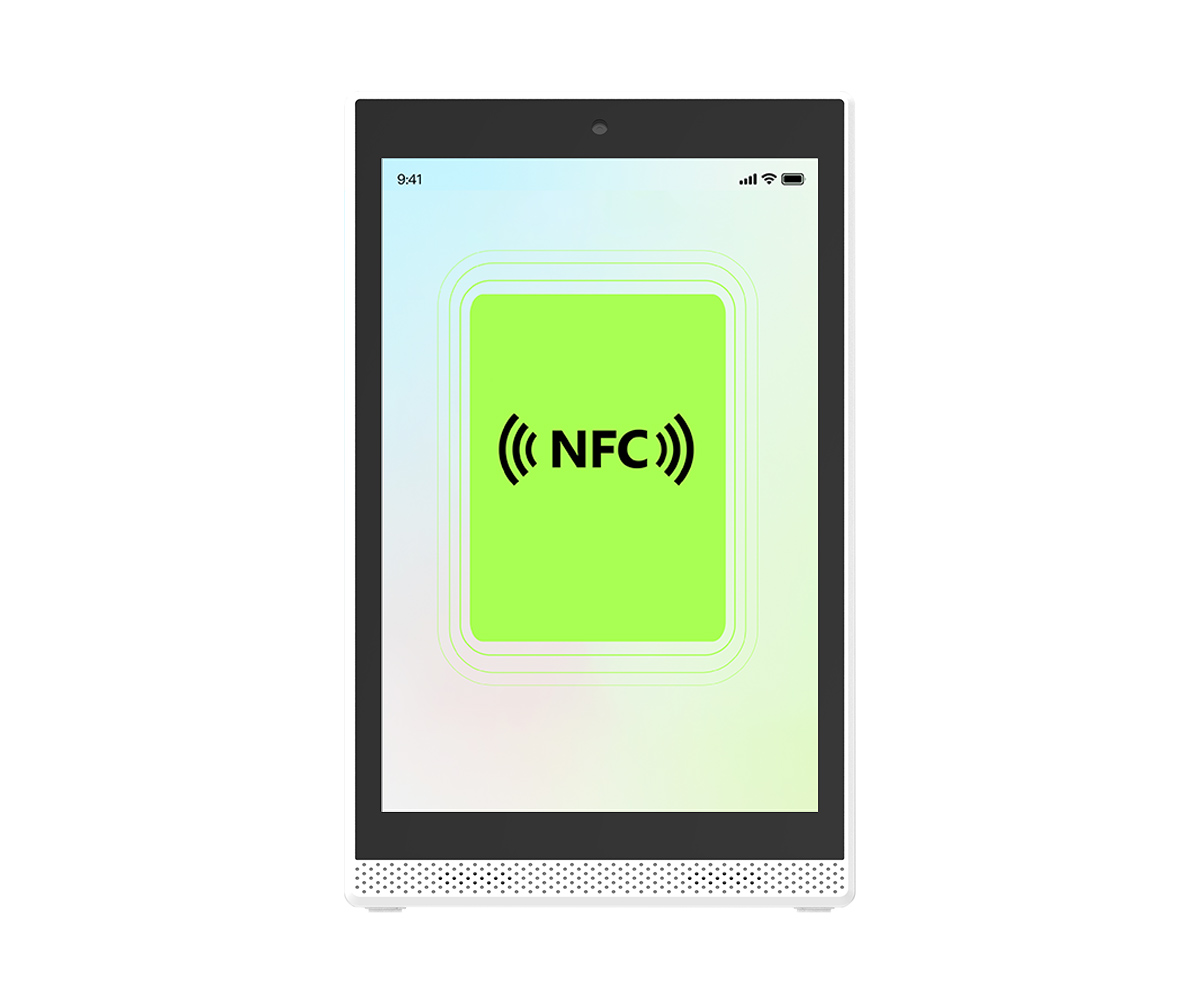

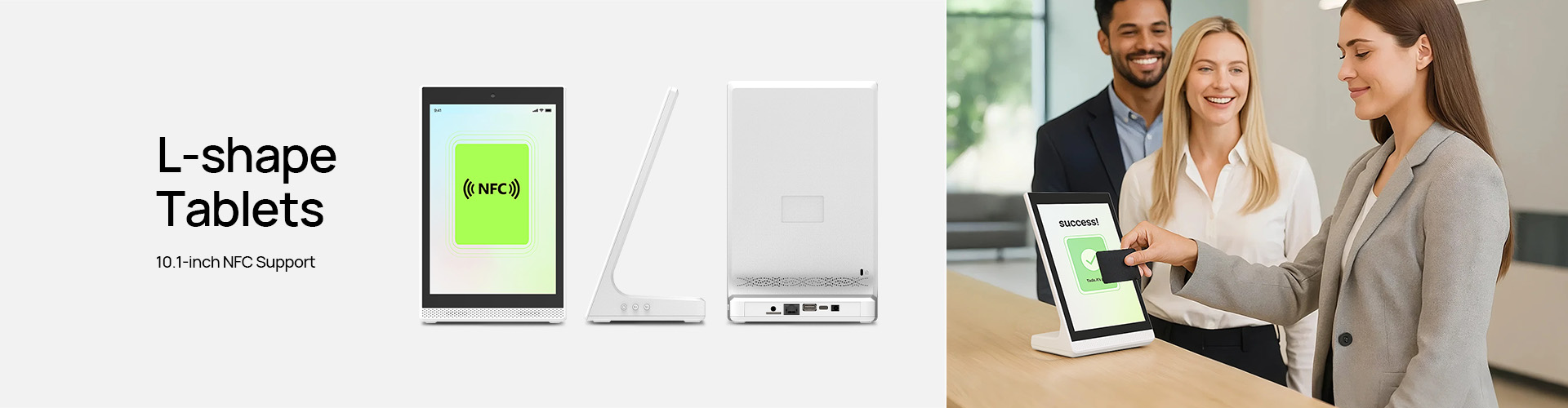

L Shape 10.1-inch RK3562 Android NFC Tablets for Reception and NFC Card Reading
MODEL: 1032

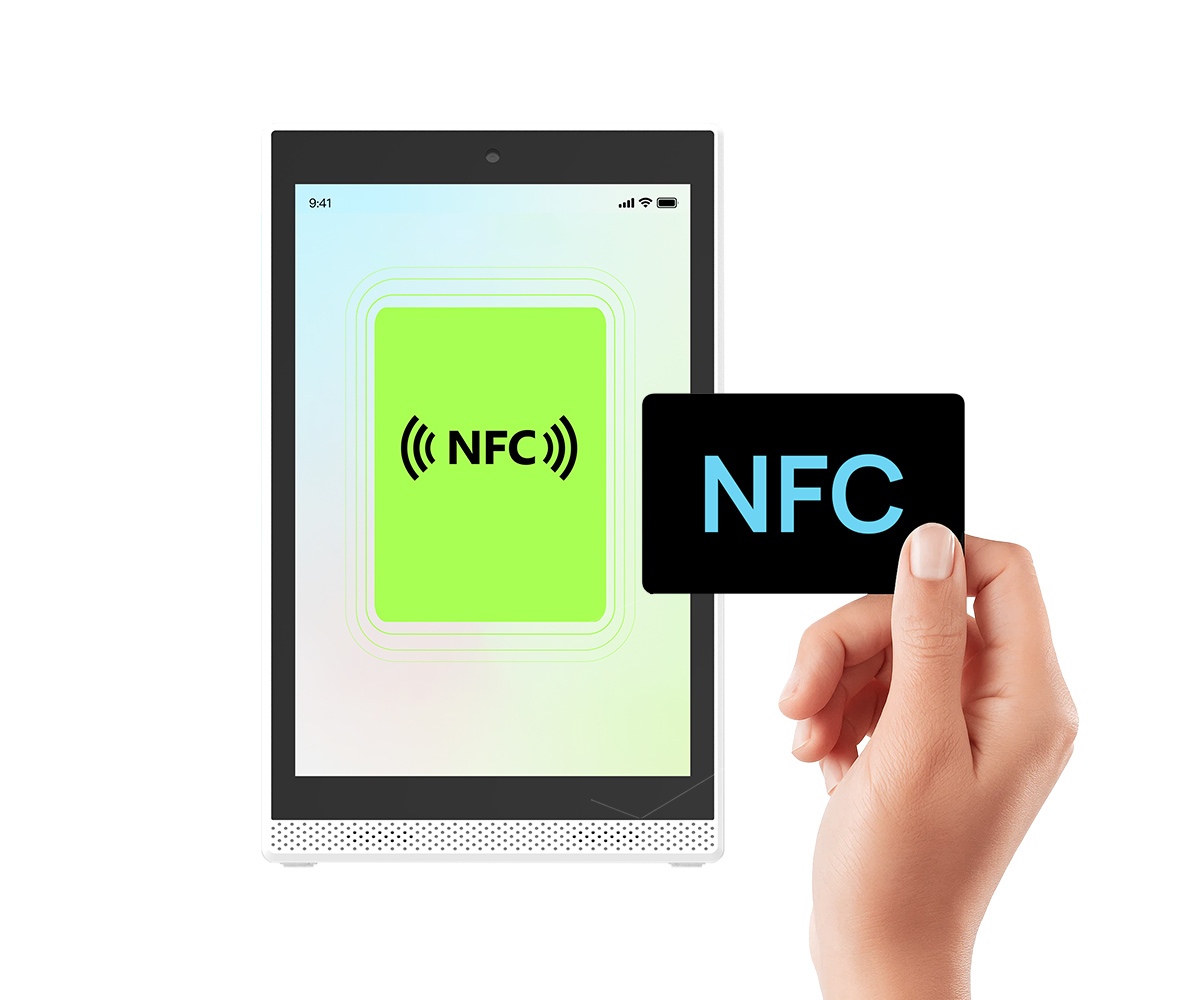

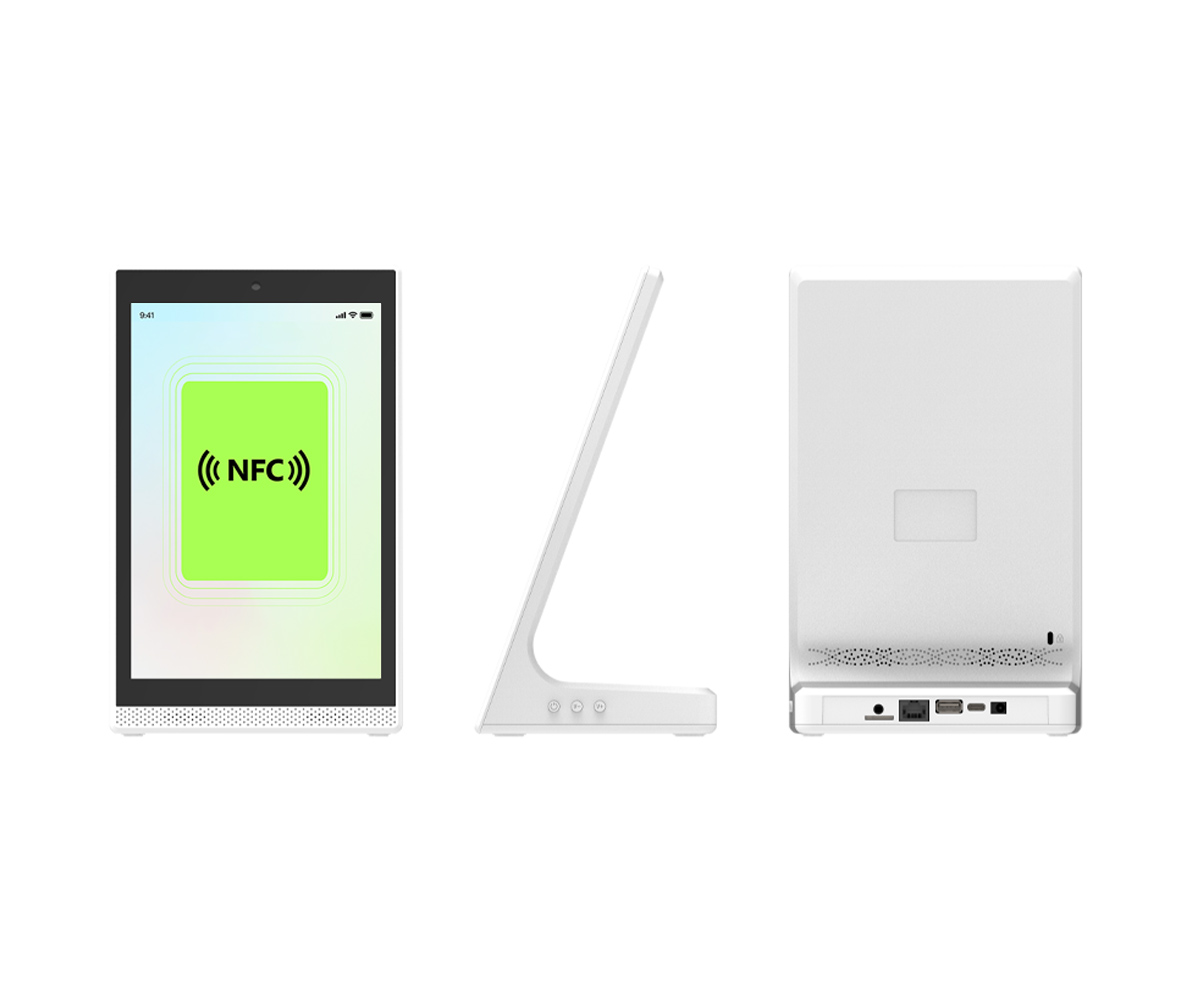

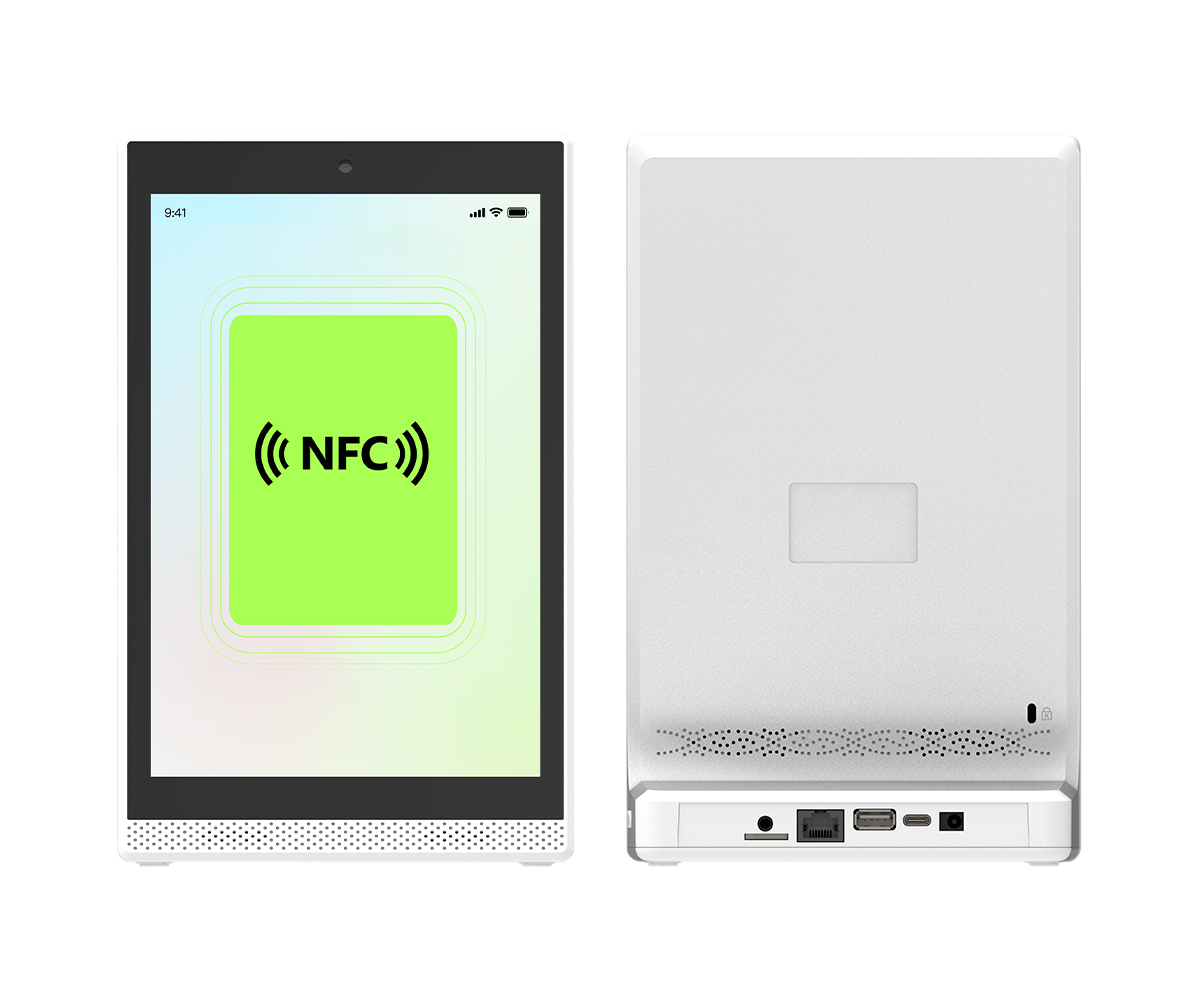

The L1032 is a 10.1-inch L-shaped tablet designed for reception and NFC card reading applications. It features an RK3562 processor, running on Android 13, with 2GB RAM and 64GB storage. The tablet supports NFC functionality, making it ideal for non-payment card reading and other identification purposes. With a 10.1-inch IPS display (800x1280 resolution), G+G touch panel, and a USB camera (2MP FF 30FPS), it offers a versatile and efficient solution for various business and service scenarios. The tablet also includes WiFi 6, BT 5.4, USBA, USBC, and RJ45 connectivity options, and operates on 12V DC power. Pretech's ODM capabilities allow for customization of the L1032 to meet specific customer requirements, including software and hardware modifications.
Applications:

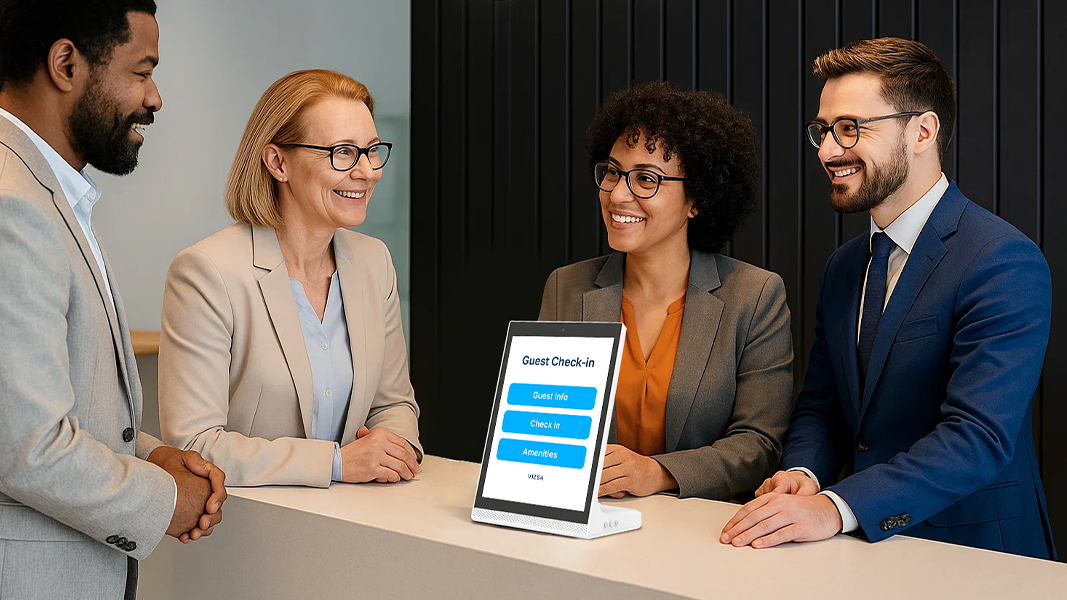

ODM Solutions and Industry Applications of L Shape 10.1-Inch NFC Tablets
-

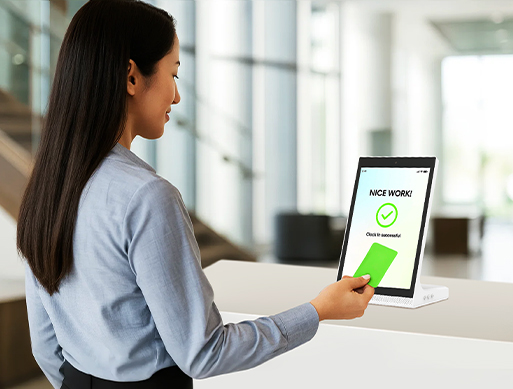

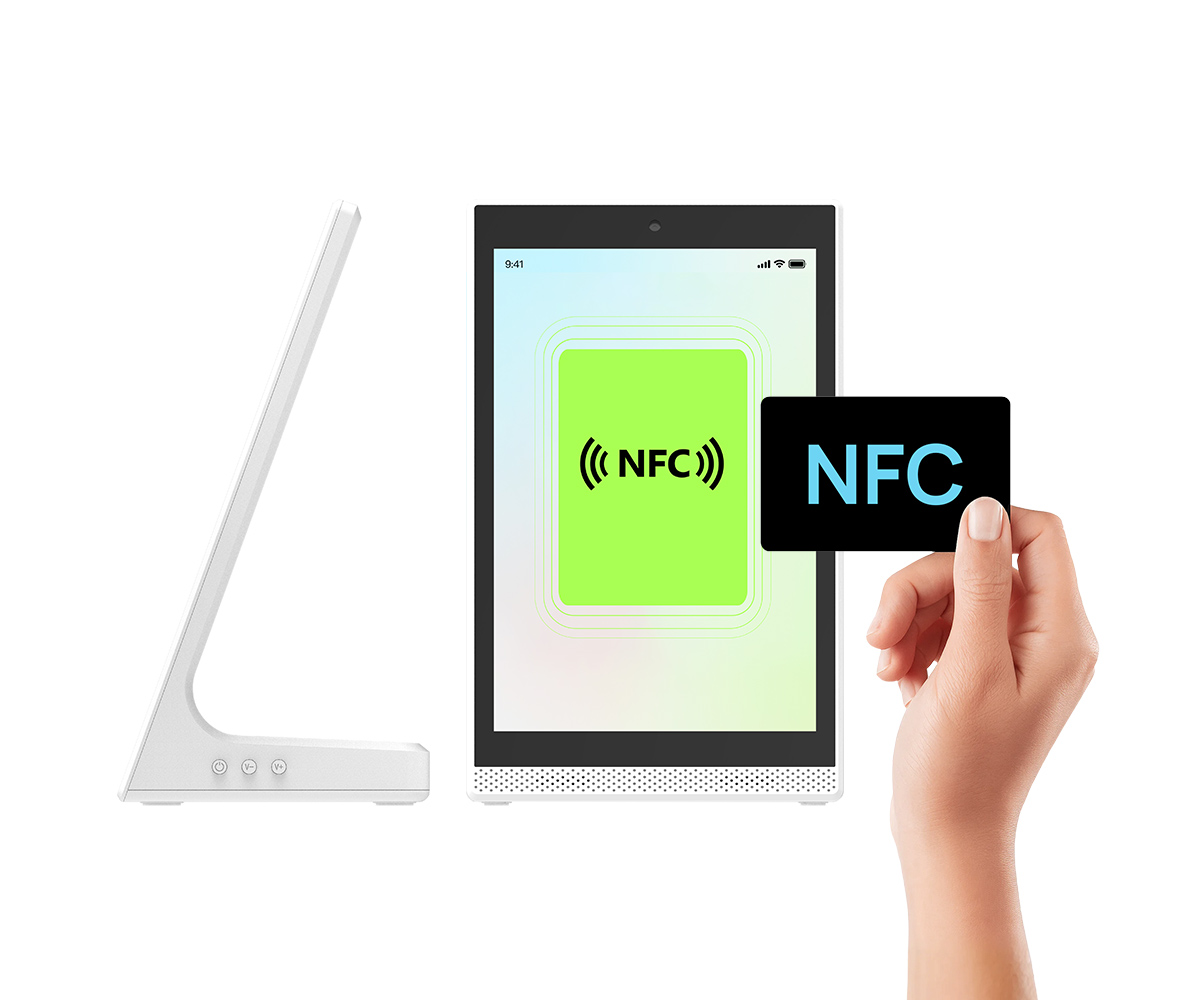

NFC Card Reading TerminalThe 10.1-inch NFC Tablets Android supports NFC functionality, making it suitable for non-payment card reading terminals. It can be used for employee attendance, membership management, and other scenarios, providing convenient identification and verification functions. -

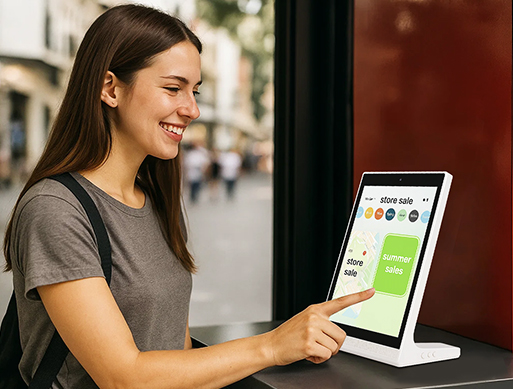

Information KioskWith its L-shaped design and 10.1-inch display, the tablet can serve as an information kiosk, providing customers with product information, promotions, maps, and more, enhancing customer engagement. -

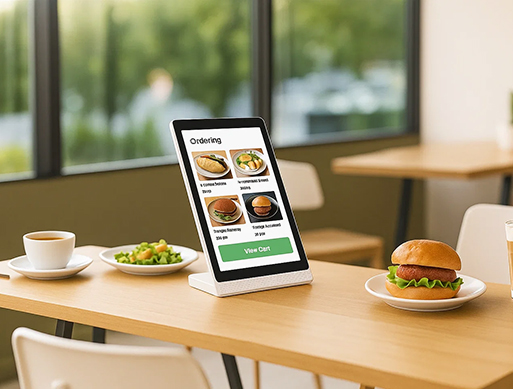

Digital Menu BoardIn food service establishments, the tablet can act as a digital menu board, displaying dishes, prices, and images. Customers can easily browse and order through the touch screen, improving ordering efficiency and customer satisfaction. -
Event Registration TerminalAt various events and conferences, the tablet can serve as an event registration terminal, supporting NFC card reading and information entry, quickly completing the registration process for attendees and improving event organization efficiency. -
Interactive Display for Museums and ExhibitionsIn museums and exhibitions, the tablet can be used as an interactive display device, reading exhibit information through NFC to provide visitors with richer background and introductions, enhancing the visiting experience. -

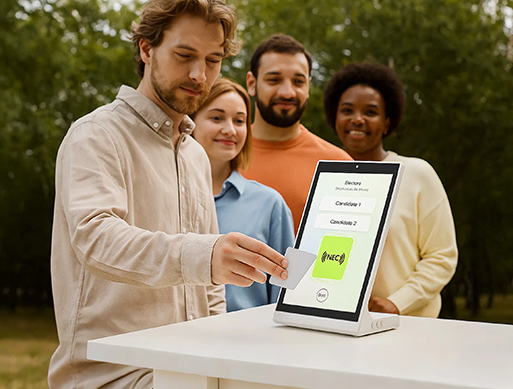

Voting MachineThe 10.1-inch tablet can be used as a voting machine, with its touch screen and NFC functionality making the voting process more convenient and secure, suitable for various elections and voting activities.
Overview
Overview
Specifications Inquiry-
10.1" 800 x 1280 TFT LCD IPS G+G -
RK3562 4 core,Cortex-A53,2.0GHz, 22nm -
Android 13 -
RAM 2GB DDR4 Storage 32GB eMMC -
Front 5MP -
IEEE 802.11ac/AX/a/b/g/n 2.4GHz&5GHz;BT5.4; NFC -
NFC：Active and passive Peer-to-Peer:ISOIEC 18092-NFCIP-1 Initiator&Target
Passive mode-Reader/Writer:NFC Forum Type 1/2/3/4/5 tags
Active mode-Card Emulation:ISO/IEC 14443 Type A&B
(Suitable for ordinary NFC applications that read tags, such as member registration, attendance check-in, counting, etc) -
NA
Specification
Overview
Specifications
Inquiry-
CPURK3562 4 core,Cortex-A53,2.0GHz, 22nm
-
OSAndroid 13
-
Screen10.1" 800 x 1280 TFT LCD IPS
-
RAM2GB DDR4
-
Storage32GB eMMC
-
Wi-Fi/BluetoothIEEE 802.11ac/AX/a/b/g/n 2.4GHz&5GHz;BT5.4;
-
3GNA
-
CameraFront 5MP
-
SupportNFC：Active and passive Peer-to-Peer:ISOIEC 18092-NFCIP-1 Initiator&Target
Passive mode-Reader/Writer:NFC Forum Type 1/2/3/4/5 tags
Active mode-Card Emulation:ISO/IEC 14443 Type A&B
(Suitable for ordinary NFC applications that read tags, such as member registration, attendance check-in, counting, etc) -

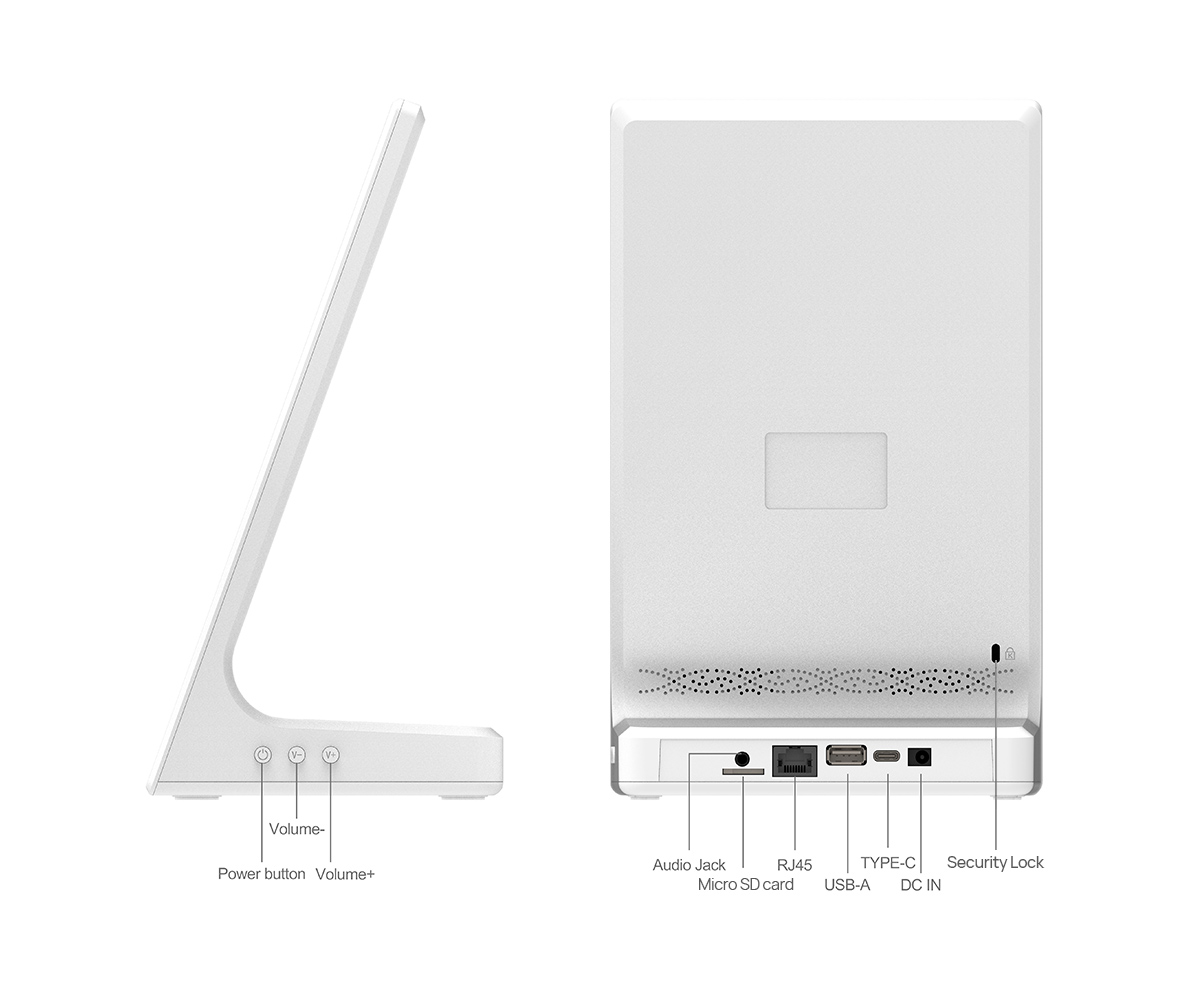

I/ODC in 1 x 12V2A(5.5mm)
USB 1 x USB-A(data);1 x USB-C(data&OTG)
SD card MicroSD
Audio Jack 1 x 3.5mm
RJ45 1 x 1000M -
BatteryNA
-
Dimensions159 x 131.8 x 256mm
-
Weight480g
-
Speaker8Ω/2.0W x 2
-
LTENA
Inquiry
Overview
Specifications
Inquiry
FAQs
- Cost-Effective Performance
- Enhanced Connectivity & Media
- Application & Security Features
Cost-Effective Performance
-
The Model 1032 uses the RK3562 processor. How does this chip compare to the RK3576 in the other L-Shape model, and why is it chosen?The RK3562 is a Quad-core Cortex-A53 processor, making it a more cost-effective solution compared to the RK3576 (which includes higher-performance A72 cores). The RK3562 is chosen for applications like basic information kiosks, digital menu boards, or simple check-in terminals where smooth operation of standard Android 13 apps is sufficient, prioritizing budget efficiency over maximum processing power.
-
What are the standard RAM and Storage capacities of the 1032, and are they fixed?The standard configuration is 2GB DDR4 RAM and 32GB eMMC Storage. While this configuration is lower than the RK3576 model, it is stable and optimized for running dedicated, non-resource-intensive commercial applications (like check-in software or digital menus). Pretech's ODM services allow for customized modifications to RAM/Storage based on specific project needs, although the stated configuration is the efficient baseline (RAM/Storage).
Enhanced Connectivity & Media
-
What advanced wireless technologies are included in the 1032 to ensure reliable data transfer in busy commercial settings?The 1032 supports the latest IEEE 802.11ac/AX (Wi-Fi 6) standard for both 2.4GHz and 5GHz bands, along with Bluetooth 5.4. The inclusion of Wi-Fi 6 (AX) ensures higher throughput, lower latency, and better network stability when multiple devices are competing for bandwidth—critical for enterprise transactions and information updates (Wi-Fi/Bluetooth).
-
Does the Model 1032 include any direct communication or video capture capabilities?Yes, unlike the other L-Shape model, the 1032 includes a Front 5MP camera as a standard feature. This allows for applications like visitor photo capture during registration, basic security monitoring, or two-way video communication (e.g., helpdesk features) directly from the desktop terminal. It also includes a Gigabit RJ45 port for stable wired data transfer (I/O).
Application & Security Features
-
How is the NFC functionality on the 1032 used specifically in the context of "Voting Machine" applications?When used as a Voting Machine, the integrated NFC functionality provides an added layer of convenience and security. Voters can use NFC-enabled identification cards or tokens to quickly and securely authenticate their eligibility before casting a digital ballot on the touch screen, streamlining the process while ensuring valid participation (Voting Machine).
-
Is the 1032 suitable for long-term continuous operation, and what type of power source does it require?The 1032 is designed for continuous commercial use and is powered by a reliable 12V DC input (via a 5.5mm DC jack), without a battery. This is the preferred power method for fixed-location devices like information kiosks or digital menu boards, ensuring consistent, always-on operation without concerns over battery maintenance or failure (I/O & Battery).
