Ultra Slim Tablet Pc

10.1" 8" Family Design

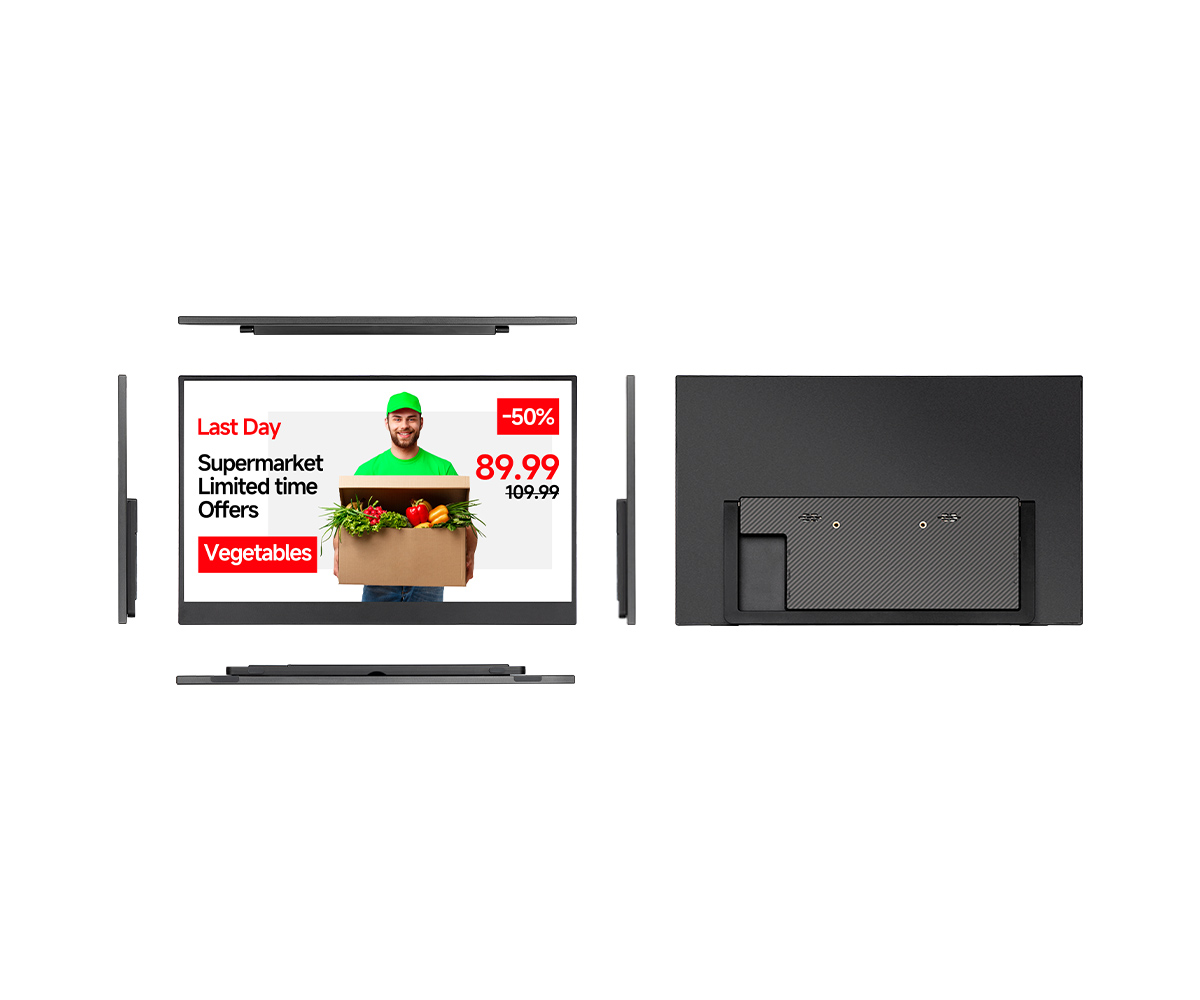

PMDP3566 Custom 15.6" RK3566 Touchscreen Signage: Portable Precision

MODEL: PMDP3566

Inquiry Ask for A Demo

Applications:

Overview

Specifications Inquiry

Specification

Overview

Specifications

Inquiry

Inquiry

Overview Specifications

Display & Media Performance

What is the key advantage of the PMDP3566's 15.6-inch display for advertising and HMI solutions?

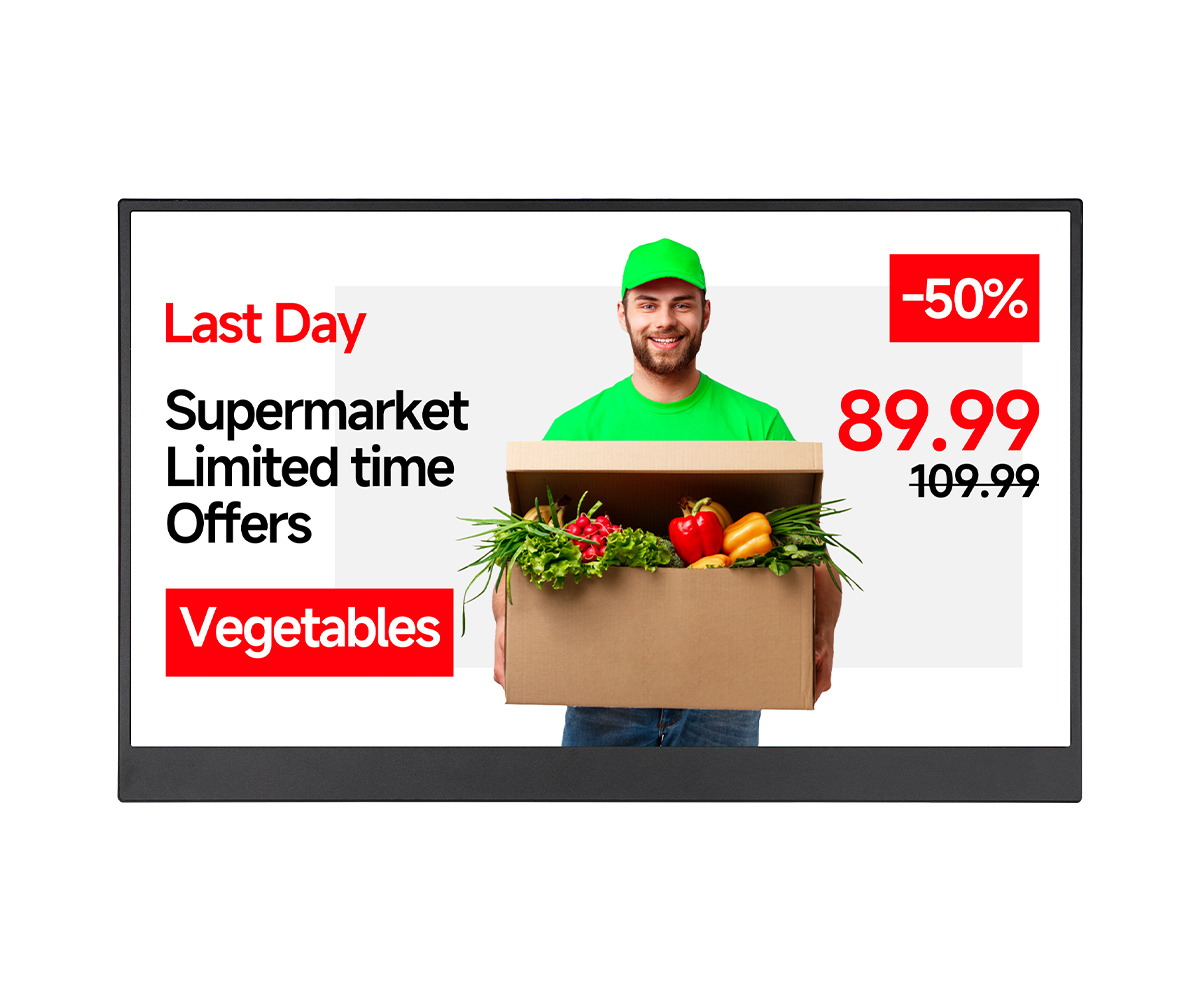

The PMDP3566 features a large 15.6-inch 1920x1080 (Full HD) G+FF screen. This high-resolution display ensures that advertising content, interactive menus, and HMI graphics are presented with maximum clarity and visual impact. The G+FF (Glass-to-Film-to-Film) touch panel provides a smooth, reliable touch experience crucial for interactive signage (15.6-inch 1920x1080 G+FF).
Is the RK3566 processor powerful enough for continuous, high-definition media playback in a digital signage context?

Yes. The PMDP3566 utilizes the Rockchip RK3566 (Quad-core A55 @ 1.8GHz). This processor, combined with up to 4GB RAM and 64GB storage, is highly optimized for stable, continuous media playback and robust IoT processing. It provides excellent performance for running Android 14 and specialized digital signage or HMI applications reliably 24/7 (RK3566 Processor & Android 14).

Fixed Installation & Connectivity

The specs indicate "Battery: NA" and no cellular support. What does this suggest about the PMDP3566's intended use?

The lack of a standard battery and cellular connectivity emphasizes its design as a fixed, permanent installation display (Portable Precision). It is engineered to be powered continuously via an external source (AC power) and managed primarily through Wi-Fi 802.11 a/b/g/n/ac or an integrated network connection (often available via custom I/O or a dedicated board), making it ideal for wall-mounted kiosks, permanent signage, or industrial control panels (Fixed Installation Design).
What input/output options are available for integrating the PMDP3566 into external systems or using it as a secondary display?

The PMDP3566 includes robust I/O ports for integration:
1）Dual Type-C ports: Used for power and/or data/peripherals.
2）Mini HDMI x 1: Crucial for connecting the unit to external display sources or using it as an extended display.
3）Earphone x 1: Provides audio output options.
4）These features facilitate connecting accessories (like external buttons or sensors) and ensuring compatibility with various hardware setups in retail or industrial environments (I/O: Type-C, Mini HDMI).

Versatility & Customization
