F1030GR L-Shaped Tablet for Corner Desks for Multitasking & Media Player

MODEL: F1030GR

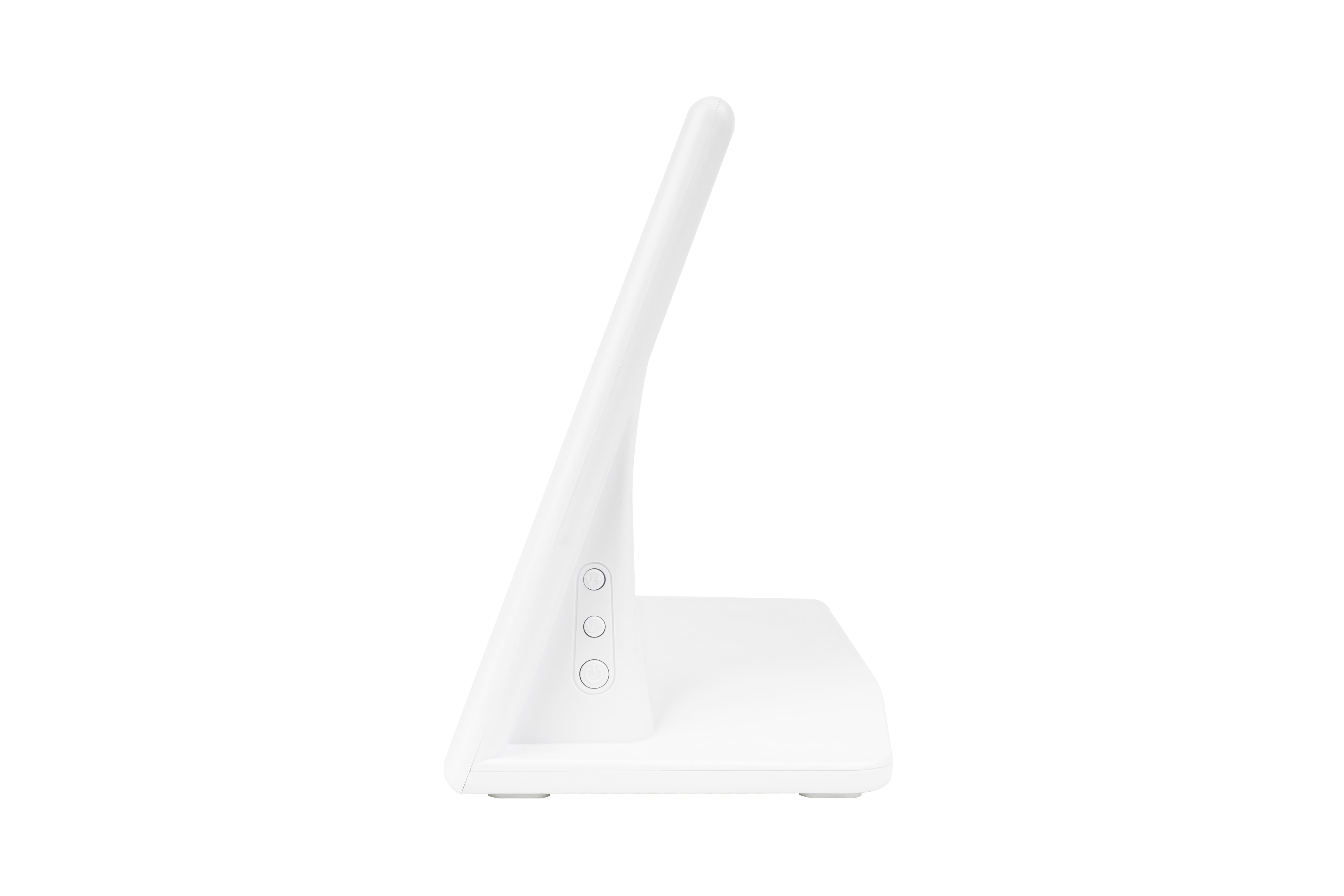

Innovative L-Shaped Design: The unique L-shaped form factor

allows for versatile desktop placement, providing both stability and space efficiency.

Ideal for corner utilization and multitasking setups.

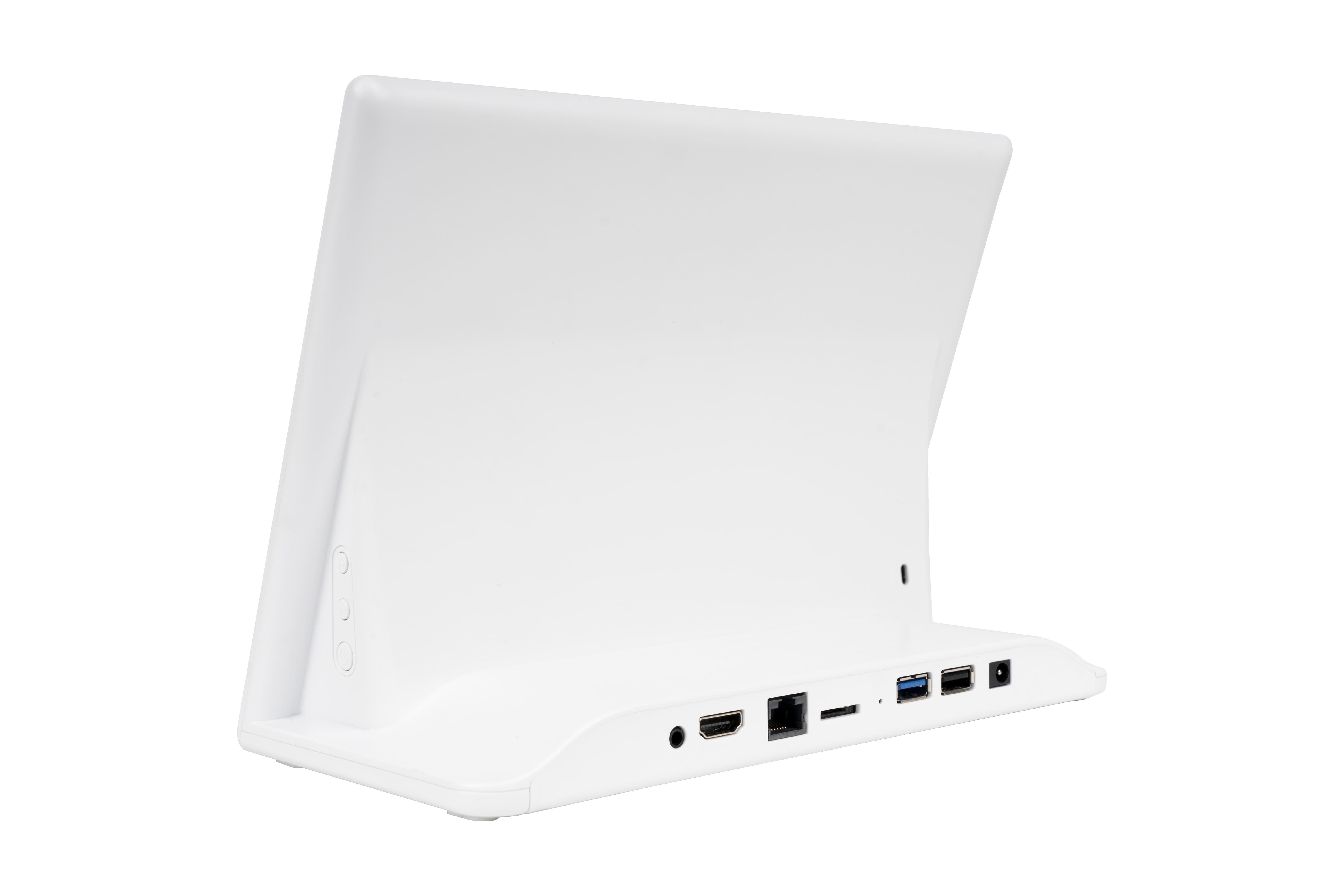

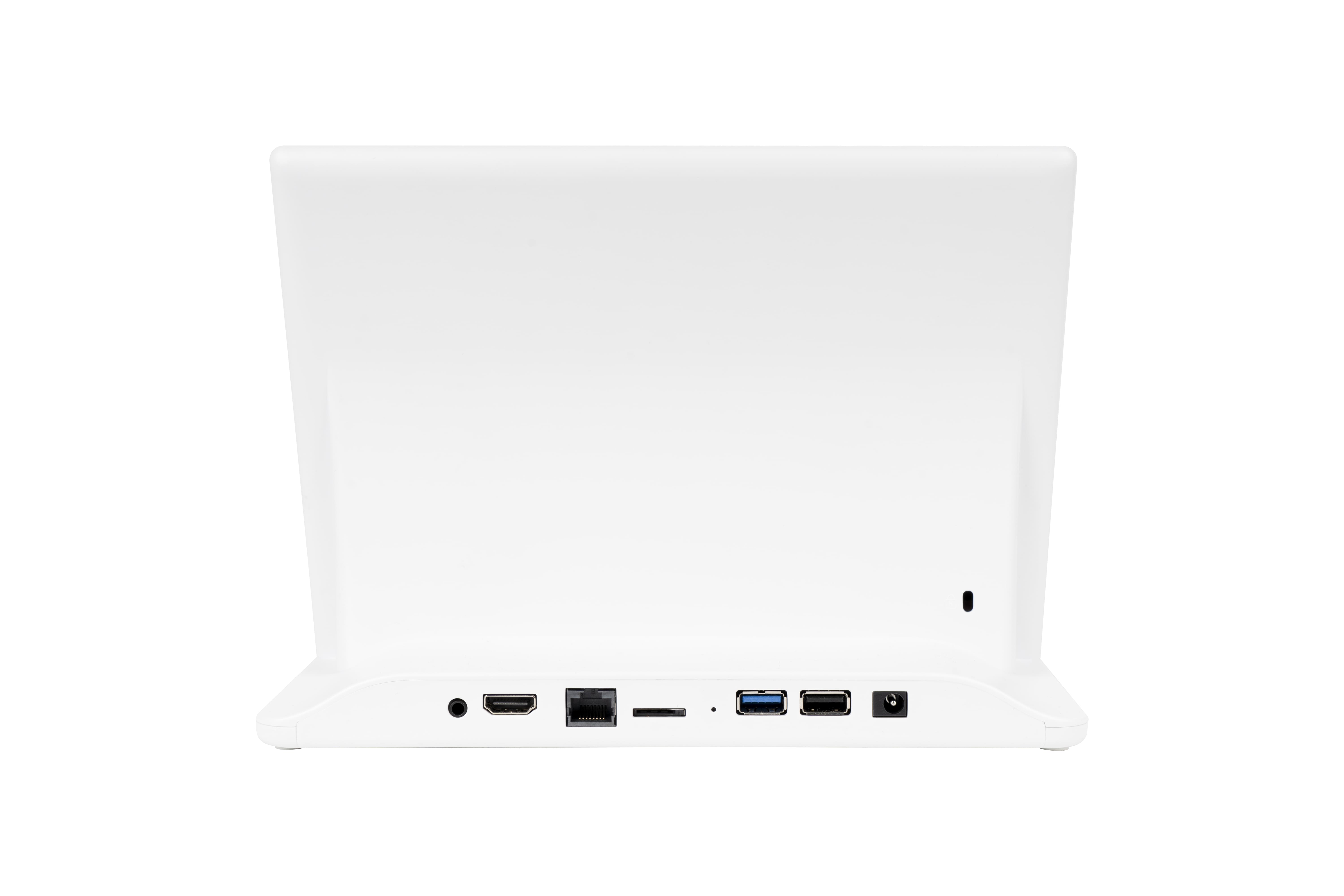

Multi-Interface Connectivity: Equipped with a comprehensive suite of ports

including DC, USB-A x 2, HDMI x 1, RJ45 x 1, Micro SD x 1, and an Audio jack x 1,

this tablet seamlessly integrates with a variety of peripherals for extended functionality.

Expandable Storage Options: With RAM options ranging from 2GB to 8GB

and storage capacities from 32GB to 128GB,

users can customize the tablet to fit their needs, and the Micro SD slot offers further expandability.

High-Performance Processors: Powered by RK3568 or RK3566 CPUs,

featuring 4x A55 cores, the tablet delivers robust performance for smooth multitasking and app handling.

Versatile Operating System: Android 13 ensures a familiar

and user-friendly experience, with access to a vast ecosystem of apps and features.

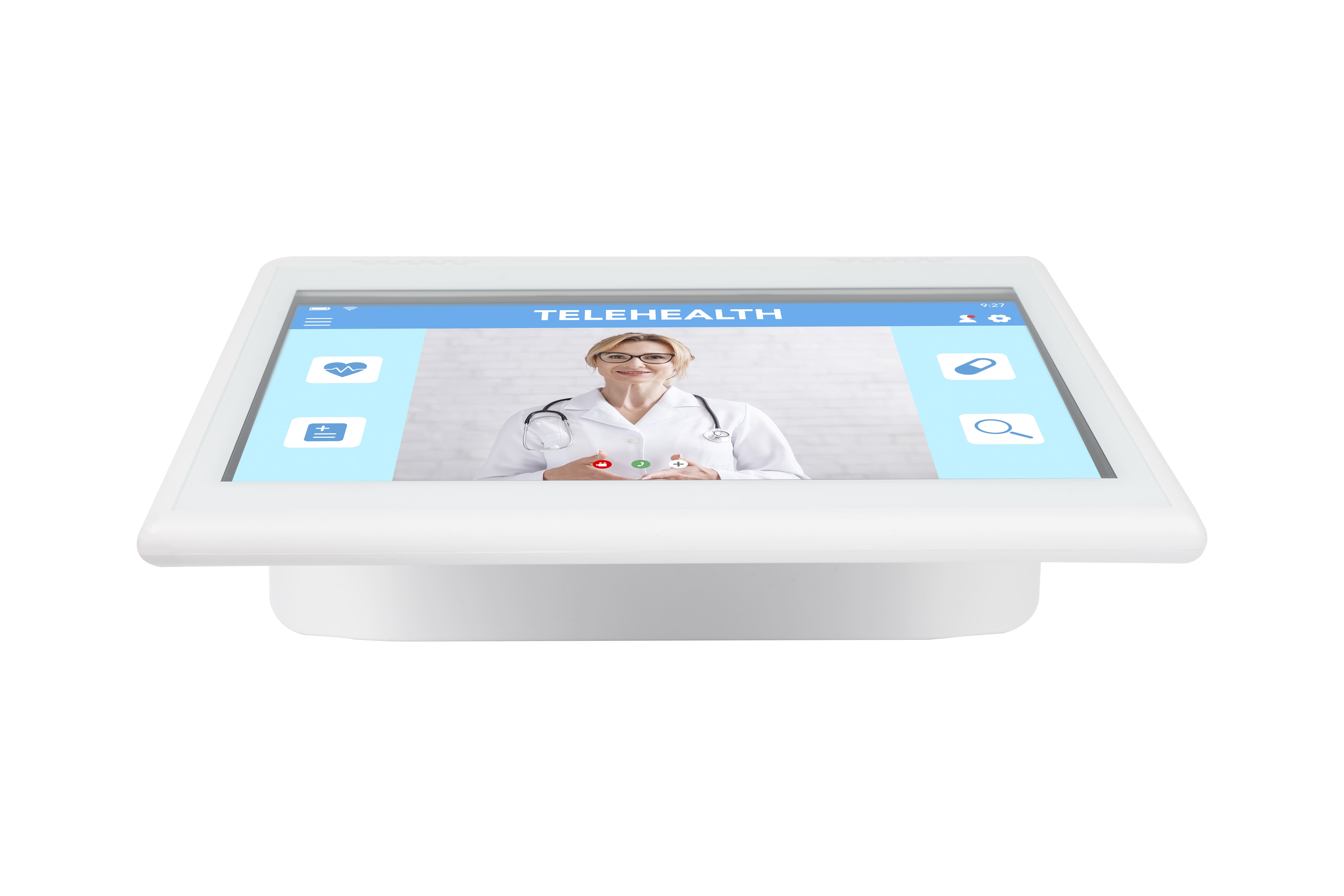

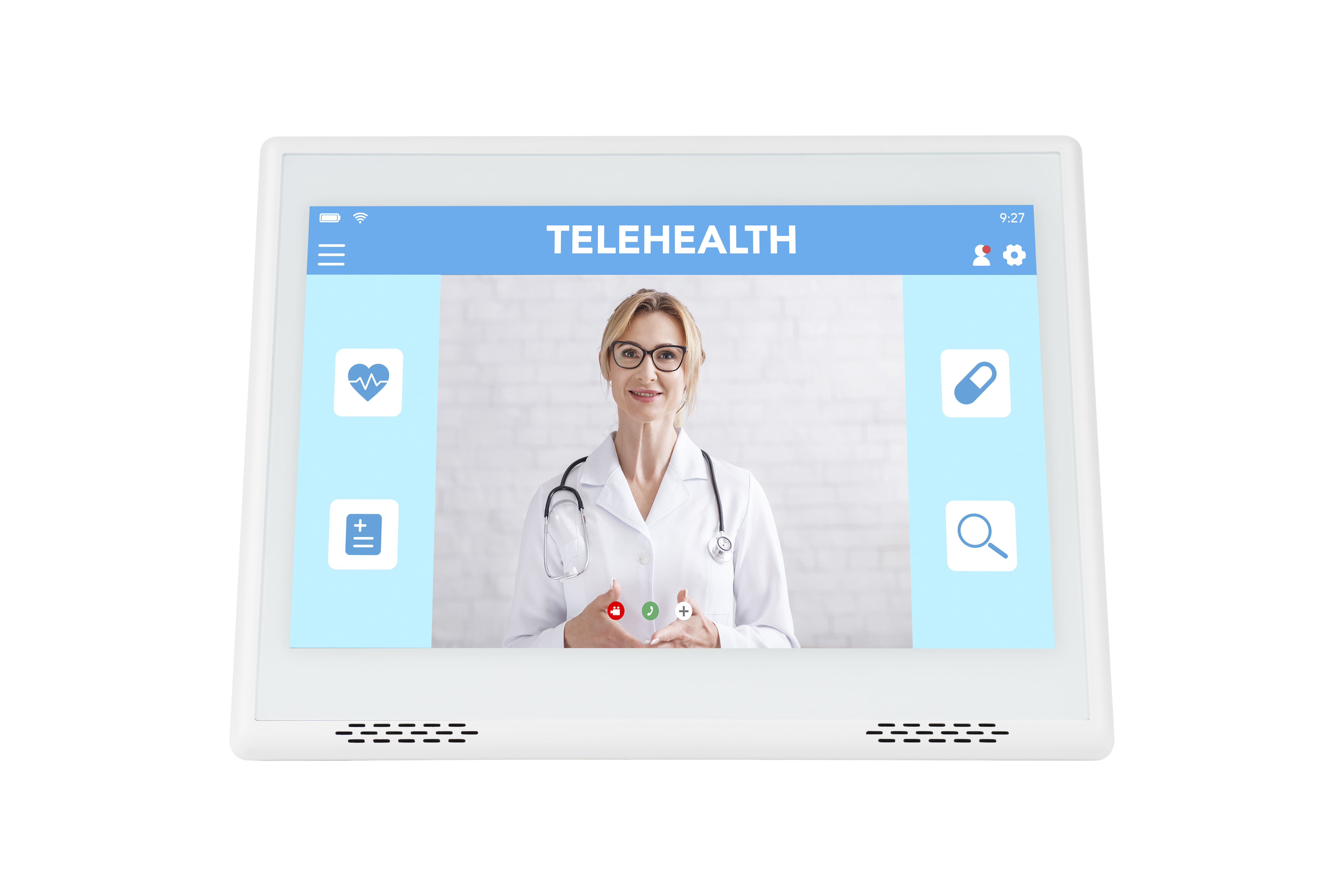

Enhanced Viewing Experience: A 10.1-inch IPS display with 800 x 1280 resolution

offers crisp visuals and touch sensitivity, perfect for media consumption and interactive use.

Robust Audio Quality: Dual 8Ω/2W box speakers provide an immersive

audio experience, ideal for video streaming and gaming.

Advanced Battery Life: An optional 5000mAh battery ensures long-lasting usage,

supporting all-day productivity without the need for frequent charging.

Portable and Ergonomic: With dimensions of 249.6 x 117.3 x 178.2mm and weighing 756g,

the tablet is designed for portability and comfortable handling during extended use.

LTE and Wi-Fi Capabilities: Support for Wi-Fi 802.11 ac/a/b/g/n and Bluetooth 5.0,

with optional LTE-FDD and LTE-TDD, ensures reliable connectivity for a seamless online experience.

Inquiry Ask for A Demo

Applications:

Overview

Specifications Inquiry

Specification

Overview

Specifications

Inquiry

Inquiry

Overview Specifications

Design and Form Factor

What is the primary advantage of the F1030GR's unique L-Shaped design?

The innovative L-shaped design is optimized fordesktop stability and space efficiency, particularly in corner utilization and multitasking setups. It functions as a permanently angled screen, eliminating the need for a separate stand, making it ideal for retail counters, check-in desks, or as a secondary display on an office desk (Innovative L-Shaped Design).
What are the dimensions and weight of this L-shaped tablet?

It has a manageable size and weight designed for desktop portability:
Dimensions: 249.6 x 117.3 x 178.2mm
Weight: 756g
This makes it easy to position and move around the workspace (Portable and Ergonomic).

Connectivity and Integration

What interfaces does the F1030GR provide, making it suitable for professional or integrated use?

The tablet features a comprehensive suite of ports for seamless integration, which is a key highlight of its design:
1）Networking:RJ45 x 1(Wired Ethernet), Wi-Fi 802.11 ac/a/b/g/n, and Bluetooth 5.0.
2）Video Output:HDMI x 1(Allows connection to a larger external screen or display).
3）Peripherals:USB-A x 2(For connecting peripherals like keyboards, mice, scanners, or printers).
4）Power/Storage:DC power port, Micro SD x 1 (for storage expansion), and Audio jack x 1 (Multi-Interface Connectivity).
Can this tablet support cellular connectivity (4G LTE)?

The base model supports Wi-Fi and Bluetooth. However,LTE-FDD and LTE-TDDcapabilities are available as anoptional feature(LTE and Wi-Fi Capabilities).

Performance and Customization

What CPU options are available for the F1030GR, and what operating system does it run?

Customers can choose between two robust processors, both featuring quad-core ARM Cortex-A55 architecture:
1）High-Performance Option:RockchipRK3568(4x A55 @ 2.0GHz)
2）Standard Option:RockchipRK3566(4x A55 @ 1.8GHz)
3）It runs onAndroid 13, offering a modern, stable, and feature-rich platform (High-Performance Processors & Versatile Operating System).
What are the available configurations for RAM and Storage?

The F1030GR offers extremely flexible memory and storage options as an ODM product:
1）RAM:Ranging from 2GB up to 8GB
2）Storage:Ranging from32GB up to 128GB(Expandable Storage Options).
Is there a battery included, or is it designed to be externally powered?

The tablet is primarily designed for desk-based use via the DC power port. However, a 5000mAh battery is available as an optional feature to ensure resilience against power interruptions or for brief periods of mobile use (Advanced Battery Life: 5000mAh optional).
