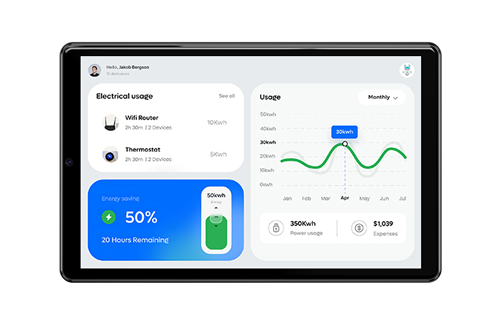

10.1-inch POE Tablet PC Advanced IOT Solution for Smart IOT Control Solution

MODEL:WP101
The WP101 POE tablet PC is designed to enhance the wall control experience with its 10.1-inch FHD display and powerful MT8768 processor running Android OS with Google GMS. With 4G+64GB storage, it offers seamless connectivity and ample space for applications. Equipped with dual speakers, a 50cm proximity wake-up sensor, and optional NFC, this tablet is perfect for modern hotel rooms. Its POE capabilities allow for easy installation without the need for additional power outlets.
Inquiry Ask for A Demo

Key Features of 10.1-inch POE Tablet

  • High-Definition Display
    The 10.1-inch FHD 1920 x 1200 display with G+F+F technology ensures vibrant and clear visuals for all your content.
  • POE Connectivity
    With POE capabilities, the tablet can be powered and connected to the network via a single Ethernet cable, simplifying installation.
  • Optional NFC
    NFC functionality can be added for secure and convenient interactions, such as room access and payments.
  • Proximity Wake-up Sensor
    The 50cm proximity wake-up sensor automatically activates the tablet when guests approach, enhancing user convenience.
Key Features of 10.1-inch POE Tablet

Pretech's Premium 10.1 inch POE Tablets Key Features

By integrating cutting-edge POE tablet technology, every smart room can significantly enhance the overall the user experience, offering more personalized services, seamless communication, and a higher level of convenience throughout their stay.
  • Anti-Oil
    Surface
    The tablet's surface can be upgraded with an anti-oil coating, ensuring long-lasting clarity and cleanliness, even after frequent use in high-traffic environments.

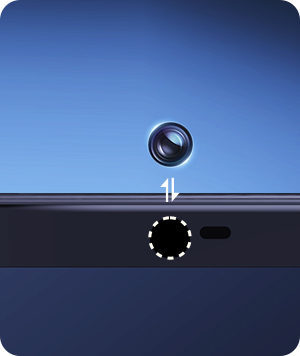

  • Optional Front Camera or
    Expansion Port Camera
    We can integrate an optional front-facing camera or expansion network port camera into the tablet, ideal for video calls or enhancing security features within hotel rooms.
  • Air Humidity and
    Temperature Sensing
    The solution can incorporate air humidity and temperature sensors, allowing real-time environmental monitoring to provide guests with optimal room comfort throughout their stay.
  • Support for Various
    Room Configurations
    Our tablets can be customized to support arange of speaker configurations, from single BOX speakers to dual AAC 5-magnet or dual speakers, delivering superior sound quality for an enhanced audio experience.

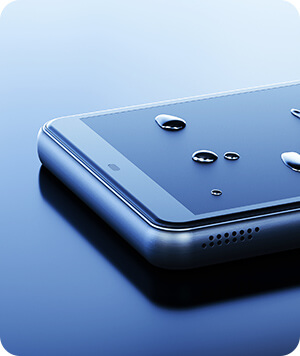

  • Waterproof
    Design
    For increased durability, a waterproof design can be implemented, making the tablet suitable for environments where moisture protection is essential.

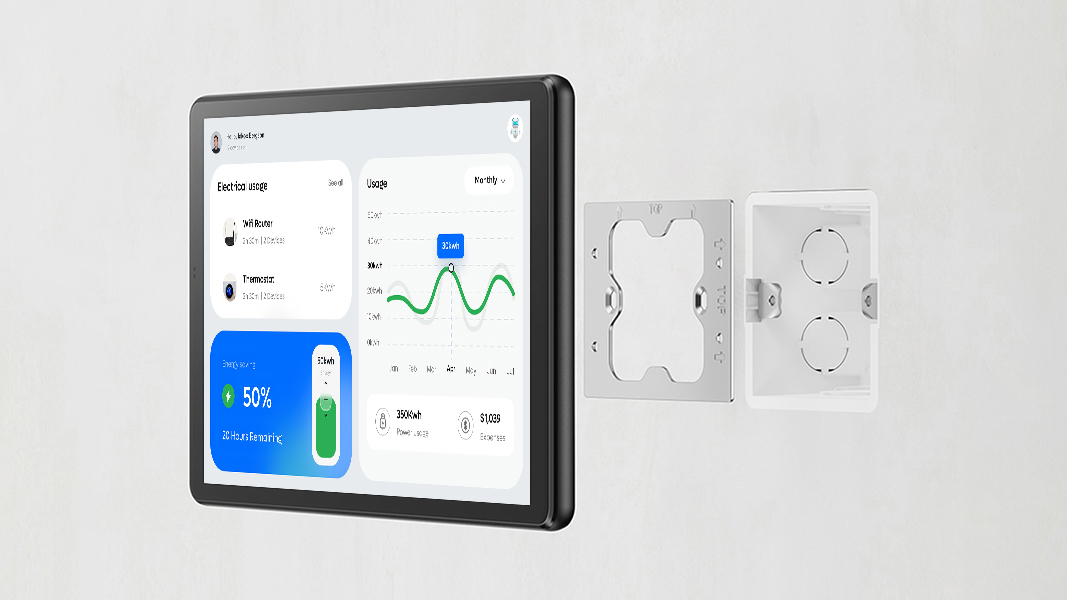

  • Magnetic
    Design
    We can integrate a magnetic design, allowing the tablet to be easily wall-mounted for docked, offering flexibility in placement and ease of use for hotel staff and guests.

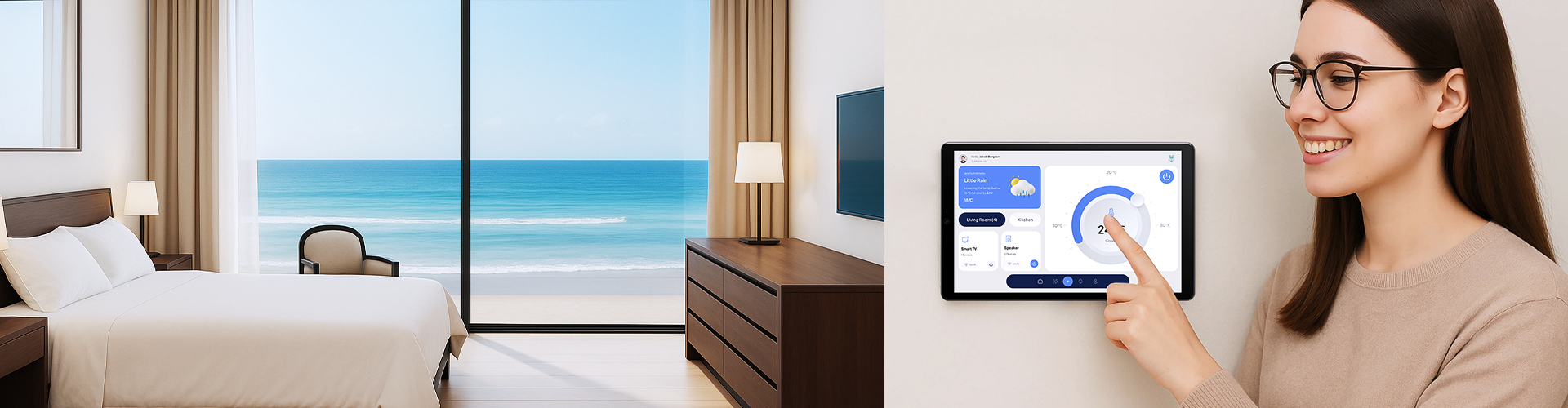

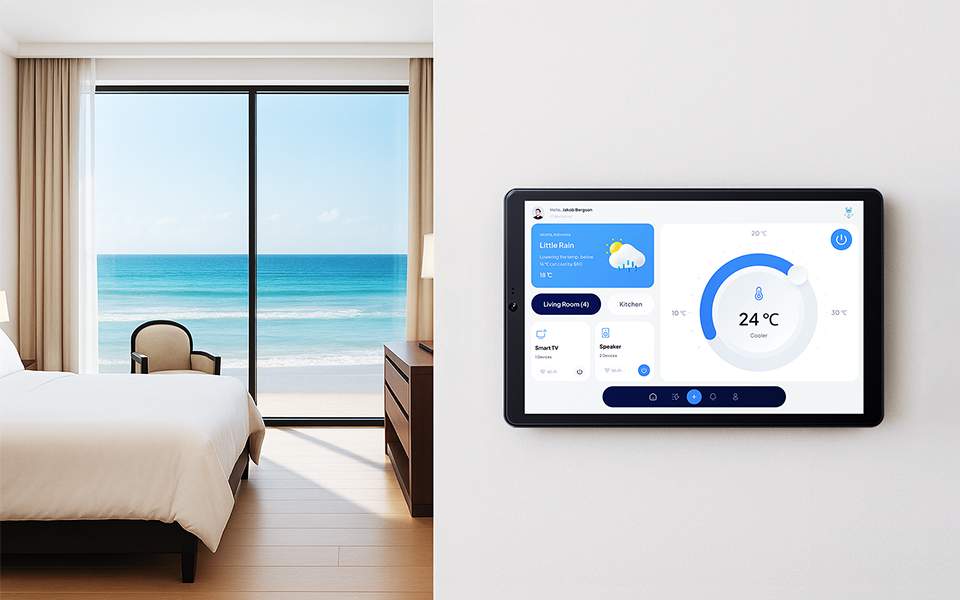

Other Features Supported by Pretech's Premium Hotel Tablet Hardware
By integrating cuting-edge tablet technolgy, hotels can significantly enhance the overall guest experience, offering more personalized servicesseamless communication, and a higher level of convenience throughout their stay.
POE Tablets: Versatile Smart Devices for Diverse Applications
POE Tablets: Versatile Smart Devices for Diverse Applications
Empowering smart solutions across a wide range of scenarios, from smart homes to industrial automation, POE (Power over Ethernet) tablets are highly versatile and can be deployed in various locations. They offer robust capabilities for remote control, information display, and intelligent automation, making them a valuable tool in numerous applications.

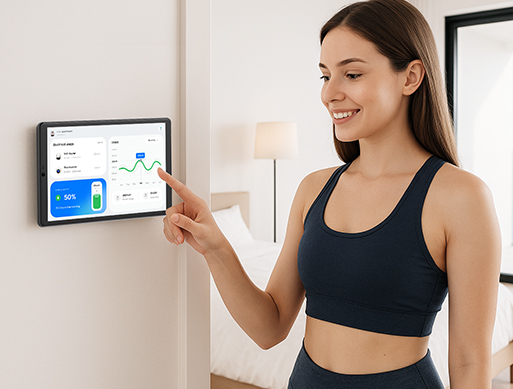

  • Smart Home Control
    Smart Home Control
    POE tablets can serve as the control center for smart home systems, allowing users to manage lighting, temperature, security systems, and more.

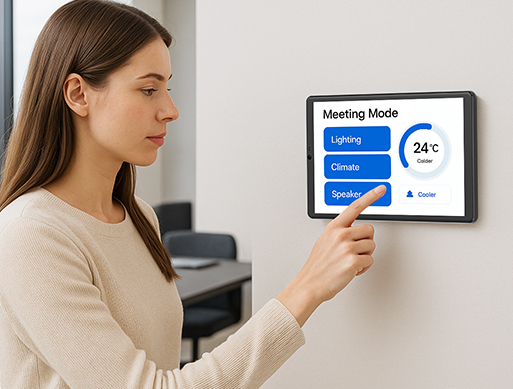

  • Commercial Automation
    Commercial Automation
    In commercial settings such as offices, shops, or restaurants, POE tablets can be used to control lighting, sound systems, security devices, and more.
  • Healthcare
    Healthcare
    POE tablets can be used in hospitals, medical clinics, or patient rooms for patient monitoring, medical equipment control, and medical record access.
  • Education
    Education
    Schools and universities can use POE tablets for classroom control, interactive learning, and digital education.

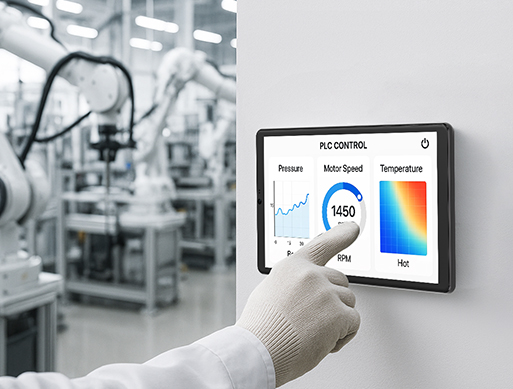

  • Industrial Automation
    Industrial Automation
    POE tablets can be used to monitor and control factory equipment, robots, and production processes.

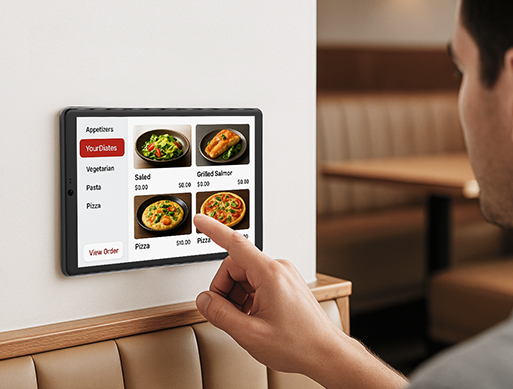

  • Hospitality and Food Service
    Hospitality and Food Service
    Hotels and restaurants can use POE tablets to provide services, entertainment, and ordering functions in guest rooms and dining areas.
  • Public Transportation
    Public Transportation
    Buses, trains, and airports can use POE tablets to provide information, navigation, and entertainment functions.
  • Digital Signage
    Digital Signage
    POE tablets can be used for digital signage to display advertisements, information, and real-time data.
  • Security Monitoring
    Security Monitoring
    POE tablets can be used in security monitoring systems, including access control, video surveillance, and alarm systems.

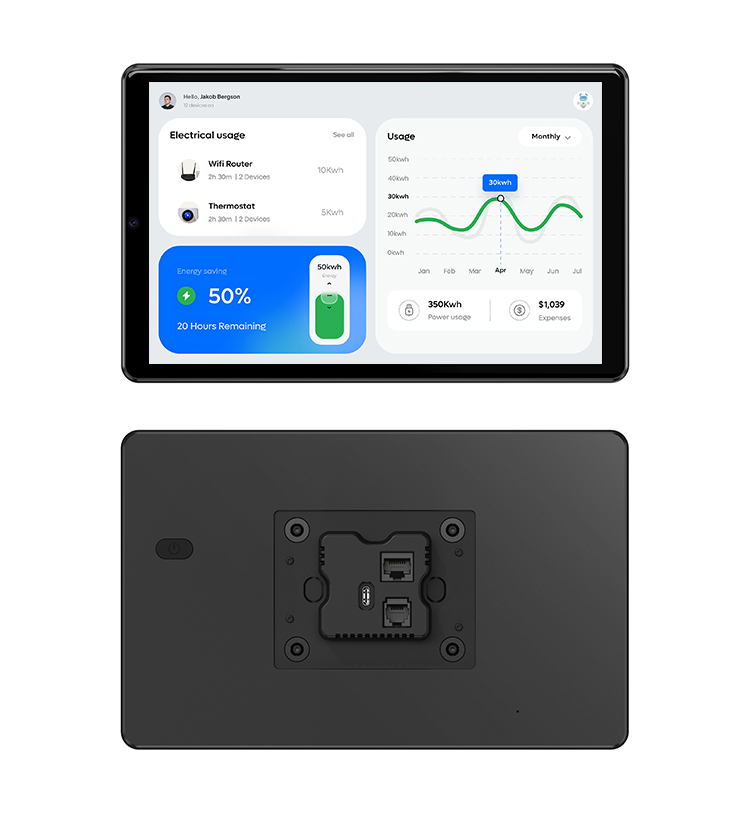

10.1-inch POE Tablet PC

Advanced IOT Solution for Smart Control
  • 10.1-inch POE Tablet PC Advanced IOT Solution for Smart IOT Control Solution 10.1-inch FHD 1920 x 1200 display with G+F+F technology for clear and vibrant visuals.
    Display Size
    10.1-inch FHD 1920 x 1200 display with G+F+F technology for clear and vibrant visuals.
  • 10.1-inch POE Tablet PC Advanced IOT Solution for Smart IOT Control Solution Supports POE, RJ12, and USB-C for flexible power and data connectivity.
    Connectivity Options
    Supports POE, RJ12, and USB-C for flexible power and data connectivity.
  • 10.1-inch POE Tablet PC Advanced IOT Solution for Smart IOT Control Solution Equipped with dual speakers and sensors for humidity, temperature, and gravity detection.
    Audio and Sensors
    Equipped with dual speakers and sensors for humidity, temperature, and gravity detection.

What we do

We offer ODM solutions for certain customers who have specific needs which can’t be satisfied by existing devices on the market.
  • Tooling
    ID Design
    MD Design
  • Software
    Drive Debugging
    System Customization
    Debug Pre-installed applications
  • Hardware
    Schematic Diagrams Design
    PCB Layout
    Specific components design
    Bill of Materials output
    Gerber Files
    RF Design and Verification
    Assembly Drawings
    Test Specifications output
  • Accessories
    Smart Cover
    Docking Charging Station
    Charging Bracket/Dock
    Magnetic BackClip
    Wall Mount
    Stylus Pen
    And more

How we do

We offer ODM solutions for certain customers who have specific needs which can’t be satisfied by existing devices on the market.
  • 01 Planning
    Market Survey
    Requirements Collection
    Competitiveness Analysis
    Technology Study
    Risk Analysis
    Component Life Cycle Survey
    Cost Evaluation
  • 02 Desgin
    ID Design
    MD Design
    Hardware
    OS
  • 03 Validation
    Trial Samples
    Software Customization
    Performance Tests
    Reliability Tests
    EVT
    DVT
    Certifications
  • 04 Integration
    Assembly Study and SOP
    Pilot Run Production
    Testing Process Study and SOP
    Field Test/Feedbacks
    Improvements
  • 05 Production
    Pilot Run Production
    Mass Production
  • 06 After Service
    Global Warranty
    Extended Warranty Service
    Online Service

Specification

  • CPU
    MT8768 4 x Arm Cortex-A53, 2.0 GHz +4 x Arm Cortex-A53, 1.5 GHz
  • OS
    Android 14 Google GMSA
  • Screen
    10.1" FHD 1920 x 1200 G+FF
  • RAM
    4GB
  • Storage
    64GB
  • Camera
    Option
  • Battery
    NA
  • Wi-Fi/Bluetooth
    WIFI ac a/b/g/n, BT5.0,
  • Support
    Support 50CM distance sense wake up;
    Temperature and humidity sensor;
    Gravity sensor;
  • LTE
    NA

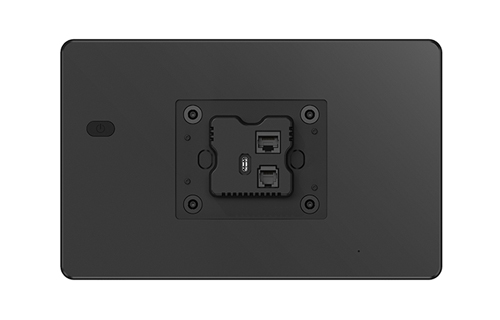

  • I/O
    RJ45: PoE Power Supply 48V~53V + Ethernet;
    RJ12: RS485 + Power Supply 12V~24V; (With a standard RJ45 network cable, you can also access the Ethernet network)
    USB TYPE C: (If there is no PoE, and only RJ45 carries the network, you can use a TYPE C + RJ45 interface to use simultaneously);
  • Dimensions
    243 x 152 x 10mm
  • Weight
    548g

FAQs

  • Hardware
  • Software
  • Others
Hardware

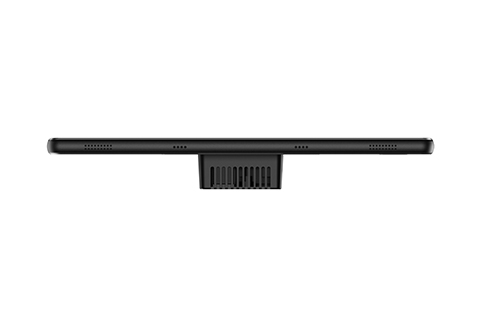

  • What are the dimensions of the part that 'sticks out' where the PoE connector is on the 10.1-inch POE tablets?
    The dimensions of the part that 'sticks out' where the PoE connector is on the 10.1-inch POE tablets vary by region: US style is 56mm×49mm×26mm with holes in the metal plate at 83mm; EU style is 54mm×52mm×22mm with holes in the metal plate at 60mm.
  • Does the Ethernet cable on the 10.1-inch POE tablets work when powered by USB?
    Yes, the Ethernet on the 10.1-inch POE tablets works when powered by USB. Go to Settings->Display->Select "OTG mode switch". "OTG mode switch" is defaulted off in general software; if changed to 'on', Ethernet will work simultaneously when USB is powered.
  • What is the required input current for a 12VDC power supply if the 10.1-inch POE tablets use an RJ12 port for charging?
    The required input current for a 12VDC power supply for the 10.1-inch POE tablets is 12V 1A, ≥1A.
  • What are the practical applications of the millimeter-level radar on the 10.1-inch POE tablet?
    The millimeter-level radar on the 10.1-inch POE tablet is ideal for applications requiring precise motion detection and distance measurement, such as industrial automation, smart home security, and traffic monitoring systems.
  • How does the optional Zigbee functionality enhance the connectivity of the 10.1-inch POE tablet?
    The optional Zigbee functionality on the 10.1-inch POE tablet enhances its connectivity by allowing it to communicate with a wide range of low-power, low-data rate devices, making it suitable for smart home automation and industrial IoT applications.
  • What are the benefits of the optional NFC functionality on the 10.1-inch POE tablet for retail environments?
    The optional NFC functionality on the 10.1-inch POE tablet enables fast and secure contactless payments and seamless interactions with NFC-enabled devices, improving customer experience and operational efficiency in retail environments.
Software
  • Can the 10.1-inch POE tablets connect using ADB commands and support ADB over TCP out of the box?
    Yes, the 10.1-inch POE tablets will achieve these two requirements in bulk order software.
  • Do the 10.1-inch POE tablets support firmware OTA updates?
    Yes, the 10.1-inch POE tablets support OTA update service.
  • Do the 10.1-inch POE tablets support Kiosk mode?
    Yes, the 10.1-inch POE tablets support Kiosk mode. We have two ways to achieve this:
    1) MDM APK - Please inform us what permissions your MDM requires, and we can check whether we can provide the necessary permissions/rights for access.
    2) OS - Send us the APK, and we will integrate it into our OS to set the APK as the default launcher in bulk orders. We will set the client's APK as the default launcher, and the device will only run its APK.
  • Can the 10.1-inch POE tablets add a splash screen on startup?
    Yes, the 10.1-inch POE tablets support adding a splash screen on startup in bulk orders. The logo will be displayed when the device is initialized. Customized software includes boot animation, default language, timezone, wallpaper, preinstall APK, default launcher, etc.
  • Do the 10.1-inch POE tablets provide a screen dimming API?
    Yes, the 10.1-inch POE tablets will provide an API for you to control the brightness from 0% to 100% in bulk orders.
  • Can the 10.1-inch POE tablets provide permission to read CPU temperature information?
    Yes, the 10.1-inch POE tablets will provide permission to read CPU temperature information in bulk orders.
  • Does the speaker sound and control (microphone) function properly on the 10.1-inch POE tablets?
    The 10.1-inch POE tablets come with a speaker in hardware by default, but due to the designed software, the speaker does not work. We can enable the speaker function in software in bulk orders.
  • Do the 10.1-inch POE tablets have complete motion sensor/proximity sensor capabilities?
    The 10.1-inch POE tablets support a proximity sensor with a 450mm detection range, which is currently controlled by the client's app. We can open permissions for them to control it. The screen will turn on automatically when someone approaches.
