| OS | Android 11 |
| SOC | RK3568, 4 x Cortex-A55, 2.0GHz, 22nm ARM G52 2EE, 0.8 TOPS NPU |
| RAM | LPDDR4 2G/3G/4G/6G/8G |
| ROM | EMMC5.1 8GB/16G/32G/64G/128G |
| Media | 4K 60fps H.265/H.264/VP9 decode 1080P 100fps H.265/H.264 codec |
| Display | MIPI-DSI display port, 4-Lane eDP1.3 display port, FHD Dual-LVDS display port, 8bit,FHD HDMI2.0 Type-A port (up to 4Kp60 supported) Support Dual Display |
| Ethernet | Gigabit Ethernet port (supports PoE with add-on PoE HAT) |
| Connectivity | WiFi4 802.11b/g/n or 802.11a/b/g/n/ac, Bluetooth 4.2 or 5.0 |
| USB | USB3.0 x 1 (Type A) OTG USB3.0 x 1 (Type A) USB2.0 x 4 4Pin-ph2.0 |
| TF-Card | Micro SD card, up to 128GB |
| Audio | Spearker: 10W x 2 or 3W x 2 Stereo Headset: 3.5mm Earphone Mic: MIC Input |
| Interface | 1 x ADC key 2 x uart 1 x uart/RS232/RS485 1 x I2C 2 x LED + 1 x IR 1 x uart/RS232 4 x GPIO 1 x PDM |
| Input Power | DC5.5mm 12V/2-5A Power over Ethernet (requires separate PoE HAT) |

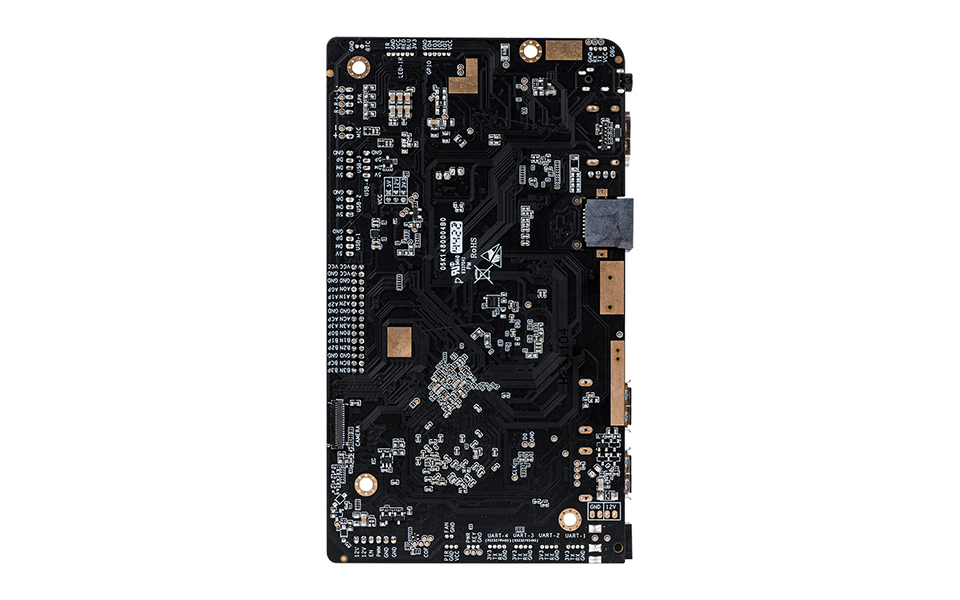

| PCB | Size: 80 x 142 x 1.6mm Process: 6-layers Immersion Gold Hole: ∮3.5mm x 4 |
